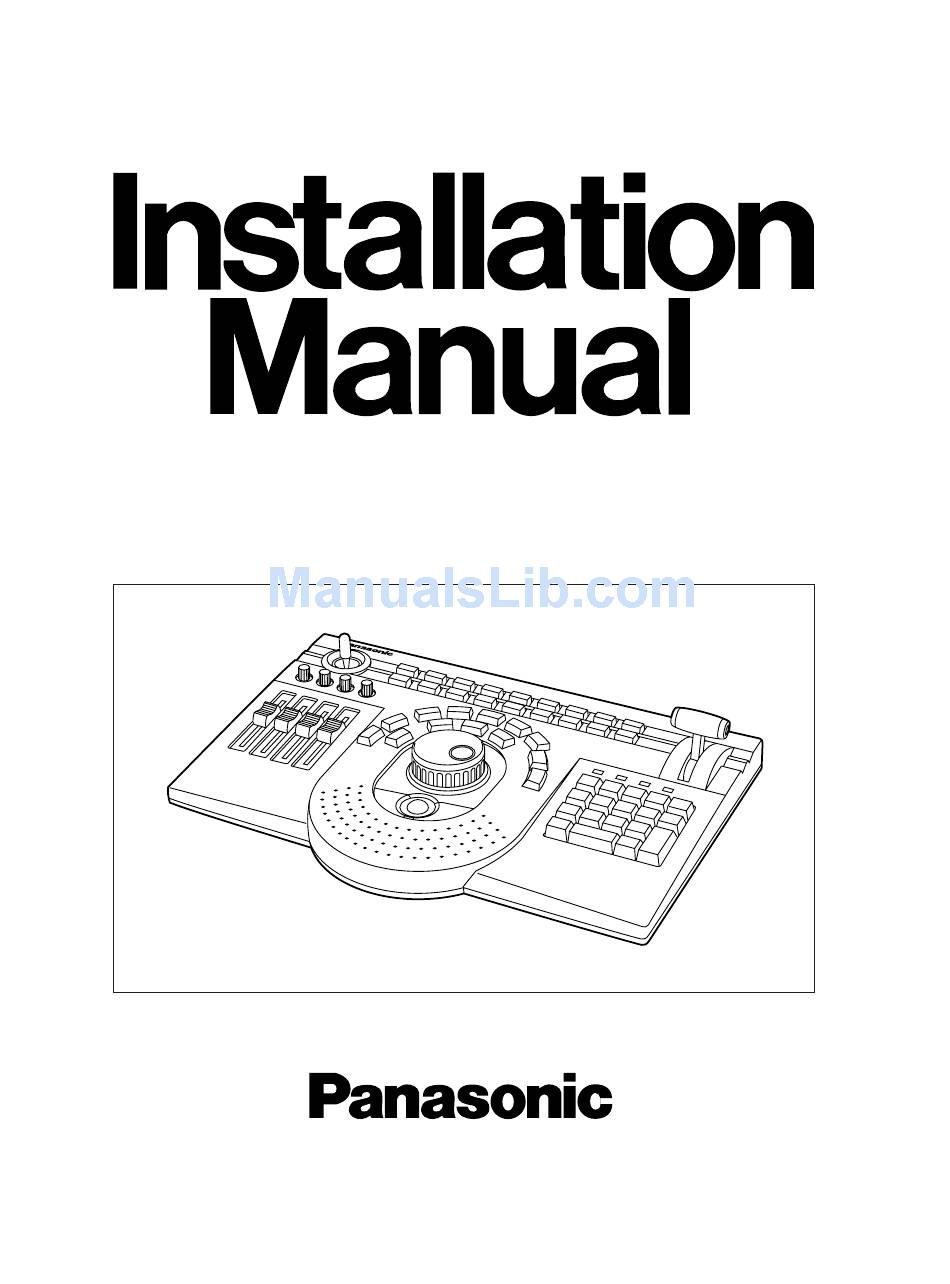

- Page 1 Professional Jog Pad AY-JP2000 ® Before attempting to connect or operate this product, please read these instructions completely...
-
Page 2: Table Of Contents
The exclamation point within an equi- event of theft. lateral triangle is intended to alert the user to the presence of important Model No. AY-JP2000 operating and maintenance (servicing) instructions in the literature accompa- Serial No. nying the appliance. SA 1966 WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 3: Preface
PREFACE • The jog pad uses the keys and jog/shuttle dial, wipe • The rotary encoders enable the modify settings and lever, positioner and audio fader controls as well as the video level to be finely adjusted. number keys (0 to 9) for ensuring that non-linear editing •... -
Page 4: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS For further details on operation, refer to the operating instructions of the software program you are using. Operating panel Rear panel... - Page 5 Positioner DELETE/IMMED (BS) Used to set the key positions. Used to delete clips. With Record To Video, it switches to the immediate mode. Rotary encoders [R1 ~ R4] When it is pressed while “SHIFT” is held down, the Used to adjust the video levels and modify settings. two keys function as the backspace key.
- Page 6 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS USER Used to advance the tape in the external VCR frame Used to switch to the user mode. by frame (in the forward direction). In the user mode, the number keys perform the functions which have been allocated to them. Frequently used functions can be allocated to the Used to fast forward the tape in the external VCR.
-
Page 7: Accessory Cable
ACCESSORY CABLE Track Ball Cable Mini DIN 6-pin type Jogpad Mouse Connector Mini DIN 6-pin type Mouse Connector on Main Unit... -
Page 8: Connections
CONNECTIONS Ask your dealer to do this. Connection with the AY-NE2000, WJ-MX1000 series or WJ-MX1200 series Plug one end of the jog pad connecting cable (accessory supplied with the AY-NE2000, WJ-MX1000 series and WJ-MX1200 series) into the connector on the rear panel of the jog pad and the other end into the JOGPAD connector on the rear panel of the main unit, and then tighten the screws. - Page 9 Connection with DVEdit Connect one end of the VCR/JOGPAD cable (accessory supplied with the AY-RP500) into the JOGPAD connector (mini DIN 8-pin) on the JOG board and the other end into the connector (D-sub 9-pin) on the rear panel of the jog pad. Tighten the screws on the parts connected to the rear panel of the jog pad.
-
Page 10: Installing The Software
INSTALLING THE SOFTWARE Ask your dealer to do this. Install the accessory upgrade software program only if the main unit used is the AY-NE2000, WJ-MX1000 series or WJ-MX1200 series. There is no need to install it if the DVEdit is to be used. Before installing this upgrade, make sure that V4.0 or above of the software is installed. -
Page 11: Specifications
SPECIFICATIONS Power supply: DC 5V, 110mA (maximum) DC –12V 10mA (maximum) Ambient temperature range: 32°F to 95°F (0°C to 35°C) Ambient humidity range: 10% to 90% Weight: Approx. 4.85 lbs. (2.2 kg) ACCESSORIES Trackball Cable..............1 Upgraded Software (Floppy disks) (For AY-AS2000, WJ-AS1200A, or WJ-SU1000D V4.0/V4.1 Software) - Page 12 Executive Office: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323)436-3500 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201)348-7621 Mid-Atlantic: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201)348-7621 Southeast Region: 1225 Northbrook Parkway, Ste 1-160 Suwanee, GA 30024...
