Summary of Contents for Philips 95242A
-
Page 2: Strand Lighting Offices
Fax: + 852 2757 1767 The material in this manual is for information purposes only and is subject to change without notice. Philips Strand Lighting assumes no responsibility for any errors or omissions which may appear in this manual. For comments and suggestions regarding corrections and/or updates to this manual, please visit the Philips Strand Lighting web site at www.strandlighting.com or contact your nearest Philips Strand Lighting office. -
Page 3: Important Information
Philips Strand Lighting Limited Two-Year Warranty Philips Strand Lighting offers a two-year limited warranty of its products against defects in materials or workmanship from the date of delivery. A copy of Philips Strand Lighting two-year limited warranty containing specific terms and conditions can be obtained from the Philips Strand Lighting web site at www.strandlighting.com... -
Page 4: Table Of Contents
Installation & User’s Manual TABLE OF CONTENTS Strand Lighting Offices ....................... Inside Front Cover IMPORTANT INFORMATION Warnings and Notices............................1 Philips Strand Lighting Limited Two-Year Warranty..................1 TABLE OF CONTENTS PREFACE About this Manual ..............................3 Product Descriptions............................... 3 Vision.net Touchscreens Overview......................... 3 Wall Touchscreens ............................ -
Page 5: Preface

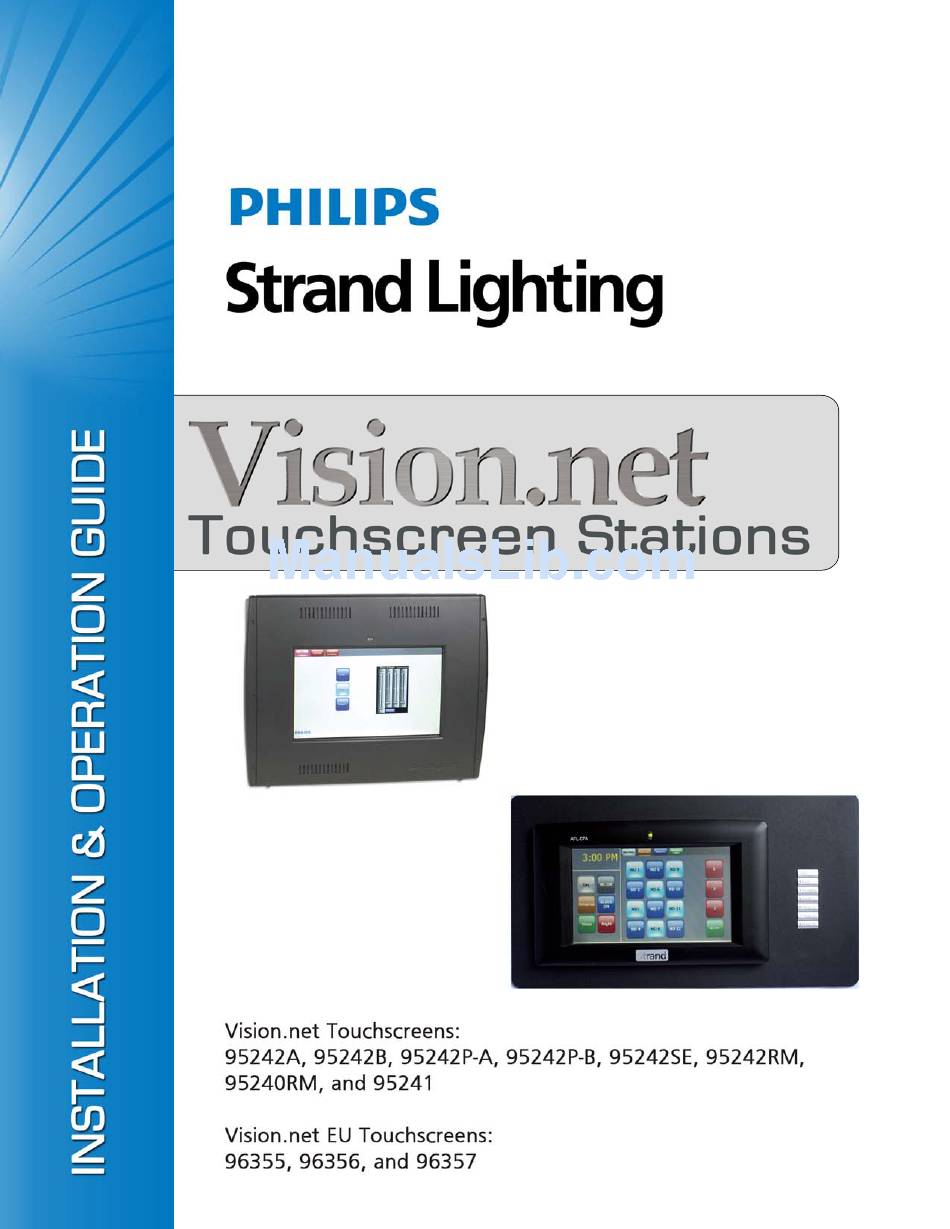

PREFACE 1. About this Manual The document provides installation and operation instructions for the following products: • Vision.net Touchscreens: (catalog numbers: 95242A, 95242B, 95242P-A, 95242P-B, 95242SE, 95242RM, 95240RM, and 95241) • Vision.net EU Touchscreens: (catalog numbers: 96355, 96356, and 96357) Please read all instructions before installing or using this product. -
Page 6: Vision.net Eu (European) Touchscreens

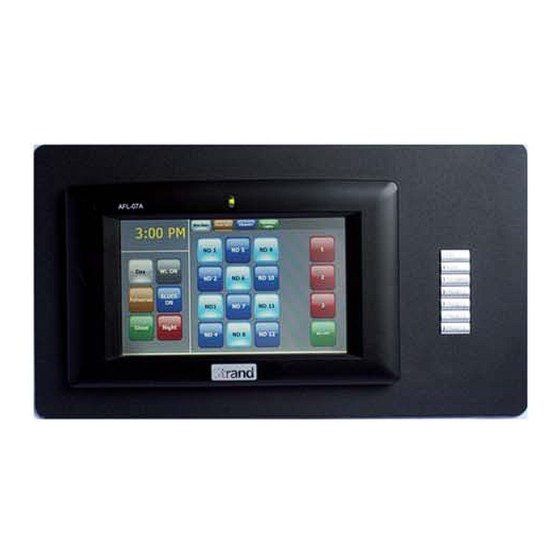

Vision.net Touchscreens Installation & User’s Manual Vision.net EU (European) Touchscreens Vision.net EU touchscreens are available in a wired 7 inch touchscreen with an attached 8 button station that is permanently mounted in a wall or in an equipment rack. There is also a 15 inch model available. Figure 2: European 7 Inch Vision.net Touchscreen in Black with 8 Buttons Note: Additional product information and descriptions may be downloaded at www.strandlighting.com. -
Page 7: Vision.net Touchscreen Overview
Vision.net Touchscreens Installation & User’s Manual VISION.NET TOUCHSCREEN OVERVIEW 1. Vision.net Touchscreen Components Overview LED Power Indicator Bezel LED Power Indicator Integrated 8-Button Station Bezel Standard 7 Inch Vision.net Touchscreen European 7 Inch Vision.net Touchscreen with 8 Buttons Touchscreen Connections USB Ports (2) Touchscreen Reset Button... -
Page 8: Installation And Set Up Power Requirements
Vision.net Touchscreens Installation & User’s Manual INSTALLATION AND SET UP 1. Power Requirements The Vision.net Touchscreen operates on 27VDC. It is powered through the Touchscreen Control PCB (pre- installed on the back of the touchscreen) via an external AC to DC power supply. 2. - Page 9 Vision.net Touchscreens Installation & User’s Manual Note: The external power supply must be mounted within 500 feet (150 meters) of the touchscreen. Two #14 AWG conductors must be used. Step 3. Connect power cable from 27VDC input connector on touchscreen to 3 pin connector on Touchscreen Control PCB.
- Page 10 Vision.net Touchscreens Installation & User’s Manual Note: Exploded view shown for clarity. Vision.net Network (see connection chart) Touchscreen Control PCB 27VDC Power +27VDC Output Input (to touchscreen) Power Cable (Black [Pin2] and Black with White Stripe [Pin 1]) Touchscreen Table 1: Vision.net Wiring Connections* Signal Color RX +...
-
Page 11: Network Connections
Vision.net Touchscreens Installation & User’s Manual Network Connections Once the wiring is terminated to the Touchscreen Control PCB, proceed to connecting the touchscreen itself. There are two connection options: 1) Connect the network cable from the RJ-45 port on the touchscreen to “Ethernet out” RJ-45 port on Touchscreen Control PCB as shown in Figure 7. -
Page 12: Operation
To create a Vision.net Touchscreen: Note: Before proceeding, contact Strand Lighting technical support via phone at 1.214.647.7880 or 1.800.4.STRAND or via e-mail at entertainment.service@philips.com for system files. Step 1. Load system files obtained from Strand Lighting technical support onto a USB key. - Page 13 Vision.net Touchscreens Installation & User’s Manual Touchscreen Type Device Name Portable TS-P-xxx 7 (non-Aaeon) & 10 Inch TS-I-xxx 3.5 Inch TS-D-xxx 15 Inch (iEi only) TS-C-xxx 15 Inch (Aaeon only) TS-B*-xxx 7 Inch (Aaeon only) TS-A*-xxx Table 3: Touchscreen Device Names Note: "-xxx"...
-
Page 14: Vision.net Designer Software Installation On A Strand Lighting Vision.net Touchscreen
Vision.net Touchscreens Installation & User’s Manual 2. Vision.net Designer software installation on a Strand Lighting Vision.net touchscreen: Note: For this procedure, you will need the latest Vision.net Designer software. The latest version of this software can be downloaded from the Strand website at www.strandlighting.com. Also, you will need to have an empty USB key in order to move the required files from a Windows-based computer to the Strand Lighting Vision.net touchscreen. -
Page 15: Cleaning And Care Instructions
Should the unit become dirty, disconnect from power supply, and clean unit using a lint-free cleaning cloth. f you have any questions regarding the use or care of your Vision.net Touchscreen Stations, please contact Philips Strand Lighting technical support or your local Authorized Dealer. -
Page 16: Technical Specifications
Safety / EMI: UL, FCC, CB, CCC, CE (per OEM) Note: For specific and complete model specifications, features, etc., refer to the product specification sheet or visit the Philips Strand Lighting web site at www.strandlighting.com for more details. Standard 7 Inch Vision.net Touchscreen European 7 Inch Vision.net... - Page 17 Vision.net Touchscreens Installation & User’s Manual NOTES Vision.net Touchscreen Common Specifications...
