- Page 1 User manual UFX 314 data bus de-multiplexer (BN 20610071)
-
Page 2: Table Of Contents
Contents General Features Mechanical layout Rear view Front view Status LEDs Installation Installation Network confi guration USB installation 3.4.1 Microsoft Windows 3.4.2 Linux Software Update Web interface The main page 5.1.1 The device group box 5.1.2 The system group box Log page Status page Update page... -
Page 3: General

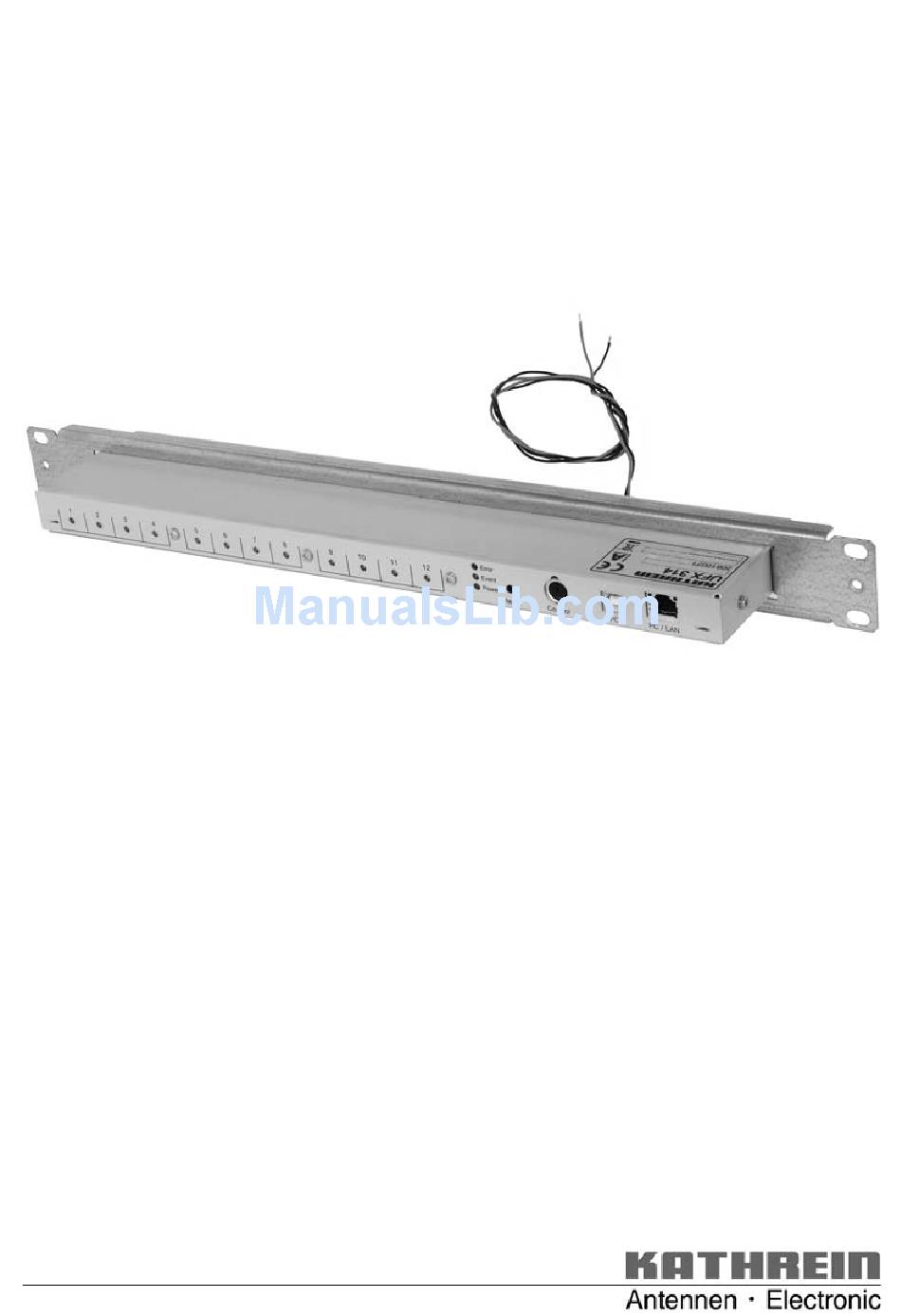

General The UFX 314 data bus de-multiplexer (BN 20610071) is used for the central control of all channel units installed in a UFG 412 base unit. Each channel unit is connected using a separate cable. Several demultiplexers can be con- nected to a system over a network. -
Page 4: Mechanical Layout
2. Mechanical layout The points are described in the plan view from left to right. 2.1 Rear view Redundant Power System Expansion connection for monitoring a redundant power supply, currently has no function Modem USB port for connecting a modem (see section 6) or a USB stick Power Power connection 12.5 V/approx. -
Page 5: Installation
3. Installation 3.1 Installation The demultiplexer is installed in the 1 HU fan unit that is mounted above the base unit. For this purpose the following steps are required: Fit the UFX 314 into the 19” front panel (1 HU) supplied Remove the pre-assembled blanking plate Connect straight connectors on connecting cables to the demultiplexer (mini-DIN sockets 1 ... -
Page 7: Ufo ® Compact Controller
Connect the power cable for the UFX 314 to the screw terminals in the power supply for the base unit 3.2 UFO ® compact controller ® The UFO compact controller can be connected to any of the demultiplexers. However, it is to be noted that the controller only operates with the demultiplexers that belong to the same group to which it is connected. -
Page 8: Usb Installation
3.4 USB installation 3.4.1 Microsoft Windows You will fi nd the driver for the connection of a PC using USB on the USW 30 control software CD (not included). To install the driver, you will need administrator permissions on the PC. The installation is described based on the English version of Windows XP. - Page 9 Important note: The warning message (network symbol with an exclamation point on the task bar) can be ignored in this case. This warning only means that Windows has assigned an automatically determined confi guration (“Zeroconf”) to the network connection, and therefore may be the reason why there is no connection to the Internet or to other network resources. It is, however, possible to activate the UFX 314 via USB without any restrictions, as long as the the mode “Zeroconf”...
- Page 10 Click “Properties”. Select “Internet Protocol (TCP/IP)” and then click “Properties”.
-
Page 11: Linux
For an update using a USB stick, you will need the actual update archive. You can extract the update archive from the Kathrein update bundle using a ZIP application; then save the update archive on a USB stick. The name of the fi le on the stick must start with “UFX314_” and have the same ending as the fi... -
Page 12: Web Interface
5. Web interface Every UFX 314 has a web interface that can be reached by entering the IP address for the demultiplexer in a web browser. You can determine the address using USW 30 or KUBdate. 5.1 The main page The main page is divided into two areas, at the top the serial number, IP address and other links for the demultiplexer and below a list of all demultiplexers found, sorted by groups. -
Page 13: Status Page
On this page you can update the device's software. Normally the software is updated using the application KUBdate. You can extract the update archive from the Kathrein update bundle using a ZIP application; then upload it using this page. Should the bundle contain several archives, the fi le "bundle_info.xml" will provide information on which archive is for which hardware. - Page 14 Select here “Connect to the Internet” and then click “Next”. Now select “Set up my connection manually”. After selecting “Connect using a dial-up modem”, use “Next” to open the dialog box for the connection's name.
- Page 15 Enter a meaningful name for the connection to this demultiplexer as the name for the Internet service provider. Enter here the telephone number to which the demultiplexer is connected. Enter here the same user name and password as you have set using USW 30. A check mark must also be set at “Make this the default Internet connection”.
- Page 16 The “New Connection Wizard” is completed with this dialog box. If you want, you can select “Add a shortcut to this connection to my desktop” to be able to make the connection in future directly from the desktop. Otherwise, you will fi nd the connection in the network connections where you have just opened the wizard.
- Page 17 If you are using an ISDN modem, click “Confi gure”. Otherwise select the “Security” tab. With an ISDN modem you must change the “Modem protocol” setting to “V.120 (64k)”. After accepting your changes using “OK”, select the “Security” tab.
- Page 18 If “Show terminal window” or “Run script” is selected, clear the selection. Click “Advanced” and then click “Settings” to change the advanced security settings. In this dialog box, select as “Data encryption” “No encryption allowed” and then “Allow these protocols”. Only “Unencrypted password”...
-
Page 19: Setting Up In Linux
6.2 Setting up in Linux It is recommended to use a terminal program with a graphic interface such as KPPP. It should be noted that all modems currently available with a USB interface have been primarily developed for Windows and they may therefore be diffi... - Page 20 Select the “Accounts” tab and click “New ...”. Select “Manual Setup” at the prompt. Enter a meaningful name for your connection in the “Connection name” box. Click “Add ...” to open a dialog box for entering the demultiplexer's telephone number. On the other tabs you can leave all the default settings.
- Page 21 Select the “Modems” tab and click “New ...”. Assign a name to your modem and select the appropriate connection in “Modem device”. Ensure the speed is not too high. On the “Modem” tab you can poll the modem to check whether you have selected the right connection and an appropriate speed.
-
Page 22: Open Source
7. Open Source This product contains software components that are covered by open source licences. These licences give you additional rights. 7.1 Open source applications and libraries included Name Version Linux Kernel 2.6.22.1 Das U-Boot 1.1.4 Bridge utils Busybox 1.2.1 betaftpd 0.0.8pre17 libstdc++... - Page 23 (http://www.cmu.edu/computing/).” 7.4 Contact address If you have any questions related to the open source software included, or to order the source code, contact the following address: KATHREIN-Werke KG Abteilung Software-Entwicklung (EM) Anton-Kathrein-Straße 1-3 P.O. Box 100 444 83004 Rosenheim / Germany...
