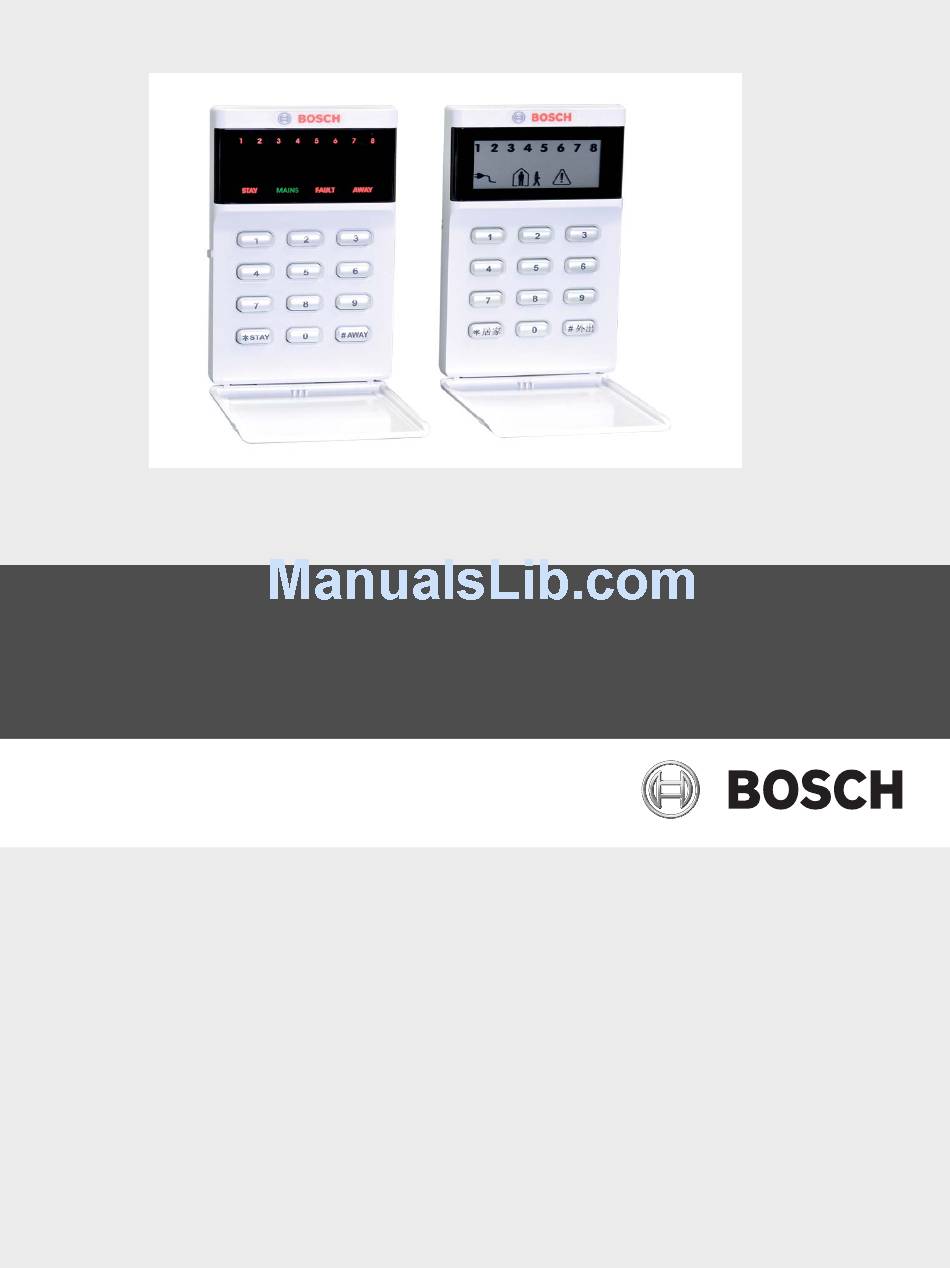

- Page 1 AMAX panel 2000 / AMAX panel 2000 EN F.01U.249.500 User Guide...
-
Page 3: Table Of Contents
AMAX panel 2000 / AMAX panel 2000 EN Table of Contents | en Table of Contents Introduction Arming and Disarming the System Arming the System 2.1.1 Arming in AWAY mode 2.1.2 Arming in STAY mode 2.1.3 Forced arming Disarming the System 2.2.1... -
Page 4: Introduction

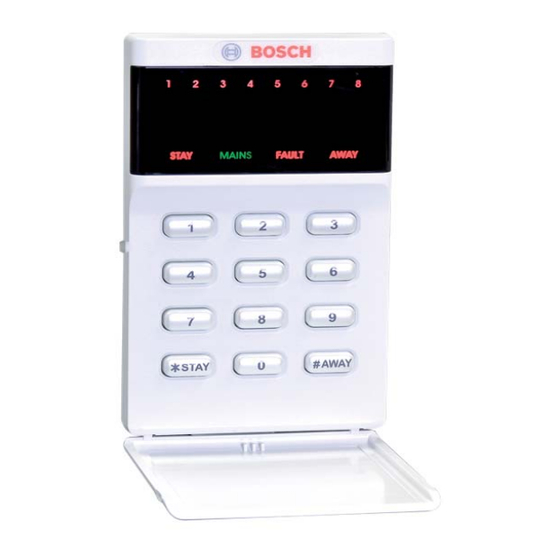

| Introduction AMAX panel 2000 / AMAX panel 2000 EN Introduction ICP-AMAX - LED8-8 Zone LED Keypad ICP-AMAX-LCD8 - 8 Zone LCD Keypad Quick keypad operation instructions Arming AWAY arm [code] + [#] / [#] (quick arming) STAY arm... - Page 5 AMAX panel 2000 / AMAX panel 2000 EN Introduction | en Keypad Indicators LCD keypad LED keypad Status Definition indicator icons indicator lights Zone (1-8) Zone is triggered. Zone is normal. Fast flash (0.25 seconds lights on/ Zone was alarmed or is in alarm 1 2 3 ….
- Page 6 | Introduction AMAX panel 2000 / AMAX panel 2000 EN Keypad sounds Sound indicator Definition One short beep A keypad button has been pressed. One single one- The requested operation is refused. Incorrect operation signal. second beep Two short beeps The system accepted the code. The system executed the requested function.
- Page 7 AMAX panel 2000 / AMAX panel 2000 EN Introduction | en Zone description Zone 1 ______________________________________________________ Zone 2 ______________________________________________________ Zone 3 ______________________________________________________ Zone 4 ______________________________________________________ Zone 5 ______________________________________________________ Zone 6 ______________________________________________________ Zone 7 ______________________________________________________ Zone 8 ______________________________________________________ Exit Time ___________________________________________________ sec...
-
Page 8: Arming And Disarming The System
| Arming and Disarming the System AMAX panel 2000 / AMAX panel 2000 EN Arming and Disarming the System Arming the System NOTICE! When the number of incorrect code entries on the keypad reaches a specified number, the keypad will automatically lock for 180 seconds and alarm is reported.If the keypad is idle for 4 minutes, the system will automatically exit from any operational mode. -
Page 9: Arming In Stay Mode
AMAX panel 2000 / AMAX panel 2000 EN Arming and Disarming the System | en 2.1.1.4 Key switch arming Users can use a key switch to Arm and Disarm the system. When the Key switch is activated, the AWAY indicator flashes slow and exit time starts. After exit time, the AWAY indicator is lit. -
Page 10: Faults Or Tamper Conditions
| Faults or Tamper conditions AMAX panel 2000 / AMAX panel 2000 EN Faults or Tamper conditions Whenever a system fault or tamper condition occurs, the FAULT or MAINS indicator flashes and the keypad beeps. NOTICE! Operation can be carried out only in status. - Page 11 AMAX panel 2000 / AMAX panel 2000 EN Faults or Tamper conditions | en Accessory Modules Fail Keypad 1 fail Keypad 2 fail DX 3010 Fail B420/DX 4020 /-G Fail Power Faults AC Fault Fault Battery Aux Power Supply Fault...
-
Page 12: Walk Test Mode
| Walk test mode AMAX panel 2000 / AMAX panel 2000 EN Walk test mode This function allows code holders to test detection devices to ensure they are functioning correctly. Before activating Walk test Mode, bypass any zones that are not required for testing. -
Page 13: Event Memory Recall Mode
AMAX panel 2000 / AMAX panel 2000 EN Event Memory Recall mode | en Event Memory Recall mode This function allows you to playback the last 254 system events that occurred. Event Memory recall mode reports all alarms and each arming or disarming of the system and helps in troubleshooting system faults. -
Page 14: Reset The Control Panel
| Reset the Control Panel AMAX panel 2000 / AMAX panel 2000 EN Reset the Control Panel This function allows code holders to reset all Alarm Faults and Tamper conditions. Enter your code and then press [6] [#]. The keypad beeps twice and the signal is eliminated. -
Page 15: Bypassing
AMAX panel 2000 / AMAX panel 2000 EN Bypassing | en Bypassing Bypassing Zones By bypassing Zones, one or more zones are disabled for one arming cycle. After bypassing a zone, you can arm the system even when a zone is in alarm state. -
Page 16: Enable / Disable The Installers Code
| Enable / Disable the installers code AMAX panel 2000 / AMAX panel 2000 EN Enable / Disable the installers code This function allows user code holder to enable or disable the installer code. Installer can only perform actions when he is enabled by a user. -
Page 17: Change Individual Code
AMAX panel 2000 / AMAX panel 2000 EN Change individual code | en Change individual code This function allows user to change their individual code. How to change the code Enter your code and press [ 99] [#]. Two beeps sound and the STAY and AWAY indicators flash, and your user number is shown on the keypad. -
Page 18: Keypad Alarm Operation Commands
| Keypad alarm operation commands AMAX panel 2000 / AMAX panel 2000 EN Keypad alarm operation commands 10.1 Duress alarm A keypad duress alarm is used as a silent holdup alarm when 0 is added to the end of a valid Code used to disarm the system ( [code] + [0] + [#] ). -
Page 19: Domestic Dialing
AMAX panel 2000 / AMAX panel 2000 EN Domestic Dialing | en Domestic Dialing Domestic Dialing Alarm When the control panel is activated into zone tamper/zone alarm, it can dial the mobile phone or telephone number of a family member/friend. A maximum of one telephone number can be called through the control panel during an alarm. -
Page 20: Glossary
| Glossary AMAX panel 2000 / AMAX panel 2000 EN Glossary Alarm Event that is configured as an alarm. This is a particular situation (motion detected, doorbell rung, signal lost, etc.) that requires immediate attention. An alarm can include live video, playback video, an action plan, or a map. -
Page 21: Index
AMAX panel 2000 / AMAX panel 2000 EN Notes | en Notes Robert Bosch Engineering and Business Solutions Limited User Guide F.01U.249.500 | V2 | 2011.11... - Page 22 | Notes AMAX panel 2000 / AMAX panel 2000 EN F.01U.249.500 | V2 | 2011.11 User Guide Robert Bosch Engineering and Business Solutions Limited...
- Page 24 Robert Bosch Engineering and Business Solutions Limited 123, Industrial Layout, Hosur Road 560095 Bangalore India www.bosch.com © Robert Bosch Engineering and Business Solutions Limited, 2011...
