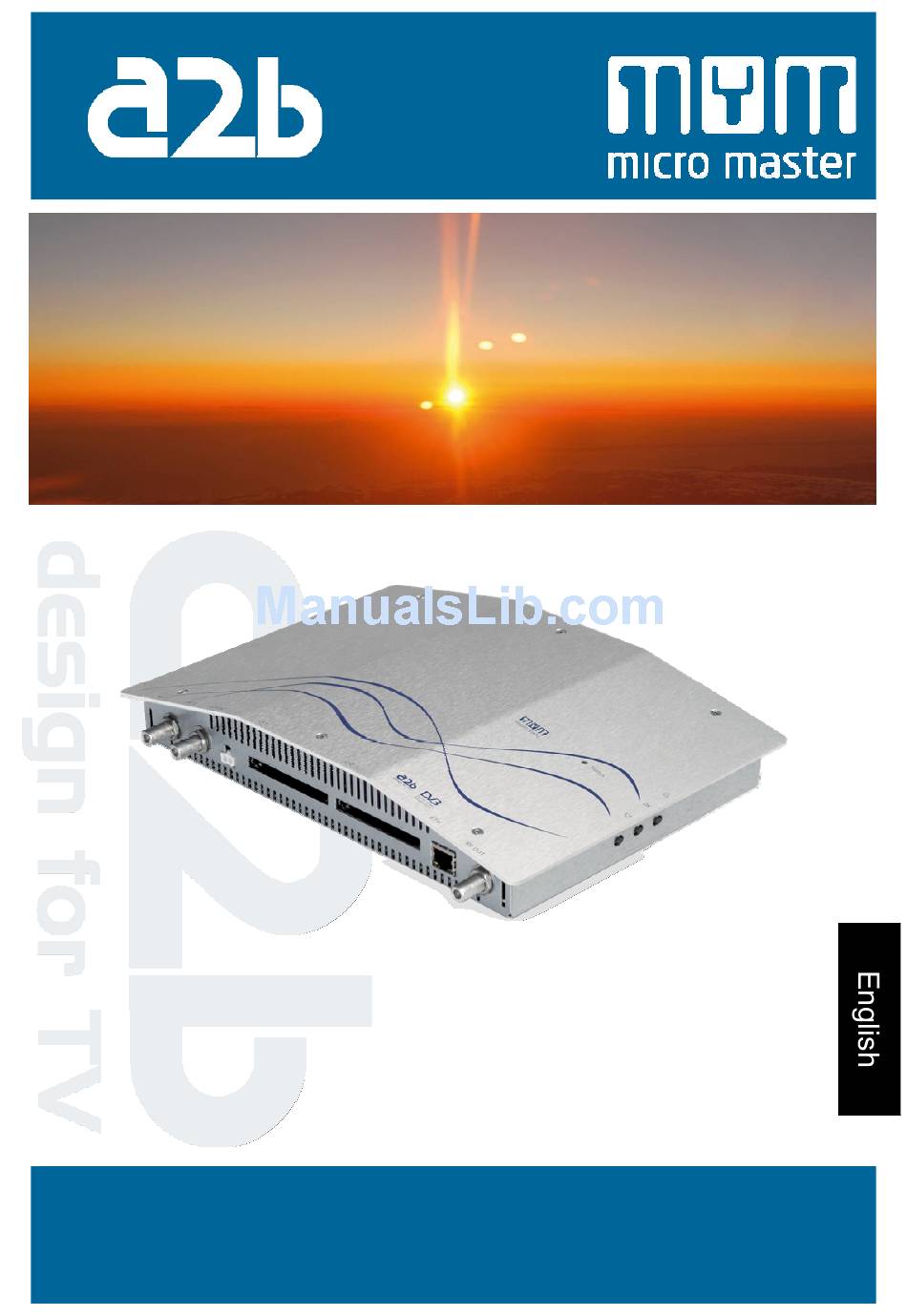

- Page 1 MyM-3S Micro Master Installation Guide design for TV...
-
Page 2: Table Of Contents
CONTENT 1. Introduction 2. Unpacking the unit 3. Connections and indications 4. IP settings 5. Menus and settings 5.1 Overview menu 5.2 Input settings 5.3 Output settings 5.4 Service management 5.5 CI menu 5.6 System options 6. Installation and Configuration examples 7. -
Page 3: Introduction
1 Introduction Thank you for purchasing an A2B Electronics product. The MyM-3S is a revolutionary solution for reception and modulation of satellite transmitted TV-content into an analogue format suited for small SMATV networks where cost efficiency and high quality is required. -
Page 4: Unpacking The Unit
2 Unpacking the unit The following items are included in the package: Amount Description MyM-3S Micro Master Installation guide Power supply 12 V Every unit is quality controlled by us before delivery. Should any items be missing when unpacking, please contact our support service (see page 3 for contact info). -
Page 5: Connections And Indications
3 Connections and indications 1. Satellite input 1 Connect one satellite (LNB) input here 2. Satellite input 2 Connect second satellite (LNB) input here 3. Power connector Connect the supplied power supply to this connector 4. Common Interface 1 Insert a Common Interface module into this slot (Supports decryption for Channel 1 and 2) 5. -
Page 6: Ip Settings
4 IP settings The MyM-3S has an embedded web server allowing standard web browsers (Internet Explorer, Firefox, Opera etc.) to connect to the unit for settings and management. No controller software is needed. The MyM- 3S has by default a static IP address for connecting your PC to the unit. - Page 7 4 IP settings (continued) Select [Use this IP adress] and write: 192.168.0.19 and select [Net mask] 255.255.255.0. Click [OK] and then click [Close]. For PC with other Operating Systems NOTE! (OS) than Windows, please consult the Owners manual for your PC for [IP/Network settings]. Connecting your PC to the MyM-3S Connect the MyM-3S to the supplied DC power supply.
-
Page 8: Menus And Settings
5 Menus and settings All necessary settings can be made in the web GUI via a web browser. When first connection is made with the MyM-3S following overview menu will appear. 5.1 Overview menu [Current settings] Contains information of current input and output signals, if the tuners are locked to a signal, firmware version, bootloader version, hardware revision, serial number... -
Page 9: Input Settings
5 Menus and settings (continued) 5.2 Input settings As the MyM-3S contains 2 separate tuners, start by selecting either [Tuner 1] or [Tuner 2]. Select the modulation type you want to receive. By selecting DVB-S2 you also can select between QPSK, 8PSK or 16 QAM. -
Page 10: Output Settings
5 Menus and settings (continued) 5.3 Output settings Modulation/ Band Start the output setup by selecting which band you want to use. You can select VHF-7, VHF- 8 and UHF. VHF-7 and VHF-8 corresponds to 7 and 8 MHz bandwidth. After selection press [Set]. - Page 11 5 Menus and settings (continued) 5.3 Output settings continued Auto conversion Converts subtitling to fit actual picture aspect ratio. Teletext Charset Select appropriate characters for selected language. Audio/ Audio language Select which language to receive and transmit on the outgoing programs. Audio level This setting allows to equalise the difference in sound level between different...
-
Page 12: Service Management
5 Menus and settings (continued) 5.4 Service Management The MyM-3S contains 2 separate DVB-S/S2 tuners and totally 3 services can be selected for each of output channels, named [CH-1], [CH-2] and [CH-3]. The list of services presents all received services from both tuner inputs. When one program (service) is selected, the box in front of the program name changes colour to green. -
Page 13: System Options
5 Menus and settings (continued) 5.6 System options Upload/Upgrade The Upgrade menu is used to be able to download software Upgrades or future software functionality. The procedure of downloading a new software looks as described below: 1.Download the appropriate file from our web page to your PC. -
Page 14: Installation And Configuration Examples
6 Installation and configuration The MyM-3S can be installed either as a stand alone unit directly on the wall or by the use of a dedicated MyM Security Wall Mount (part number 702800.10). The MyM Security Wall Mount secures both the MyM and CAM-modules with a locking function to avoid loss of CAM’s and smart cards in public places. -
Page 15: Technical Specification Mym-3S
7 Technical specification MYM-3S Miscellaneous 2 x DVB-S/S2 Satellite Receiver Input frequency 950 - 2150 MHz AC Power supply 230 VAC typ (94-264VAC) Symbol rate 1-45 Msymbols/s AC power consumption Typ. 18 W ex. LNB load Connectors Type F female, 75 Ω DC output power 12 VDC +/- 10% Input level... -
Page 16: Declaration Of Conformity
8 Declaration of Conformity The document for Declaration of Conformity is available for download from www.a2b.se. Further information at www.a2b.se. English... -
Page 17: Abbreviations
9 Abbreviations Digital Video Broadcasting (Standardization body) MPEG-2 Compression format for digital TV MPEG-4 Compression format for digital TV (SD and HD) Double Side Band (RF modulation occupying 2 channels) NICAM Digital sound format for analogue TV transmission Internet Protocol (defines how data is packetized for Internet broadcast) DVB-S Modulation format (QPSK) for satellite transmission of digital TV DVB-S2... - Page 18 Notes...
- Page 19 Notes...
- Page 20 A2B Electronics AB Södra Allén 23-25, 591 37 Motala P.O. Box 14, 591 21 Motala SWEDEN Phone +46 141 229100 Fax +46 141 229101 E-mail market@a2b.se 652813.01 rev A FW2.0 To view our full line of Professional Products, visit our Web site www.a2b.se...
