Power Amplifier - JVC RX-DP9VBK Instructions Manual

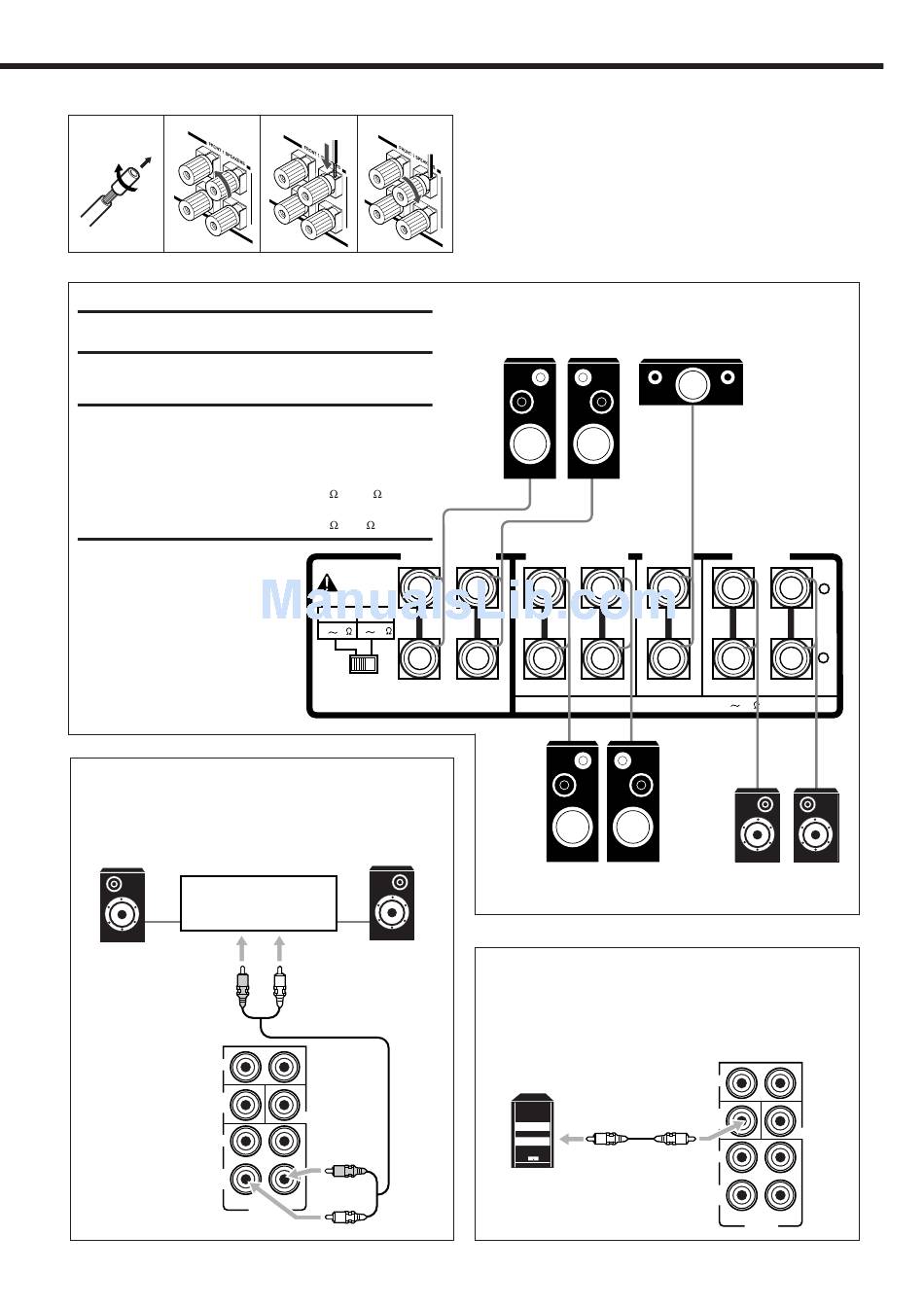

Basic connecting procedure
2
1
CAUTION:
Use only the speakers of the SPEAKER IMPEDANCE indicated
by the speaker terminals.
IMPORTANT for the FRONT 1 SPEAKERS
connection:
To obtain the best possible output power from the receiver, and
to prevent the receiver from being overheated, the receiver has
the SPEAKER LOAD SELECTOR which has to be set as
follows:
• Set it to the "HIGH" position when the impedance of the front
speakers connected is within the range of 8
• Set it to the "LOW" position when the impedance of the front
speakers connected is within the range of 4
Connecting the surround back speakers
To fully enjoy THX Surround (see page 39), you need to connect
the surround back speakers through an power amplifier
connected to the SURR BACK PREOUT jacks on the rear.

Power amplifier

Left surround
back speaker
FRONT
SUB
WOOFER
SURR
SURR
BACK
R
4
3
to 16 .
to 6 .
FRONT 1 SPEAKERS
CAUTION :
SPEAKER
IMPEDANCE
LOW HIGH
4 6 8 16
SPEAKER
RIGHT
LOAD SELECTOR
Right surround
back speaker
CENTER
L
PREOUT
1 Cut, twist and remove the insulation at the end of
each speaker signal cable (not supplied).
2 Turn the knob counterclockwise.
3 Insert the speaker signal cable.
4 Turn the knob clockwise.
Front speakers 1
FRONT 2 SPEAKERS
LEFT RIGHT LEFT
CAUTION : SPEAKER IMPEDANCE
Front speakers 2
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER PREOUT jack on the rear panel, using a cable
with RCA pin plugs (not supplied).
Powered
subwoofer
Center speaker
SURROUND
CENTER
SPEAKERS
SPEAKER
RIGHT LEFT
8 16
Surround speakers
FRONT
SUB
WOOFER
CENTER
SURR
SURR
BACK
R L
PREOUT
+
–
8
