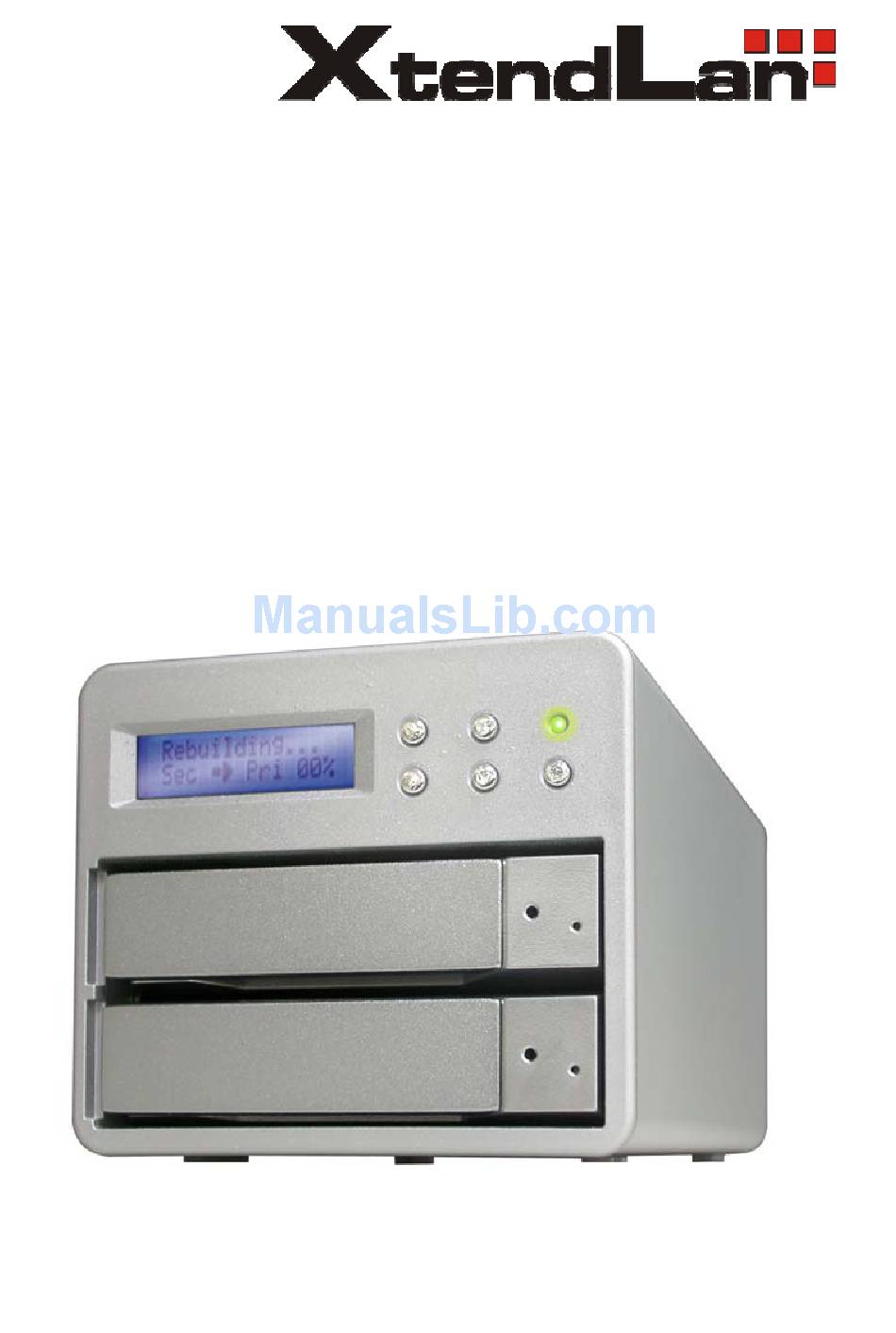

- Page 1 XL-RAID-SATA-USB Data Backup System User’s Guide...
-
Page 2: About This Manual
About this manual Thank you for using products from XtendLan. This manual will introduce the XL-RAID-SATA-USB product. Before using XtendLan XL-RAID-SATA-USB Series, you are advised to read this manual first. All information contained in this manual has been carefully confirmed before printing, but the actual product specifications shall be in accordance with those at the time of delivery;... - Page 3 XL-RAID-SATA-USB Quick Installation Guide 1. Package Contents After opening the box, you should find the following items: •XL-RAID-SATA-USB product unit (includes two removable hard disk trays) •AC Power Cable •RS232 Cable •USB Cable •eSATA Cable •CD (contains product specifications, user manuals and management software) •User Manual...
- Page 5 Step 4 Connect the cables included to the appropriate ports of the XL-RAID-SATA-USB and your PC system. Step 5 Turn on the power of the XL-RAID-SATA-USB. Wait for the LCD display to show the OK message before turning on your PC system.
- Page 6 Installation Complete. Your operation system will automatically identify the new hardware and once recognized, follow the operating system’s instructions to format the hard disks. Once the formatting is complete the device is then ready for operation.
-
Page 7: Table Of Contents
Contents Chapter 1 Product Outline..................... 7 ......................Introduction ..................Functions and Features Chapter 2 Product Installation..................9 ....................Package Contents ................Precautions and Requirements ..................... Hardware Installation Chapter 3 Instructions...................... 12 ........System Operating Procedure and Operation architecture ..............Changing RAID Level and Scheduling .............. -
Page 8: Introduction
Chapter 1 Product Outline Introduction The XL-RAID-SATA-USB provides users with a cost-effective and safe external disk array sub- system. Whether you are using this product at home or in the office, its RAID1 support and mirroring function provides you with real-time data backup, enhancing data security and stability. RAID0 support is also included. -
Page 9: Product Outline
Product Outline... -
Page 10: Functions And Features
Functions and Features The XL-RAID-SATA-USB is a disk array system designed to provide users with the most cost-effective solution for their storage needs. It makes the swapping of hard disks easy while also guaranteeing data security and completeness. • 24 Hour Real-Time Data Backup Using RAID1, all data in the main hard disk can be immediately mirrored onto another hard disk, ensuring the complete backup of your data at all times. -
Page 11: Chapter 2 Product Installation
Chapter 2 Product Installation Package Contents After opening the box, you should find the following items: •XL-RAID-SATA-USB product unit (includes two removable hard disk trays) •AC Power Cable •RS232 Cable •USB Cable •eSATA Cable •CD (contains product specifications, user manuals and management software) •User Manual... -
Page 12: Precautions And Requirements
Precautions and Requirements 1. The XL-RAID-SATA-USB can be used with two hard disks that are of different models and storage capacities initially. However, for improved performance, we recommend that both disks should have the same specifications and capacity from the same manufacturer. It is also necessary that the backup drive be the same or bigger in capacity than the source drive under the RAID1 model. - Page 13 Step 4 Connect the cables included to the appropriate ports of the XL-RAID-SATA-USB and your PC system. Step 5 Turn on the power of the XL-RAID-SATA-USB. Wait for the LCD display to show the OK message before turning on your PC system.
-
Page 14: Chapter 3 Instructions
0000) Changing RAID Level and Scheduling The XL-RAID-SATA-USB offers two RAID levels – RAID 0 and RAID 1. You may choose the RAID level suitable for your needs. The factory default is at RAID 1. Note : 1. Please backup all data on hard disks before changing RAID level. -
Page 15: 3.2.2 Schedule Backup Settings
To avoid this problem, the Schedule Backup function provided by the XL-RAID-SATA-USB allows the user to define a backup interval of multiple days. At the scheduled intervals the RAID will back up the data from the Primary Disk to the Secondary Disk. This means the data in the disk array system does not have to be mirrored constantly at all times. -
Page 16: Change Password Setting
3. To cancel the Schedule Backup function, set the days to “00”. The system will revert to the RAID 1 mode. Change Password Setting To prevent unauthorized system settings, the XL-RAID-SATA-USB incorporates a password feature to help administrators protect their data. Be sure to record the new password somewhere safe after making a change. -
Page 17: Firmware Update
Step 3 Once you have made the change, please press the “ENT” button. The following message will be shown “PASSWORD:XXXX YES NO”. Step 4 Please press the “ENT” button again. The message “SETUP PASSWORD OK” will be shown, indicating that you have successfully set a new password. Firmware Update You can update firmware through the RAIDGuide software via RS232 connection. - Page 18 Select Serial port address: COM1 and Baud Rate: 9600 Click “Open Files” button to locate, then open the Firmware update file. Instructions...
- Page 19 Specify the correct Firmware update file, and click “Run”, then the system will begin updating firmware with the following message “Verifying…Address:xxxx”. When update is complete, the system will show a message advising successful upgrade. Instructions...
