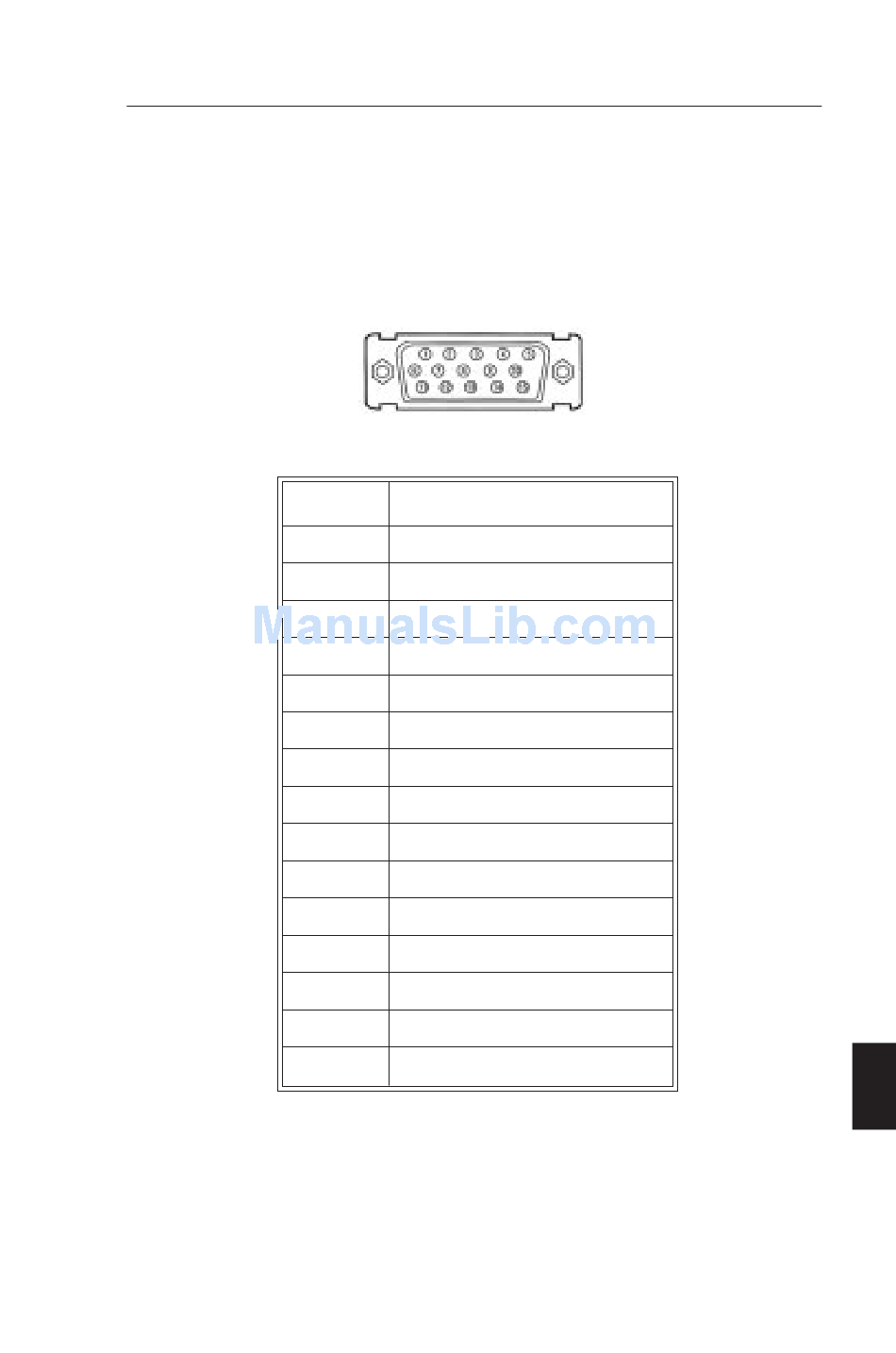

App. A PIN ASSIGNMENTS

App. A PIN ASSIGNMENTS

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

MINI D-SUB 15 P

LCD

1525S

RED

GREEN

BLUE

NO-CONNECTION

GROUND

GROUND

GROUND

GROUND

+5V (DDC)

GROUND

GROUND

SDA

H.SYNC, H/V.SYNC

V.SYNC

SCL

A - 1
