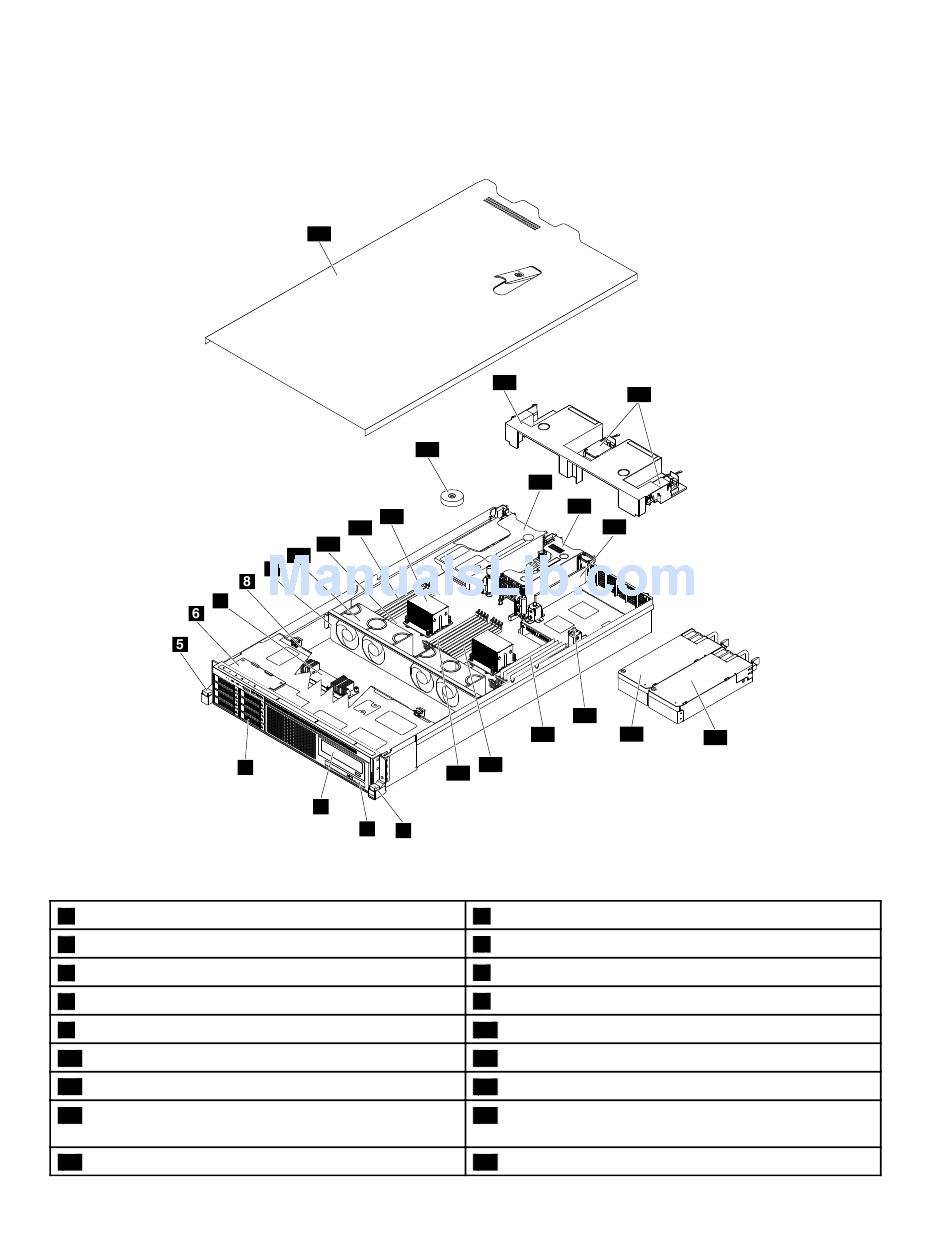

The following illustration shows the components of server models with an internal tape drive and a slim
optical drive.
Note: Depending on the model, your server might look slightly different from the illustration in this topic.
7
Figure 10. Components of server models with an internal tape drive and a slim optical drive
1
Rack handle (right)
3
Internal tape drive (available on some models)
5
Rack handle (left)
7
AnyRAID adapter (available on some models)
9
System fan cage
11
System board
13
Heat sink
15
Cooling shroud
17
Riser card assembly 1
26
ThinkServer RD450 User Guide and Hardware Maintenance Manual
26
14
13
12
11
10
9
4
3
2
1
15
17
18
19
22
23 21
24
25
2
Slim optical drive (available on some models)
4
2.5-inch-drive area
6
Front panel board
8
Hot-swap-drive backplane
10
System fan
12
CPU1 DIMMs (vary by model)
14
Coin-cell battery
16
ThinkServer RAID Super Capacitor Module (available
on some models)
18
Riser card assembly 2
