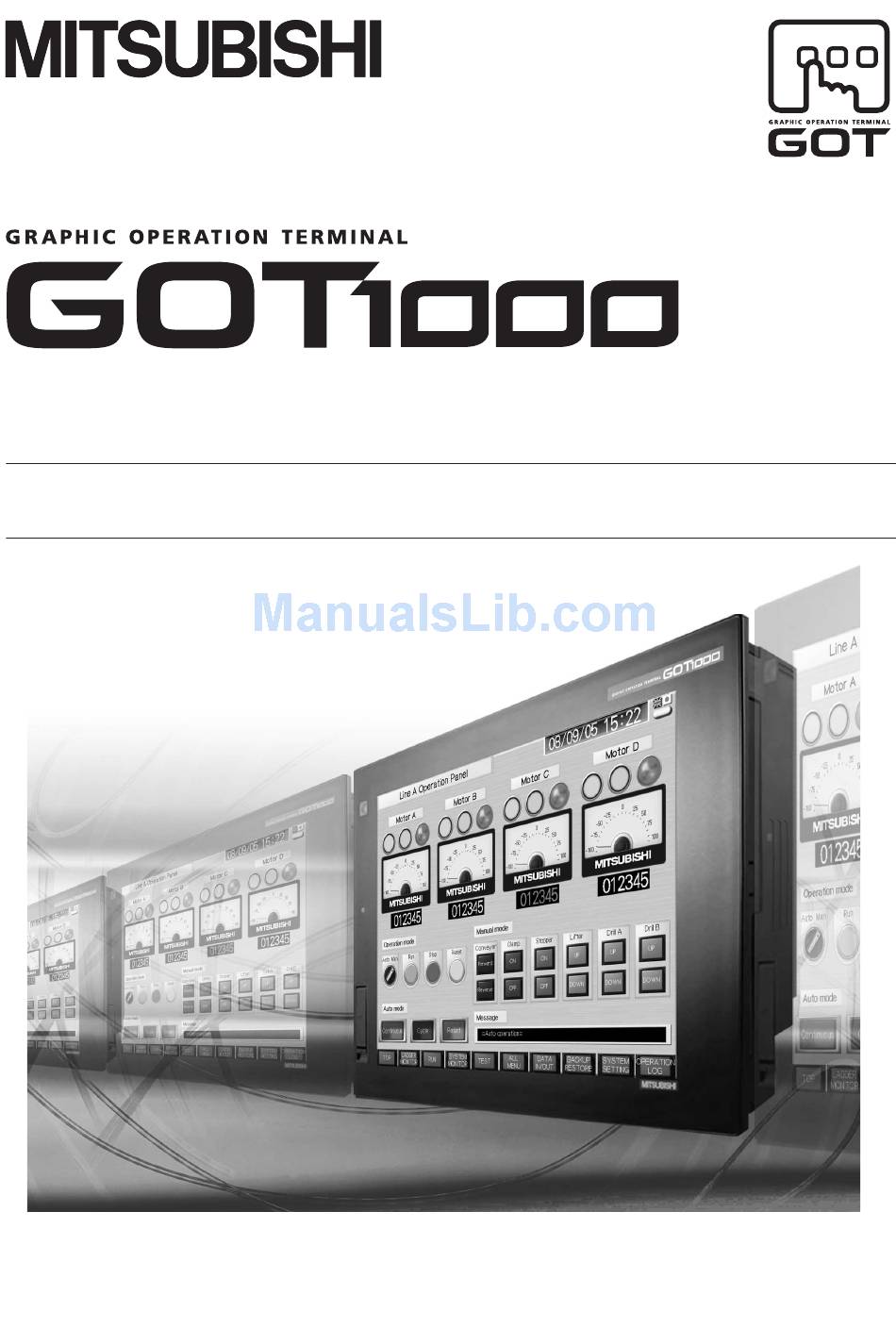

  • Page 1 GT16 User's Manual (Hardware)

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS (Always read these precautions before using this equipment.) Before using this product, please read this manual and the relevant manuals introduced in this manual carefully and pay full attention to safety to handle the product correctly. The precautions given in this manual are concerned with this product. In this manual, the safety precautions are ranked as "WARNING"...
  • Page 4 Models other than GT1655-V: The POWER LED blinks (green/orange) and the monitor screen appears dimmed. The display section of the GT16 is an analog-resistive type touch panel. If you touch the display section simultaneously in 2 points or more, the switch that is located around the center of the touched point, if any, may operate.
  • Page 5 [MOUNTING PRECAUTIONS] WARNING Be sure to shut off all phases of the external power supply used by the system before mounting or removing the GOT main unit to/from the panel. Not doing so can cause the unit to fail or malfunction. Be sure to shut off all phases of the external power supply used by the system before mounting or removing the communication unit, printer unit or option function board onto/from the GOT.

  • Page 6: Wiring Precautions

    [MOUNTING PRECAUTIONS] CAUTION When installing a USB memory to the GOT, make sure to install the USB memory to the USB interface firmly. Failure to do so may cause a malfunction due to poor contact. Before removing the USB memory from the GOT, operate the utility screen for removal. After the successful completion dialog box is displayed, remove the memory by hand carefully.
  • Page 7 [WIRING PRECAUTIONS] CAUTION Tighten the terminal screws of the GOT power supply section in the specified torque range (0.5 to 0.8 N.m). Undertightening can cause a short circuit or malfunction. Overtightening can cause a short circuit or malfunction due to the damage of the screws or the GOT. Exercise care to avoid foreign matter such as chips and wire offcuts entering the GOT.
  • Page 8 Not doing so can cause the unit to fail or malfunction. Replace battery with GT15-BAT or GT11-50BAT by Mitsubishi electric Co. only. Use of another battery may present a risk of fire or explosion. Dispose of used battery promptly.
  • Page 9 [TOUCH PANEL PRECAUTIONS] CAUTION For the analog-resistive film type touch panels, normally the adjustment is not required. However, the difference between a touched position and the object position may occur as the period of use elapses. When any difference between a touched position and the object position occurs, execute the touch panel calibration.
  • Page 10 [TRANSPORTATION PRECAUTIONS] CAUTION When transporting lithium batteries, make sure to treat them based on the transport regulations. (Refer to Appendix 3 for details of the regurated models.) Make sure to transport the GOT main unit and/or relevant unit(s) in the manner they will not be exposed to the impact exceeding the impact resistance described in the general specifications of this manual, as they are precision devices.

  • Page 11: Table Of Contents

    INTRODUCTION Thank you for choosing the Mitsubishi Graphic Operation Terminal. Before using the equipment, please read this manual carefully to use the equipment to its optimum. CONTENTS SAFETY PRECAUTIONS .........................A - 1 INTRODUCTION ............................A - 9 CONTENTS ..............................A - 9 ABOUT MANUALS ..........................
  • Page 12 Part Names and Settings of the GT1655 ..................4 - 9 5. EMC AND LOW VOLTAGEDIRECTIVE Requirements to Meet EMC Directive ..................... 5 - 1 5.1.1 EMC directive ........................5 - 2 5.1.2 Control panel ........................5 - 3 5.1.3 Noise filter (power supply line filter)..................
  • Page 13 8. OPTION Communication Unit ........................8 - 1 8.1.1 Applicable communication unit ..................... 8 - 1 8.1.2 Installing multiple extension units in layers................8 - 2 Option Unit............................8 - 4 8.2.1 Applicable option unit ......................8 - 4 Option .............................. 8 - 5 8.3.1 Applicable option ........................
  • Page 14 INDEX REVISIONS WARRANTY A - 12...

  • Page 15: About Manuals

    ABOUT MANUALS The following table lists the manual relevant to GT Designer2 product. Refer to each manual for any purpose. Manual Number Manual Name Packing (Model code) SH-080602ENG GT SoftGOT1000 Version2 Operating Manual Stored in CD-ROM (1D7M48) SH-080529ENG GT Designer2 Version2 Basic Operation/Data Transfer Manual (For GOT1000 Series) Stored in CD-ROM (1D7M24) GT Designer2 Version2 Screen Design Manual (For GOT1000 Series) 1/3...
  • Page 16 SH-080868ENG GOT1000 Series Connection Manual (Mitsubishi Products) for GT Works3 Stored in CD-ROM (1D7MC2) SH-080869ENG GOT1000 Series Connection Manual (Non-Mitsubishi Products 1) for GT Works3 Stored in CD-ROM (1D7MC3) SH-080870ENG GOT1000 Series Connection Manual (Non-Mitsubishi Products 2) for GT Works3...
  • Page 17 Manual Number Manual Name Packaging (Model code) SH-080928ENG GT16 User's Manual (Hardware) Stored in CD-ROM (1D7MD3) SH-080929ENG GT16 User's Manual (Basic Utility) Stored in CD-ROM (1D7MD4) JY997D41201 GT16 Handy GOT User's Manual Stored in CD-ROM JY997D41202 (09R821)  GT15 manuals...

  • Page 18: Quick Reference

    GT Simulator3 Version1 Operating Manual for GT Works3  Connecting a controller to the GOT Obtaining information of Mitsubishi products applicable to the GOT Connecting Mitsubishi products to the GOT GOT1000 Series Connection Manual (Mitsubishi Products) for Connecting multiple controllersto one GOT (Multi-channel function)
  • Page 19 Others Obtaining specifications (including part names, external dimensions, and • GT16 User's Manual (Hardware) options) of each GOT • GT16 Handy GOT User's Manual • GT15 User's Manual • GT14 User's Manual • GT12 User's Manual • GT11 User's Manual Installing the GOT •...

  • Page 20: Abbreviations And Generic Terms

    GT1665M-V Abbreviation of GT1665M-VTBA, GT1665M-VTBD GT1662 GT1662-VN Abbreviation of GT1662-VNBA, GT1662-VNBD GT1655 GT1655-V Abbreviation of GT1655-VTBD Abbreviation of GT1695, GT1685, GT1675, GT1672, GT1665, GT1662, GT1655, GT16 Handy GT16 GT1595 GT1595-X Abbreviation of GT1595-XTBA, GT1595-XTBD GT1585V-S Abbreviation of GT1585V-STBA, GT1585V-STBD GT1585...
  • Page 21 Abbreviations and generic terms Description GT16 Handy GT1665HS-V Abbreviation of GT1665HS-VTBD Handy GT11 GT1155HS-Q Abbreviation of GT1155HS-QSBD GOT1000 Series Handy GT1150HS-Q Abbreviation of GT1150HS-QLBD GT SoftGOT1000 Abbreviation of GT SoftGOT1000 GOT900 Series Abbreviation of GOT-A900 series, GOT-F900 series GOT800 Series Abbreviation of GOT-800 series ...
  • Page 22 GT16-UCOV, GT16-50UCOV, GT15-UCOV, GT14-50UCOV, GT11-50UCOV Stand GT15-90STAND, GT15-80STAND, GT15-70STAND, A9GT-50STAND, GT05-50STAND GT15-70ATT-98, GT15-70ATT-87, GT15-60ATT-97, GT15-60ATT-96, Attachment GT15-60ATT-87, GT15-60ATT-77, GT15-50ATT-95W, GT15-50ATT-85 GT16-90XLTT, GT16-80SLTT, GT16-70SLTT, GT16-70VLTT, GT16-70VLTTA, GT16-70VLTN, Backlight GT16-60SLTT, GT16-60VLTT, GT16-60VLTN, GT15-90XLTT, GT15-80SLTT, GT15-70SLTT, GT15-70VLTT, GT15-70VLTN, GT15-60VLTT, GT15-60VLTN Multi-color display board GT15-XHNB, GT15-VHNB...
  • Page 23  Software Abbreviations and generic terms Description GT Works3 Abbreviation of the SW DNC-GTWK3-E and SW DNC-GTWK3-EA GT Designer3 Abbreviation of screen drawing software GT Designer3 for GOT1000 series GT Simulator3 Abbreviation of screen simulator GT Simulator3 for GOT1000/GOT900 series GT SoftGOT1000 Abbreviation of monitoring software GT SoftGOT1000 GT Converter2...
  • Page 24  Others Abbreviations and generic terms Description Abbreviation of IAI Corporation AZBIL Abbreviation of Azbil Corporation (former Yamatake Corporation) OMRON Abbreviation of OMRON Corporation KEYENCE Abbreviation of KEYENCE CORPORATION KOYO EI Abbreviation of KOYO ELECTRONICS INDUSTRIES CO., LTD. SHARP Abbreviation of Sharp Manufacturing Systems Corporation JTEKT Abbreviation of JTEKT Corporation SHINKO...

  • Page 25: How To Use This Manual

    GOT screen, or a key of the computer keyboard. Show the items including detailed explanation Hardware GT16 User’s Manual (Hardware) Basic Utility GT16 User’s Manual (Basic Utility Refers to information POINT POINT POINT required for operation. Refers to information useful...

  • Page 26: Packing List

    PACKING LIST After unpacking, confirm that the following parts are included. Model Product Quantity GT1695M-X Battery Installation fitting GT16 General Description GT1685M-S GT1675M-S GT1675M-V GT1675-VN Battery GT1672-VN GT1665M-S GT1665M-V GT1662-VN Installation fitting GT16 General Description GT1655-V Battery Installation fitting GT16 General Description...

  • Page 27: Overview

    OVERVIEW  About GOT GOT is installed on the panel surface of control panel or operating panel and connects to the PLC in the control panel. GOT carries out switch operation, lamp display, data display, and message display etc. Connector for For display screen, two kinds of display screens, user-created screen and utility program screen are available.

  • Page 28: Features

    1.1 Features (1) Improved monitoring performance and connectivity to FA devices • GT1695M-X, GT1685M-S, GT1675M-S, GT1675M-V, GT1665M-S, GT1665M-V, GT1655-V: The TFT color liquid crystal display (high intensity, wide angle view, and high definition type) provides clear full-color display and displays small characters clearly. (Displays digital images of BMP and other formats in 65536 colors.) GT1675-VN, GT1672-VN, GT1662-VN: The TFT color liquid crystal display provides 4096 or 16 colors to offer a wide range of models that meet user requirements.

  • Page 29: Rough Pre-Operation Procedure

    OS, option OS, project 2) Write the standard monitor GOT. After installation is completed, the data in the CF card. OS, communication driver, Refer to GT16 User's GOT automatically restarts. option OS, extended Manual (Basic Utility) function OS, project data, Chapter 7 INSTALLATION 2) Download the project data created and special data into the CF card.
  • Page 30 By connecting with the Ethernet interface included as standard in GT 16, project data can be downloaded/uploaded. For download/upload of project data with the Ethernet connection, BootOS and standard monitor OS should be installed in the GOT in advance so that the GOT and PC can communicate with each other via Ethernet by setting Communication Settings. Refer to the following manual for details.

  • Page 31: System Configuration

    SYSTEM CONFIGURATION 2.1 Overall Configuration The overall configuration of GOT is as follows. For the connection methods applicable to GOT1000 series and cable, refer to the following. •GOT1000 Series Connection Manual for GT Works3 and a controller used •GOT1000 Series Connection Manual for GT Designer2/GT Works2 Bar code Refer to reader...

  • Page 32: Component List

    : Dedicated for 10.4" : Dedicated for 8.4" : Dedicated for 5.7" : Multimedia compliant model : Dedicated for 16 : Common for GT16/GT15, (Partially dedicated for GT15) : Dedicated for GT11 (Partially common for GT16/GT15/GT11) Common for GT16/GT15/GT11 2 - 2...
  • Page 33 R2: For RS232 communication (For GOT1000 side) R4: For RS422 communication Length classification * Indicated in 10cm unit. Example) 3m : 30 30m: 300 Third party PLC connection cable (Commonly used for GT16, GT15 and GT11) 2 - 3 2.2 Component List...

  • Page 34: Got

    2.2.1 Product Model name Specifications name 15" (1024 768 dots), TFT color liquid crystal, (high intensity, wide angle view), 65536 colors, GT1695M-XTBA video/RGB, multimedia compliant, 100 to 240VAC, Memory size 15MB 15" (1024 768 dots), TFT color liquid crystal, (high intensity, wide angle view), 65536 colors, GT1695M-XTBD video/RGB, multimedia compliant, 24VDC, Memory size 15MB 12.1"...
  • Page 35 2.2.2 Option  Communication unit (Sold separately) Product name Model name Description GT15-QBUS For last GOT, Number of IN side connectors: 1 For QCPU (Q Mode)/Motion For intermediary and last GOT, controller CPU (Q Series) GT15-QBUS2 Number of IN and OUT side connectors: 1 for connection (standard model) each side GT15-ABUS...
  • Page 36  QCPU (Q Mode) bus connection cable (Sold separately) Product name Model name Description GT15-QC06B Cable length 0.6m GT15-QC12B Cable length 1.2m Q extension cable For connecting QCPU and GOT GOT-to-GOT connection GT15-QC30B Cable length 3m For connecting GOT and GOT cable GT15-QC50B Cable length 5m...
  • Page 37 PW) and GOT Combined with GT15-C BS, can be used as GT15- Buffer circuit cable GT15-EXCNB Cable length 0.5m C EXSS-1  Connection cables for MITSUBISHI PLCs (Sold separately) Product name Model name Description Q/LCPU direct GT01-C30R2-6P Cable length 3m...
  • Page 38  Connection cables for OMRON PLCs (Sold separately) Product Model name Description name For connecting GOT to OMRON PLC, serial communication module, GT09-C30R20101-9P Cable length 3m communication board, serial communication board RS-232 cable GT09-C30R20102-25S Cable length 3m For connecting GOT to OMRON connection cable GT09-C30R20103-25P Cable length 3m For connecting GOT to OMRON rack type host link unit...
  • Page 39  Connection cables for SHARP PLCs (Sold separately) Product Model name Description name GT09-C30R20601-15P Cable length 3m For connecting GOT to SHARP PLC RS-232 cable GT09-C30R20602-15P Cable length 3m For connecting GOT to SHARP PLC GT09-C30R40601-15P Cable length 3m GT09-C100R40601-15P Cable length 10m For connecting GOT to SHARP PLC GT09-C200R40601-15P...
  • Page 40  Connection cables for TOSHIBA PLCs (Sold separately) Product Model name Description name GT09-C30R20501-9P Cable length 3m For connecting GOT to TOSHIBA PLC RS-232 cable GT09-C30R20502-15P Cable length 3m For connecting GOT to TOSHIBA PLC GT09-C30R40501-15P Cable length 3m GT09-C100R40501-15P Cable length 10m For connecting GOT to TOSHIBA PLC GT09-C200R40501-15P...
  • Page 41  Connection cables for FUJI PLCs (Sold separately) Product Model name Description name For connecting GOT to FUJI RS-232C interface card (NV1L-RS2), RS-232 GT09-C30R21003-25P Cable length 3m RS-232C/485 interface capsule (FFK120A-C10), and general- Cable purpose interface module (NC1L-RS2/FFU120B) GT09-C30R41001-6T Cable length 3m For connecting GOT to FUJI RS-232C/485 interface capsule GT09-C100R41001-6T Cable length 10m...
  • Page 42 For connecting GOT to SIEMENS HMI Adapter cable  RS-422 connector conversion cable (Sold separately) Product name Model name Description RS-422/485(connector) RS-422 connector GT16-C02R4-9S RS-422 connector conversion RS-422 side connector 9 pins conversion cable cable 2 - 12 2.2 Component List...
  • Page 43 Flash ROM 16GB GT05-MEM-16GC Commercially-available CF card A CF card with more than 2GB can be used for the GT16 with the following versions of OSes installed. • Boot OS version: 05.09.00AF or later • Standard monitor OS version: 05.09.00 or later If the above versions of OSes are not installed, install the OSes to the GOT by using GT Designer3 Version1.17T or later.
  • Page 44 Model name Description Memory card adaptor GT05-MEM-ADPC CF card to memory card (Type II) conversion adaptor  Option function board (Sold separately) Product name Model name Description Option function board GT16-MESB MES interface function boad 2 - 14 2.2 Component List...
  • Page 45  Option unit (Sold separately) Product name Model name Description GT16M-V4 For video input signal (NTSC format / PAL format) 4 channels Video input unit GT16M-R2 For analog RGB input signal 2 channels RGB input unit For video input signal (NTSC format / PAL format) 4 channels/analog RGB input GT16M-V4R1 Video/RGB input unit signal 1 channels mixed input...
  • Page 46  Protective sheet (Sold separately) Product name Model name Description GT16-90PSCB Clear 5 sheets GT16-90PSGB Antiglare 5 sheets GT16-90PSCW Clear (Frame: white) 5 sheets 15" protective sheet GT16-90PSGW Antiglare (Frame: white) 5 sheets Clear (covered USB environmental protection cover GT16-90PSCB-012...
  • Page 47  Backlight (Sold separately) Product name Model name Description Target GOT GT16-90XLTT For 15" high intensity, wide angle view TFT (XGA) GT1695M-X GT16-80SLTT For 12.1" high intensity, wide angle view TFT (SVGA) GT1685M-S GT16-70SLTT For 10.4" high intensity, wide angle view TFT (SVGA)
  • Page 48  Drawing software (Sold separately) Product name Model name Description GT Works3 SW1DNC-GTWK3-E Drawing software for GOT2000/GOT1000 series GT Designer2 SW2D5C-GTD2-J Drawing software for GOT1000/GOT900 series  PC connection cable (Sold separately) Product name Model name Description For connecting GOT (D sub 9-pin female) and GT01-C30R2-9S Cable length 3m PC (D sub 9-pin female)

  • Page 49: Specifications

    SPECIFICATIONS 3.1 General Specifications Item Specifications Display section 0 to 50°C Operating ambient Other than the temperature 0 to 55°C display section Storage ambient temperature -20 to 60°C Operating ambient humidity 10 to 90% RH, non-condensing Storage ambient humidity 10 to 90% RH, non-condensing Frequency Acceleration Half-amplitude...

  • Page 50: Performance Specifications

    3.2 Performance Specifications The performance specifications of the GT16 is as follows. 3.2.1 GT1695M-X 3.2.2 GT1685M-S 3.2.3 GT1675M-S, GT1675M-V, GT1675-VN, GT1672-VN 3.2.4 GT1665M-S, GT1665M-V, GT1662-VN 3.2.5 GT1655-V 3.2.1 GT1695M-X Specifications Item GT1695M-XTBA GT1695M-XTBD Type TFT color liquid crystal display (High intensity and wide angle view) Screen size 15"...
  • Page 51 Specifications Item GT1695M-XTBA GT1695M-XTBD C drive Built-in flash memory 15Mbytes (for storing project data and OS) Memory Life (Number of write 100,000 times times) Built-in clock precision 3.47 to 8.38sec/day (Operating ambiant temperature of 25°C) Battery GT15-BAT lithium battery Backup target Clock data, maintenance time notification data, system status log, SRAM user area (500KB) Life Approx.
  • Page 52 Since the touch panel is a consumable product structurally, it may not be used even fewer than above, depending on the using method and usage environment. A USB memory and a CF card that store more than 2GB are available for the GT16 with the following versions of OSs installed. • BootOS version: 05.09.00AF or later •...

  • Page 53: Gt1685M-S

    3.2.2 GT1685M-S Specifications Item GT1685M-STBA GT1685M-STBD Type TFT color liquid crystal display (High intensity and wide angle view) Screen size 12.1" Resolution 600 dots Display size 246(9.69)(W) 184.5(7.26)(H) [mm](inch) 16-dot standard font: 50 characters 37 lines (2byte character) Display character Display 12-dot standard font: 66 characters 50 lines (2byte character)
  • Page 54 Specifications Item GT1685M-STBA GT1685M-STBD RS-232, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-232 Connector shape: D-sub 9-pin (Male) Application: For communicating with a controller or connecting a personal computer (Project data read/ write, OS installation, FA transparent function) RS-422/485, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-422/485 Connector shape: 14-pin (female) Application: For communicating with a controller.
  • Page 55 Since the touch panel is a consumable product structurally, it may not be used even fewer than above, depending on the using method and usage environment. A USB memory and a CF card that store more than 2GB are available for the GT16 with the following versions of OSs installed. • BootOS version: 05.09.00AF or later •...

  • Page 56: Gt1675M-S, Gt1675M-V, Gt1675-Vn, Gt1672-Vn

    3.2.3 GT1675M-S, GT1675M-V, GT1675-VN, GT1672-VN Specifications Item GT1675M-STBA GT1675M-VTBA GT1675-VNBA GT1672-VNBA GT1675M-STBD GT1675M-VTBD GT1675-VNBD GT1672-VNBD TFT color liquid crystal display (High intensity and wide Type TFT color liquid crystal display angle view) Screen size 10.4" Resolution 600 dots 480 dots Display size 211(8.31)(W) 158(6.22)(H) [mm](inch)
  • Page 57 Specifications Item GT1675M-STBA GT1675M-VTBA GT1675-VNBA GT1672-VNBA GT1675M-STBD GT1675M-VTBD GT1675-VNBD GT1672-VNBD RS-232, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-232 Connector shape: D-sub 9-pin (Male) Application: For communicating with a controller or connecting a personal computer (Project data read/ write, OS installation, FA transparent function) RS-422/485, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-422/485...
  • Page 58 Since the touch panel is a consumable product structurally, it may not be used even fewer than above, depending on the using method and usage environment. A USB memory and a CF card that store more than 2GB are available for the GT16 with the following versions of OSs installed. • BootOS version: 05.09.00AF or later •...

  • Page 59: Gt1665M-S, Gt1665M-V, Gt1662-Vn

    3.2.4 GT1665M-S, GT1665M-V, GT1662-VN Specifications Item GT1665M-STBA GT1665M-VTBA GT1662-VNBA GT1665M-STBD GT1665M-VTBD GT1662-VNBD Type TFT color liquid crystal display (High intensity and wide angle view) TFT color liquid crystal display Screen size 8.4" Resolution 600 dots 480 dots Display size 171(6.73)(W) 128(5.04)(H) [mm](inch) 16-dot standard font: 50 characters...
  • Page 60 Specifications Item GT1665M-STBA GT1665M-VTBA GT1662-VNBA GT1665M-STBD GT1665M-VTBD GT1662-VNBD RS-232, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps Connector shape: D-sub 9-pin (Male) RS-232 Application: For communicating with a controller or connecting a personal computer (Project data read/ write, OS installation, FA transparent function) RS-422/485, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-422/485...
  • Page 61 Since the touch panel is a consumable product structurally, it may not be used even fewer than above, depending on the using method and usage environment. A USB memory and a CF card that store more than 2GB are available for the GT16 with the following versions of OSs installed. • BootOS version: 05.09.00AF or later •...

  • Page 62: Gt1655-V

    3.2.5 GT1655-V Specifications Item GT1655-VTBD Type TFT color liquid crystal display (High intensity and wide angle view) Screen size 5.7" Resolution 480 dots Display size 115(4.53)(W) 86(3.39)(H) [mm](inch) 16-dot standard font: 40 characters 30 lines (2byte character) Display character Display 12-dot standard font: 53 characters 40 lines (2byte character) section...
  • Page 63 Specifications Item GT1655-VTBD RS-232, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps Connector shape: D-sub 9-pin (Male) RS-232 Application: For communicating with a controller or connecting a personal computer (Project data read/ write, OS installation, FA transparent function) RS-422/485, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800 bps RS-422/485 Connector shape: 14-pin (female) Application: For communicating with a controller.
  • Page 64 Since the touch panel is a consumable product structurally, it may not be used even fewer than above, depending on the using method and usage environment. A USB memory and a CF card that store more than 2GB are available for the GT16 with the following versions of OSs installed. • BootOS version: 05.09.00AF or later •...

  • Page 65: Power Supply Specifications

    3.3 Power Supply Specifications The following describes the power supply specifications for the GT16. 3.3.1 For GOTs powered from the 100 to 240VAC power supply 3.3.2 For GOTs powered from the 24VDC power supply HINT HINT HINT Operation at momentary failure •...

  • Page 66: For Gots Powered From The 24Vdc Power Supply

    3.3.2 For GOTs powered from the 24VDC power supply Specifications GT1675M-STBD GT1675M-VTBD GT1675-VNBD Item GT1695M-XTBD GT1685M-STBD GT1672-VNBD GT1655-VTBD GT1665M-STBD GT1665M-VTBD GT1662-VNBD Input power supply voltage 24VDC (+25%, -20%) Power consumption 60W or less 40W or less 38W or less 16W or less At backlight off 30W or less 26W or less...

  • Page 67: Battery Specifications

    GT15-BAT GT1672, GT1665, GT1662 maintenance time notification data, and system status log GT11-50BAT GT1655  Battery specifications The following describes the battery specifications for the GT16. Item Specifications Model name GT15-BAT GT11-50BAT Type Magnesium manganese dioxide lithium primary battery Initial voltage 3.0V...

  • Page 68: Part Name And Settings

    PART NAME AND SETTINGS 4.1 Part Names and Settings of the GT1695 2), 3) 20) 18) 16) 15) 4 - 1 4.1 Part Names and Settings of the GT1695...
  • Page 69 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving POWER LED Blinks in orange/green: Blown back light bulb Not lit : Power is not supplied Display screen Displays the Utility and the user creation screen. Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 70: Part Names And Settings Of The Gt1685

    4.2 Part Names and Settings of the GT1685 2), 3) 16)15) 4 - 3 4.2 Part Names and Settings of the GT1685...
  • Page 71 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving POWER LED Blinks in orange/green: Blown back light bulb Not lit : Power is not supplied Display screen Displays the Utility and the user creation screen. Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 72: Part Names And Settings Of The Gt1675, Gt1672

    4.3 Part Names and Settings of the GT1675, GT1672 2), 3) 20) 18) 16) 15) 4 - 5 4.3 Part Names and Settings of the GT1675, GT1672...
  • Page 73 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving POWER LED Blinks in orange/green: Blown back light bulb Not lit : Power is not supplied Display screen Displays the Utility and the user creation screen. Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 74: Part Names And Settings Of The Gt1665, Gt1662

    4.4 Part Names and Settings of the GT1665, GT1662 2), 3) 16) 15) 4 - 7 4.4 Part Names and Settings of the GT1665, GT1662...
  • Page 75 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving POWER LED Blinks in orange/green: Blown back light bulb Not lit : Power is not supplied Display screen Displays the Utility and the user creation screen. Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 76: Part Names And Settings Of The Gt1655

    4.5 Part Names and Settings of the GT1655 2), 3) 4 - 9 4.5 Part Names and Settings of the GT1655...
  • Page 77 Name Description Lit in green : Power is correctly supplied Lit in orange : Screen saving POWER LED Blinks in orange/green: Blown back light bulb Not lit : Power is not supplied Display screen Displays the Utility and the user creation screen. Touch key For operating the touch switches in the Utility and the user creation screen For connecting a personal computer...

  • Page 78: Emc And Low Voltagedirective

    Though the data described herein are produced with our best on the basis of the requirement items and standards of the restrictions gathered by Mitsubishi, they do not completely guaranteed that all mechanical unit manufactured according to the data do not always match the above directives. The manufacturer itself which manufactures the mechanical unit must finally judge the method and others to match the EMC directives.

  • Page 79: Emc Directive

    The GOT is an open type device (device installed to another device) and must be installed in a conductive control panel. The above test items are conducted in the condition where the GOT is installed on the conductive control panel and combined with the Mitsubishi PLC. QP: Quasi-peak value, Mean : Average value The above test items are conducted in the following conditions.

  • Page 80: Control Panel

    5.1.2 Control panel The GOT is an open type device (device installed to another device) and must be installed in a conductive control panel. It not only assure the safety but also has a large effect to shut down the noise generated from GOT, on the control panel. (1) Control panel (a) The control panel must be conductive.

  • Page 81: Noise Filter (Power Supply Line Filter)

    5.1.3 Noise filter (power supply line filter) The noise filter (power supply line filter) is a device effective to reduce conducted noise. Except some models, installation of a noise filter onto the power supply lines is not necessary. However conducted noise can be reduced if it is installed.

  • Page 82: Requirements For Conpliance With The Low Voltage Directive

    5.2 Requirements for Conpliance with the Low Voltage Directive The Low Voltage Directive requires each device which operates with power supply ranging from 50VAC to 1000V and 75VDC to 1500V to satisfy necessary safety items. In the Sections from 5.2.1 to 5.2.5, cautions on installation and wiring of the GOT to conform to the Low Voltage Directive requires are described.

  • Page 83: Control Panel

    5.2.3 Control panel Because the GOT is open type equipment (device designed to be stored within another device), be sure to use it only when installed in a control panel. (1) Shock protection In order to prevent those who are unfamiliar with power facility, e.g., an operator, from getting a shock, make sure to take the following measures on the control panel.

  • Page 84: Emc Directive-Compliant System Configuration

    5.3 EMC Directive-Compliant System Configuration For the GOT1000 series models compliant with the EMC Directive, contact your local distributor. 5.3.1 Use any of the following GOTs with which CE mark logo is printed on the rating plate. For how to confirm the hardware version of a GOT, refer to the following. Appendix2 Confirming of Versions and Conformed Standards When using a GOT other than shown below, the system does not conform to the EMC Directive.

  • Page 85: Connection Method

    POINT POINT POINT Connected devices If connecting to the PLC or microcomputer other than Mitsubishi products (MELSEC-Q series, MELSEC-L series, MELSEC-QnA series or MELSEC-A series) please refer to the EMC Directive compliance manual for that specific device. 5 - 8...

  • Page 86: When The Communication Unit Is Used

    5.3.3 When the communication unit is used Use the following communication unit with the GOT to ensure compliance with the EMC Directive. The GOT does not comply with the EMC Directive when connected with other than followings. Hardware version of the communication unit Connection method Communication unit used (Production year and month)
  • Page 87 Hardware version of the communication unit Connection method Communication unit used (Production year and month) GOT S-232 interface GOT RS-422/485 interface Third party PLC connection GT15-RS2T4-9P Version A or later GT15-RS2-9P Version D or later GT15-RS4-9S (Jan., 2006) GOT RS-232 interface GT15-RS2T4-9P Version A or later Temperature controller...

  • Page 88: When The Option Unit Is Used

    To meet the EMC Directive, use the following option. When an option other than below is used, it does not meet the EMC Directive. Hardware version of option Product name Model name (Production year and month) Option function board GT16-MESB Version B or later (Jan., 2009) 5 - 11 5.3 EMC Directive-Compliant System Configuration...

  • Page 89: Cables

    Network. Manufacturer Model name Mitsubishi Electric System & Service Co., Ltd. SC-E5EW-S M (c) For details of the cables used for conncetions other than the above, refer to the following manual. •GOT1000 Series Connection Manual for GT Works3 and a controller used •GOT1000 Series Connection Manual for GT Designer2/GT Works2...

  • Page 90: Precautions For Wiring/Connecting The Emc Directive-Compliant Product

    5.4 Precautions for Wiring/Connecting the EMC Directive-Compliant Product Wire and connect GOT1000 series equipments as instructed below. If the GOT1000 series equipments are configured in a way different from the following instructions, the system may not comply with EMC directives. 5.4.1 Power and ground wires wiring method (1) Power and ground wires wiring method...
  • Page 91 • For GT1655 Functional grounding INPUT 24VDC (FG) Ferrite core (ZCAT3035-1330) Be sure to ground the functional ground terminal and power FG terminal. 5 - 14 5.4 Precautions for Wiring/Connecting the EMC Directive-Compliant Product...

  • Page 92: Processing Connection Cables

    Process the cable used with the GOT with the following method. When processing the cable, ferrite core, cable clamp and shielding material are required. The cable clamp used by Mitsubishi Electric for the EMC specification compatibility test is shown below. • TDK corporation brand ZCAT3035-1330 Ferrite Core •...
  • Page 93 (c) For other bus connection cables • Wind cable shield material around the cable, and pull out the grounding braided wire of the cable shield material with the length shown below. • Attach the ferrite core to the cable in the position as illustrated below and insert the braided wire for grounding into the ferrite core.
  • Page 94 (4) CC-Link connection (Intelligent device station) • Strip the outer insulation layer at both ends of the cable by the length shown below to expose the braided shield for grounding. (For grounding with cable clamps (refer to Section 5.4.3.)) • Attach ferrite cores to the cable in the positions as illustrated below. •...
  • Page 95 (6) Ethernet connection • Strip the outer insulation layer at both ends of the cable by the length shown below to expose the braided shield for grounding. (For grounding with cable clamps. (refer to Section 5.4.3.)) • Attach the ferrite core to the cable in the position as illustrated below. (a) When connecting to the Ethernet interface GOT side PLC/...
  • Page 96 (8) Video/RGB connection (a) Video input • Peel the sheath (with the length shown below) at both ends of the cable, and expose the shield braided wire for grounding. (For grounding with cable clamps. (refer to Section 5.4.3.)) • Attach the ferrite core to the cable in the position as illustrated below. Camcorder/ Ferrite Core GOT side...
  • Page 97 (9) PLC (manufactured by other company), microcomputer, temperature controller, inverter, servo amplifier, CNC, MODBUS(R)/RTU or MODBUS(R)/TCP connection Produce the cable (RS-232 cable, RS-422 / 485 cable) for connecting the GOT to a controller with reference to the following manual. •GOT1000 Series Connection Manual for GT Works3 and a controller used •GOT1000 Series Connection Manual for GT Designer2/GT Works2 POINT POINT...

  • Page 98: Grounding The Cable

    5.4.3 Grounding the cable Ground the cable and grounding wire to the control panel where the GOT and base unit are installed. 1) Ground the braided shield portion of the cable to the control panel with the cable clamp (AD75CK). Braided shield Cable clamps For the cable clamp attaching details,...

  • Page 99: Installation

    INSTALLATION CAUTION • Use the GOT in the environment that satisfies the general specifications described in this manual. Do not expose the GOT to dust, lamp soot, conductive dust, corrosive gas, or combustible gas; high-temperature, condensing, wind or rain; or to vibrations and impact. Failure to do so can cause an electric shock, fire, malfunction or product damage or deterioration.

  • Page 100: Panel Cutting Dimensions

    6.2 Panel Cutting Dimensions (1) Panel cutting dimensions when installing GOT Make an installation hole on the control panel with the dimensions shown below. Make space of 10mm above and below the hole respectively for the installation fittings. * Panel thickness: 2 to 4 mm or less A [mm] (inch) B [mm] (inch) 383.5(15.10)

  • Page 101: Mounting Position

    6.3 Mounting Position  For installing GOT When mounting the GOT, the following clearances must be left from the other device. Depending on the units and cables connected to the GOT, clearances more than the described dimensions can be required. Therefore, consider the connector dimensions and bending radius of the cable as well for installation.
  • Page 102 According to the dimensions in the following table, leave clearances between the GOT and the other devices. The values enclosed in square brackets apply to the case where no other equipment generating radiated noise (such as a contactor) or heat is installed near the GOT. However, keep the ambient temperature of the GOT to 55°C or lower. GT1675M-S GT1665N-S GT1675M-V...
  • Page 103 This value differs depending on the cable used. Please contact your local Mitsubishi Electric System & Service Co., Ltd. The value indicated in the table is a reference value. This value is for use of the coaxial cable 3C-2V (JIS C 3501).
  • Page 104 (2) Prohibited area for installation The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the CF card extension unit is used with the other extension units, the control panel side installation unit cannot be installed in some areas because the cables of the other extension units get in the way of the control panel side installation unit.
  • Page 105 (c) For GT1675, GT1672 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the other extension units are used, the control panel side installation unit cannot be installed in the areas shown in the following figure. Extension unit Model X (Unit: mm(inch))
  • Page 106 (d) For GT1665, GT1662 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the other extension units are used, the control panel side installation unit cannot be installed in the areas shown in the following figure. Extension unit Model X (Unit: mm(inch))
  • Page 107 (e) For GT1655 The control panel side installation unit cannot be installed within 25mm (0.98inch) from the GOT. When the CF card interface built in the GOT (A drive) is used, the unit cannot be installed within the range of 100mm (3.94inch) (horizontal) 68mm (2.68inch) (vertical) from the right side of the hole for installing GOT, viewed from the rear side.

  • Page 108: Control Panel Inside Temperature And Mounting Angle

    6.4 Control Panel Inside Temperature and Mounting Angle When mounting the GOT to a panel or similar, set the display section as shown below. When the temperature inside the control panel is 40 to 55°C or less, the mounting angle should be in the range 60 to 105 degrees.
  • Page 109 After confirming the battery is stored in the battery holder, insert the battery connector into the connector of the GOT. For other than GT1665, GT1662 For GT1655 For GT1665, GT1662 Insert the GOT into the panel opening from the front side. Panel opening 6 - 11 6.5 Installation Procedure...
  • Page 110 Place the mounting fixtures (included with GOT) on the mounting fixture attaching part of the GOT, and fix them by tightening the mounting screws in the torque range of 0.36 to 0.48N·m. (Failure to do so may distort the panel and make a surface waviness on the protective sheet.) Magnified figure Magnified figure For GT1695: Fix the GOT with 8 mounting fixtures.

  • Page 111: Wiring

    WIRING WARNING • Before starting wiring, always switch off the GOT power externally in all phases. Not doing so may cause an electric shock, product damage or malfunction. CAUTION • Make sure to ground the FG terminal, LG terminal, and functional ground terminal of the GOT power supply section with a ground resistance of 100Ω...

  • Page 112: Power Supply Wiring

    7.1 Power Supply Wiring • Make wiring connections to the power supply, I/O equipment and power equipment separately by system as shown below. When frequent noise is identified, connect an isolation transformer. Wiring diagram for power supply Isolation transformer Main power power I/O power I/O equipment...

  • Page 113: Wiring To Got Power Section

    7.2 Wiring to GOT Power Section This section provides an example for connecting power cables and ground cables to the power terminals situated on the back of the GOT. In the case of 100VAC Fuse INPUT 100-240VAC In the case of 24VDC (GT1695, GT1685, GT1675, GT1672,...

  • Page 114: Grounding

    7.3 Grounding 7.3.1 Grounding the GOT  About grounding Perform the following three items for grounding. • Independent grounding should be performed as possible for the GOT. Perform grounding works. (grounding resistance 100 or less) • When independent grounding cannot be performed for the GOT, perform "(2) Shared grounding" shown below.
  • Page 115 (2) Shared grounding (Good) Power equipment (servo, etc.) Connection cable CN1A CN1B CN2 CN3 Panel Panel grounding grounding Use a short and thick cable as much as possible. Ground the system at one end. To prevent noise from entering the GOT, use a short and thick wire for grounding between the ground and the panel to ensure lower ground resistance.

  • Page 116: Wiring-Related Malfunction Causes And The Measures Examples

    7.3.2 Wiring-related malfunction causes and the measures examples The malfunction causes in grounding the GOT include potential difference caused by groundings and noise. Potential difference and noise may be reduced by taking the following measures.  Wiring of GOT's ground cable and power line When the ground cable and power line of the GOT are installed together, the GOT may malfunction due to noise.
  • Page 117 The malfunction occurred by the potential difference caused by the groundings in such a case, may be prevented by reducing the voltage with the following measure example 1, where the voltage is reduced. Measure example 1 (Refer to the measure examples 1-1 and 1-2 below.) When any potential difference occurs between the ground cable and the panel having the GOT and the GOT is influenced by the potential difference, connect another ground cable to the panel.

  • Page 118: Panel Inside Wiring, Panel Outside Wiring

    7.4 Panel Inside Wiring, Panel Outside Wiring 7.4.1 Panel inside wiring In wiring, the power line connected to the power or servo amplifier and the communication cable such as bus connection cable or network cable must not be mixed. Mixing the power line and communication cable may cause malfunction due to noise. When using an equipment that may occur surge noise, such as molded case circuit breaker (MCCB), electromagnetic contactor (MC), relay (RA), solenoid valve, or induction motor, using a surge suppressor is effective.

  • Page 119: Attaching Surge Suppressor For Control Equipment

    7.5 Attaching Surge Suppressor for Control Equipment If an improper operation such as communication error occurs in the GOT in synchronization with ON/OFF of a particular control equipment (hereinafter abbreviated to load) such as MCCB, electromagnetic contactor, relay, solenoid valve, or induction motor, the GOT may be influenced by surge noise.

  • Page 120: Grounding Extension Units

    7.6 Grounding Extension Units 7.6.1 Wiring FG cable of bus connection cable This section describes wiring of the FG cable when a PLC CPU is connected to the GOT. POINT POINT POINT Cable connected to the PLC CPU Do not install the connection cable together with the main circuit lines (high voltage, large current) or I/O signal lines.

  • Page 121: Wiring Fg Cable Of Cf Card Extension Unit Connection Cable

    (1) When using GT15-C EXSS-1 Not connected (GT15-C (GT15-EXCNB) 2SQ cables to FG terminals, 28cm or less Connect the LG and FG terminals of the terminal block on the GOT unit power and ground them with a cable. Use the GT15-C BS's FG cable of 28cm or less.
  • Page 122 When the CF card extension unit is used, ground the ground cable as shown below. For other than GT1655 For GT1655 GT15-CFEXIF GT15-CFEXIF Functional grounding +24V GT15-C08CF GT15-C08CF Make the connections as shown below. For other than GT1655 For GT1655 Install the shorting bar to the LG and FG terminals of the GOT's The shorting bar is not required.

  • Page 123: Communication Unit

    OPTION When GT16 is used with a communication unit or option unit, monitoring is not possible because the GOT cannot recognize the unit using the standard monitor OS and communication driver of the version before GT Designer3 Version 1.00A or GT Designer2 Version 2.87R.

  • Page 124: Installing Multiple Extension Units In Layers

    8.1.2 Installing multiple extension units in layers This section describes how to install another extension units on the extension units that has been installed on the GOT. Remove the connector cover and sticker from the installed extension units. Connector cover Sticker Install the unit on the unit that has been installed.
  • Page 125 POINT POINT POINT (1) Installation position for a communication unit that occupies two extend interfaces Install a communication unit that occupies two extend interfaces, such as the following, directly to the GOT main unit. It cannot be installed on the back stage of another communication unit. If a video/RGB unit or multimedia unit has been installed, install the communication unit on the back stage of that video/RGB unit or multimedia unit.

  • Page 126: Option Unit

    For details of connection, refer to the following manual. •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •GOT1000 Series Connection Manual for GT Designer2/GT Works2 8.2.1 Applicable option unit The following option units are applicable for GT16. Item Product name Model Description Video input unit...

  • Page 127: Applicable Option

    8.3 Option Options are used for the expansion of GOT functions, parts replacement or maintenance. 8.3.1 Applicable option The following options are applicable for GT16. Product name Mode Description Reference GT05-MEM-16MC Flash ROM 16MB GT05-MEM-32MC Flash ROM 32MB GT05-MEM-64MC Flash ROM 64MB...
  • Page 128 In addition, the GOT may not be available for use in the environment where oil or chemicals are splashed over for a long period or where oil mist is filled. A CF card with more than 2GB can be used for the GT16 with the following versions of OSes installed. • Boot OS version: 05.09.00AF or later •...

  • Page 129: Installation Procedure

    8.3.2 Installation procedure This section describes how to install a option on a GOT.  CF card (1) CF card inserting/removing method with CF card interface of GOT Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF. (a) Installing Turn the CF card access switch of the GOT off.
  • Page 130 (b) Removing Set the CF card access switch of the GOT to OFF, and make sure that the CF card access LED turns off. (When the CF card access LED turns off, the CF card can be removed even during the GOT power on.) For other than GT1655 For GT1655...
  • Page 131 POINT POINT POINT Precautions for removing the CF card (1) While the CF card access LED is on, do not install/remove the CF card or power off the GOT. To do so may cause data corruption or malfunction. (2) When ejecting the CF card, support it by hand since it may pop out. Failure to do so may cause a fall of the CF card leading to failure or damage of the card.
  • Page 132 (b) Removal Open the CF card cover. Turn off the CF card access switch of the unit and check that the CF card access LED turns off. (When the LED turns off, the CF card can be removed even while the GOT is on.) When using the multimedia unit When using the CF card unit Press the CF card eject button to pop out the CF card and remove it.
  • Page 133 (3) CF card inserting/removing method with CF card extension unit Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF. (a) Installation When the CF card cover is fixed with the CF card cover fixing screw, unscrew the screw. Open the CF card cover, and turn off the CF card access switch of the unit.

  • Page 134: Memory Card Adaptor

    Open the CF card cover. Turn off the CF card access switch and check that the CF card access LED turns off. (The CF card can be removed when the CF card access LED turns off even though the GOT's power is on.) Press the CF card eject button, and then the button pops out.

  • Page 135: Option Function Board

     Option function board Power OFF the GOT. Remove the extension unit cover (Interface 1 side) of GOT rear face. For GT1655-V, remove the extension unit cover (Interface 2 side). Install the option function board in the option function board interface. (When the extension unit is installed in GOT, remove the installed extension unit.
  • Page 136  Battery Replace battery periodically by referring to 3.4 Battery Specifications. Keep the GOT power supply on for 10 minutes or more, and turn it off. (Executes step 1 to 6 within 5 minutes of powering the GOT power supply off.) The battery is stored in the back of the GOT.

  • Page 137: Protective Sheet

     Protective sheet If the old protective sheet is attached, remove the sheet from the lower right of the GOT, and clean the GOT surface. (Peel off the sheet slowly.) Peel the release paper off the back of the new protective sheet. With the protective film left on the sheet surface, attach the sheet on the GOT so that the USB environmental protection cover hole is just on the USB environmental protection cover of the GOT.
  • Page 138 POINT POINT POINT Precautions for using the protective sheet (covered USB environmental protection cover type) When the protective sheet (covered USB environmental protection cover type) is used, the USB interface on the GOT front face cannot be used. HINT HINT HINT Replacement time of protective sheet Check the status of the protection sheet visually by to the daily inspection.

  • Page 139: Protective Cover For Oil

     Protective cover for oil POINT POINT POINT Before attaching protective cover for oil For attaching the protective cover for oil to the GOT already mounted on the control panel, follow the procedures as below. • Remove the GOT from the control panel. Make sure to externally shut off all phases of the power supply and remove all cables from the GOT in advance.
  • Page 140 • When the protective cover for oil is used, the human sensor does not correctly operate. Disable the human sensor with the utility. For the human sensor setting, refer to GT16 User's Manual. (Basic Utility) 2.2.3 Display setting operations • Do not attach and remove the protective cover for oil frequently.

  • Page 141: Usb Environmental Protection Cover

     USB environmental protection cover The USB environment cover protects the USB interface on the front face of GOT from dust, water, and oil. The GOT is installed with the USB environment cover at factory shipment. Replace when damage and deterioration are caused. Note that this does not guarantee all users' operation environment.
  • Page 142  Stand Set the stand so that the front side of the GOT to be mounted faces the front. Adjust the mounting angle of GOT with the angle adjusting screw of the stand. Put the GOT into the Stand from the front side and fix it using the fixtures. For the GOT mounting method, refer to the following.
  • Page 143 (2) GT15-70ATT-87, GT15-50ATT-95W, GT15-50ATT-85 Model The model is indicated on the attachment. The position of the model indication does not affect the performance of the attachment. Upper part (Example of model indication) Lower part Remove two-sided tapes from the rear face of the attachment. Fix the attachment to fit the mouting hole on the control panel.

  • Page 144: Cable

    •GOT1000 Series Connection Manual for GT Designer2/GT Works2 8.4.1 Applicable cable The following cables are applicable for GT16. This section shows the conversion cable for connecting to the RS-422/485 interface. Refer to the following for cables other than the connection cable for RS-422/485 interface.

  • Page 145: Other Equipments Connected To The Main Unit

    •GOT1000 Series Connection Manual (Microcomputer, MODBUS Products, Peripherals) for GT Works3 •GOT1000 Series Connection Manual for GT Designer2/GT Works2 8.5.1 Applicable other equipments connected to the main unit The following equipments are applicable for GT16. Product name Model Description USB memory...
  • Page 146 POINT POINT POINT Precautions for using a USB mouse/keyboard (1) When using the mouse with wheel or special mouse A mouse with wheel or a mouse with three or more buttons can be used as a two buttons mouse. The wheel or special button cannot be used. In addition, a mouse with special functions cannot be used in some models.

  • Page 147: Maintenance And Inspection

    It is recommended to replace the battery and the cold cathode tube backlight periodically. (For the replacement of the liquid crystal screen, please consult Mitsubishi (Electric System) Service.) Refer to the following section for the lives of the battery, liquid crystal screen and backlight.

  • Page 148: Daily Inspection

    9.1 Daily Inspection  Daily inspection items Inspection Item Inspection Method Criterion Action Check for loose Retighten screws within the GOT mounting status Securely mounted mounting screws. specified torque range. Retighten screws Loose terminal screws Not loose Retighten terminal screws with screwdriver Connection Proximate solderless...

  • Page 149: Cleaning Method

    9.3 Cleaning Method Use GOT always in a clean condition. To clean the GOT, wipe the dirty part with a soft cloth using neutral detergent or ethanol. Clean POINT POINT POINT Precautions for cleaning Do not use solvents such as acetone, benzene, toluene and alcohol, since they may cause the protective sheet to be deformed or the dissolvable paint on the surface to peel off.

  • Page 150: Battery Voltage Low Detection And Battery Replacement

    9.4 Battery Voltage Low Detection and Battery Replacement  Low battery voltage detection and replacement The battery is used for backing up the present time or the maintenance time notification data. It is recommended that you replace battery periodically. Refer to the following for the replacement procedure. 8.3.2 Battery The battery voltage low detection can be confirmed by the utility and system alarm.
  • Page 151 26, 2008 or later, provide the latest manuals that include the explanation of the symbol. If no Mitsubishi manuals or any old manuals without the explanation of the symbol are provided, separately attach an explanatory note regarding the symbol to each manual of the devices.

  • Page 152: Backlight Shutoff Detection And Replacement

    When GOT detects backlight shutoff, the POWER LED blinks green/orange alternately. The LED backlight requires the LCD replacement. Contact your local Mitsubishi Electric System & Service Co., Ltd. The cold cathode tube backlight lowers its intensity with the duration of use. When backlight shutoff is detected or the display becomes unclear, replace the backlight.

  • Page 153: Backlight Replacement

    The following models use LED backlights. Therefore, no backlight replacement is required. • GT1655-V • Other GT16 models with function version H or later For how to check the function version, refer to the following. Appendix2 Confirming of Versions and Conformed Standards...
  • Page 154 The model and the production year and month are printed on the back of a backlight. H01 or H02 is printed after the model. H01 indicates the upper backlight, and H02 indicates the lower backlight Remove the cable connectors of the upper backlight (H01) and the cable connectors of the lower backlight (H02) from the GOT connectors.
  • Page 155 Remove eight fixing screws on the GOT rear face with a screwdriver. Remove the cable connector of the backlight from the connector of the GOT board. (Expanded figure of part A in step 4) When replacing the GT16-70SLTT/VLTT, remove the cables from the cable holder. (When replacing the GT16-70SLTT/VLTT) Cable holder 9 - 9 9.6 Backlight Replacement...
  • Page 156 Push the backlight fixing latch (black) to the front face to pull out the backlight. Pull out the backlight so that the backlight does not hit the packing. (When replacing GT16-80SLTT) Cable Latch Packing Fluorescent tube (When replacing GT16-70SLTT/VLTT) The latch is on the right side of the backlight.
  • Page 157  For GT16-70VLTTA The backlight replacement procedure differs according to the hardware version and the manufacture year and month of the GOT. Appendix2 Confirming of Versions and Conformed Standards Model name GOT hardware version (Manufacture year and month) Reference A (January 2012) or earlier...
  • Page 158 Remove the backlight cables from the cable holder A by pulling the backlight cables one by one in the arrow I direction and then in the arrow II direction. Cable holder A Pull out the backlight so that the backlight does not hit the packing. Packing Fluorescent tube Install a new backlight so that its top plate is inserted between the metal parts of the backlight replacement...
  • Page 159 (2) GT1675M-VTBA with hardware version B (Manufacture year and month: February 2012) or later, and GT1675M-VTBD with hardware version C (Manufacture year and month: February 2012) or later Turn off the GOT. Disconnect the power supply cable and the communication cable. Remove the GOT from the control panel. Remove the right extension unit cover of the GOT.
  • Page 160 When installing the case, make sure that the cables are not stuck between the case and the GOT. Cable holder B (Used)  For GT16-70VLTN Turn off the GOT. Disconnect the power supply cable and the communication cable. Remove the GOT from the control panel. Remove the right extension unit cover of the GOT.
  • Page 161 (Tighten the fixing screws on the GOT rear face with a torque of 0.36 to 0.48 N•m). When installing the case, make sure that the cables are not stuck between the case and the GOT.  For GT16-60SLTT, GT16-60VLTT Turn off the GOT. Disconnect the power supply cable and the communication cable.
  • Page 162 Remove seven fixing screws on the GOT rear face with a screwdriver. Remove the case after passing the battery holder through the mounting hole. When removing, take care of not cutting the cable of the battery holder. (Expanded figure of part A in step 4) Pull out the tray for storing the cable connector of backlight.
  • Page 163  For GT16-60VLTN Turn off the GOT. Disconnect the power supply cable and the communication cable. Remove the GOT from the control panel. Remove the right extension unit cover of the GOT. Remove an extension unit, including a bus connection unit, if it is mounted.
  • Page 164 Press the backlight fixing latch (black) with your fingers, and pull out the backlight to the left. Pull out the backlight so that the backlight does not hit the packing. Latch Packing Install a new backlight in the reverse procedure of removal. When inserting a new backlight into the backlight replacement hole of the GOT, make sure not to damage the sheaths of the cables.

  • Page 165: Troubleshooting

    (3) When corrective action other than (1) and (2) above is required (System configuration check sheet) If malfunction etc. occurs even after checking with (1) and (2) above, please contact your local Mitsubishi (Electric System) Service after filling out System configuration check sheet with details about your system.
  • Page 166  GOT status check sheet Check the GOT starting from (1) GOT status. Proceed as instructed by "Action". (1) Status of the GOT Phenomenon Cause/status Action (a) Frequency when the GOT does not operate, an error occurs on the screen, etc. Occurs always.
  • Page 167 Phenomenon Cause/status Action (d) Screen display Perform the following in order. 1) Reinstalling BootOS 2) Reinstalling standard monitor OS If the GOT is not restored by 1) and 2), perform the following. The screen is completely The LCD or BootOS may be failty. 3) Reinstalling CoreOS and then standard black.
  • Page 168 (2) Status of the GOT when it freezes (screen operation stopped) Phenomenon Cause/status Action (a) Switching to the utility When the system alarm display function Error code (system alarm): can be used, take the action for the error code (system alarm) displayed. Enabled Example: 460 Communication unit error If the action cannot be taken, proceed to...
  • Page 169 CC-Link connection (intelligent device station) is used. (5) Troubled product investigation When malfunction of the GOT is not improved, please contact your local Mitsubishi (Electric System) Service. Depending on the problem details, we may ask you to return the troubled product to us.
  • Page 170  GOT installation status check sheet Check the current installation status of the GOT you are using against the GOT installation status described in the upper column of items (1) to (7). When the measure described in the lower column is needed, take the measure for the current status. When the measure is taken, check the result, "Effective"...
  • Page 171 (3) Wiring of GOT's FG cable and power line Installed The FG cable and power line of the together LG FG Current status GOT are installed together. Not installed together Power for the power equipment Measure for the Separating the FG cable and power Effective cables installed LG FG...
  • Page 172 (5) Grounding status Servo The FG cables of the control Connection cable CN1A CN1B equipment (such as PLC) and the Connected Current power equipment (such as servo status amplifier) are connected as shown connected by "a". Panel grounding Panel grounding Servo Connection cable CN1A...
  • Page 173 (6) Grounding status of the panel on which the GOT is installed Connection cable A single ground cable is led from the Ground cable led from the Current panel having the control equipment panel having the control equipment status such as PLC to the panel having the Not led GOT.
  • Page 174 (7) Power supply system The power from the same system is Main power PLC power AC200V used for the GOT, I/O equipment Used Current status I/O power (such as relay), and power Not used equipment equipment (such as servo amplifier). Main circuit power Power equipment...
  • Page 175  System configuration check sheet Fill in the brackets with the unit/module name. (1) System configuration of the GOT (a) GOT main unit (b) Option function board Used Not used Communication (c) Communication interface unit GOT built-in interface (d) Option unit Used Not used (e) Cable between the PLC and GOT...

  • Page 176: Troubleshooting In Bus Connection

    When connect GOT and PLC CPU with bus connection, and the cause is not clear in "10.3.2 List of error message/ system alarm", execute the following troubleshooting. Refer to the following for details concerning the bus connection. •GOT1000 Series Connection Manual (Mitsubishi Products) for GT Works3 •GOT1000 Series Connection Manual for GT Designer2/GT Works2 10.2.1 Locating error positions Explanation regarding the method of specifying the error part.

  • Page 177: Further Locating Error Positions

    10.2.2 Further locating error positions If the function of the PLC cannot be recovered even when the module on which an error occurs is replaced with a new one, the error may be caused by the effect from another module. Disconnect the extension cables and bus connection cables in order from the modules starting from the module located furthest from the operating position in the system, and check for the status of occurrence of the error each time the cables are disconnected until the error does not occur.

  • Page 178: Specific Example Of Troubleshooting

    10.2.3 Specific example of troubleshooting Taking the following system as an example, troubleshooting is shown when PLC CPU error occurred. (When QnASCPU and the extension base unit are used) (main base unit) GOT 1) GOT 2) Extension cable (extension base unit) Bus connection Bus connection cable...

  • Page 179: Error Message And System Alarm

    10.3 Error Message and System Alarm This chapter describes the error message and system alarm displayed in the GOT. As the error code and error message displaying functions when an error occurs at the GOT, controller or network, there are two kinds: system alarm and advanced system alarm. For details of the system alarm and advanced system alarm, refer to the following.
  • Page 180  Checking error messages with the utility (Utility) The error code and error message can be checked with the system alarm display of the utility when the object is not set. (Basic Utility) 5.1.2 System alarm Error code and reference manual Channel No.

  • Page 181: List Of Error Message/System Alarm

    10.3.2 List of error message/system alarm The system alarm detected with GOT is shown below. Error Channel No. Error message Action code storage Decrease the number of objects from the displayed screen. For the number of maximum objects for 1 screen, refer to the following. Set monitor points too large.
  • Page 182 Error Channel No. Error message Action code storage Available memory of the CF card is insufficient.Confirm the available memory of the CF card. Insufficient memory media The available memory can be confirmed by system information screen, capacity. Confirm M-card which is described in GT Designer3 Version1 Screen Design Manual capacity.
  • Page 183 Error Channel No. Error message Action code storage Recipe file make error. Reboot Failed to generate recipe file. GOT after inserting memory Reboot the GOT after installing the CF card or USB memory. card. Failed to write in the recipe file. Unable to write Recipe file.
  • Page 184 Error Channel No. Error message Action code storage USB drive is not installed or in a If the USB memory is not installed, install it. removable state. If the USB memory is ready to be removed, install it again. Memory card is not formatted or in a format not conformed by a GOT. 382 USB drive is not formatted.
  • Page 185 Error Channel No. Error message Action code storage • When monitoring the same network as the GOT The GOT accesses the other networks with the MELSECNET/H, MELSECNET/10 (PLC to PLC network), or CC-Link IE Controller Network connection. Confirm the network number of the project data so as not to access to other networks.
  • Page 186 Error Channel No. Error message Action code storage The station number set in the GOT's utility is the same as the station number set in the Ethernet setting of GT Designer3 or GT Designer2 (the station number of the PLC side Ethernet module) or in the project data. Check the following contents so that the multiple station numbers should not be the same.
  • Page 187 Error Channel No. Error message Action code storage Two or more units which cannot be mounted on the GOT simultaneously Simultaneous mounting of the are mounted. units are not allowed. Check the mounted units, and remove unnecessary units. Unit mounted incorrectly. Move The unit is not mounted on the GOT in the correct position.
  • Page 188 The backlight is shut off or the lighting status of the backlight is unstable. 511 A blown backlight is detected. If the error is detected repeatedly, contact your local Mitsubishi representative. The capacity for the buffering area is insufficient in the build in flash...
  • Page 189 Error in SRAM. The error may be caused by a failure in the GOT main unit. Failed to write data. Contact your local Mitsubishi representative. Data error in SRAM. Check the Error in SRAM data due to battery voltage low, etc.
  • Page 190 Check if the sound output unit is correctly installed. The error may be caused by a failure in the GOT. 605 USB device I/F error Contact your local Mitsubishi representative. Multimedia processing unit is Multimedia unit is installed incorrectly. not mounted.
  • Page 191 Error Channel No. Error message Action code storage Improper job files. Confirm job The contents for job files are unmatched with the settings for job files. setting. Check if there are mistakes in the settings on the setting screen. Insert a CF card or USB memory. Cannot access Logging Files Turn on the CF card access switch.
  • Page 192 Error Channel No. Error message Action code storage The cable on the OUT side is disconnected or is not Refer to explanations of SB0068 on the applicable network manual. connected. Check if the switch settings have no error. 850 CC-Link switch setting error Check error codes stored in SW006A.
  • Page 193 10 - 29 10.3 Error Message and System Alarm...

  • Page 194: Appendices

    APPENDICES Appendix1 External Dimensions (1) GT1695 397(15.63) 320(12.60) 320(12.60) 382(15.03) (0.39) (0.39) Unit: mm (inch) App - 1...
  • Page 195 (2) GT1685 316(12.44) 240(9.48) 240(9.48) Unit: mm (inch) 301(11.85) App - 2...
  • Page 196 (3) GT1675, GT1672 303(11.93) 252(9.92) 222(8.74) 288(11.34) Unit: mm (inch) (4) GT1665, GT1662 241(9.49) 175.5(6.91) 175.5(6.91) Unit: mm (inch) 226(8.90) App - 3...
  • Page 197 (5) GT1655 167(6.57) 116(4.57) 116(4.5760) Unit: mm (inch) 152(5.98) App - 4...
  • Page 198 (6) Depth dimension and cable bending dimensions of the GOT with extension unit GOT rear face GOT side face 100(3.94) GOT type Dimension of * or more GT1695 55 (2.17) GT1685 46 (1.81) GT1675 43(1.69) GT1672 GT1665 46 (1.81) Extension unit GT1662 GT1655 54 (2.13)
  • Page 199 (b) GT1685 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 31(1.22) 55(2.17) GT15-QBUS2 18(0.71) GT15-ABUS, 73.5(2.89) 9.5(0.37) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 31(1.22) 55(2.17) GT15-75QBUS2L 5(0.20) GT15-75ABUSL, 73.5(2.89) 9.5(0.37) 36(1.42) GT15-75ABUS2L GT15-RS2-9P 72.5(2.85) 8.5(0.33) GT15-RS4-9S 30(1.18) 18(0.71) 33.5(1.32) 0(0) GT15-RS4-TE GT15-J71LP23-25 (2.52) GT15-J71BR13...
  • Page 200 (c) GT1675, GT1672 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 40(1.57) 55(2.17) GT15-QBUS2 21(0.83) GT15-ABUS, 73.5(2.89) 18.5(0.73) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 40(1.57) 55(2.17) GT15-75QBUS2L 8(0.31) GT15-75ABUSL, 73.5(2.89) 18.5(0.73) 36(1.42) GT15-75ABUS2L GT15-RS2-9P 72.5(2.85) 17.5(0.69) GT15-RS4-9S 30(1.18) 33.5(1.32) 0(0) 21(0.83) GT15-RS4-TE GT15-J71LP23-25 (2.17)
  • Page 201 (d) GT1665, GT1662 Model name (bending radius of the cable) GT15-QBUS, 95(3.74) 50(1.97) 55(2.17) GT15-QBUS2 23(0.91) GT15-ABUS, 73.5(2.89) 28.5(1.12) 36(1.42) GT15-ABUS2 GT15-75QBUSL, 95(3.74) 50(1.97) 55(2.17) GT15-75QBUS2L 10(0.39) GT15-75ABUSL, 73.5(2.89) 28.5(1.12) 36(1.42) GT15-75ABUS2L GT15-RS2-9P 72.5(2.85) 27.5(1.08) GT15-RS4-9S 30(1.18) 23(0.91) 33.5(1.32) 0(0) GT15-RS4-TE GT15-J71LP23-25 (1.77)
  • Page 202 If cable bending radius is smaller than the lowest part of the GOT rear face, the dimension of *3 is equal to or less than 0; however, it is written as "0" in the table. For details of the cable for GT15-J71LP23-25 (optical loop unit), contact your local Mitsubishi (Electric System) Service. The bend radius varies depending on the Ethernet cable to be used.
  • Page 203 (7) Depth dimensions for installing multiple stages The following shows how to calculate the depth dimensions for installing multiple stages to the GOT. When installing only the first stage , refer to the dimensions in App.1 (6). Select the GOT main unit coefficient from the following list. GOT side face 100(3.94) or more G (main unit...
  • Page 204 (8) External dimensions of the communication cable (a) External dimensions of the bus connection cable connector Cable model Cable length (m(ft.)) External dimensions 0.6(2.0),1.2(3.9),3(10),5(16),10(33) Fig. 1 GT15-QC 15(49),20(66),25(82),30(98),35(115) Fig. 1 GT15-QC 1.2(3.9),3(10),5(16) Fig. 2 GT15-C 0.6(2.0),1.2(3.9),3(10),5(16) Fig. 3 GT15-AC 1.2(3.9),2.5(8.2) Fig.
  • Page 205 Ferrite core, approx. Φ35(1.38) Cable approx. 40(1.57),blue holder tube Φ9.0(0.35) A0J2-PW side (b) External dimensions of RS-422 connection cable connector Cable model Cable length (m(ft.)) External dimensions GT16-C02R4-9S 0.2(0.7) Fig. 11 GT01-C30R4-25P 3(10) Fig. 12 10(33),20(66),30(98) Fig. 13 GT01-C R4-25P 1(3),3(10),10(33),20(66),30(98) Fig.
  • Page 206 (c) External dimensions of RS-232 conversion cable connector Cable model Cable length (m(ft.)) External dimensions GT01-C30R2-6P 3(10) Fig. 18 GT01-C30R2-9S 3(10) Fig. 19 GT01-C30R2-25P 3(10) Fig. 20 GT10-C30R2-6P 3(10) Fig. 21 Unit:mm(inch) Fig.19 Fig.18 3000 3000 (0.63) (1.97) (118.11) (1.97) (0.63) (0.63) (1.97)

  • Page 207: Appendix2 Confirming Of Versions And Conformed Standards

    Hardware version Manufacture month (1 to 9: Manufacture month, X: October, Y: November, Z: December) Manufacture year (Last two digits of the year) Conformed standard MITSUBISHI ELECTRIC CORPORATION GT16-70VLTTA Compatible backlight model For LED backlight For cold cathode tube backlight...

  • Page 208: Appendix3 Transportation Precautions

    Appendix3 Transportation Precautions When transporting lithium batteries, make sure to treat them based on the transport regulations. Appendix.3.1 Relevant models The battery for the GOT1000 Series is classified as shown in the table below. Product name Model Description Handled as GT15-BAT Non-dangerous Battery for GOT1000 Series...

  • Page 209: Appendix4 How To Choose Drive

    Appendix4 How to Choose Drive For using a CF card, select the A or B drive according to the following. (1) A drive The CF card interface built in the GOT is used as the A drive. (2) B drive The following two units can be used as the B drive.
  • Page 210 App - 17...
  • Page 211 Confirming of Versions and Conformed Wiring to GOT power section ......7-3 Standards ............App-14 Protective cover for oil ......... 8-17 Connection cables for MITSUBISHI PLCs .... 2-7 Protective sheet ........... 2-16,8-15 Control panel inside temperature and mounting angle ............ 6-10 Q extension cable ..........
  • Page 212 Transportation Precautions ......App-15 USB environmental protection cover ... 2-17,8-19 Index-2...
  • Page 213 REVISIONS For the software functions, refer to the product-specific screen design manual. The manual number is given on the bottom left of the back cover. Print Date Manual Number Revision May, 2010 SH(NA)-080928ENG-A First edition Jun, 2010 SH(NA)-080928ENG-B Added GT1675-VN, GT1672-VN, GT1662-VN Oct, 2010 SH(NA)-080928ENG-C Compatible with GT Designer3 Version1.19V •...
  • Page 214 This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.
  • Page 215 1. Gratis Warranty Term and Gratis Warranty Range If any faults or defects (hereinafter "Failure") found to be the responsibility of Mitsubishi occurs during use of the product within the gratis warranty term, the product shall be repaired at no cost via the sales representative or Mitsubishi Service Company.
  • Page 216 GOT is a registered trademark of Mitsubishi Electric Corporation. Microsoft, Windows, Windows NT, Windows Server, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Adobe and Adobe Reader are registered trademarks of Adobe Systems Incorporated.

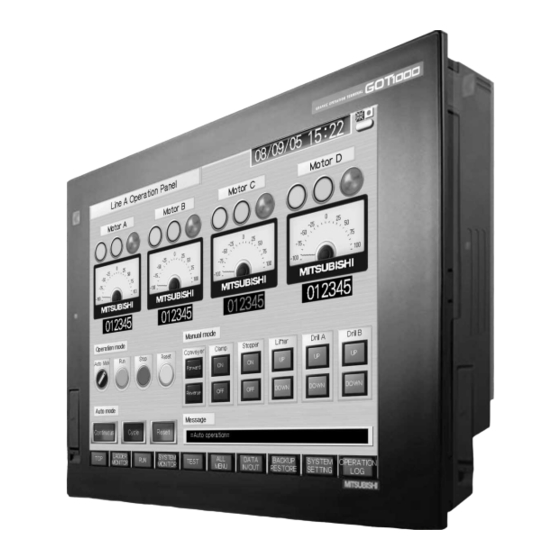

  • Page 218 GT16 User's Manual (Hardware) GT16-U(HW-SHO)-E MODEL MODEL 1D7MD3 CODE SH(NA)-080928ENG-O(1401)MEE HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN NAGOYA WORKS : 1-14 , YADA-MINAMI 5-CHOME , HIGASHI-KU, NAGOYA , JAPAN When exported from Japan, this manual does not require application to the Ministry of Economy, Trade and Industry for service transaction permission.

This manual is also suitable for:

Got 1000 gt16

Table of Contents
