Summary of Contents for XtendLan DPP-D201
-

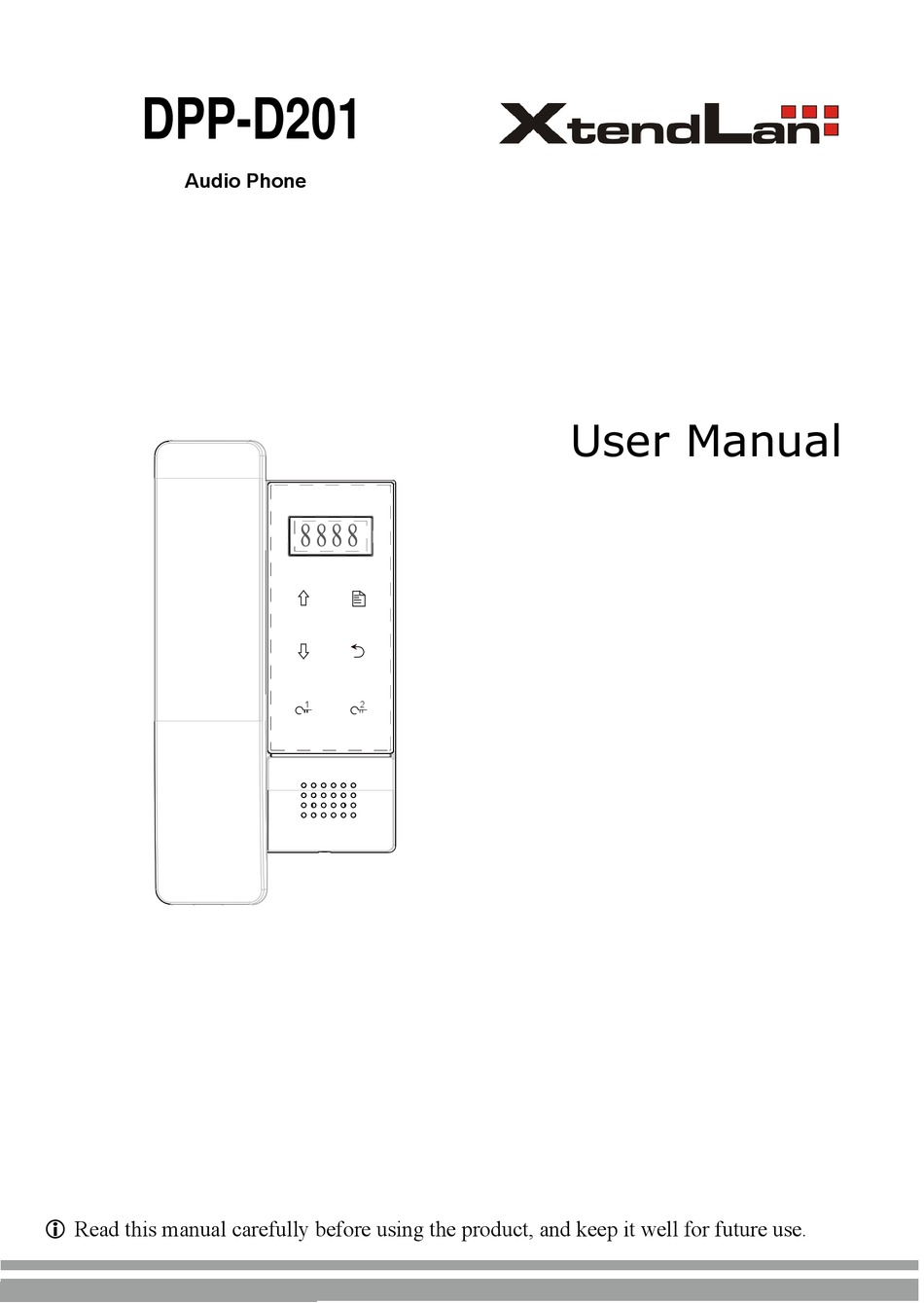

Page 1: User Manual
DPP-D201 Audio Phone User Manual 8888 Read this manual carefully before using the product, and keep it well for future use. ... -
Page 2: Key Functions
1. Parts and Functions 97.1 33.2 7 segment LED 8888 Handset Up button Menu button Down button Cancel button Unlock 2nd button Unlock button Speaker Handset line Side View Key functions 7 segment LED Display setting informations Handset Pick up to communicate with visitor Hand line Connect handset with monitor Unlock button... -
Page 3: Operation Instructions
2. Operation Instructions 1) Door opening function:When visitor calls from outdoor station, the monitor rings, pick up handset to talk with the visitor, then press the Unlock button to open the door.If the system connect 2 locks,press Unlock 2nd button to open the second door. 2) Entrance monitoring: Pick up handset in standby mode,the LED will be shown a scroll information "Intr Call",press Up button or Down button to stop the scroll,and the LED show "ds-x"(x=1~4,refer to part 3-Numbers of door station),it means that the... -
Page 4: Power Supply
Setting L E D Description Default Item state Set volume for call tone,rang from 0~9. Ring volume 3-rx Set volume for speaker,adjust the voice from Speaker volume 4-Lx outdoor,rang from 0~9. Set volume for microphone,adjust the voice from Microphone 5-tx volume user,rang from 0~9.
