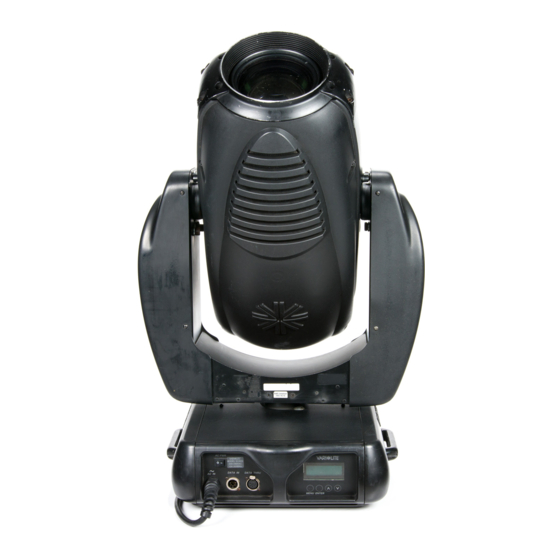

Vari Lite VL3000 Series User Manual

Luminaire
Hide thumbs Also See for VL3000 Series:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

Advertisement

Table of Contents
loading

Related Manuals for Vari Lite VL3000 Series

Summary of Contents for Vari Lite VL3000 Series

  • Page 2 , and the Vari-Lite Asterisk are also trademarks owned by Genlyte Thomas Group LLC. VARI LITE® products are protected by one or more of the following patents, and other pending patent applications worldwide: U. S. Patents No. 6,123,436; 6,113,252; 6,046,861; 6,031,749; 6,011,640; 5,969,868; 5,959,768; 5,934,794; 5,882,107; 5,829,868; 5,825,548; 5,798,619;...
  • Page 3 How To Obtain Warranty Service A copy of the Vari-Lite Limited Warranty was included in the shipping package for this VARI LITE® product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548) or customerservice@vari-lite.com and request a Return Material Authorization (RMA) for warranty service.
  • Page 4 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.

  • Page 5: Safety Notice

    WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST ELECTRICAL SHOCK 1. VARI LITE® luminaires are designed for dry locations only. Exposure to rain or moisture may damage luminaire. 2. Disconnect power before servicing any VARI LITE® equipment. 3. Servicing to be performed by qualified personnel only.
  • Page 6 INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI LITE® luminaires use a lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 1. VARI LITE®-Scheinwerfer eignen sich ausschließlich für trockene Standorte. Regen oder Feuchtigkeit können die Scheinwerfer beschädigen. 2. Unterbrechen Sie die Stromzufuhr, bevor Sie mit der Arbeit an VARI LITE®-Geräten beginnen. 3. Die Geräte sollten nur von qualifiziertem Personal gewartet werden.
  • Page 8 ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI LITE®-Scheinwerfer verwenden die Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z.
  • Page 9 AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE LES INCENDIES 1. Les luminaires VARI LITE® ont été conçus pour être utilisés uniquement avec certaines type de lampes. Vérifier le type de lampe (Osram HMI 1200 W/S metal halide lamp) avant de remplacer les lampes.
  • Page 10 DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI LITE® utilisent une lampe qui produit des rayons UV. NE PAS fixer son regard sur la lampe. 2. L’utilisation des luminaires sans lentille ou blindage pose des risques. Tous blindages, lentilles ou écrans ultraviolet visiblement endommagés au point que leur efficacité...
  • Page 11 ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA CHOQUE ELÉCTRICO 1. Las luminarias VARI LITE® están diseñadas solamente para lugares secos. La exposición a la lluvia o humedad pueden dañar la luminaria. 2. Desconecte la energía antes de dar servicio a cualquier equipo de VARI LITE®.
  • Page 12 INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI LITE® usan un tipo de lámpara que produce radiación UV. NO mire directamente a la lámpara. 2. Es peligroso operar luminarias sin lentes o protectores. Debe cambiar los protectores, lentes o pantallas ultravioletas si se aprecia que han sido dañadas, y que su efectividad pudiera estar...
  • Page 13 OREWORD 02.9 678.00 01 A 20-Aug-03...
  • Page 14 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL 20-Aug-03 02. 9678.0 001 A...

  • Page 15: Table Of Contents

    ABLE OF ONTENTS Table of Contents Introduction About This Manual ........................1 Additional Documentation......................1 Text Conventions ........................2 Customer Service ........................2 Chapter 1. Description Features Standard Features ........................4 Specific Features ........................4 Components Included Items........................... 5 Replacement Items/Accessories....................5 Luminaire Overview .........................
  • Page 16 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Chapter 3. Operation DMX Operation Channel Mapping........................18 Control Channel Functions ..................... 20 DMX Mapping Color Control .......................... 21 Color Mixing ........................21 Fixed Color Wheel ......................21 Beam Control .......................... 23 Strobe..........................
  • Page 17 ABLE OF ONTENTS Appendix E. Troubleshooting and Maintenance Troubleshooting Error Messages........................54 Troubleshooting Guide......................55 Routine Maintenance Lamp Replacement ......................... 56 Align Lamp ..........................57 Gobo Replacement........................58 Color Filter Replacement ......................60 Cleaning Front Lens........................ 61 Appendix F. Technical Specifications VL3000 Spot Luminaire ......................
  • Page 18 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Notes 20-Aug-03 02. 9678.0 001 A...

  • Page 19: About This Manual

    20.9678.0001 VL3000 Wash Luminaire 20.9678.0002 Additional Documentation A service manual for extended maintenance of the VL3000 series luminaire is available in both printed and electronic (PDF) formats: • VL3000 Series Luminaire Service Manual (02.9678.0010) - Testing, Troubleshooting, Component Replacement and Illustrated Parts Breakdown.

  • Page 20: Text Conventions

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Text Conventions The following styles and meanings are used throughout this manual: Style Meaning [Button] Front panel button. Example: Press [Menu]. [Up] / [Down] arrows Press either [Up] or [Down] arrow button at Menu Display.

  • Page 21: Chapter 1. Description

    HAPTER Description This chapter contains descriptions of luminaire features and components, along with a list of accessories which are available. • Features • Components 02 .9678 .0001 A 20-Aug-03...

  • Page 22: Features

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Features Standard Features All VL3000 series luminaire have the following standard features: • CYM color mixing system. • Variable CTO color correction. • Six-position, fixed color wheel. • Full field dimming system.

  • Page 23: Components

    ESCRIPTION OMPONENTS Components Included Items The following illustration shows all items included with the luminaire: Quick Start Sheet Warranty Card User’s Manual Mounting Brackets VL3000 Luminaire Figure 1-1: VL3000 Luminaire Packing List Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from Vari-Lite. (Please order by Vari-Lite part number.) Vari-Lite P/N Accessory...

  • Page 24: Luminaire Overview

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Luminaire Overview The following illustration shows the external luminaire components and controls. Upper Enclosure Assembly Houses power supply, ballast, and display board. AC Input Cable Truss Hook Bracket Attaches to enclosure base to allow truss hook installation.

  • Page 25: Chapter 2. Installation

    HAPTER Installation This chapter contains instructions for installation of the luminaire. It includes connecting power and data, along with instructions for powering up the luminaire for the first time and addressing it within your system. • Power and Data Cabling Requirements •...

  • Page 26: Power And Data Cabling Requirements

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Power and Data Cabling Requirements Power The luminaire requires standard AC power distribution from 200-240 VAC, 50/60 Hz. Ten amps will be required. Depending on the application, the luminaire’s AC input cable may require a different connector. If...

  • Page 27: Data Cables

    EQUIREMENTS Data Cables The VL3000 series luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality cable to ensure a reliable DMX512 system.

  • Page 28: Recommended Cable Types/Manufacturers

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Recommended Cable Types/Manufacturers These are only a few of the suitable cable types. Any quality EIA485, twisted pair, 120 ohm, shielded cable will also work. Table 2-1: Recommended Cable Types ∗...

  • Page 29: Installation Procedures

    Installation Procedures Hanging the Luminaire The VL3000 series luminaire can be hung horizontally or vertically from any structure designed to work with the type of load created by this moving luminaire. Two mounting bracket assemblies (provided) are used to attach truss hooks or other mounting hardware as required. Many compatible truss hooks are available from different manufacturers for your particular needs.
  • Page 30 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are locked securely. (Always face brackets in same direction as shown.)
  • Page 31 NSTALLATION NSTALLATION ROCEDURES Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is properly tightened and that luminaire is fully supported. Step 3.

  • Page 32: Floor Mounting The Luminaire

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Floor Mounting the Luminaire The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation, provided that the mounting surface is flat and sturdy. Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link.

  • Page 33: Powering Up

    NSTALLATION OWERING Powering Up Power Up and Configuration Procedure Since Lamp On is the default state, the lamp will strike when the luminaire is powered up for the first time. When AC power is applied, the luminaire will immediately begin a calibration sequence that steps it through pan and tilt movements.

  • Page 34: Addressing

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Addressing Program Starting Address The address setting for DMX console controlled systems is entered using the Menu Display (refer to “Menu Operation” on page 42). The luminaire retains the DMX address even if power is removed.

  • Page 35: Chapter 3. Operation

    HAPTER Operation This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. • DMX Operation • DMX Mapping • Luminaire Timing • Updating Software 02 .9678 .0001 A 20-Aug-03...

  • Page 36: Dmx Operation

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL DMX Operation Channel Mapping These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. (There is only one DMX mode for this luminaire, which is Enhanced 16-bit Mode.)
  • Page 37 : DMX O PERATION PERATION Table 3-2: VL3000 Wash Luminaire Enhanced 16-Bit Mode DMX Channel Parameter Range Intensity 0-255 Hi Byte Pan 0-65535 Lo Byte Pan 0-65535 Hi Byte Tilt 0-65535 Lo Byte Tilt 0-65535 Edge 0-255 CTO Mixer 0 (open) - 255 (diffused) Blue Mixer 0 (open) - 255 (full saturation) Amber Mixer...

  • Page 38: Control Channel Functions

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Control Channel Functions Control channel functions allow special actions such as reset, lamp on/off and partial recalibration. These must be executed with zero time transition or with timing disabled. Discrete values must be used;...

  • Page 39: Dmx Mapping

    : DMX M PERATION APPING DMX Mapping Color Control The luminaire’s color system is composed of a color mixing mechanism and a fixed color wheel. The follow sections describe these components. Color Mixing The color mixing mechanism is made up of four graduated color disks: blue, amber, magenta and CTO (color temperature orange).
  • Page 40 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Table 3-5: Color Wheel Standard Configuration Chart Position Color Filter Part Number Congo Blue 41.9678.0305.03 Orange 41.9678.0305.05 Kelly Green 41.9678.0305.02 Dark Fuchsia 41.9678.0305.06 Magenta 41.9678.0305.04 Deep Red 41.9678.0305.01 Table 3-6: DMX Map for Fixed Color Wheel...

  • Page 41: Beam Control

    : DMX M PERATION APPING Beam Control Strobe Table 3-7: DMX Map for Strobe % Value DMX Value Action Open Closed Slow Random 8-10 Med Random 11-12 Fast Random 5-100 13-255 Speed Range 02.9 678.00 01 A 20-Aug-03...

  • Page 42: Gobo/Effects Control

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Gobo/Effects Control Gobo Wheels 1 and 2 These wheels have six positions, one being open. The following illustration shows the standard gobo configurations: POS 1 POS 6 POS 2 POS 5...

  • Page 43: Gobo Wheel 3

    : DMX M PERATION APPING Gobo Wheel 3 This wheel has five positions, one being open. The following illustration shows the standard gobo configurations: POS 5 POS 4 POS 1 POS 3 POS 2 Figure 3-3: Gobo Wheel 3 Positions Table 3-10: Gobo Wheel 3 Standard Configuration Chart Position Gobo Style...

  • Page 44: Index/Rotation

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Index/Rotation The gobo wheels operate in two modes: INDEX Mode and ROTATE Mode. The corresponding values are given in the DMX Map Tables below. Gobos will also behave as follows: •...

  • Page 45: Luminaire Timing

    PERATION UMINAIRE IMING Luminaire Timing Timing Channel Information Timing channel control improves the timed moves of certain groups of parameters. We provide up to four timing channels, one for focus (Pan and Tilt), one for color parameters, one for beam parameters, and one for gobo wheel position (spot version only).
  • Page 46 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL VL3000 Wash Luminaire Channel Function / Timing Channel Relationship Table 3-15: Timing Channel Channel Function Focus Time Color Time Beam Time Pan (Hi Byte/Lo Byte) Tilt (Hi Byte/Lo Byte) Blue Amber...
  • Page 47 PERATION UMINAIRE IMING Timing channels can be set in either % or 0-255 (DMX) modes, with the following values assigned: Timing Channels Map Table 3-16: % Value = Seconds Full Speed 02.9 678.00 01 A 20-Aug-03...
  • Page 48 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 10.2 10.4 10.6 20-Aug-03 02. 9678.0 001 A...
  • Page 49 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.9 678.00 01 A 20-Aug-03...
  • Page 50 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 20-Aug-03 02. 9678.0 001 A...
  • Page 51 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.9 678.00 01 A 20-Aug-03...
  • Page 52 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 20-Aug-03 02. 9678.0 001 A...
  • Page 53 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds Follows Cue Data 02.9 678.00 01 A 20-Aug-03...

  • Page 54: Updating Software

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Updating Software Reprogramming Luminaires In some cases, it may be desirable to upgrade the luminaire’s operating software. This process requires a PC, VLDownload.exe, .bin files and the Luminaire Programming Kit (28.9661.0054).

  • Page 55: Reprogramming Procedure

    (if applicable). They will be executed one at a time in the order they appear in the window. This button can be used when any combination of VARI LITE luminaires are connected to the PC.
  • Page 56 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Step 9. Click Close to exit. Note: The History section of the window shows what specific types of luminaire software have been downloaded since the beginning of the session (window will reset once the program is closed and re- opened).

  • Page 57: Transferring Software From Luminaire To Luminaire

    PERATION PDATING OFTWARE Transferring Software From Luminaire to Luminaire It is possible to transfer specific software versions between luminaires. As in the case of installing new software versions, multiple luminaires can be programmed at the same time if they are data linked together (refer to “Connecting Data and Power”...
  • Page 58 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Verify software version at luminaire: Step 1. At Menu Display, press [Menu]. Step 2. Press [Up] / [Down] arrows until Fixture appears. Press [Enter]. Step 3. Press [Up] / [Down] arrows until Version appears. Press [Enter].

  • Page 59: Chapter 4. Menu System

    HAPTER Menu System This chapter contains instructions for operating the luminaire using the Menu Display feature. • Menu Operation • Menu Functions • Self-Tests 02 .9678 .0001 A 20-Aug-03...

  • Page 60: Menu Operation

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Menu Operation What Is the Menu System? The menu system is a programmable set of commands used to configure, address, operate, and test the luminaire. The menu system is controlled at the Menu Display available at the enclosure input panel.

  • Page 61: Default State

    YSTEM PERATION To enter the menu system, first press [Menu]. The functions displayed will be 1st level functions. Scroll through the 1st level functions by pressing [Up] / [Down] arrows. Once the desired function appears in the display, press [Enter]. You are now at the 2nd level. Once again, press the [Up] / [Down] arrows to scroll through 2nd level functions.

  • Page 62: Menu Functions

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Menu Functions Menu System Overview The following is a graphic representation of the entire menu system. Data Chan XXX data Address value Pan/Tilt Swap Setup Model Wash Inv Pan Spot Inv Tilt...

  • Page 63: Menu System Function Chart

    YSTEM UNCTIONS Menu System Function Chart The following is a detailed look at the internal menu system. Table 4-1: VL3000 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Address XXX Address value Setup Model Luminaire Type Wash Spot Config...
  • Page 64 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Table 4-1: VL3000 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test All @1 Test All mechanisms RUN TEST Run-Test in Progress Press [Menu] to stop tests...
  • Page 65 YSTEM UNCTIONS Table 4-1: VL3000 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Manual Pan * XXXX Value Manual Tilt * XXXX Value Commands Dimmer XXX Value Strobe XXX Value Blue XXX Value Amber XXX Value Magenta XXX Value ColWheel Color Wheel...

  • Page 66: Menu Function Definitions

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Menu Function Definitions For easy reference, each possible menu item is listed alphabetically in the first column by its display abbreviation. The second column follows with a definition of the abbreviation and then a third column provides an explanation of its purpose and function.
  • Page 67 YSTEM UNCTIONS Table 4-2: Menu Function Definitions (Continued) Display Definition Purpose GoboX Gobo Wheel Specifies one of three rotating gobo wheels for manual control. (X = 1, 2 or 3) Head Mtr Head Motor Configures head movement options. IndexX Gobo Index Specifies rotating gobo index for manual control.

  • Page 68: Self-Tests

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Self-Tests Running Parameter Tests The luminaire is capable of running self-tests by using the Test menu functions. When running tests on multiple luminaires, a male termination connector is required at the last luminaire in the link.
  • Page 69 YSTEM ESTS Movement Disable The Movement option allows pan and tilt to be disabled so that the luminaire can be placed in any position for testing without movement occurring. In order to regain full control of the luminaire, Movement will need to be enabled after testing. Note: When using the Movement option, pan and tilt will be disabled for all the luminaires that are linked.
  • Page 70 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Notes 20-Aug-03 02. 9678.0 001 A...

  • Page 71: Appendix E. Troubleshooting And Maintenance

    PPENDIX Troubleshooting and Maintenance This appendix provides instructions for troubleshooting and routine maintenance which may be necessary during the life of the luminaire. • Troubleshooting • Routine Maintenance WARNING: All maintenance procedures are to be performed with power removed from the luminaire.

  • Page 72: Error Messages

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display will cycle through any applicable error message(s) until the end of the list is reached. To review the error messages again, it will be necessary to access them using the Status function.

  • Page 73: Troubleshooting Guide

    ROUBLESHOOTING AND AINTENANCE Troubleshooting Guide If a problem is suspected, first try recalibrating the luminaire to prompt an error message. The chart below provides possible causes and remedies for various error messages and/or symptoms. Table A-2: Troubleshooting Chart Message Description Symptom Possible Cause/Remedy Lamp...

  • Page 74: Routine Maintenance

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Routine Maintenance Lamp Replacement WARNING: Ensure that power is removed from luminaire when installing lamp. CAUTION: Wear cotton gloves or other covering while installing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life. If touched, use alcohol and cotton cloth to thoroughly clean glass portion of lamp.

  • Page 75: Align Lamp

    ROUBLESHOOTING AND AINTENANCE Align Lamp The design of the VL3000 luminaire optical system allows for a flat or peaked field. A flat field is one where there is no detectable hot spot and a peaked field is one where the intensity of the beam is greater at the center of the beam than at the perimeter.

  • Page 76: Gobo Replacement

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Gobo Replacement Tools: #2 Phillips screwdriver WARNING: Remove power from luminaire before performing maintenance. Gobos may be HOT after operation. Allow to cool before replacing. To replace a gobo: Step 1. Remove power from luminaire.
  • Page 77 ROUBLESHOOTING AND AINTENANCE Top Head Cover * Do not touch glass with bare fingers. Press on gobo carrier only. CAUTION: 1/4-Turn Screw Gobo Wheel Gobo Assembly (see detail) Gobo Wheel Front of luminaire Carrier Bottom Head Cover * Press from this side * Head covers are attached by tethers.

  • Page 78: Color Filter Replacement

    VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Color Filter Replacement Tools: #2 Phillips screwdriver WARNING: Remove power from luminaire before performing maintenance. Filters may be HOT after operation. Allow to cool before replacing. To replace a color filter: Step 1.

  • Page 79: Cleaning Front Lens

    ROUBLESHOOTING AND AINTENANCE Cleaning Front Lens The front lens can be cleaned using a common glass cleaner and a soft, lint-free cloth. Front Lens Figure A-5: Cleaning Front Lens 02.9 678.00 01 A 20-Aug-03...
  • Page 80 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL Notes 20-Aug-03 02. 9678.0 001 A...

  • Page 81: Appendix F. Technical Specifications

    PPENDIX Technical Specifications VL3000 Spot Luminaire PROGRAMMABLE FUNCTIONS Zoom Optics 13-element 6:1 zoom optics system covering a range of 10° to 60°. Color System A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter.
  • Page 82 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL OPTICAL Source Osram HMI 1200 W/S Metal Halide Lamp, 6000°K, 85CRI Output 24,000 lumens Reflector Precision glass reflector with dichroic cold mirror coating. Color Filter Fixed wheel color filters: .044" thick, 2.039" diameter.

  • Page 83: Vl3000 Wash Luminaire

    ECHNICAL PECIFICATIONS VL3000 Wash Luminaire PROGRAMMABLE FUNCTIONS Color System A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter. Beam Size Control A zoomable beam spreader mechanism provides continuous beam size control for both rapid changes and smooth timed beam angle changes.
  • Page 84 VARI LITE® - VL3000™ S ’ ERIES UMINAIRE ANUAL PHOTOMETRIC VL3000 Wash Luminaire - 1200W Metal Halide Fixture output = 35,000 lumens. All data taken with a seasoned light source at 20 hours of life. BEAM BEAM FIELD CANDELA FIELD ANGLE...
  • Page 85 Vari-Lite 10911 Petal St. Dallas, TX 75238 / 1-877-VARILITE / 214-647-8036 (fax) / parts@vari-lite.com Customer: _____________________________________________ Date: ___________________ VL3000 RMA Form VL3000 Series VL3000™ Series Luminaires Part Number Warranty Serial Numbers Warranty Total Warranty 1200W Arc Ballast w/ Rider Card 23.9661.1269...
