GE Model 19209
www.jascoproducts.com
Wireless Door Chime Kit
Installation Instructions for Battery Operated
Wireless Door Chime Kit
Required Tools: Small flat blade screwdriver, drill, 1/16" and 5/32" drill bits,
and #2 phillips screwdriver.
Included Hardware:
(2) Plastic anchors
(2) 4x20mm screws
(4) 3x20mm screws
(2) Double sided adhesive pads
The wireless door chime Kit has two components:

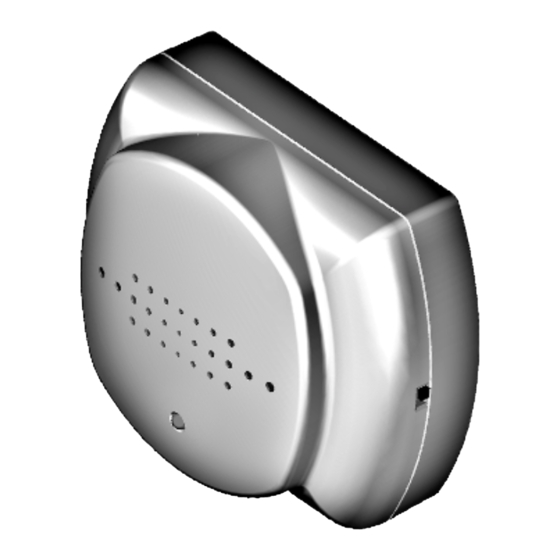

Chime (receiver)
Push-Button (Transmitter).
Chime Tune Setting
The wireless chime can have more than one push button. The chime tune for
each push button is set with dip switches 1-3.
Single Push Button Kit: If you purchased a kit with a single push button, the
chime tune will be set to Ding Dong from the factory.
Dual Push Button Kit: If you purchased a kit with two push buttons, one push
button will be set to Ding Dong and the other push button will be set to
Westminster from the factory.
Advertisement
Related Manuals for GE 19209
Summary of Contents for GE 19209

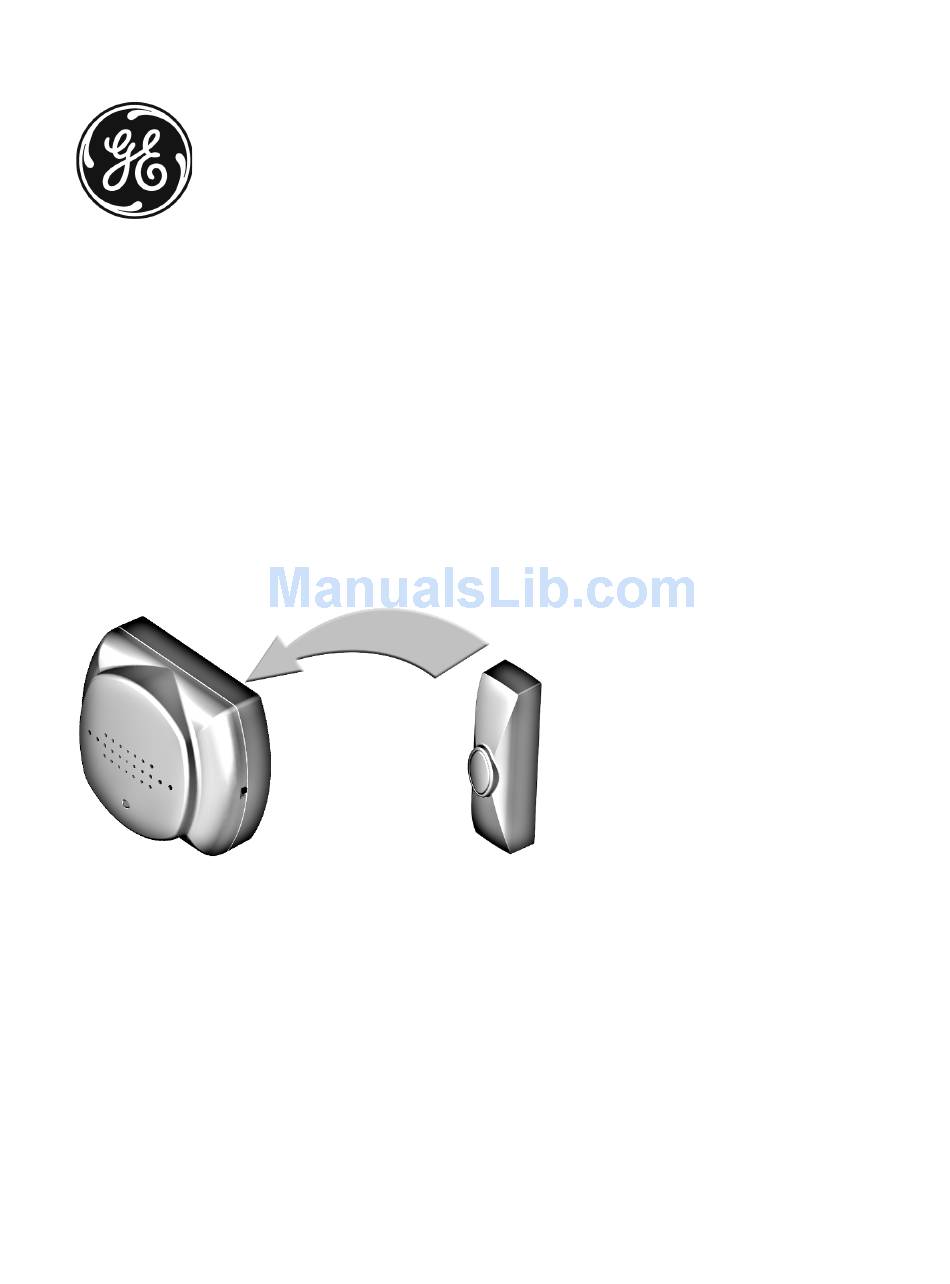

- Page 1 GE Model 19209 www.jascoproducts.com Wireless Door Chime Kit Installation Instructions for Battery Operated Wireless Door Chime Kit Required Tools: Small flat blade screwdriver, drill, 1/16” and 5/32” drill bits, and #2 phillips screwdriver. Included Hardware: (2) Plastic anchors (2) 4x20mm screws...
- Page 2 The following instructions explain how to change the tune on any wireless push button. 1. Remove the battery cover from the push button transmitter. 2. Locate the 3 dip switches shown below. 3. Select the desired chime sound from the table below. Chime Sound Table Position Westminster...
- Page 3 In most cases you will not need to change the factory settings for the house security code. If your chime activates intermittently or does not work at all, you may be able to solve the problem by changing your security code. 1.
- Page 4 5. To change the house code, add or remove jumpers as needed. It is recommended to change only one jumper at a time and then test the system for proper operation. The jumpers on the chime and pushbutton must match exactly. Push Button Mounting Instructions Note: Avoid mounting on metal surfaces, as it may result in a reduced...
- Page 5 Not farther than 150 feet Place push button where you would like to mount and test operation with the chime as close to it’s final location as possible. If it works, mount button here. If it does not work, see TROUBLESHOOTING. Use back cover of push button as a template to mark two screw holes.
- Page 6 Drill two holes with 1/16” drill in marked locations. Secure back cover to the mounting surface with the 3x20mm screws. Press front housing onto back cover. Test operations, if chime does not work, see TROUBLESHOOTING. Chime Unit Mounting Instructions Note: Avoid mounting on metal surfaces, as it may result in a reduced range of transmission.
-
Page 7: Operation
Operation Slide power switch to “On” to turn on the chime. Gently press transmitter button to sound chime. Troubleshooting Chime doesn't work: Make sure push button switch is depressed and held for at least 1 second. Make sure house code switches 1-4 on chime and push button match exactly. - Page 8 Select option 4 if prompted or www.jascoproducts.com Made in China Hecho en China is a trademark of General Electric Company and is used under license to Jasco Products Company LLC, 10 E. Memorial Road, Oklahoma City, OK 73114. www.jascoproducts.com Rev. 10-11 19209...
