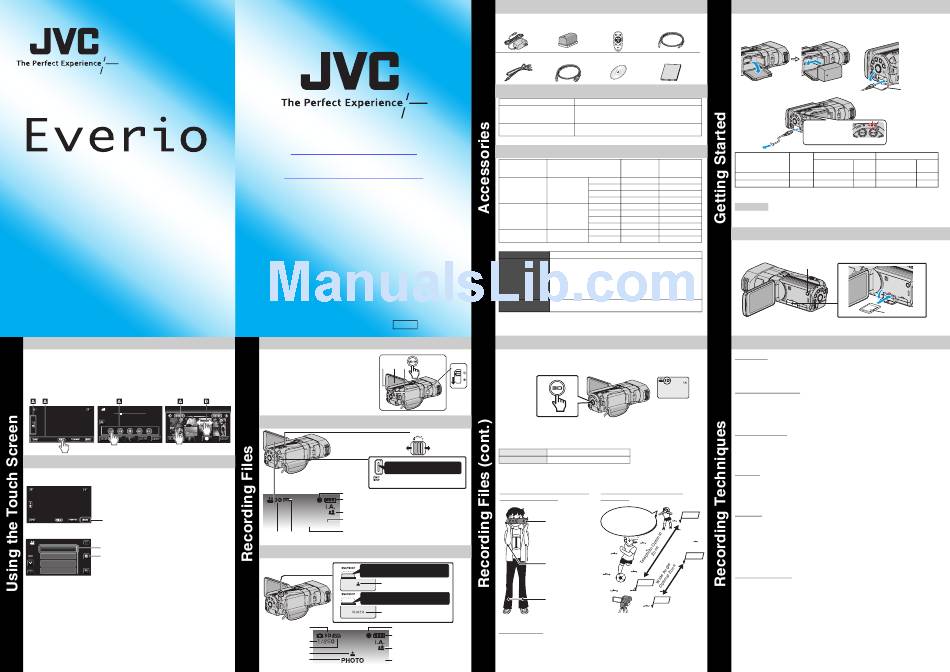

JVC EVERIO LYT2308-002A-M Easy Start Manual

LYT2308-002A-M
Easy Start Guide
This easy start guide is designed to navigate you to
using your new Everio quickly. Please refer to the
owner's manual for a detailed listing of features.
For more details on operating this product, please refer to
the "Detailed User Guide" at the following website:
http://manual.jvc.co.jp/index.html/
For additional online video tutorials, please visit:
http://camcorder.jvc.com/tutorials.jsp
USING THE ICON BUTTONS/THUMBNAILS
There are two ways to operate the touch screen, namely "tap" and "drag". The following
are some examples.
A Tap the displayed button (icon) or thumbnail (file) on the touch screen to make
selection.
B Drag the thumbnails on the touch screen to search for the desired file.
Example:
Recording Screen
Playback Screen Index Playback Screen
00:01:23 00:12:34
CHANGING MENU SETTINGS
Select an item from the menu screen.
A Tap MENU on the touch screen to display the main menu.
Tap
B Tap the desired selection on the touch screen.
∧ ∨
• Tap or to scroll the pages.
VIDEO
Tap
TOUCH PRIORITY AE/AF
SMILE LEVEL Common (Q) menu
DIS
GAIN UP
• Selections are also available in the Common (Q) menu.
For more details on operating this product, please refer to
the "Detailed User Guide" at the following website:
http://manual.jvc.co.jp/index.html/
For additional online video tutorials, please visit:
http://camcorder.jvc.com/tutorials.jsp
Customer Care Center
TOLL FREE 1-800-252-5722
Register your EVERIO online at:
REGISTER.JVC.COM
and receive a special offer.
A Division of JVC Americas Corp.
1700 Valley Road, Wayne, NJ 07470
LYT2308-002A-M
RECORDING FILES
A Open the LCD monitor to turn on the unit.
B Open the lens cover by sliding the switch down.
C Verify that the unit is in the recording mode.
• If in the playback mode, tap q to switch.
• The mode changes between recording and
playback with every tap.
D Press the A/B button on the unit to select
the video or still image mode.
The Mode will be displayed in the LCD.
2011 2011
VIDEO RECORDING
The information below will be
displayed on the LCD during
recording.
Recording Media
AM10:10
Battery Indicator
Intelligent Auto Mode
Remaining Recording Time
0:00:00 [000:22]
Scene Counter
3D/2D Video Quality
Mode
STILL IMAGE RECORDING
Press halfway to focus
Press fully to take still image
3D/2D Mode
AM10:10
Shutter Speed
Image Size
Focus
[
Recording in Progress
SUPPLIED ACCESSORIES FOR THE CAMERA
AC Adapter Battery Pack
AP-V20U* BN-VF815U
AV Cable HDMI Mini Cable
AVAILABLE ACCESSORIES FOR THE CAMERA
Product Name*
Battery Pack
• BN-VF815U
• BN-VF823U
Battery Charger
• AA-VF8U
* To order any of these accessories please visit
TYPES OF USABLE SD CARDS
Memory Cards
Supports 256 MB
SD Cards
to 2 GB
SDHC Cards Supports 4 GB to
<SD High capacity> 32 GB
SDXC Cards Supports max.
<SD Extended capacity> 64 GB
Note: Operations are confirmed on the following SD cards.
JVC U.S.A.
Manufacturer Panasonic, TOSHIBA, SanDisk
Video A Class 4 or higher compatible SD card (2 GB) / Class 4 or higher
compatible SDHC card (4 GB to 32 GB) / Class 4 or higher
compatible SDXC card (48 GB to 64 GB)
www.jvc.com
(When recording with image quality "THR", Class 10 is
recommended. (Class 6 or higher is required.))
(When recording with image quality "UXP", Class 6 or higher is
recommended.)
Still Image B SD card (256 MB to 2 GB) / SDHC card (4 GB to 32 GB) /
SDXC card (48 GB to 64 GB)
• Using cards other than those specified above may result in recording failure or data loss.
C1DW 0111TKH-SW-VM
RECORDING 3D IMAGES
3D images can be recorded and played back on this unit.
Switch to the 3D mode by pressing the 3D button such that "3D" is displayed on the
3 1 4 2
screen.
3D Recording Formats
There are 2 types of 3D recording formats. By default, "3D VIDEO REC FORMAT" in the
Zooming
menu is set to "AVCHD". To change the setting to "MP4(MVC)", refer to the Detailed User
Guide.
(Wide angle) (Telephoto)
AVCHD Higher 3D playback compatibility
MP4(MVC) Higher 3D video quality
• Videos recorded in MP4(MVC) format can only be played back in 3D by this unit.
Press to Start Recording
• By dubbing videos recorded in AVCHD format to a Blu-ray recorder, the left and right
• Press again to Stop Recording. images can be recorded or played back separately.
Basic Way to Hold a Camcorder
During 3D Recording
Hold the LCD
monitor while
recording
Keep elbows
close to your
sides to avoid
camera shake
Lights up in green
when focused
Open your legs
slightly
Lights up during still
image recording
• The use of a tripod is recommended.
Recording Media
3D LCD Monitor
Battery Indicator
3D images are supported on the camera's LCD monitor. Press the "3D/2D" button on the
touch screen to change the display on the camera's LCD monitor between 3D and 2D.
Intelligent Auto Mode
8]
Remaining Number of Shots
CHARGING THE BATTERY
Remote Control USB Cable
A Close the LCD to turn Off the Power
RM-V760U (Type A - Mini Type B)
B Open the battery cover and insert the
START SNAP
/STOP SHOT battery pack
INFO INDEX
CD-ROM Basic User Guide
D Connect the AC adapter to outlet
Description
• Provides a longer recording time than the battery
pack that comes with this unit or it can also be used
as a spare battery pack.
• Enables the battery pack to be charged without
using this unit.
AC Adapter
www.store.jvc.com or call 1-800-252-5722 To AC Outlet
A Video B Still images
Battery Type
Capacity 3D Mode 3D (1920x1080/
AVCHD (TXP) 16:9)
BN-VF815U (Supplied) 2 h 40 m
256 MB – –
BN-VF823U
512 MB – 120
Note: The battery pack is not charged at the time of purchase.
1 GB – 250
• The above are values when "MONITOR BRIGHTNESS" is set to "3" (standard).
2 GB – 500
4 GB 30 m 1000 CAUTION
8 GB 1 h 2200
• Be sure to use JVC battery packs. If you use any other battery packs besides JVC
16 GB 2 h 4400
battery packs, safety and performance cannot be guaranteed.
32 GB 4 h 10 m 4999
48 GB 6 h 10 m 4999 INSERTING THE SD CARD*
64 GB 8 h 20 m 4999
A Turn off this unit.
• Turn off the camcorder by pressing
the B button for about 2 seconds.
* SD card not included
Preparation
– Always check available memory space and battery power in advance.
– Make sure your battery is fully charged.
– A spare battery may be useful.
Stabilizing Your Picture
Try these tips to improve the image:
– Look for a place to sit down and take your video.
– Look for something you can set your camera on.
– Consider using a tripod or a monopod to further steady your video.
Camera Movement
The most enjoyable and professional looking videos generally have very little camera
movement
– Treat all movements as a special effect.
– If you must move the camera, do it slowly.
Zooming
As a general rule, your video will look better if you zoom the lens before you start your
recording:
Shooting Distance During 3D
– Focus on the subject first, then begin recording.
Recording
– If you must zoom during a recording, treat it as a special effect and zoom slowly.
Exposure
It is recommended
50m (164')
to perform 3D
– Remember to shoot with the sun or the primary light source behind you.
recording within the
optimal zone. – Keeping the range of contrast in your scene to a reasonable level is the easiest way to
improve the picture quality.
– Pay special attention to objects in the LCD screen that appear very washed out or over
exposed.
10m (32'8")
– Making a simple change in how the camera is aimed or by zooming in slightly, you may
reduce contrast to a reasonable range.
Length of Recording
Many recordings are ruined by stopping the recording too soon and missing the best
5m (16'4")
moment:
– Always try for at least a 10 second recording.
1m (3'3")
– When in doubt, let the recording continue longer.
– It is much easier to edit unneeded material later.
C Connect AC adapter into DC
connector
Cover
Charging in progress:
Blinks
Charging finished:
Goes out
Continuous Recording Actual Recording
Charging
3D 3D
Time 2D 2D
AVCHD/MP4(MVC) AVCHD/MP4(MVC)
2 h/1 h 45 m 2 h 35 m 1 h/55 m 1 h 20 m
3 h 40 m 3 h 05 m/2 h 40 m 1 h 55 m 1h 35 m/1 h 20m 3 h 50 m
B Open the cover and insert an SD card.
B Botton
Label
