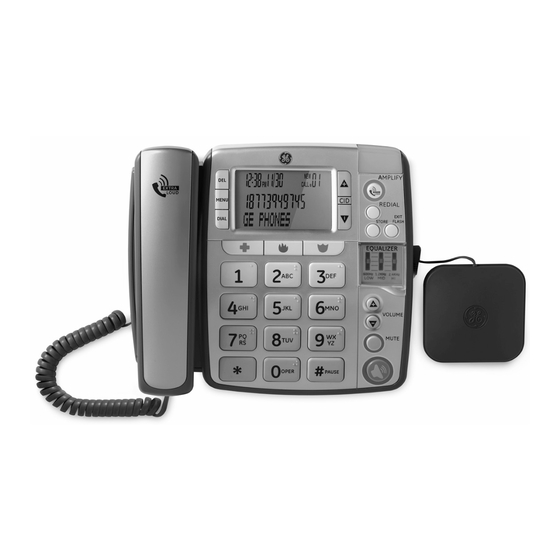

GE 30234 User Manual

Amplified speakerphone with vibrating alert
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AMPLIFIED SPEAKERPHONE WITH
VIBRATING ALERT
Model number:
30234

Advertisement

Table of Contents
loading

Related Manuals for GE 30234

Summary of Contents for GE 30234

  • Page 1 AMPLIFIED SPEAKERPHONE WITH VIBRATING ALERT Model number: 30234...

  • Page 2: Register Your Product

    Thank you for choosing GE! Register your product Please take a moment to register your product online. Just go to www.gephones.com and click “register here” from the home page. Provide your email address and receive product updates, special offers, or discounts on future purchases.

  • Page 3: Table Of Contents

    Table of contents Introduction Caller ID Important installation guidelines ..1 Call Waiting with Caller ID ....14 Caller ID record .........14 Getting started Review caller ID records .......15 Parts checklist ..........2 Dial from caller ID records ....15 Telephone base layout ......3 Caller ID display messages ....16 Back and side views ........4 Store caller ID record into...

  • Page 4: Important Installation Guidelines

    Turn the AMPLIFY Override switch to OFF if the volume level is uncomfortable. Please read this manual very carefully before using your 30234 and keep it for future reference. If you have any questions or problems, consult the Troubleshooting guide on page 18 for help.

  • Page 5: Getting Started

    Getting started Parts checklist Your telephone package includes the items shown below. AMPLIFIED SPEAKERPHONE WITH VIBRATING ALERT Model number: 30234 User’s manual Handset Telephone base Vibrating Alerter Telephone Handset Power adapter line cord coiled cord Telephone jack requirements To use this phone, you need an RJ11C type modular telephone jack installed on your line.

  • Page 6: Telephone Base Layout

    Getting started Telephone base layout Programmable DIAL MENU Emergency Call buttons button button button buttons AMPLIFY button REDIAL button EXIT/FLASH button STORE button TONE EQUALIZER VOLUME buttons MUTE button SPEAKER button Rotating #/PAUSE button handset tab for desk/wall mounting...

  • Page 7: Back And Side Views

    Getting started Back and side views BACK view DATA jack for another Telephone phone or data modem line jack AMPLIFY Override Switch See Important Safety Instructions on page 24. AMPLIFY OVERRIDE CAUTION When set to “ON”, the Amplify Override switch increases the volume of the handset much higher than that of conventional telephones and could be uncomfortable for individuals with normal hearing.

  • Page 8: Installing Backup Batteries

    Getting started Installing backup batteries CAUTION: Disconnect the telephone cord from the wall outlet before installing or replacing the batteries. In case of a power outage, the phone uses 4 AA alkaline batteries (not included) for backup power, incoming voice amplification, and visual ringer functions.

  • Page 9: Installing On A Desk Or Table

    Getting started Installing on a desk or table 1. Choose an area near a telephone modular jack (RJ11C), and place your telephone on a level surface, such as a desktop or tabletop (for wall mounting, see instructions on page 7). 2.

  • Page 10: Installing On A Wall

    Getting started The unit is properly installed if you pick up the handset and hear a dial tone. If you do not hear a dial tone, re-check all installation steps. Installing on a wall 1. Make sure the rotating handset tab is in the WALL position (see page 3) and batteries have been properly installed.

  • Page 11: Settings

    Settings Display language You can select ENGLISH (ENG), FRANCIS (FRA) or ESPAÑOL (ESP) as the display language. 1. Press MENU until ENG FRA ESP shows on the screen. 2. Press CID ( ) to move the cursor to select a language. 3.

  • Page 12: Telephone Operation

    Telephone operation Speakerphone For hands-free operation and convenience, this unit is equipped with a speakerphone. For best speakerphone performance, avoid the following: • Areas with high background noise (the microphone might pick up these sounds and prevent the speakerphone from going into the receiving mode when you finish talking).

  • Page 13: Answering A Call

    Telephone operation Answering a call NOTE: Make sure the RINGER VOL switch is set to HIGH or LOW, or the phone will not ring. The visual ring indicator will flash on all settings. Amplified audio You may press AMPLIFY to temporarily increase the volume of the handset receiver or speakerphone during a call.

  • Page 14: Volume

    Telephone operation Volume You can adjust the volume of both the handset and the speakerphone. While using the handset or speakerphone, press VOLUME ( ) to adjust the handset volume from level 1 to 4 or the speakerphone volume from level 1 to 8.

  • Page 15: Memory

    Memory You can store a maximum of 13 entries in the memory for quick dialing. You can store three numbers in the Programmable Emergency Call Buttons and ten numbers in the dial pad keys (0-9). IMPORTANT NOTE: The programmable Emergency Call buttons have icons for quick identification, but they are not pre-programmed.

  • Page 16: To Dial From The Programmable Emergency Call Buttons

    Memory To dial from the Programmable Emergency Call Buttons 1. Lift the handset or press SPEAKER. 2. Press the desired Programmable Emergency Call Button. IMPORTANT NOTE: The Programmable Emergency Call Buttons have icons for quick identification, but they are not pre-programmed. You must program these buttons before using them.

  • Page 17: Caller Id

    Caller ID IMPORTANT: To use caller ID features, you must subscribe to either the standard name/number caller ID service or call waiting with caller ID service. You must subscribe to call waiting with caller ID service to know who is calling while you are on a call. This unit receives and displays information sent by your telephone service provider.

  • Page 18: Review Caller Id Records

    Caller ID Review caller ID records To scroll through caller ID records: 1. Press CID ( ) to review the latest Caller ID record. 2. Press CID ( ) to review the oldest Caller ID record first. Dial from caller ID records 1.

  • Page 19: Caller Id Display Messages

    Caller ID Caller ID display messages Display Status BLOCKED CALL The caller of the incoming call is registered as Private Number and the caller ID information is withheld. CALL WAITING A second incoming call is waiting on the line. ON steadily when battery power level is low; flashing when no batteries are installed.

  • Page 20: Delete A Caller Id Record In Caller Id Record

    Caller ID Delete a caller ID record in caller ID record 1. Press CID ( ) to select the desired CID record when the telephone is not in use. 2. Press DEL to delete the caller ID record. NOTE: Press EXIT/FLASH to return to the idle mode. Delete all caller ID records in caller ID record 1.

  • Page 21: Appendix

    Appendix Troubleshooting guide Problem Cause/solution Phone is not working • Unplug all power sources including line cord, power cords and batteries. Allow the unit to remain completely unplugged for 1 to 2 minutes. • Reinstall all power sources, place the handset on the base, wait for 1 to 2 minutes and then test the unit again.
  • Page 22 Appendix Problem Cause/solution Static or noise on • If you have DSL high speed Internet service, be line sure you have a DSL filter installed at every jack where a phone is installed. • Check your telephone line cord and handset coiled cord for wear and tear.

  • Page 23: General Product Care

    Appendix Problem Cause/solution Low handset or • Check the handset receiver or speaker volume speaker volume settings. General Product Care • Avoid putting the phone near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). •...

  • Page 24: Equipment Approval Information

    Appendix Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1.

  • Page 25: Interference Information

    Appendix 2. Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately.
  • Page 26 Appendix • Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. • If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions.

  • Page 27: Important Safety Instructions

    Appendix Important Safety Instructions Some of the following information may not apply to your particular product; however, when using telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.
  • Page 28 Appendix appliance is subsequently used. 13. Do not expose the product to extreme temperatures such as areas near a hot radiator, stove or in a hot car. Do not place product upon other consumer electronic products such as; computer monitors, power amplifiers, etc.

  • Page 29: Save These Instructions

    Appendix 5. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 6. Exercise care in handling battery(ies) in order not to short out the battery(ies) with conducting materials such as rings, bracelets, and keys.

  • Page 30: Limited Warranty

    Limited Warranty One Year Limited Warranty CCT Tech USA Inc. (CCT), the licensed manufacturer of this GE® branded product, warrants this product to the original retail purchaser to be free of material and/or workmanship defects for a period of one year after the date of original retail purchase.
  • Page 31 Appendix • Damage due to accidents, misuse, physical force, improper installation or operation, mishandling, neglect, fire, heat, water, humidity, liquids, insect infestation, or other intrusion. • Products that have been repaired, altered or modified by anyone other than CCT or its authorized service representative. •...

  • Page 32: Index

    Appendix Index Introduction 1 Amplified audio 10 Answering a call 10 Limited Warranty 27 Local area code 8 Back and side views 4 Memory change a stored record 12 Caller ID dial from the programmable delete record 17 emergency call buttons 13 dial from record 15 dial from the record 12 display message 16...
  • Page 33 General Electric Company and is under license by CCT Tech USA Inc., Irving, TX 75039 ©2011 CCT Tech USA Inc. Model 30234 P/N: 905-0234004-00 Distributed in the U.S.A. by Version 1 03/2011 CCT Tech USA Inc.
