Troubleshooting, maintenance, support
This section provides information to help you diagnose and solve various problems that may arise while
configuring or using your GE Security product and offers technical support contacts in case you need
assistance. (See
Contacting technical support
Troubleshooting your Legend dome
Diagnostic LEDs
Housing board power indication
When power is received by the housing board through the power connection, the housing board's diagnostic
power LED will appear orange. It appears orange because the red and green internal LEDs both illuminate. The
housing board power LED is located on the PC board that is attached to the underside of the upper bracket. It
can be seen before the camera assembly is installed. See Figure 27.

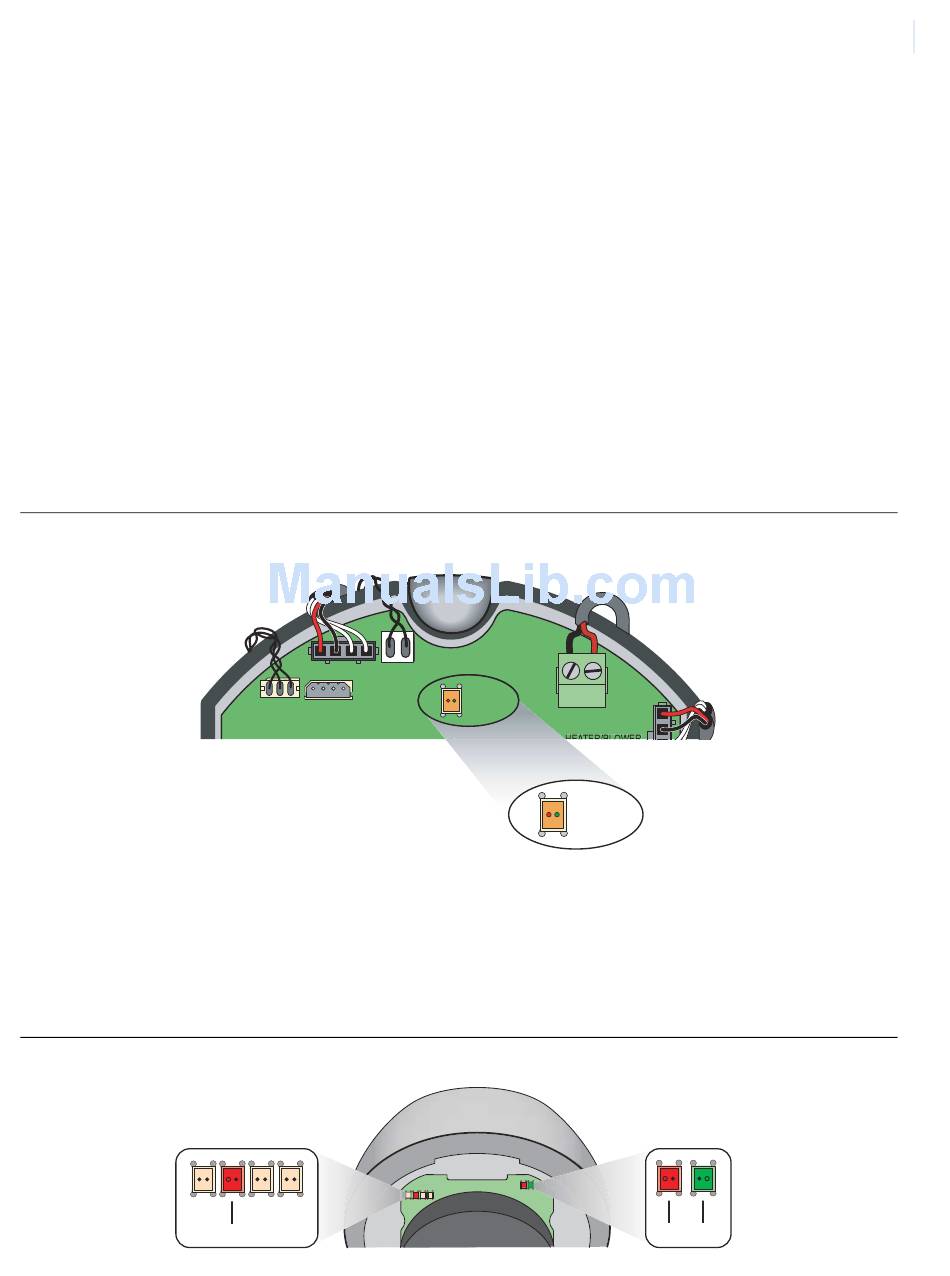

Figure 27. Housing board power indication
Camera assembly power indication
After the camera assembly has been installed and powered, there are two sets of diagnostic LEDs visible from
below the camera. The LEDs on the right should be red (left) and green (right, and blinking once per second),
showing that the dome's programming has started and is running. If you have an Ethernet connection, the
second LED in the group of four on the left should be red. If the LEDs are not appropriately lit, reseat the
camera assembly for a proper connection.
Figure 28. Diagnostic LEDs that show that the camera assembly is properly plugged in and powered
on page 31.)
HEATER/BLOWER
PRESSURE
FOR FUTURE USE
SENSOR
Ethernet
verification
red
HEATER
THERMOSTAT
POWER
~
~
POWER
LED
POWER
LED
Programming
verification
red green
27
