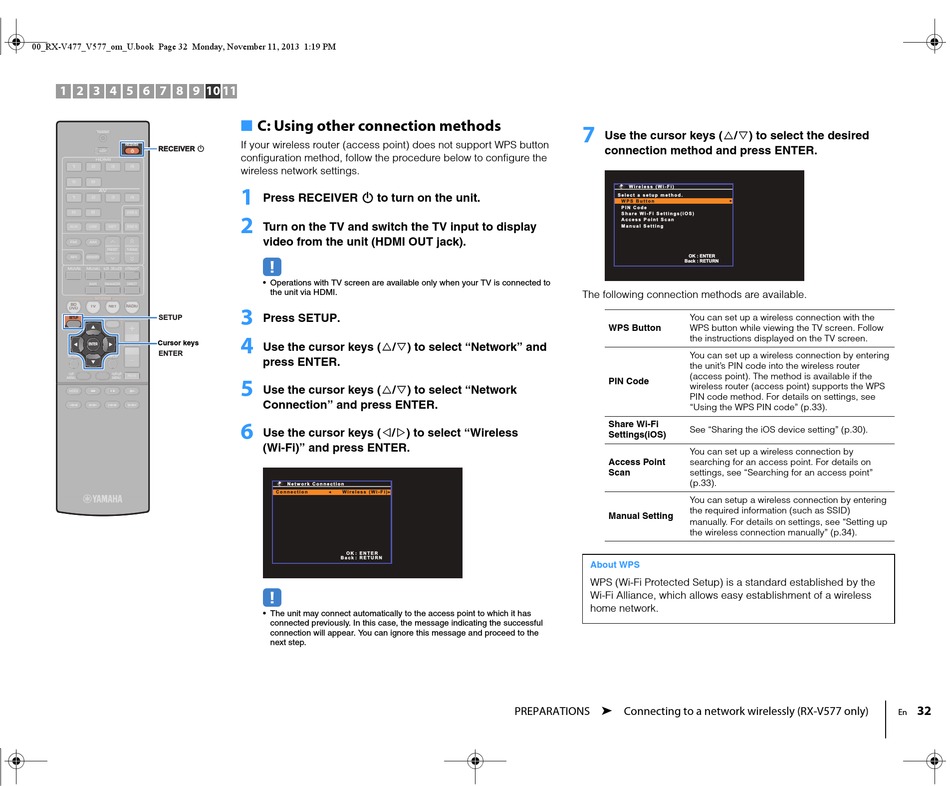

Yamaha RX-V577 Owner's Manual page 32

1 2 3 4 5 6 7 8 9 10 11
TRANSMIT TRANSMIT
RECEIVER
RECEIVER z RECEIVER z
SLEEP SLEEP
HDMI HDMI
1 1 2 2 3 3 4 4
5 5 6 6
AV AV
1 1 2 2 3 3 4 4
5 5 6 6
ZONE A ZONE A
AUX AUX USB USB NET NET ZONE B ZONE B
FM FM AM AM
PRESET PRESET TUNING TUNING
INFO INFO MEMORY MEMORY
MOVIE MOVIE MUSIC SUR. DECODE STRAIGHT MUSIC SUR. DECODE STRAIGHT
BASS BASS ENHANCER ENHANCER DIRECT DIRECT
SCENE SCENE
BD BD
TV TV NET NET RADIO RADIO
DVD DVD
SETUP
SETUP OPTION OPTION
Cursor keys
ENTER VOLUME VOLUME
ENTER
RETURN RETURN DISPLAY DISPLAY
TOP TOP POP-UP POP-UP
MUTE MUTE
MENU MENU MENU MENU
MODE MODE
■
C: Using other connection methods
If your wireless router (access point) does not support WPS button
configuration method, follow the procedure below to configure the
wireless network settings.
1
Press RECEIVER z to turn on the unit.
2
Turn on the TV and switch the TV input to display
video from the unit (HDMI OUT jack).
• Operations with TV screen are available only when your TV is connected to
the unit via HDMI.
3
Press SETUP.
4
Use the cursor keys (q/w) to select "Network" and
press ENTER.
5
Use the cursor keys (q/w) to select "Network
Connection" and press ENTER.
6
Use the cursor keys (e/r) to select "Wireless
(Wi-Fi)" and press ENTER.
N e t w o r k C o n n e c t i o n
C o n n e c t i o n W i r e l e s s ( W i - F i )
O K : E N T E R
B a c k : R E T U R N
• The unit may connect automatically to the access point to which it has
connected previously. In this case, the message indicating the successful
connection will appear. You can ignore this message and proceed to the
next step.
7
Use the cursor keys (q/w) to select the desired
connection method and press ENTER.
W i r e l e s s ( W i - F i )
S e l e c t a s e t u p m e t h o d .
W P S B u t t o n
P I N C o d e
S h a r e W i - F i S e t t i n g s ( i O S )
A c c e s s P o i n t S c a n
M a n u a l S e t t i n g
OK
Back
The following connection methods are available.
You can set up a wireless connection with the
WPS Button WPS button while viewing the TV screen. Follow
the instructions displayed on the TV screen.
You can set up a wireless connection by entering
the unit's PIN code into the wireless router
(access point). The method is available if the
PIN Code
wireless router (access point) supports the WPS
PIN code method. For details on settings, see
"Using the WPS PIN code" (p.33).
Share Wi-Fi
See "Sharing the iOS device setting" (p.30).
Settings(iOS)
You can set up a wireless connection by
Access Point searching for an access point. For details on
Scan settings, see "Searching for an access point"
(p.33).
You can setup a wireless connection by entering
the required information (such as SSID)
Manual Setting
manually. For details on settings, see "Setting up
the wireless connection manually" (p.34).
About WPS
WPS (Wi-Fi Protected Setup) is a standard established by the
Wi-Fi Alliance, which allows easy establishment of a wireless
home network.
PREPARATIONS ➤ Connecting to a network wirelessly (RX-V577 only)
: ENTER
: RETURN
32
En
