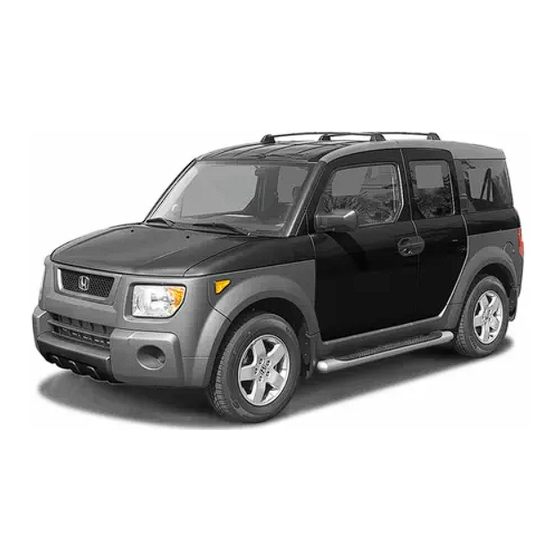

Page 5 2005 Element Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com. Contents Owner's Identification Form Introduction ............................A Few Words About Safety.........................
Page 6: Your Vehicle At A Glance
Main Menu Your Vehicle at a Glance MIRROR CONTROLS INSTRUMENT PANEL (P.53) POWER DOOR AIRBAGS (P.82) GAUGES (P.58) (P.11, 23) LOCK SWITCH (P.70) HEATING/COOLING CONTROLS POWER WINDOW (P.90) SWITCHES (P.81) PARKING BRAKE (P.83) HOOD RELEASE HANDLE (P.125) AUTOMATIC TRANSMISSION (P.141) MANUAL TRANSMISSION (P.139) A/T model is shown.
Page 7 Main Menu Your Vehicle at a Glance HEADLIGHTS/TURN SIGNALS WINDSHIELD WIPERS/WASHERS AUDIO SYSTEM (P.62) (P.61) (P.94) DIGITAL CLOCK (P.117) REAR WINDOW DEFOGGER (P.63) HAZARD WARNING BUTTON HORN CRUISE CONTROL (P.63) MASTER BUTTON (P.119) CRUISE CONTROL BUTTONS STEERING WHEEL ADJUSTMENT (P.119) (P.64) A/T model is shown.
Page 8: Important Safety Precautions
Main Menu Table of Contents Important Safety Precautions You’ll find many safety every additional drink. So don’t drink Restrain All Children recommendations throughout this Children age 12 and under should and drive, and don’t let your friends section, and throughout this manual. ride properly restrained in a back drink and drive, either.
Page 9 Main Menu Table of Contents Your Vehicle’s Safety Features Your vehicle is equipped with many features that work together to (10) (8) protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment;...
Page 10 Main Menu Table of Contents Your Vehicle’s Safety Features Help keep you from being thrown Seat Belts Your vehicle is equipped with seat against the inside of the vehicle belts in all seating positions. and against other occupants. Not wearing a seat belt properly increases the chance of serious Your seat belt system also includes injury or death in a crash, even...
Page 11 Main Menu Table of Contents Your Vehicle’s Safety Features Airbags The most important things you need to know about your airbags are: Airbags do not replace seat belts. They are designed to supplement the seat belts. Airbags offer no protection in rear impacts, or minor frontal or side collisions.
Page 12: Protecting Adults And Teens
Main Menu Table of Contents Protecting Adults and Teens The rest of this section gives more Close and Lock the Doors Adjust the Front Seats detailed information about how you After everyone has entered the can maximize your safety. vehicle, be sure the doors are closed and locked.
Page 13 Main Menu Table of Contents Protecting Adults and Teens The National Highway Traffic Safety Once your seat is adjusted correctly, Administration and Transport rock it back and forth to make sure Canada recommend that drivers the seat is locked into position. See Sitting too close to a front allow at least 10 inches (25 cm) page...
Page 14 Main Menu Table of Contents Protecting Adults and Teens Reclining a seat-back so that the Adjust the Seat-Backs shoulder part of the belt no longer rests against the occupant’s chest Reclining the seat-back too far reduces the protective capability of can result in serious injury or the belt.
Page 15 Main Menu Table of Contents Protecting Adults and Teens Adjust the Head Restraints Fasten and Position the Seat Belts Insert the latch plate into the buckle, Improperly positioning head then tug on the belt to make sure the restraints reduces their effectiveness and you can be belt is securely latched.
Page 16 Main Menu Table of Contents Protecting Adults and Teens RELEASE BUTTONS Improperly positioning the seat belts can cause serious injury or death in a crash. Make sure all seat belts are properly positioned before driving. If the seat belt touches or crosses your neck, or if it crosses your arm Position the lap part of the belt as instead of your shoulder, you need to...
Page 17 Main Menu Table of Contents Protecting Adults and Teens Maintain a Proper Sitting Sitting improperly can increase the Never place the shoulder portion of a chance of injury during a crash. For lap/shoulder belt under your arm or Position This could cause After all occupants have adjusted example, if an occupant slouches, behind your back.
Page 18 Main Menu Table of Contents Protecting Adults and Teens In addition, an occupant who is out of When driving, remember to sit Advice for Pregnant Women position in the front seat can be upright and adjust the seat as far seriously or fatally injured in a crash back as possible while allowing full by striking interior parts of the...
Page 19: Accessories
Main Menu Table of Contents Protecting Adults and Teens Additional Safety Precautions Do not put any accessories on seat Do not attach or place objects on Devices intended to improve Objects on Never let passengers ride in the belts. the front airbag covers. occupant comfort or reposition the the covers marked ‘‘SRS AIRBAG’’...
Page 20: Additional Information About Your Seat Belts
Main Menu Table of Contents Additional Information About Your Seat Belts restrain your body. Seat Belt System Components Lap/Shoulder Belt Your seat belt system includes lap/ The lap/shoulder belt goes over shoulder belts in all four seating your shoulder, across your chest, The seat belts in all positions except and across your hips.
Page 21 When the tensioners are activated, Honda provides a lifetime warranty For added protection, the front seat the seat belts will remain tight until on seat belts for U.S. models. See...
Page 22 Main Menu Table of Contents Additional Information About Your Seat Belts If a seat belt is worn during a crash, it must be replaced by the dealer. A belt that has been worn during a Not checking or maintaining crash may not provide the same level seat belts can result in serious of protection in a subsequent crash.
Page 23: Additional Information About Your Airbags
Main Menu Table of Contents Additional Information About Your Airbags Airbag System Components In models with side airbags, In models with side airbags, Your airbag system includes: sensors that can detect whether indicator on the dashboard that a child is in the passenger’s side alerts you that the passenger’s Two SRS (supplemental restraint airbag path and automatically...
Page 24 Main Menu Table of Contents Additional Information About Your Airbags During a frontal crash, your seat belt How Your Front Airbags Work restrains your lower body and torso, and the airbag helps protect your head and chest. Although both airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy.
Page 25 Main Menu Table of Contents Additional Information About Your Airbags The total time for inflation and Dual-Stage Airbags Dual-Threshold Airbags deflation is one-tenth of a second, so Your front airbags are dual-stage Your front airbags are also dual- fast that most occupants are not airbags.
Page 26 There will be some delay between passenger’s side airbag. the moment the passenger moves into or out of the airbag deployment Although Honda does not encourage path and when the indicator comes children to ride in front, this system on or goes off.
Page 27 Main Menu Table of Contents Additional Information About Your Airbags How the SRS Indicator Works If the indicator comes on at any The SRS indicator alerts other time, or does not come on at all, you to a potential problem you should have the system checked Ignoring the SRS indicator can with your airbags or seat belt...
Page 28 Main Menu Table of Contents Additional Information About Your Airbags How the Side Airbag Cutoff Airbag Service The SRS indicator alerts you to a Your airbag systems are virtually Take your vehicle to an Indicator Works problem. maintenance free, and there are no authorized dealer as soon as Standard on EX models parts you can safely service.
Page 29 Main Menu Table of Contents Additional Information About Your Airbags Additional Safety Precautions Models with side airbags: Do not attempt to deactivate your Do not cover or replace front seat- Together, airbags and airbags. back covers without consulting seat belts provide the best Improperly replacing your dealer.
Page 30 Main Menu Table of Contents Protecting Children General Guidelines All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because Children who are unrestrained they are either unrestrained or not or improperly restrained can be properly restrained.
Page 31: Protecting Children
Main Menu Table of Contents Protecting Children General Guidelines All Children Should Sit in a Back The Passenger’s Front Airbag Small Children Seat Poses Serious Risks Placing a forward-facing child seat in According to accident statistics, Front airbags have been designed to the front seat of a vehicle equipped children of all ages and sizes are help protect adults in a moderate to...
Page 32 Main Menu Table of Contents Protecting Children - General Guidelines Canadian Models To remind you of the passenger's front airbag hazards, and that children must be properly restrained in aback seat, your vehicle has warning labels on the dashboard (U.S. models) and on the front visors. Please read and follow the instructions on these labels, U.S.
Page 33: Protecting Children General Guidelines
Main Menu Table of Contents Protecting Children General Guidelines If You Must Drive with Several If a Child Requires Close If a child requires physical attention or frequent visual contact, we Children Attention Your vehicle has two back seats Many parents say they prefer to put strongly recommend that another where children can be properly an infant or small child in the front...
Page 34 Main Menu Table of Contents Protecting Children General Guidelines Additional Safety Precautions Do not leave children alone in a Lock all doors, the tailgate and the Leaving children without Never hold an infant or child on vehicle. hatch when your vehicle is not in If you are not wearing a adult supervision is illegal in most Children who play in vehicles...
Page 35: Protecting Infants And Small Children
Main Menu Table of Contents Protecting Infants and Small Children Protecting Infants Two types of seats may be used: a Child Seat Placement seat designed exclusively for infants, A rear-facing child seat can be placed or a convertible seat used in the rear- in any seating position in the back facing, reclining mode.
Page 36 Main Menu Table of Contents Protecting Infants and Small Children In either situation, we strongly child use the child seat as long as Protecting Small Children recommend that you install the child possible, until the child reaches the seat directly behind the front weight or height limit for the seat.
Page 37 Main Menu Table of Contents Protecting Infants and Small Children, Selecting a Child Seat If it is necessary to put a forward- Selecting a Child Seat In seating positions and vehicles not facing child seat in the front, move When buying a child seat, you need equipped with LATCH, a LATCH- the vehicle seat as far to the rear as to choose either a conventional child...
Page 38 Main Menu Table of Contents Selecting a Child Seat, Installing a Child Seat movement can be expected and The child seat should fit the Installing a Child Seat After selecting a proper child seat, should not reduce the child seat’s vehicle seating position (or and a good place to install the seat, effectiveness.
Page 39: Installing A Child Seat
Main Menu Table of Contents Installing a Child Seat Installing a Child Seat Using LATCH MARKS Rigid type ANCHOR COVER Your vehicle is equipped with To install a LATCH-compatible child Place the child seat on the vehicle LATCH (Lower Anchors and seat: seat, then attach the seat to the Tethers for Children) at the second...
Page 40 Main Menu Table of Contents Installing a Child Seat TETHER ANCHOR Flexible type ANCHOR COVER Other LATCH-compatible seats have Remove the head restraint (see Slide the anchor cover open. a flexible-type connector as shown page ). Make sure the removed above.
Page 41 Main Menu Table of Contents Installing a Child Seat Installing a Child Seat with a Lap/ TETHER ANCHOR Shoulder Belt When not using the LATCH system, all child seats must be secured to the vehicle with the lap part of a lap/ shoulder belt.
Page 42 Main Menu Table of Contents Installing a Child Seat To activate the lockable retractor, After confirming that the belt is Push and pull the child seat slowly pull the shoulder part of the locked, grab the shoulder part of forward and from side to side to belt all the way out until it stops, the belt near the buckle and pull verify that it is secure enough to...
Page 43 Main Menu Table of Contents Installing a Child Seat Installing a Child Seat with a Tether TETHER ANCHOR TETHER ANCHOR ANCHOR POINTS ANCHOR COVER TETHER STRAP HOOK A child seat with a tether can be After securing the child seat in the Slide the anchor cover open, then installed in either seating position in desired position (see page...
Page 44: Protecting Larger Children
Main Menu Table of Contents Protecting Larger Children Does the shoulder belt cross Protecting Larger Children Checking Seat Belt Fit When a child reaches the between the child’s neck and arm? recommended weight or height limit for a forward-facing child seat, the Is the lap part of the belt as low as child should sit in a back seat on a possible, touching the child’s...
Page 45 Main Menu Table of Contents Protecting Larger Children Using a Booster Seat to drive. When Can a Larger Child Sit in Front Booster seats can be high-back or The National Highway Traffic Safety low-back. Whichever style you select, Administration and Transport make sure the booster meets federal Canada recommend that all children safety standards and that you follow...
Page 46 Main Menu Table of Contents Protecting Larger Children Of course, children vary widely. And If you decide that a child can safely Additional Safety Precautions while age may be one indicator of ride up front, be sure to: Do not let a child wear a seat belt when a child can safely ride in the This could result in across the neck.
Page 47: Carbon Monoxide Hazard
Main Menu Table of Contents Carbon Monoxide Hazard Your vehicle’s exhaust contains With the tailgate/hatch open, air carbon monoxide gas. You should flow can pull exhaust gas into your have no problem with carbon vehicle’s interior and create a Carbon monoxide gas is toxic. monoxide entering the vehicle in hazardous condition.
Page 48: Safety Labels
Main Menu Table of Contents Safety Labels These labels are in the locations SUNVISOR shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully. If a label comes off or becomes hard to read, contact your dealer for a replacement.
Page 49: Safety Labels
Main Menu Table of Contents Safety Labels HOOD On models without side airbags RADIATOR CAP...
Page 50: Control Locations
Main Menu Table of Contents Control Locations AUDIO SYSTEM CRUISE CONTROL POWER DOOR LOCK SWITCH MIRROR CONTROLS (P.82) (P.94) MASTER BUTTON (P.70) (P.119) POWER WINDOW SWITCHES (P.81) HEATING/COOLING CONTROLS (P.90) CRUISE CONTROL HOOD RELEASE BUTTONS HANDLE (P. 119) (P.125) PARKING BRAKE (P.83) A/T model is shown.
Page 51: Instrument Panel
Main Menu Table of Contents Instrument Panel MALFUNCTION INDICATOR LAMP SEAT BELT HIGH BEAM INDICATOR LOW FUEL INDICATOR (P.54, 210) REMINDER (P.56) (P.56) INDICATOR SUPPLEMENTAL RESTRAINT (P.54) SYSTEM INDICATOR (P.55) LOW OIL PRESSURE INDICATOR (P.54, 209) TAILGATE AND HATCH OPEN INDICATOR (P.57) PARKING BRAKE AND BRAKE SYSTEM...
Page 52: Instrument Panel Indicators
Main Menu Table of Contents Instrument Panel Indicators The instrument panel has many U.S. Canada Parking Brake and Seat Belt Reminder indicators that give you important Brake System Indicator information about your vehicle. This indicator comes on when you Indicator This indicator has two functions: turn the ignition switch to ON (II).
Page 53 Main Menu Table of Contents Instrument Panel Indicators Supplemental Restraint Anti-lock Brake System Immobilizer System System Indicator (ABS) Indicator Indicator This indicator comes on when you This indicator comes on for a few EX models only turn the ignition switch to ON (II). If This indicator normally comes on for seconds when you turn the ignition it comes on at any other time, it...
Page 54 Main Menu Table of Contents Instrument Panel Indicators ‘‘Daytime Running High Beam Indicator Lights’’ Indicator This indicator comes on with the Turn Signal and Hazard Warning Canadian models only This indicator comes on when you high beam headlights. For more Indicators The left or right turn signal indicator turn the ignition switch to ON (II)
Page 55 Main Menu Table of Contents Instrument Panel Indicators Washer Level Indicator Maintenance Required If you exceed 10,000 miles (16,000 km) without having the scheduled Indicator This indicator reminds you that it is maintenance performed, this Canadian models only This indicator comes on when the time to take your vehicle in for indicator will remain on as a constant washer fluid level is low.
Page 56 Main Menu Table of Contents Gauges Odometer TACHOMETER SPEEDOMETER FUEL GAUGE The odometer shows the total distance your vehicle has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under U.S. federal law and Canadian provincial SELECT/RESET regulations to disconnect, reset, or BUTTON...
Page 57 Main Menu Table of Contents Gauges Check Fuel Cap Indicator If the system still detects a loose or Temperature Gauge missing fuel cap, the malfunction This shows the temperature of the (odometer/trip meter message) If your fuel cap is loose or missing, a indicator lamp (MIL) comes on.
Page 58: Controls Near The Steering Wheel
Main Menu Table of Contents Controls Near the Steering Wheel HEADLIGHTS/TURN SIGNALS WINDSHIELD WIPERS/WASHERS SHIFT LEVER (A/T) (P.62) (P.61) (P.141) REAR WINDOW DEFOGGER (P.63) HORN CRUISE CONTROL MASTER BUTTON (P.119) STEERING WHEEL ADJUSTMENT HAZARD WARNING BUTTON (P.63) (P.64) CRUISE CONTROL BUTTONS A/T model is shown.
Page 59: Windshield Wipers And Washers
Main Menu Table of Contents Windshield Wipers and Washers Windshield Wiper Push the right lever up or down to Rear Window Wiper and Washer select a position. MIST The wipers run at high speed until you release the lever. The wipers are not activated. The wipers operate every few seconds.
Page 60: Turn Signal And Headlights
Main Menu Table of Contents Turn Signal and Headlights Push down on the Push the lever back Turn Signal High Beams left lever to signal a left turn and up until you hear a click to turn on the to signal a right turn. To signal a lane high beams.
Page 61 Main Menu Table of Contents Instrument Panel Brightness, Hazard Warning Button, Rear Window Defogger Instrument Panel Brightness Hazard Warning Button Rear Window Defogger Push the button in the speedometer Push the button next to the shift The rear window defogger will clear lever to turn on the hazard warning repeatedly to adjust the brightness fog, frost, and thin ice from the...
Page 62 Main Menu Table of Contents Rear Window Defogger, Steering Wheel Adjustment Make sure the rear window is clear Push the lever up to lock the and you have good visibility before steering wheel in that position. starting to drive. Make sure you have securely The defogger wires on the inside of locked the steering wheel in place the rear window can be accidentally...
Page 63: Keys And Locks
Do not try to take them apart. parking facility. You should have received a key number tag with your set of keys. You will need this key number if you ever have to get a key replaced. Use only Honda-approved key blanks.
Page 64: Immobilizer System
Main Menu Table of Contents Immobilizer System The immobilizer system protects If the system repeatedly does not As required by the FCC: your vehicle from theft. If an recognize the coding of your key, This device complies with Part 15 of the improperly-coded key (or other contact your dealer.
Page 65: Remote Transmitter
Main Menu Table of Contents Remote Transmitter UNLOCK Press this button once Remote Transmitter Care to unlock the driver’s door. Push it Avoid dropping or throwing the LOCK BUTTON twice to unlock the passenger’s door transmitter. and the hatch. Some exterior lights Protect the transmitter from will flash twice each time you press extreme temperature.
Page 66 Main Menu Table of Contents Remote Transmitter To replace the battery, remove the Replacing the Transmitter As required by the FCC: round cover on the back of the Battery This device complies with Part 15 of the transmitter by turning it FCC rules.
Page 67: Accessory Power Sockets
Main Menu Table of Contents Ignition Switch If the front wheels are turned, the You will hear a reminder beeper if anti-theft lock may make it difficult you leave the key in the ignition to turn the key. Firmly turn the switch in the LOCK (0) or steering wheel to the left or right as ACCESSORY (I) position and open...
Page 68: Door Locks
Main Menu Table of Contents Door Locks To lock the driver’s door, remove the Power Door Locks Rear Doors key from the ignition switch, pull the DOOR LOCK SWITCH outside door handle and push the lock tab down or push the door lock switch down.
Page 69 Main Menu Table of Contents Door Locks Hatch Lock the hatch by pushing down the lock tab on the driver’s door (see page ), or by using the master key in the driver’s door lock. LOCK Lock or unlock the hatch with the master door lock switch.
Page 70 Main Menu Table of Contents Door Locks See page for information on Tailgate cargo loading. Keep the tailgate and the hatch closed at all times while driving to avoid damaging them, and to prevent exhaust gas from getting into the interior. See Carbon Monoxide Hazard on page...
Page 71 Main Menu Table of Contents Seats Seat Adjustments Front Seat See pages for important safety information and warnings about how to properly position seats and seat-backs. Make all seat adjustments before you start driving. To adjust the seat forward and To change the seat-back angle of the front seat, pull up on the lever on the backward, pull up on the bar under...
Page 72 Main Menu Table of Contents Seats Driver’s Seat Height Adjustment Front Seat Armrests Rear Seat SEAT-BACK ADJUSTMENT STRAP To adjust the height of the driver’s To change the angle of the rear seat- On EX models seat, turn the dial on the outside of Each front seat has an armrest on back, pull the strap at the inside the seat bottom.
Page 73 Main Menu Table of Contents Seats Head Restraints They are most effective when you Rear Seat Access adjust them so the back of the See page for important safety occupant’s head rests against the information and a warning about how to RELEASE LEVER center of the restraint.
Page 74 Main Menu Table of Contents Seats Adjust the front seats forward as Reclining the Front Seats far as they will go. Pull up the seat- back angle adjustment lever and pivot the seat-back backward until it is level with the rear seat cushion.
Page 75 Main Menu Table of Contents Seats Folding the Rear Seats To create more cargo space, you can RELEASE STRAP SEAT-BACK ADJUSTMENT STRAP fold up each rear seat to each side wall separately. Lower the head restraint to its lowest position. Pull the seat-back adjustment Pull the release strap on the seat strap at the inside edge of the seat...
Page 76 Main Menu Table of Contents Seats Reverse this procedure to return the GRAB RAIL SEAT SUPPORT rear seat to the upright position. When not in use, store the fastening strap hook in the fabric pocket on the bottom of the seat cushion. Make sure the seat is locked securely.
Page 77 Main Menu Table of Contents Seats Removing the Rear Seats LOCK LEVER STEEL HANDLE RELEASE STRAP COVER Both seats can be removed to give Remove the cover between the Push the lock lever forward to more cargo capacity. To remove a seat cushion and the side wall by unlock the seat.
Page 78 Main Menu Table of Contents Seats Reverse this procedure to reinstall the seat. Make sure the seat is securely locked. STEEL HANDLE Always remove an unsecured seat from the vehicle before driving. A seat that is not locked in place could be thrown about and cause injury in a sudden stop or crash.
Page 79: Power Windows
Main Menu Table of Contents Power Windows AUTO REVERSE If the driver’s DRIVER’S WINDOW SWITCH window senses any obstacle while it is closing automatically, it will Closing a power window on reverse direction and then stop. To someone’s hands or fingers can cause serious injury.
Page 80 Main Menu Table of Contents Mirrors Push the appropriate edge of the Adjusting the Power Mirrors adjustment switch to move the SELECTOR SWITCH mirror right, left, up, or down. When you finish, move the selector switch to the center (off) position.
Page 81 Main Menu Table of Contents Rear Windows, Parking Brake, Skylight Rear Windows Parking Brake Skylight PARKING BRAKE LEVER To open a rear window, pull the lever To apply the parking brake, pull the On 4WD models only towards you, then push it out until it lever up fully.
Page 82 Main Menu Table of Contents Skylight If you try to tilt up the skylight in below-f reezing temperatures, or when it is covered with snow or ice, you can damage it. Bef ore lif ting the skylight, make sure the roof of the vehicle is dry. Rain or remaining water af ter car-washing may get into the f rame of the skylight.
Page 83 Main Menu Table of Contents Skylight An unsecured skylight can be thrown about and cause serious injury in a sudden stop or crash. Make sure to store the skylight in its bag, and secure the bag to the hooks on the cargo area floor.
Page 84: Interior Convenience Items
Main Menu Table of Contents Interior Convenience Items CARGO AREA CARGO AREA COIN TRAY CEILING POCKET SIDE POCKET VANITY MIRROR DOOR POCKETS RADIO POCKET ACCESSORY POWER SOCKET GLOVE BOX BEVERAGE HOLDERS CENTER LOWER POCKET SEAT-BACK POCKET BUNGEE CORDS : If equipped...
Page 85 Main Menu Table of Contents Interior Convenience Items Beverage Holders These sockets are intended to supply Glove Box Be careful when you are using the power for 12 volt DC accessories Open the glove box by pulling the beverage holders. A spilled liquid that are rated 120 watts or less (10 bottom of the handle.
Page 86: Interior Lights
Main Menu Table of Contents Interior Lights Ceiling Light Cargo Area Light Spotlights The cargo area light has a three- On EX models position switch. In the center Turn on the spotlight by pushing the position, the light comes on when lens.
Page 87 Main Menu Table of Contents Vents, Heating, and A/C FAN CONTROL DIAL TEMPERATURE MODE CONTROL DIAL CONTROL DIAL DEFROST POSITION RECIRCULATION BUTTON AIR CONDITIONING REAR WINDOW DEFOGGER (A/C) BUTTON BUTTON MAX A/C POSITION...
Page 88 Main Menu Table of Contents Vents, Heating, and A/C Air Flow Controls The outside air intakes for the heating and cooling system are at The system automatically Fan Control Dial the base of the windshield. Keep this turns on the A/C and switches to Turn this dial clockwise to increase area clear of leaves and other debris.
Page 89 Main Menu Table of Contents Vents, Heating, and A/C Air flows from the defroster Turn on the A/C by pressing the Using the Heater vents at the base of the windshield. The heater uses engine coolant to button. The indicator in the button warm the air.
Page 90 Main Menu Table of Contents Vents, Heating, and A/C Dehumidify the Interior To Defog and Defrost To Remove Exterior Frost or Ice Air conditioning, as it cools, removes To remove fog from the inside of the From the Windows moisture from the air. When used in windows: Select .
Page 91 Main Menu Table of Contents Playing the AM/FM Radio Canadian EX models U.S. LX and Canadian DX models STEREO INDICATOR PWR/VOL KNOB AUTO SELECT AM/FM BUTTON BUTTON SEEK BUTTONS AM/FM BUTTON STEREO INDICATOR SCAN BUTTON SCAN INDICATOR PWR/VOL TUNE KNOB KNOB SCAN BUTTON PRESET BUTTONS...
Page 92 Main Menu Table of Contents Playing the AM/FM Radio U.S. EX models PWR/VOL KNOB STEREO INDICATOR AM/FM SEEK BUTTONS BUTTON AUTO SELECT BUTTON SCAN BUTTON PRESET BUTTONS TUNE KNOB...
Page 93 Main Menu Table of Contents Playing the AM/FM Radio lower frequency. listen to, press the SCAN button To Play the Radio The ignition switch must be in again. ACCESSORY (I) or ON (II) position. The SEEK function SEEK Turn the system on by pushing the searches up and down from the Each preset button can Preset...
Page 94 Main Menu Table of Contents Playing the AM/FM Radio AUTO SELECT If you are To turn off auto select, press the Balance/Fader These two traveling far from home and can no A. SEL button. This restores the modes adjust the strength of the longer receive your preset stations, presets you originally set.
Page 95: Am/Fm Radio Reception
Main Menu Table of Contents AM/FM Radio Reception Radio Frequencies Radio Reception The radio can receive the complete How well the radio receives stations AM and FM bands. is dependent on many factors, such Those bands cover these frequen- as the distance from the station’s cies: transmitter, nearby large objects, and atmospheric conditions.
Page 96 Main Menu Table of Contents AM/FM Radio Reception As required by the FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radio signals, especially on the FM Radio reception can be affected by band, are deflected by large objects atmospheric conditions such as...
Page 97 Main Menu Table of Contents Playing the XM Satellite Radio Satellite Digital Radio U.S. EX models Your vehicle is capable of receiving CHANNEL XM Satellite Radio anywhere in the INDICATOR United States, except Hawaii and CATEGORY INDICATOR Alaska. PWR/VOL XM BUTTON KNOB DISPLAY BUTTON XM is a registered trade mark of...
Page 98 Main Menu Table of Contents Playing the XM Satellite Radio To Play XM Satellite Radio DISP Press and release this TUNE Turn the TUNE knob to To listen to XM radio, turn the button to change the display. The change channels. Turn the knob ignition switch to ACCESSORY (I) display will change in the following right for higher numbered channels...
Page 99 Main Menu Table of Contents Playing the XM Satellite Radio The scan function samples SEEK/SKIP (CATEGORY) SCAN SEEK/SKIP function selects the all channels for 5 seconds. To various categories in XM, such as activate the function, push the SCAN Jazz/Blues, Rock, Classical, etc. button.
Page 100 Main Menu Table of Contents Playing the XM Satellite Radio Satellite Radio Signals Satellite radio receives signals from Signal may be two satellites to produce clear, high- blocked by quality digital reception. It offers mountains or many channels in several categories. large obstacles Along with a large selection of to the south.
Page 101 Main Menu Table of Contents Playing the XM Satellite Radio Depending on where you drive, you Receiving Satellite Radio Service As required by the FCC: may experience reception problems. If your XM Radio service has expired Changes or modifications not expressly Interference can be caused by any of or you purchased your vehicle from approved by the party responsible for...
Page 102 Main Menu Table of Contents Playing the XM Satellite Radio If you decide to purchase XM While waiting for activation, make Satellite Radio service, contact XM sure your vehicle remains in an open Radio at , or at area with good reception. Once your www.xmradio.com 1-800-852-9696.
Page 103: Playing A Disc
Main Menu Table of Contents Playing a Disc U.S. LX and Canadian DX models Canadian EX models BUTTON FOLDER INDICATOR EJECT BUTTON RANDOM INDICATOR CD SLOT DISPLAY BUTTON CD BUTTON CD SLOT EJECT BUTTON REPEAT INDICATOR PWR/VOL RANDOM INDICATOR REPEAT KNOB BUTTON SKIP BUTTONS...
Page 104 Main Menu Table of Contents Playing a Disc U.S. EX models FOLDER INDICATOR EJECT BUTTON RANDOM INDICATOR CD SLOT DISC INDICATOR DISPLAY BUTTON CD BUTTON FOLDER KNOB REPEAT SKIP BUTTONS BUTTON SCAN BUTTON PWR/VOL KNOB RANDOM BUTTON...
Page 105 Main Menu Table of Contents Playing a Disc Video CDs and DVDs will not work To Play a Disc On EX models To load or play discs, the ignition The disc player can also play CD-Rs, in this unit. switch must be in the ACCESSORY WMA files, and CD-RWs (I) or ON (II) position.
Page 106 Main Menu Table of Contents Playing a Disc Insert a disc into the slot. The drive If you turn the system off while a SEEK/SKIP Each time you will pull the disc in the rest of the disc is playing, either with the PWR/ press and release the , the way to play it.
Page 107 Main Menu Table of Contents Playing a Disc This feature, This On EX models FOLDER-REPEAT FOLDER-RANDOM when activated, replays all the files feature, when activated, plays the REPEAT (TRACK/FILE To continuously replay on the selected folder in the order files within a folder in random order, REPEAT) a track (files in MP3/WMA mode), they are compressed in MP3/WMA.
Page 108 Main Menu Table of Contents Playing a Disc SCAN The SCAN function FOLDER-SCAN This feature, To Stop Playing a Disc samples all tracks/files on the when activated, samples all files on Press the eject button ( ) to selected disc in the order they are the selected folder in order.
Page 109 Main Menu Table of Contents Playing a Disc Auxiliary Input Jack Operating the Optional Disc If you select an empty slot in the magazine, the changer will search On EX models Changer The auxiliary input jack is on the for the next available disc to load and LX model only dashboard next to the accessory An optional six disc changer is...
Page 110: Protecting Your Discs
Main Menu Table of Contents Protecting Your Discs General Information Protecting Discs When using CD-R or CD-RW discs, When a disc is not being played, use only high quality CDs labeled store it in its case to protect it from for audio use.
Page 111: Disc Player Error Messages
Main Menu Table of Contents Disc Player Error Messages If you see an error message in the Indication Cause Solution display while playing a disc, find the cause in the chart to the right. If you cannot clear the error message, take Press the EJECT button and pull out the disc.
Page 112: Disc Changer Error Messages
Main Menu Table of Contents Disc Changer Error Messages If you see an error message in the Cause Solution display while playing a disc, find the Indication cause in the chart to the right. If you cannot clear the error message, take Press the magazine eject button, and pull the the vehicle to your dealer.
Page 113: Radio Theft Protection
Main Menu Table of Contents Radio Theft Protection If your vehicle’s battery is On EX models Your vehicle’s audio system will disconnected or goes dead, or the disable itself if it is disconnected radio fuse is removed, the audio from electrical power for any reason. system will disable itself.
Page 114: Setting The Clock
Main Menu Table of Contents Setting the Clock If your vehicle’s battery is On U.S. EX models disconnected or goes dead, you will TIME DISPLAY CLOCK CLOCK need to set the clock. TIME BUTTON BUTTON DISPLAY U.S. LX and Canadian DX models To set the hour, press the H button while pressing the CLOCK (SCAN/ RPT) button until the hour advances...
Page 115 Main Menu Table of Contents Setting the Clock For example: On Canadian EX models 1:06 will reset to 1:00 TIME 1:53 will reset to 2:00 DISPLAY CLOCK BUTTON When you are finished, press the CLOCK button again. H BUTTON R BUTTON M BUTTON You can quickly set the time to the nearest hour.
Page 116: Cruise Control
Main Menu Table of Contents Cruise Control If equipped Using Cruise Control Cruise control allows you to maintain a set speed above 25 mph (40 km/h) RES/ACCEL BUTTON without keeping your foot on the accelerator pedal. It should be used for cruising on straight, open highways.
Page 117 Main Menu Table of Contents Cruise Control To slow down in very small Changing the Set Speed Cancelling Cruise Control You can increase the set cruising amounts, tap the SET/DECEL You can cancel cruise control in any speed in any of these ways: button.
Page 118 Main Menu Table of Contents Break-in Period, Fuel Recommendation We recommend quality gasoline Break-in Period Fuel Recommendation Help assure your vehicle’s future Your vehicle is designed to operate containing detergent additives that reliability and performance by paying on unleaded gasoline with a pump help prevent fuel system and engine extra attention to how you drive octane number of 86 or higher.
Page 119: Fuel Recommendation
Main Menu Table of Contents Fuel Recommendation Some gasoline today is blended with If you notice any undesirable For further important fuel-related oxygenates such as ethanol or operating symptoms, try another information, please refer to your MTBE. Your vehicle is designed to service station or switch to another Quick Start Guide.
Page 120 Main Menu Table of Contents Service Station Procedures Refueling If the fuel nozzle keeps clicking off Park with the driver’s side closest even though the tank is not full, to the gas pump. there may be a problem with your Gasoline is highly flammable vehicle’s fuel vapor recovery and explosive.
Page 121 Main Menu Table of Contents Service Station Procedures Opening and Closing the Hood HOOD RELEASE HANDLE SUPPORT ROD LATCH CLIP Park the vehicle, and set the If the hood latch handle moves Pull the support rod out of its clip stiffly, or if you can open the hood and insert the end into the hole in parking brake.
Page 122 Main Menu Table of Contents Service Station Procedures Oil Check Engine Coolant Check DIPSTICK RESERVE TANK UPPER MARK LOWER MARK Wait a few minutes after turning the Remove the dipstick again, and Look at the coolant level in the engine off before you check the oil. check the level.
Page 123: Fuel Economy
Main Menu Table of Contents Fuel Economy Improving Fuel Economy Try to maintain a constant speed. Always maintain your vehicle Every time you slow down and according to the maintenance speed up, your vehicle uses extra schedule. See Owner’s fuel. Use cruise control when Maintenance Checks (see page appropriate.
Page 124: Accessories And Modifications
Accessories Be sure electronic accessories do or killed. Your dealer has Honda accessories not overload electrical circuits that allow you to personalize your (see page ) or interfere with Follow all instructions in this vehicle.
Page 125 Some examples are: safety features can make the Lowering the vehicle with a non- systems ineffective. Honda suspension kit that significantly reduces ground If you plan to modify your vehicle, clearance can allow the consult your dealer.
Page 126 Main Menu Table of Contents Carrying Cargo Your vehicle has several convenient storage areas: Cargo area side pockets Glove box CARGO AREA SIDE POCKET DOOR POCKETS CEILING POCKET Ceiling pocket (EX model) (EX model) Door pockets Seat-back pocket (EX model) Cargo area Seat-back bungees (EX model) However, carrying too much cargo,...
Page 127: Carrying Cargo
Main Menu Table of Contents Carrying Cargo Load Limits Steps for determining correct load luggage load capacity is 75 lbs. The maximum load for your vehicle limit: (675 600 (4 150) = 75 lbs.) is 675 lbs (308 kg). This figure includes the total weight of all Locate the statement, ‘‘the Determine the combined weight...
Page 128 Main Menu Table of Contents Carrying Cargo In addition, the total weight of the Carrying Cargo in the Cargo Area If you use an accessory roof rack, vehicle, all passengers, accessories, the roof rack weight limit may be or on a Roof Rack cargo, and trailer tongue load must Distribute cargo evenly on the lower.
Page 129 Main Menu Table of Contents Carrying Cargo Seat-Back Bungee If the cords are not installed, route one cord through the loops as shown. On EX models To attach the hooks, press the top of ADJUSTABLE BUNGEE CORD the hook down, and slide to the desired position, then release.
Page 130: Driving Guidelines
Main Menu Table of Contents Driving Guidelines Your vehicle has a higher ground Do not modify your vehicle in any Four-wheel Drive Models clearance that allows you to travel way that would raise the center of Your vehicle is equipped with a four- over bumps, obstacles, and rough gravity.
Page 131: Preparing To Drive
Main Menu Table of Contents Preparing to Drive You should do the following checks Check the seat adjustment (see Make sure the doors, hatch, and and adjustments before you drive page tailgate are securely closed and your vehicle. locked. Check the adjustment of the Make sure all windows, mirrors, inside and outside mirrors (see Fasten your seat belt.
Page 132: Starting The Engine
Main Menu Table of Contents Starting the Engine Apply the parking brake. In cold weather, turn off all The immobilizer system protects your The engine is harder to start in cold electrical accessories to reduce vehicle f rom thef t. If an improperly- weather.
Page 133: Manual Transmission
Main Menu Table of Contents Manual Transmission Come to a full stop before you shift into reverse. You can damage the transmission by trying to shift into Rapid slowing or speeding-up reverse with the vehicle moving. can cause loss of control on Push down the clutch pedal, and slippery surfaces.
Page 134 Main Menu Table of Contents Manual Transmission Recommended Shift Points Engine Speed Limiter Drive in the highest gear that lets If you exceed the maximum speed the engine run and accelerate for the gear you are in, the engine smoothly. This will give you good speed will enter into the tachometer’s fuel economy and effective red zone.
Page 135: Automatic Transmission
Main Menu Table of Contents Automatic Transmission Shift Lever Position Indicators Shifting To shift from: Do this: P to R Press the brake pedal, and press the release button. R to N N to D Press the release button. D to 2 2 to 1 1 to 2 2 to D...
Page 136: Normal Driving
Main Menu Table of Contents Automatic Transmission To avoid transmission damage, come Your vehicle has a reverse lockout so If there is a problem in the reverse to a complete stop before shifting you cannot accidentally shift to lockout system, or your vehicle’s into Park.
Page 137 Main Menu Table of Contents Automatic Transmission When overdrive is off, the First (1) This position locks the Overdrive (O/D) Mode transmission selects only the first transmission in first gear. By three gears. Use it to provide engine upshifting and downshifting through braking when going down a steep hill, 1, 2, and D, you can operate this or to keep the transmission from...
Page 138 Main Menu Table of Contents Automatic Transmission Shift Lock Release COVER Do this if pushing on the brake pedal and pulling the shift lever does not shift the transmission out of Park: Set the parking brake. Make sure the ignition switch is in the LOCK (0) position.
Page 139: Parking Tips
Main Menu Table of Contents Parking Tips Always use the parking brake when Parking Tips If the vehicle is facing uphill, turn you park your vehicle. Make sure Make sure the windows are closed. the front wheels away from the the parking brake is set firmly or curb.
Page 140: Braking System
Main Menu Table of Contents Braking System Your vehicle is equipped with disc Constant application of the brakes Braking System Design brakes at all four wheels. A power when going down a long hill builds The hydraulic system that operates assist helps reduce the effort needed up heat and reduces their effective- the brakes has two separate circuits.
Page 141 Main Menu Table of Contents Braking System, Anti-lock Brakes (ABS) Brake Wear Indicators Anti-lock Brakes You will feel a pulsation in the brake If the brake pads need replacing, you pedal when the ABS activates, and Standard on EX models will hear a distinctive, metallic The anti-lock brake system (ABS) may hear some noise.
Page 142: Anti-Lock Brakes (Abs)
Main Menu Table of Contents Anti-lock Brakes (ABS) If the ABS indicator and the brake ABS Indicator ABS will not prevent a skid that system indicator come on together results from changing direction If the ABS indicator comes on, the and the parking break is fully such as trying to take a abruptly,...
Page 143: Towing A Trailer
Main Menu Table of Contents Towing a Trailer Your vehicle has been designed to Load Limits primarily carry passengers and their cargo. You can also use it to tow a trailer if you carefully observe the load limits, use the proper equipment, and follow the guidelines in this section.
Page 144 Main Menu Table of Contents Towing a Trailer To achieve a proper tongue load, Gross Axle Weight Rating Checking Loads start by loading 60 percent of the The best way to confirm that vehicle (GAWR): load toward the front of the trailer The maximum allowable weight of and trailer weights are within limits and 40 percent toward the rear, then...
Page 145 Towing a Trailer Towing Equipment and Hitches Trailer Brakes Any hitch used on your vehicle must Honda recommends that any trailer Accessories Towing can require a variety of be properly bolted to the underbody. having a total weight of 1,000 lbs...
Page 146 Main Menu Table of Contents Towing a Trailer Ask your trailer sales or rental Trailer Lights Additional Towing Equipment Trailer lights and equipment must Many states and Canadian provinces agency if any other items are comply with federal, state, and local require special outside mirrors when recommended or required for your regulations.
Page 147 Main Menu Table of Contents Towing a Trailer Pre-Tow Checklist Your vehicle tires and spare are Driving Safely With a Trailer When preparing to tow, and before properly inflated (see page The added weight, length, and driving away, be sure to check the and the trailer tires and spare are height of a trailer will affect your following:...
Page 148 Main Menu Table of Contents Towing a Trailer If you must stop when facing uphill, Making Turns and Braking Backing Up Make turns more slowly and wider use the foot brake or parking brake. Always drive slowly and have than normal. The trailer tracks a Do not try to hold the vehicle in someone guide you when backing up.
Page 149 Main Menu Table of Contents Towing Your Vehicle Behind a Motorhome Your vehicle can be towed behind a Press on the brake pedal. Move motorhome at legal highway speeds the shift lever through all its up to 65 mph (100 km/h). Do not positions.
Page 150 Main Menu Table of Contents Towing Your Vehicle Behind a Motorhome If you tow a vehicle with an automatic transmission, the transmission fluid must be changed Severe automatic transmission damage every two years or 30,000 miles will occur if the vehicle is not started (48,000 km), whichever comes first.
Page 151 Main Menu Table of Contents Off-Highway Driving Guidelines General Information Important Safety Precautions Your vehicle has been designed To avoid loss of control or rollover, primarily for use on pavement. But be sure to follow all precautions and Improperly operating this its higher ground clearance allows recommendations.
Page 152 Main Menu Table of Contents Off-Highway Driving Guidelines Check Out Your Vehicle Accelerating and Braking Avoiding Obstacles Before you leave the pavement, be For better traction on all surfaces, Debris in the road can damage your sure to do all scheduled maintenance accelerate slowly and gradually build suspension or other components.
Page 153 Main Menu Table of Contents Off-Highway Driving Guidelines Crossing a Stream If You Get Stuck 4-Wheel Drive Vehicles Avoid driving through deep water. If Avoid driving on soft sand, deep mud, If you spin the wheels excessively you encounter water in your route (a or other surfaces where you could trying to get unstuck, you may small stream or large puddle, for...
Page 154: Maintenance Safety
Main Menu Table of Contents Maintenance Safety All service items not detailed in this with the battery or compressed air. Injury from moving parts. section should be performed by a not run the engine unless certified technician or other qualified instructed to do so.
Page 155: Maintenance Schedule
Main Menu Table of Contents Maintenance Schedule The maintenance schedule assumes Which Schedule to Follow Trailer towing, driving with a you will use your vehicle as normal Service your vehicle according to the loaded roof rack, or driving in transportation for passengers and time and mileage periods on one of mountainous conditions.
Page 156 Brakes Check the fluid level We recommend the use of Honda or mileage period to ensure long- monthly. See page parts and fluids whenever you have term reliability. Tires Check the tire pressure maintenance done.
Page 157 Main Menu Table of Contents Service the items listed at the indicated distance (or time, if given). Follow the normal maintenance miles x 1,000 schedule if the severe driving km x 1,000 conditions specified in the severe Check engine oil and coolant Check oil and coolant at each fuel stop conditions maintenance schedule on Check tires...
Page 158 Main Menu Table of Contents Service the items listed at the indicated distance (or time, if given). Follow the severe maintenance miles x 1,000 schedule if you drive your vehicle km x 1,000 MAINLY under one or more of the Check engine oil and coolant Check oil and coolant at each fuel stop following conditions:...
Page 159 Main Menu Table of Contents Maintenance Record (for Normal and Severe Schedules) You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe 166). Keep the receipts for all work done on your vehicle. conditions (page 5,000 mi Signature or dealer stamp...
Page 160 Main Menu Table of Contents Maintenance Record (for Normal and Severe Schedules) 85,000 mi Signature or dealer stamp mi/km 125,000 mi Signature or dealer stamp mi/km 136,000 km 200,000 km Date Date 90,000 mi mi/km 130,000 mi mi/km 144,000 km 208,000 km Date Date...
Page 161: Fluid Locations
Main Menu Table of Contents Fluid Locations ENGINE OIL BRAKE FLUID FILL CAP (Gray cap) ENGINE OIL DIPSTICK (Orange tab) POWER STEERING FLUID (Red cap) CLUTCH FLUID (Manual Transmission only) (Gray cap) WASHER FLUID (Blue cap) AUTOMATIC ENGINE TRANSMISSION COOLANT FLUID DIPSTICK RESERVOIR (Yellow loop)
Page 162: Adding Engine Oil
ENGINE OIL FILL CAP engine’s performance and longevity. highly recommended that you use Always use a premium-grade 5W-20 Honda motor oil in your vehicle for detergent oil displaying the API optimum engine protection. make certification seal. This seal indicates sure the API certification seal says the oil is energy conserving, and that ‘‘For Gasoline Engines.’’...
Page 163 Main Menu Table of Contents Adding Engine Oil, Changing the Oil and Filter Synthetic Oil Changing the Oil and Filter WASHER You may use a synthetic motor oil if Always change the oil and filter it meets the same requirements according to the recommendations in given for a conventional motor oil: it the maintenance schedule.
Page 164: Changing The Oil And Filter
Main Menu Table of Contents Changing the Oil and Filter Put a new washer on the drain bolt, OIL FILTER then reinstall the drain bolt. Tighten the drain bolt to: Improper disposal of engine oil can be 33 lbf·ft (44 N·m , 4.5 kgf·m) harmf ul to the environment.
Page 165: Antifreeze
Main Menu Table of Contents Engine Coolant Adding Engine Coolant Always use Honda All Season If the reserve tank is completely Antifreeze/Coolant Type 2. This empty, you should also check the RESERVE TANK coolant is pre-mixed with 50 percent coolant level in the radiator.
Page 166 Main Menu Table of Contents Engine Coolant, Windshield Washers The coolant level should be up to Windshield Washers the base of the filler neck. Add Check the fluid level in the RADIATOR CAP coolant if it is low. windshield washer reservoir at least monthly during normal use.
Page 167: Automatic Transmission Fluid
However, continued use can affect the shift quality. UPPER Have the transmission flushed and MARK refilled with Honda ATF-Z1 as LOWER MARK soon as it is convenient. To thoroughly flush the transmission, the technician...
Page 168: Manual Transmission Fluid
Main Menu Table of Contents Manual Transmission Fluid If Honda MTF is not available, you Manual Transmission Fluid may use an SAE 10W-30 or 10W-40 WASHER FILLER BOLT viscosity motor oil with the API Certification seal that says ‘‘FOR GASOLINE ENGINES’’ as a temporary replacement.
Page 169: Brake And Clutch Fluid
DOT 3 or DOT 4 fluid, from a sealed container, as a temporary replacement. Using any non-Honda brake fluid can The fluid level should be between cause corrosion and decrease the life the MIN and MAX marks on the side The fluid level should be between of the system.
Page 170 Do not apply wax to the steering system flushed and refilled panels; it will cause discoloration. with Honda PSF as soon as possible. A low power steering fluid level can indicate a leak in the system. Check the fluid level frequently, and have the system inspected as soon as possible.
Page 171 Main Menu Table of Contents Lights Headlight Aiming Replacing a Headlight Bulb The headlights were properly aimed Your vehicle has halogen headlight when your vehicle was new. If you bulbs. Handle it by its steel base and regularly carry heavy items in the protect the glass from contact with cargo area or pull a trailer, your skin or hard objects.
Page 172 Main Menu Table of Contents Lights Insert the new bulb into the hole, Replacing a Front Parking/Turn making sure the tabs are in their Signal Light Bulb slots. Pivot the hold-down wire back in place, and clip the end into the slot.
Page 173 Main Menu Table of Contents Lights Pull the bulb straight out of its Replacing a Front Side Marker socket. Push the new bulb straight Light Bulb into the socket until it bottoms. Insert the socket back into the headlight assembly. Turn it clockwise to lock it in place.
Page 174 Main Menu Table of Contents Lights Put the socket back into the light Replacing Rear Bulbs assembly, and turn it clockwise to lock it in place. Turn on the lights to make sure the new bulb is working. Put the light assembly back into the body, bottom first.
Page 175 Main Menu Table of Contents Lights Reinstall the socket into the light Replacing a Rear License Plate assembly by turning it clockwise Bulb until it locks. Test the lights to make sure the new bulb is working. When reinstalling the taillight assembly, first place the two pins in the holes in place.
Page 176 Main Menu Table of Contents Lights Test the lights to make sure the Replacing a High-mount Brake new bulb is working. Light Bulb Put the socket back into the light assembly, and turn it clockwise to lock it in place. Put the cover back onto the light assembly.
Page 177 Main Menu Table of Contents Cleaning the Seat Belts, Dust and Pollen Filter Cleaning the Seat Belts Dirt build-up in the loops of the seat Dust and Pollen Filter belt anchors can cause the belts to This filter removes the dust and LOOP retract slowly.
Page 178: Wiper Blades
Main Menu Table of Contents Wiper Blades Check the condition of the wiper blades at least every 6 months. Replace them if you find signs of cracking in the rubber, areas that are getting hard, or if they leave streaks and unwiped areas when used.
Page 179 Main Menu Table of Contents Wiper Blades, Tires Tires Inflation Guidelines To safely operate your vehicle, your Keeping the tires properly inflated BLADE tires must be the proper type and provides the best combination of size, in good condition with adequate handling, tread life, and riding tread, and correctly inflated.
Page 180 Main Menu Table of Contents Tires Use a gauge to measure the air If you check air pressures when the Recommended Tire Pressures for pressure in each tire at least once a tires are hot (driven for several Normal Driving month.
Page 181 For vehicles with aluminum wheels: You should replace the tire if you can Improper wheel weights can damage see the tread wear indicator in three your vehicle’s aluminum wheels. Use or more places on the tire. only genuine Honda wheel weights f or balancing.
Page 182 Main Menu Table of Contents Tires It is best to replace all four tires at Tire Rotation Replacing Tires and Wheels Replace your tires with radial tires of the same time. If that is not possible Front Front the same size, load range, speed or necessary, replace the two front rating, and maximum cold tire tires or two rear tires as a pair.
Page 183 Main Menu Table of Contents Tires Wheel and Tire Specifications Winter Driving Wheels: Tires marked ‘‘M S’’ or ‘‘All Season’’ on the sidewall have an all- Installing improper tires on your 16 x 6 1/2JJ weather tread design suitable for vehicle can affect handling and 16 x 6 1/2 stability.
Page 184 Main Menu Table of Contents Tires Tire Chains Because your vehicle has limited tire clearance, mount only SAE Class ‘‘S’’ Traction devices that are the wrong cable-type traction devices, with size or improperly installed can rubber chain tensioners on the front damage your vehicle’s brake lines, tires.
Page 185: Operation
Main Menu Table of Contents Checking the Battery Check the terminals for corrosion (a If you need to connect the battery to white or yellowish powder). To a charger, disconnect both cables to remove it, cover the terminals with a prevent damaging your vehicle’s solution of baking soda and water.
Page 186: Vehicle Storage
Main Menu Table of Contents Vehicle Storage If you need to park your vehicle for Block the rear wheels. Cover the vehicle with a an extended period (more than one ‘‘breathable’’ cover, one made month), there are several things you If the vehicle is to be stored for a from a porous material such as should do to prepare it for storage.
Page 187: Compact Spare Tire
Main Menu Table of Contents Compact Spare Tire Use the compact spare tire as a Follow these precautions: INDICATOR LOCATION MARK temporary replacement only. Get your regular tire repaired or replaced, Never exceed 50 mph (80 km/h). and put it back on your vehicle as soon as you can.
Page 188: Changing A Flat Tire
Main Menu Table of Contents Changing a Flat Tire If you have a flat tire while driving, Park the vehicle on firm, level, and TOOLS stop in a safe place to change it. non-slippery ground. Put the Drive slowly along the shoulder until transmission in Park (automatic) you get to an exit or an area to stop or reverse (manual).
Page 189 Main Menu Table of Contents Changing a Flat Tire JACK WHEEL NUTS WHEEL NUT WRENCH Push the rear edge of the handle Unscrew the wing bolt, and take Loosen the five wheel nuts 1/2 to raise the handle loop and pull up the spare tire out of the cargo area.
Page 190 Main Menu Table of Contents Changing a Flat Tire EXTENSION WHEEL NUTS WHEEL NUTS WHEEL COVER WHEEL WRENCH JACKING POINTS Locate the jacking point nearest Use the extension and the wheel LX and DX models the tire you need to change. It is nut wrench as shown to raise the Remove the wheel nuts and wheel pointed to by an arrow molded into...
Page 191 Main Menu Table of Contents Changing a Flat Tire Put on the spare tire. Put the wheel nuts back on finger-tight, then tighten them in a crisscross pattern with the wheel nut wrench until the wheel is firmly against the hub. Do not try to tighten them fully.
Page 192 Main Menu Table of Contents Changing a Flat Tire Store the jack in its holder. Turn the jack’s end bracket to lock it in place. Store the tools. Remove the center cap from the flat tire, and store it in the spare tire well.
Page 193 Main Menu Table of Contents Changing a Flat Tire Secure the flat tire by screwing the wing bolt to the spare tire mount through the hole in the cargo area floor. Remove the small round plug from Reinstall the cargo area floor. the cargo area floor by pushing it Place the flat tire face down on the from the back side to make a hole.
Page 194 Main Menu Table of Contents If the Engine Won’t Start Diagnosing why the engine won’t Nothing Happens or the Starter Turn the ignition switch to START start falls into two areas, depending (III). If the headlights do not dim, Motor Operates Very Slowly on what you hear when you turn the When you turn the ignition switch to check the condition of the fuses.
Page 195 Main Menu Table of Contents If the Engine Won’t Start Do you have fuel? Check the fuel The Starter Operates Normally In this case, the starter motor’s gauge; the low fuel indicator may speed sounds normal, or even faster not be working. than normal, when you turn the ignition switch to START (III), but There may be an electrical...
Page 196: Jump Starting
Main Menu Table of Contents Jump Starting Although this seems like a simple Turn off all the electrical acces- To Jump Start Your Vehicle: procedure, you should take several Open the hood, and check the sories: heater, A/C, stereo system, precautions.
Page 197 Main Menu Table of Contents Jump Starting If the booster battery is in another vehicle, have an assistant start that vehicle and run it at a fast idle. Start your vehicle. If the starter motor still operates slowly, check that the jumper cables have good metal-to-metal contact.
Page 198: If The Engine Overheats
Main Menu Table of Contents If the Engine Overheats The pointer of the vehicle’s If you do not see steam or spray, temperature gauge should stay in leave the engine running, and the midrange. If it climbs to the red watch the temperature gauge.
Page 199 Main Menu Table of Contents If the Engine Overheats Look for any obvious coolant leaks, Start the engine, and set the such as a split radiator hose. temperature control dial to Everything is still extremely hot, maximum heat. Add coolant to the Removing the radiator cap so use caution.
Page 200 Main Menu Table of Contents Low Oil Pressure Indicator, Charging System Indicator Low Oil Pressure Indicator Safely pull off the road, and shut Charging System Indicator This indicator should never off the engine. Turn on the hazard If the charging system come on when the engine is warning lights.
Page 201: Malfunction Indicator Lamp
Main Menu Table of Contents Malfunction Indicator Lamp If this indicator comes on If the indicator comes on repeatedly, If your vehicle battery has been while driving, it means one even though it may turn off as you disconnected or gone dead, these of the engine’s emissions control continue driving, have the vehicle codes are erased.
Page 202: Brake System Indicator
Main Menu Table of Contents Brake System Indicator U.S. The brake system indicator However, if the brake pedal does not normally comes on when feel normal, you should take you turn the ignition switch immediate action. A problem in one to ON (II), and as a part of the system’s dual circuit Canada...
Page 203 Main Menu Table of Contents Fuses Checking and Replacing Fuses INTERIOR UNDER-HOOD If something electrical in your vehicle stops working, check for a blown fuse first. Determine from the chart on pages , or the diagram on the fuse box lid, which fuse or fuses control that device.
Page 204 Main Menu Table of Contents Fuses If you cannot drive the vehicle FUSE without fixing the problem, and you BLOWN do not have a spare fuse, take a fuse of the same rating or a lower rating from one of the other circuits. Make sure you can do without that circuit temporarily (such as the accessory power socket or radio).
Page 205: Audio System
Main Menu Table of Contents Fuses If the replacement fuse of the same rating blows in a short time, there is probably a serious Replacing a f use with one that has a electrical problem in your vehicle. higher rating greatly increases the Leave the blown fuse in that chances of damaging the electrical circuit and have your vehicle...
Page 206: Fuse Locations
Main Menu Table of Contents Fuse Locations INTERIOR FUSE BOX No. Amps. Circuits Protected 7.5 A Power Window Relay 20 A 7.5 A Accessory, Radio 10 A Rear Wiper 7.5 A Meter 7.5 A 7.5 A Daytime running lights 10 A 10 A Remote Control Mirrors 20 A...
Page 207 Main Menu Table of Contents Fuse Locations UNDER-HOOD FUSE BOX Amps. Circuits Protected 30 A Condenser Fan 15 A Small Light 7.5 A Interior Light 20 A Cooling Fan Motor 15 A Hazard 15 A 15 A Horn, Stop Not Used 10 A Back Up 30 A...
Page 208: Emergency Towing
Main Menu Table of Contents Emergency Towing If your vehicle needs to be towed, Refer to Towing Your Vehicle call a professional towing service or on page Behind a Motorhome organization. Never tow your vehicle for non-emergency towing Towing with only two tires on the with just a rope or chain.
Page 209: Identification Numbers
Main Menu Table of Contents Identification Numbers Your vehicle has several identifying VEHICLE IDENTIFICATION NUMBER numbers located in various places. The vehicle identification number (VIN) is the 17-digit number your dealer uses to register your vehicle for warranty purposes. It is also necessary for licensing and insuring your vehicle.
Page 210: Automatic Transmission
Main Menu Table of Contents Identification Numbers The engine number is stamped into AUTOMATIC TRANSMISSION NUMBER the engine block. The transmission number is on a label on top of the transmission. ENGINE NUMBER MANUAL TRANSMISSION NUMBER...
Page 211 Main Menu Table of Contents Specifications Dimensions Length 169.3 in (4,300 mm) Engine Automatic Transmission Width 71.5 in (1,815 mm) coolant Change 1.43 US gal (5.4 ) Height 70.4 in (1,788 mm) Total 1.88 US gal (7.1 ) Wheelbase 101.4 in (2,575 mm) Manual Transmission Track Front...
Page 212: Specifications
Main Menu Table of Contents Specifications Air Conditioning Fuses Refrigerant type HFC-134a (R-134a) Interior See page or the fuse label Charge quantity 16.9 18.7 oz (480 530 g) attached to the inside of the fuse Lubricant type SP-10 box door under the steering column.
Page 213 Main Menu Table of Contents DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all Treadwear Traction AA, A, B, C U.S. Federal Safety Requirements. The treadwear grade is a compara- The traction grades, from highest to All tires are also graded for tive rating based on the wear rate of lowest, are AA, A, B, and C.
Page 214 Main Menu Table of Contents DOT Tire Quality Grading (U.S. Vehicles) Temperature A, B, C Warning: The temperature grade for The temperature grades are A (the this tire is established for a tire that highest), B, and C, representing the is properly inflated and not over- tire’s resistance to the generation of loaded.
Page 215: Tire Labeling
Main Menu Table of Contents Tire Labeling Load index (a numerical code Tire Labeling Maximum Tire Pressure The tires that came on your vehicle associated with the maximum Max Press The maximum air have a number of markings. Those load the tire can carry). pressure the tire can you should be aware of are described Speed symbol (an...
Page 216: Maintenance
It is stored in this NOx and HC react to form canister while the engine is off. After photochemical ‘‘smog.’’ Carbon In Canada, Honda vehicles comply the engine is started and warmed up, monoxide does not contribute to with the Canadian emission...
Page 217: Emissions Controls
HC, CO, and NOx that the engine control module (ECM) in Honda replacement parts or their comes out the tailpipe. The exhaust manual transmission vehicles uses equivalent for repairs. Using lower...
Page 218: Three Way Catalytic Converter
The catalytic converter is referred to running properly. as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent. The three way catalytic converter THREE WAY CATALYTIC CONVERTER...
Page 219: State Emissions Testing
Main Menu Table of Contents State Emissions Testing If the testing facility determines that Without touching the accelerator Testing of Readiness Codes If you take your vehicle for a state the readiness codes are not set, you pedal, start the engine, and let it emissions test shortly after the will be requested to return at a later idle for 20 seconds.
Page 220 Main Menu Table of Contents State Emissions Testing Select a nearby lightly traveled Then drive in city/suburban major highway where you can traffic for at least 10 minutes. maintain a speed of 50 to 60 mph When traffic conditions allow, let (80 to 97 km/h) for at least 20 the vehicle coast for several minutes.
Page 221: Customer Service Information
P.O. Box 190816 U.S. Owners: A detailed description of the San Juan, PR 00919-0816 problem American Honda Motor Co., Inc. Honda Automobile Customer Service Tel: (787) 250-4327 Name of the dealer who sold the Mail Stop 500-2N-7A vehicle to you...
Page 222: Body Panels
Restrictions and exclusions apply to Emissions Control Systems Defects Accessory Limited Warranty Honda accessories are covered all these warranties. Please read the Warranty and Emissions these two under this warranty. Time and 2005 Honda Warranty Information Performance Warranty warranties cover your vehicle’s...
Page 223 NHTSA, U.S. Department of Administration (NHTSA) in addition However, NHTSA cannot become Transportation, Washington, to notifying American Honda Motor involved in individual problems D.C. 20590. You can also obtain Co., Inc. between you, your dealer, or other information about motor American Honda Motor Co., Inc.
Page 224: Authorized Manuals
Purchasing Factory Authorized Manuals Valid only for sales within the United States. Canadian (U.S. only) owners should contact their authorized Honda dealer. The publications shown below can be purchased from Helm ORDER TOLL FREE: 1-800-782-4356 Incorporated. You can order in any of three ways:...
Page 225 Main Menu Table of Contents Authorized Manuals Service Manual: NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should This manual covers maintenance and recommended be sent. For purchases outside U.S.A. please write to the address shown procedures for repair to engine and chassis components.
Page 226: Fluid
(see page Rear: Rear Differential Fluid: 34 psi (235 kPa , 2.4 kgf/cm ) Oil change capacity (including Honda Dual Pump Fluid. Do not filter): use ATF. Spare Tire Pressure: 4.4 US qt (4.2 ) 60 psi (420 kPa , 4.2 kgf/cm )

Honda 2005 Element User Manual

Quick Links

Related Manuals for Honda 2005 Element

Summary of Contents for Honda 2005 Element

Table of Contents
