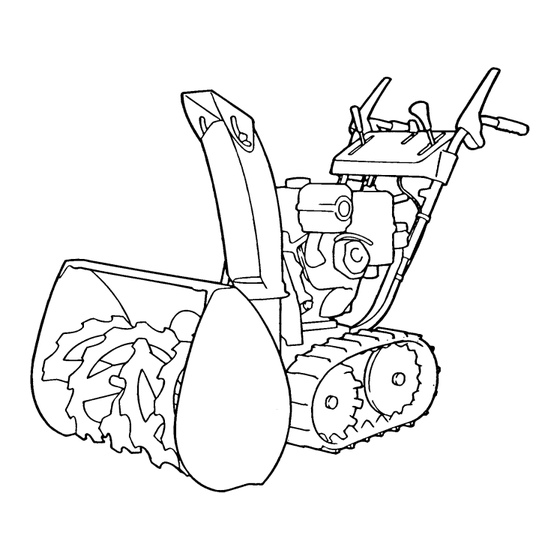

- Page 1 Dealer Instructions SETUP PRE-DELIVERY SERVICE HS928K1 • HS1332 SNOWBLOWERS 1 of 13 © 2011 American Honda Motor Co., Inc.—All Rights Reserved PPD54294 (2011.08)
- Page 2 HS928K1 • HS1332 SNOWBLOWERS IMPORTANCE OF PROPER SETUP AND PRE-DELIVERY SERVICE FOR YOUR CUSTOMER’S SAFETY Proper setup and pre-delivery service are essential WARNING to the customer’s safety and the reliability of the snowblower. Any error or oversight made during Improper setup or pre-delivery service can...
- Page 3 Proper setup and pre-delivery service are essential for safe, reliable operation. Your customer expects his or her Honda snowblower to be correctly assembled, adjusted, and ready for use; test the snowblower to be sure that it functions properly. Fill out the Power Equipment Pre-Delivery Check List (TO056) and give the yellow copy to the customer.
- Page 4 HS928K1 • HS1332 SNOWBLOWERS LOOSE PARTS Remove the crate cover and open the parts carton. Remove all the parts from the carton. Check the parts against these illustrations. Description Quantity Part Number Illustration Owner’s manual 31V416000 Tool Kit (contains spark plug wrench &...
- Page 5 HS928K1 • HS1332 SNOWBLOWERS Description Quantity Part Number Illustration (Use the following Chute Crank Assembly parts if you need to create a complete assembly.) Chute Drive Gear 76331-730-000 Handle Bracket Holder 76335-767-A10 Chute Handle Bush 76336-730-000 Chute Handle Bracket A...
- Page 6 HS928K1 • HS1332 SNOWBLOWERS DAMAGE OR MISSING PARTS • For parts lost or damaged in transit, refer to section 3 of the Warranty Policy and Procedures Manual. • For parts left out by the factory, refer to section 6 of the Warranty Policy and Procedures Manual.
- Page 7 HS928K1 • HS1332 SNOWBLOWERS • Wheel-Type JOINT WASHER (4) 1. Install the lower handle cap. 2. Set the handle and install the four handle holder bolts. NUT (4) HANDLE CAP (2) • Route the choke cable outside the handle. • Route the other cables and code inside the handle.
- Page 8 5. Loosely install chute handle bracket 8 mm B with the collar (HS1332 only) and FLANGE NUT 6 x 12 mm flange bolt (HS928K1) or 6 x 16 mm flange bolt (HS1332) 6. Loosely install chute handle bracket CHUTE HANDLE...
- Page 9 HS928K1 • HS1332 SNOWBLOWERS ADJUSTMENTS 1. Check the backlash between the chute drive gear and driven gear. Adjust as necessary. BACKLASH: 0.5 ~ 1.0 mm (0.02 ~ 0.04 in) 2. Check that the chute rotates smoothly when the chute handle is operated.
- Page 10 If necessary, fill the transmission reservoir to the RESERVOIR temperature compensated level shown in the following table by removing the reservoir cap and cup. Use only Honda Hydrostatic Fluid. P/N 08208-HST01 3. Install the reservoir cap and cup. Do not over-tighten the cap. TRANSMISSION...
- Page 11 HS928K1 • HS1332 SNOWBLOWERS 7. Check the scraper bar and skid shoe adjustments: The skid shoes can be mounted on the front of the auger housing (front mount) or on the rear of the auger housing (rear mount). The rear-mount skid shoe adjustment is shown. The front-mount skid shoe adjustment procedure is the same.
- Page 12 HS928K1 • HS1332 SNOWBLOWERS 8. On Track-types: Check track tension. 15 kg (33 Ib) a. With the snowblower resting on its tracks, 27 ~ 33 mm (1-1/16 ~ 1-5/16 in) check track deflection by pressing down midway between the wheels with a force of 15 kg (33 Ib).
- Page 13 HS928K1 • HS1332 SNOWBLOWERS 13.Fill out the appropriate areas of the Power Equipment Pre-Delivery Check List (TO056), and give the yellow copy to the customer. PRE-DELIVERY (PDI) CHECK LIST The following pre-delivery (PDI) check list is designed for general application. There are individual exceptions to this list.
