Hitachi RB 14DL Technical Data And Service Manual

14.4 v/18 v cordless blower
Hide thumbs Also See for RB 14DL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
PRODUCT NAME

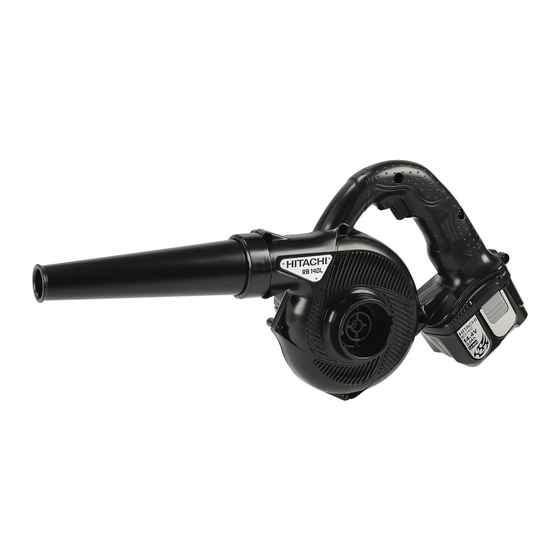

Hitachi 14.4 V/18 V Cordless Blower
RB 14DL, RB 18DL
Models
MARKETING OBJECTIVE
The new Models RB 14DL and RB 18DL are cordless blowers applicable to 14.4 V/18 V lithium-ion batteries.
(1) Applicable to the newly developed lithium-ion batteries (14.4 V/18 V 3.0 Ah, sold separately).
This battery can be fully charged in 45 minutes.
(2) Lightweight and compact
(3) Grip handle for easier handling
We aim to expand our market share with the new Models RB 14DL and RB 18DL.
APPLICATIONS
• Cleaning facilities and equipment in lumbermills, cigarette-making plants, spinning mills, etc.
• Cleaning devices and equipment in repair shops
• Blowing operation
SELLING POINTS
[ NEW FEATURES ]
Equipped with the new lithium-ion battery
Lightweight and compact
Maximum air volume 2.2 m
Soft-grip handle
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
3
/min
LIST Nos.
RB 14DL: G870
RB 18DL: G871
Jun. 2007
RB 18DL
International Sales Division
R

Advertisement

Table of Contents
loading

Related Manuals for Hitachi RB 14DL

Summary of Contents for Hitachi RB 14DL

  • Page 1 Models MARKETING OBJECTIVE The new Models RB 14DL and RB 18DL are cordless blowers applicable to 14.4 V/18 V lithium-ion batteries. (1) Applicable to the newly developed lithium-ion batteries (14.4 V/18 V 3.0 Ah, sold separately). This battery can be fully charged in 45 minutes.
  • Page 2 REMARK: • For more information about HANDLING INSTRUCTIONS, visit our website at: http://www.hitachi-koki.com/manual_view_export/ • Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s) is(are) used in the place of company name(s) and model name(s) of our competitor(s). The symbol(s) utilized here...

  • Page 3: Table Of Contents

    2. Inherent drawbacks of cordless blower requiring particular attention during sales promotion -----------------------------------------------------------------------------------------5 REPAIR GUIDE------------------------------------------------------------------------------------------------------------------7 1. Precautions in disassembly and reassembly --------------------------------------------------------------7 2. Precautions in disassembly and reassembly of battery charger --------------------------------------8 STANDARD REPAIR TIME (UNIT) SCHEDULES----------------------------------------------------------------------9 Assembly diagram for RB 14DL Assembly diagram for RB 18DL...

  • Page 4: Selling Point Descriptions

    Equipped with the new lithium-ion battery The newly developed Types BCL 1430, EBL 1430 (for the Model RB 14DL), EBM 1830 (for the Model RB 18DL) lithium-ion batteries (14.4 V/18 V, 3.0 Ah) can be fully charged by the Model UC 18YRL charger in 45 minutes.

  • Page 5: Specifications

    SPECIFICATIONS 1. Specifications Model RB 14DL RB 18DL Type of motor DC magnet motor Type of switch Trigger switch No-load speed 15,000 min Enclosure Main body: ABS resin (black) Air pressure 3.9 kPa Air volume 2.2 m /min Continuous operating time 15 min (battery 14.4 V 3.0Ah)

  • Page 6: Comparisons With Similar Products

    COMPARISONS WITH SIMILAR PRODUCTS (Superior specifications: 1. Specification comparisons Maker HITACHI Model name RB 14DL RB 18DL (without battery/charger) Air pressure Air volume flow /min 0 to 2.2 Noise level (with nozzle) Type of switch Trigger switch Variable speed control trigger switch 11.0...

  • Page 7: Precautions In Sales Promotion

    1. Safety instructions In the interest of promoting the safest and most efficient use of the Models RB 14DL and RB 18DL cordless blowers by all of our customers, it is very important that at the time of sale, the salesperson carefully...

  • Page 8: Inherent Drawbacks Of Cordless Blower Requiring Particular Attention During Sales Promotion

    Instruct the customer to bring these units to an authorized service center in the event repair or replacement is necessary. (9) Disposal of the storage battery (Types BCL 1430 and EBL 1430 for the Model RB 14DL, EBM 1830 for the Model RB 18DL)
  • Page 9 (2) Do not insert a foreign object into body. A foreign object inserted through a hole may cause a failure. Please instruct customers to never insert a foreign object into body. (3) Avoid “Locking” of the motor. Locking of the motor will cause an overload current that could result in burning of the motor and/or rapid deterioration of the battery.

  • Page 10: Repair Guide

    1.Precautions in disassembly and reassembly The [Bold] numbers in the description below correspond to the item numbers in the Parts List and the exploded assembly diagram for the Models RB 14DL and RB 18DL. Disassembly 1. Removal of the fan Be sure to draw on work gloves before holding the Fan [15] to prevent injury to fingers.

  • Page 11: Precautions In Disassembly And Reassembly Of Battery Charger

    Reassembly Reassembly can be accomplished by following the disassembly procedures in reverse. However, special attention should be given to the following items. 1. Reassembly of the power supply unit Perform wiring according to the wiring diagram. Micro Switch [2] Battery Holder [7] Black Motor Holder (B) [10] Motor (W/Spindle) [11]...

  • Page 12: Standard Repair Time (Unit) Schedules

    STANDARD REPAIR TIME (UNIT) SCHEDULES Variable MODEL Fixed Work Flow RB 14DL RB 18DL General Assembly Housing (R) Housing (L) Micro Switch Switch Knob Motor Holder Motor Holder Motor Motor Plate...
  • Page 13 Hitachi Power Tools LIST NO. G870 ELECTRIC TOOL PARTS LIST CORDLESS BLOWER 2007 • • Model RB 14DL (E1)

  • Page 14: Optional Accessories

    PARTS RB 14DL ITEM CODE NO. DESCRIPTION REMARKS USED NAME PLATE 328-612 MICRO SWITCH 328-613 SWITCH SPRING (B) 328-654 SWITCH BAR 328-655 SWITCH SPRING (A) 328-614 SWITCH KNOB 328-611 BATTERY HOLDER 949-216 MACHINE SCREW M4X10 (10 PCS.) 328-610 HOUSING (R)
  • Page 15 Hitachi Power Tools LIST NO. G871 ELECTRIC TOOL PARTS LIST CORDLESS BLOWER 2007 • • Model RB 18DL (E1)
  • Page 16 TAPPING SCREW D3.5X15 328-564 949-556 NUT M6 (10 PCS.) 328-565 STRAP 328-546 TAPPING SCREW D3.5X15 (BLACK) 328-616 HOUSING (L) 328-549 TAPPING SCREW D3.5X20 (BLACK) HITACHI LABEL 328-562 NOZZLE OPTIONAL ACCESSORIES ITEM CODE NO. REMARKS DESCRIPTION USED 317-124 LONG NOZZLE ASS’Y 323-587...
