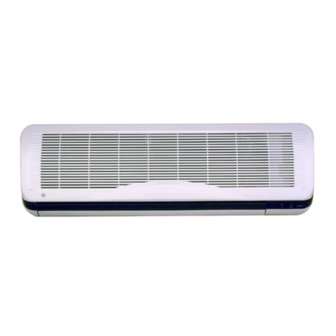

GE AS0CD09 Series Technical Service Manual
Split system air conditioner indoor/outdoor units
Hide thumbs
Also See for AS0CD09 Series:
- Owner's manual & installation instructions (32 pages) ,
- Owner's manual & installation instructions (32 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for GE AS0CD09 Series
Summary of Contents for GE AS0CD09 Series
- Page 1 GE Consumer Service Training TECHNICAL SERVICE GUIDE SPLIT SYSTEM AIR CONDITIONER INDOOR/OUTDOOR UNITS MODEL SERIES: Cooling only Models AS0CD09 AS1CD09 AS0CD12 AS1CD12 AS0CD18 AS1CD18 Heat Pump Models AS0RD09 AS1RD09 AS0RD12 AS1RD12 AS0RD18 AS1RD18 Pub # 31-9012 10/99...
-
Page 3: Table Of Contents
Table of Contents Functions Remote Controller Specs-Heating/Cooling Dimensions Outdoor Unit Dimensions Refrigeration Cycle Diagram Operation Details Auto Mode-(Electronic Models) Dehumidification Mode Defrost Control Cooling/Heating Sleep Mode Forced Operation Test Mode Display Function Installation Operation Disassembly (Indoor Unit) Cycle Troubleshooting Guide Voltage @ Connectors Main PWB (Indoor Unit) Main PWB (Indoor Unit) -
Page 4: Functions
Functions TIME TIME a.m. a.m. p.m. p.m. CANCEL RESET REMOTE CONTROLLER (Timer, see page 15) Unit can be set with timer, to shut off after 1 hour up to limit. -
Page 5: Remote Controller
Remote Controller Remote Controller Operation ON/OFF Operation Mode Selection Cooling Operation Mode Auto Operation Mode Dehumidification Operation Mode Heating Operation Mode Cooling Heat Pump Fan Speed Selection Room, Temperature Display : High: 98 F Low : 54 F) Temperature Setting Down to 60 F Down to 64 F Heating... -
Page 6: Specs-Heating/Cooling
Product Specifications (Heating and Cooling) Cooling Only Heat Pumps * Design and Specifications subject to change without prior notice for product improvement... -
Page 7: Dimensions
Dimensions (1) Indoor Unit INSTALLATION PLATE 16" Tubing hole cover Tubing hole cover TYPE "A" SCREW s t i " 4 " 4 " 4 " 4 " 4 " 6 " 2 " 2 " 2... -
Page 8: Outdoor Unit Dimensions
(2) Outdoor Unit 3-way valve 3 way valve " 9 " 9 " 8 " 6 " 6 " 3 " 3 " 3 " 6 " 7 " 7 " 4 " 4 " 4 " 5 " 4 "... -
Page 9: Refrigeration Cycle Diagram
Refrigeration Cycle Diagram Heat Pump Model Shown Below: INDOOR UNIT OUTDOOR UNIT LIQUID CAPILLARY TUBE SIDE CHECK VALVE HEAT HEAT EXCHANGER EXCHANGER (CONDENSER) (EVAPORATOR) SIDE REVERSING VALVE COOLING COMPRESSOR HEATING o l l " 8 " 8 " 2 " 4 For installation over the standard 25 Ft. -
Page 10: Operation Details
Operation Details (1) Function of the main control 1. Time delay Safety Control • 3min.; The compressor operation is delayed for 3 minutes to allow system pressures to equalize (Compressor protection) • 5sec.; The indoor fan is delayed for 5 seconds, when operating initially, to prevent noises from occurring by vertical louver and airflow. -
Page 11: Auto Mode-(Electronic Models)
4. Auto Mode Operation (Electronic control mode) • The operation procedure is shown below. (Cooling & Heating Model) Operation Condition Intake-air Temp Setting Temp Fan Speed Air Direction Control Over 78°F 77° Over 76 F-below 78° Intake air -2° When Auto Operation In this mode Over 72°F-below 76°F Intake air... -
Page 12: Dehumidification Mode
Auto Operation for Dehumidification Mode • The Setting temperature will be the same as that of the auto operation for cooling -Compressor ON temperature; Setting temperature +2 -Compressor OFF temperature; Setting temperature -1 Intake-air temp. below 68 Over 68 F-below 70 Over 86 Setting temp. - Page 13 5. Dehumidification Operation Mode • During Dehumidification Operation, the compressor ON temperature is the set temperature plus 2 F. The compressor OFF temperature is the set temperature minus 1 • When the room temperature rises over the compressor ON temperature, the operation mode is switched to the Cooling operation.
- Page 14 5. Dehumidification Operation Mode • The unit will operate according to the setting conditions by the remote controller. The operation diagram is shown below. •Hot-Start Control • The indoor fan stops until the indoor pipe temperature reaches 82 • During heating operation, if indoor pipe temperature falls below 78 F., fan stops.
-
Page 15: Defrost Control
6. Defrost Control • Defrost operation is controlled by timer and sensing temperature of outdoor pipe. • The first defrost starts only when the outdoor pipe temperature falls below 21 F after 60 minutes has passed from starting of heating operation and more than 10 minutes operation of compressor. •... -
Page 16: Cooling/Heating Sleep Mode
7. Cooling or Heating Mode with Sleep Mode Auto Control • When selecting the Cooling ( ), or Heating ( ), combined with the Sleep Mode Auto Control ( ), the operation diagram is as listed below. •Cooling Mode with the Sleep Mode •... -
Page 17: Forced Operation
8. Forced Operation • If you misplace the wireless remote controller, you can operate the unit with the forced operation button. • The standard conditions are shown below. > < > 6 < o i t n i l i f i o i t n i t i f i... -
Page 18: Test Mode
Test Mode Test operation will be performed by pushing the “TEST KEY” on the main PWB Assy,as listed below. (1)Indoor One push: Ignore communication error. Twice push: Shorten the proceeding time (1 min---1sec) 3 Times Push: Shorten the proceeding time. (1hour---1sec) 4 Times push: All LED ON 5 Times push: Up/Down Step Motor ON. -
Page 19: Display Function
Display Function Operation Indicator Cooling, Dehumidify, Fan, Heating Sleep Timer Indicator Sleep Mode Timer Indicator Timer Mode Defrost Indicator or :Cooling & Heating Model only Hot Start Indicator Hot-start, Defrost BUZZER SOUND • Power Input or Reset : One Short beep. •... -
Page 20: Installation
Installation IMPORTANT! Please read this instruction sheet completely before installing the product. This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an impor- tant part of your job to install or service the system so it operates safely and efficiently. WARNING •Installation or repairs made by unqualified persons can result in hazards to you and others. -
Page 21: More Than
(1.) Installation Parts Provided Note: Optional tube kits--which contain pre-flared insulated tubing, Type "B" screws wiring, etc., to complete system 16" Outdoor Unit Type "A" screws installation requirement--are Remote Control Holder available from General Electric. Indoor Unit Installation Plate (2) Installation of Indoor, Outdoor unit 1) Selection of best location More than More than... -
Page 22: Indoor Unit Installation
Outdoor Indoor Unit Unit Indoor Unit Outdoor Unit " 8 " 8 ROOF MOUNT " 2 " 4 2) Indoor Unit Installation The wall you select should be strong and solid enough to protect it from vibration. Note: These instructions do not cover all installations. - Page 23 Pipe cutter (3) Piping and Drainage of Indoor Unit for field supplied tubing and wiring Slanted Rough 1) Preparation of Interconnecting Piping and wiring 1. Cut the pipe and wring cable. • Measure the distance between the indoor and the outdoor unit.
- Page 24 1) Connection of Pipings 1. Remove the indoor tubing with the drain hose from the retainer clip. • Remove tubing holder and carefully, slowly pull the tubing away from the chassis. 1. Replace the tubing holder into original position. • Recommended additional Drain Hose.
- Page 25 6. Indoor unit installation • Hook the indoor unit onto the upper portion of installation plate. (Engage the two hooks of the rear top of the indoor Connecting cable unit with the upper edge of the installation plate.) Ensure the hooks are properly seated on the installation plate by moving it left and right.
- Page 26 For Left Pipings 3. Route the indoor tubing with the drain hose through piping hole in desired position. Tubing holder To remove the holder, press the bottom of chassis near the holder 2 Pull upward and pull the tab Press out of its hole 4.
- Page 27 5. Insert the connecting cable into the indoor unit. • Don’t connect the cable to the indoor unit. • Make a small loop with the cable for easy connection later. Indoor/Outdoor connecting cable 6. Tape the tubing, drain hose and the connecting cable. Taping 7.
- Page 28 10. Set the pipings and the connecting cable to the back of the chassis with the tubing holder. • Hook the edge of tubing holder to tap on chassis and push the bottom of tubing holder to be engaged in the bottom of chassis.
- Page 29 (4) Connecting Pipings and the cable to Outdoor unit 1) Connecting the pipings to the Outdoor unit Outdoor Unit 1. Align the center of the pipings and sufficiently tighten the flare nut with fingers. 2. Finally, tighten the flare nut with torque wrench until the wrench clicks.
- Page 30 Connecting method of the connecting cable Example: 1) Make a hole appropriate for the passage of connection cable through cap. Terminal block (for low voltage line). 2) Pass the connecting cable through the hole. 3) Properly connect the cable on the terminal block. Clamp cord 4) Fix the connection cable with clamp cord provided on the unit.
-
Page 31: Indoor Unit
(5) Checking the Drainage and Chassis Grille Connecting the cable to Indoor unit 1) Checking the Drainage 1. Remove the Grille from the cabinet. • Set the up-and-down air direction louver to open position (horizontally) by finger pressure. • Remove 3 screws •... - Page 32 2) Connect the cable to the indoor unit 1. Connect the wires to the terminals on the control board individually according to the outdoor unit connection. • Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respec- tively.
- Page 33 3) Forming the pipings 1. Wrap the connecting portion of indoor unit with the Insulation material and secure it with two plastic bands. (for the right pipings). • If you want to connect an additional drain hose, the end of the drain-outlet should maintain distance from the ground.
-
Page 34: Air Purging
6. Air Purging Air and moisture remaining in the refrigerant system have undesirable effects as indicated below. • Pressure in the system rises. • Operating current rises. • Cooling (or heating) efficiency drops. • Moisture in the refrigerant circuit may freeze and block capillary tubing. - Page 35 Evacuation 1. Connect the charge hose end described in the preceding steps to the vacuum pump to evacuate the tubing and indoor unit. Confirm the “LO” knob of the manifold valve is open. Then run the vacuum pump. The operation time for evacuation varies with the tubing length and capacity of the pump.
- Page 36 7) Test running (1) Check that all tubing and wiring have been properly connected. (2) Check that the gas and liquid side service valves are fully open. Prepare Remote Control • Insert two batteries provided. Remove the battery cover from the remote controller. •...
-
Page 37: Operation
Operation Remote Controller Mode Selection Indicators Cool Auto Dehumid. Heat (Heat pump models only) TIME TIME a.m. a.m. p.m. p.m. Fan-Only Indicator CANCEL Temperature Indicators RESET Fan Speed Indicators Thermostat Room Auto Setting Temp Mode Med. High Auto Operation ON/OFF Selector Mode Selector Temperature... -
Page 38: Disassembly (Indoor Unit)
Disassembly of the parts (Indoor unit) WARNING Chassis Grille DISCONNECT POWER BEFORE SERVICING IMPORTANT - RECONNECT ALL GROUNDING DEVICES All parts of this appliance capable of conducting electrical current are grounded. If grounding wires, screws, straps, clips, nuts or washers used to complete a path to ground are removed for service, they must be returned to their original position and properly fastened. - Page 39 • Remove three screws fixing control box and motor. • Remove control box assembly holding two hooks fixing upper side of motor. Hooks 3. To remove the Discharge Grille • Remove a screw on the left side of chassis. • First pull the right side of the discharge grille out from the chassis, and then left side carefully.
- Page 40 • Slightly pull the evaporator until left tab on end plate is clear of chassis. • Lift the left side of evaporator slightly from the chassis carefully. • Push right carefully in order to unhook the tabs on the right inside of the chassis and pull the evaporator toward you.
-
Page 41: Cycle Troubleshooting Guide
Cycle Troubleshooting Guide 1. Trouble analysis 1. Check temperature difference between intake and discharge air and operating current Temp. difference :approx 0 Refrigerant Current :less than 80% of leaked out. Check refrigeration cycle. rated current Temp. Difference Refrigerant leak or Temp. - Page 42 2. Product does not operate at all. (*Refer to Electronic Control Device drawing Schematic diagram.) Turn off Main Power (After 10 seconds) Turn on Main Power Is "beeping" sound made from the Indoor Unit? Primarily, the operating condition of Micom is OK. Check the supply voltage *Main power's voltage *Voltage applied to unit...
- Page 43 3. The product is not operating with the remote controller. Turn off Main Power While the compressor has been stoped, the compressor does not operate due to the delaying function for 3 minutes after stopped. When the compressor stopped Indoor Fan operates on low speed. At this point the airflow is not controlled by the remote controller.
- Page 44 4. Compressor/Outdoor Fan won’t operate Turn off Main Power Operate "Cooling Mode ( )" by setting the desired temperature of the remote controller to be less than the indoor temperature by at least 2 F When in the Fan Mode, Compressor/Outdoor Fan is stopped. Check the sensor (for indoor temperature) is properly attached at heat exchanger (evaporator).
- Page 45 5. When Indoor Fan does not operate.
-
Page 46: When Vertical Louver Does Not Operate
6. When Vertical Louver does not operate. *Confirm that the Vertical Louver is properly geared with the shaft of Stepping Motor. *If the regualr torque is detected when rotating the Vertical Louver with hands Normal * Check the connecting condition of CN-UP/Down Connector * Check the soldering condition (on PWB) of CN-UP/Down Connector Check the operating circuit of the Vertical Louver... - Page 47 7. When a communication error occurs...
- Page 48 8. Indicators in case of connecting error INDOOR...
-
Page 49: Outdoor Unit
OUTDOOR UNIT Connector Type Condition Indicator CN-POWER All Functions stop. The operation with the remote controller, Open forced and test one do not operate PWB pattern is damaged when applying the power Connecting reversely RY-COMP terminal All functions stop or the compressor does not operate. The operation with the remote controller, forced and test Open one do not operate. -
Page 50: Voltage @ Connectors
9. Voltage of Connectors according to Indoor Fan speed... -
Page 51: Main Pwb (Indoor Unit)
Electronic Control Device (1) Main PWB Assy (Indoor Unit) (Low Voltage) WJ29X10002... -
Page 52: Main Pwb (Indoor Unit) Main Pwb (Outdoor Unit)
(2) Main PWB Assy (Outdoor Unit) (HIGH Voltage) WJ29X10001... - Page 53 (3) Display PWB ASSY (18K Shown) 9K-12K...
- Page 64 PARTS CATALOG ROOM AIR CONDITIONER MODEL(S) AS0CD09AA0G1 ASORD09AA0G1 AS1CD09AA0GA AS1RD09AA0G1 The exploded views and catalog numbers are for illustration purposes only. For full parts and catalog numbers refer to GE Illustrated Parts Catalog, or Microfiche. PAGE 23 JUNE 1998 NEW PAGE...
-
Page 65: Exploded Views/Parts List
Illustrated Parts Catalog... - Page 66 Illustrated Parts Catalog...
- Page 67 Illustrated Parts Catalog GENERAL ELECTRIC PARTS CATALOG MODEL(S) AS0CD12AA0G1 ASORD12AAA0G1 AS1CD12AA0GA AS1RD12AA0G1 PAGE 26 JUNE 1998 NEW PAGE...
- Page 68 Illustrated Parts Catalog...
- Page 69 Illustrated Parts Catalog...
- Page 70 Illustrated Parts Catalog GENERAL ELECTRIC PARTS CATALOG MODEL(S) AS0CD18DA0G1 ASORD18DA0G1 AS1CD18DA0GA AS1RD18DA0G1 PAGE 29 JUNE 1998 NEW PAGE...
- Page 71 Illustrated Parts Catalog...
- Page 72 Illustrated Parts Catalog...
