LED Indicators
Table 4: System ID LED Indicator
Color/State
Blinking blue
Related Topics
LED Indicators, on page 8

ID LED on the Modular Port Card

The ID (blue beacon) LED can be provisioned by the operator to indicate that the modular port card needs
attention.
Table 5: ID LED Indicator
Color/State
Blinking blue

SFP+ Port LEDs

Each port on the port card is associated with an LED that indicates status.

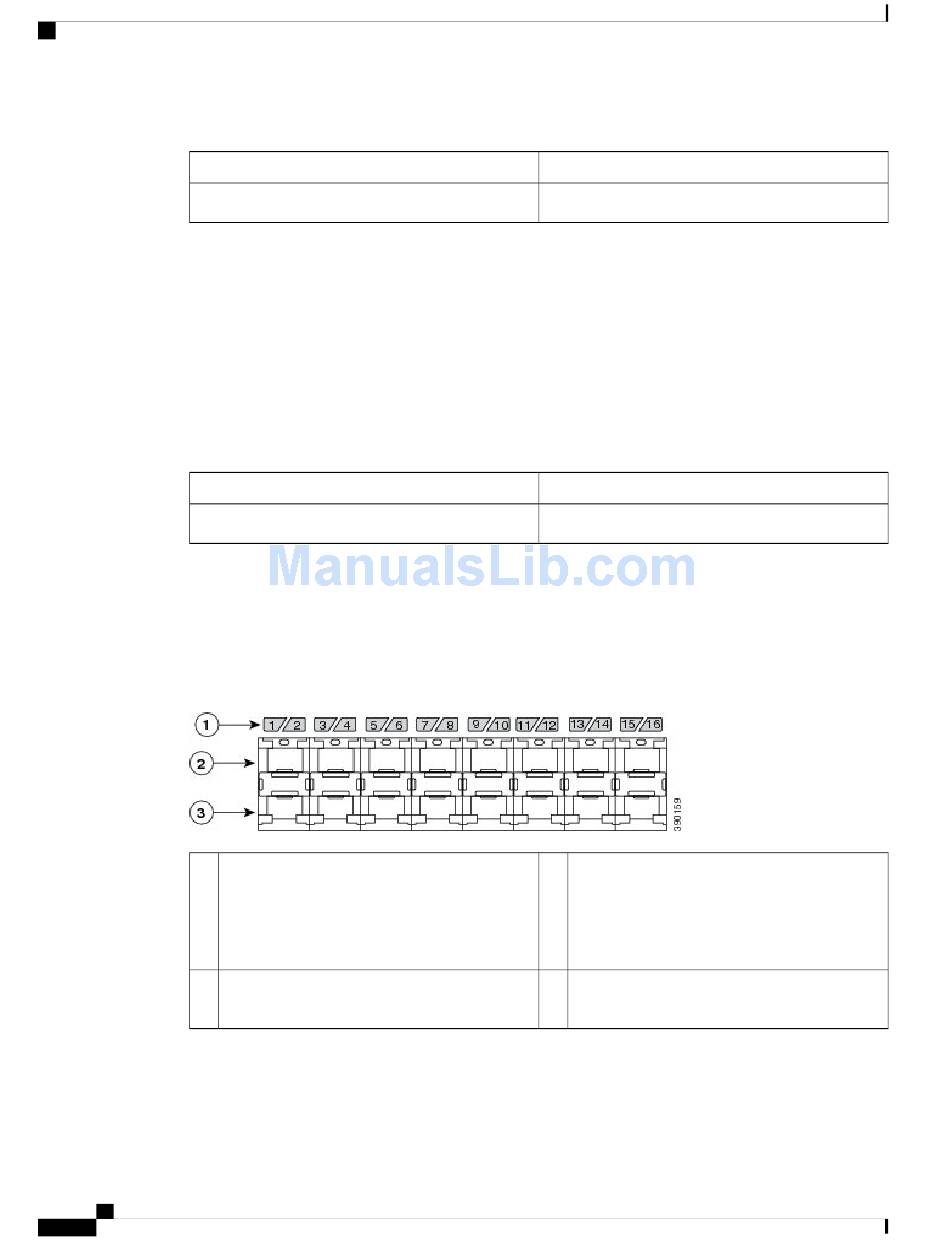

Figure 5: Numbering of Ports and LEDs on Fixed and Modular Port Cards
1 LEDs: The first LED in each pair of LEDs
indicates the status of the upper (odd-numbered)
port below the LEDs, and the second LED in
each pair indicates the status of the lower
(even-numbered) port.
2 Odd-numbered ports, left to right: 1, 3, 5, 7, 9,
11, 13, and 15

Catalyst 6880-X Switch Hardware Installation Guide

10
Description
The system needs attention.
Description
The modular port card needs attention.
3 Even-numbered ports, left to right: 2, 4, 6, 8, 10,
12, 14, and 16
