- Page 1 VB50HRTV User Guide Guide de l'utilisateur Manual de instucciones...
-
Page 2: Table Of Contents
Microsoft, Windows, Windows NT, and the Windows Logo are registered trademarks of Microsoft Corporation in the UnitedStates and other countries. ViewSonic, the three birds logo and OnView are registered trademarks of ViewSonic Corporation. VESA is registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. - Page 3 VB50HRTV to moisture or high humidity. Do not attempt repair yourself. Your warranty dose not cover repair or attempted repair by anyone not authorized by Viewsonic. If your VB50HRTV will not be used for a long period of time, unplug and remove the batteries from the remote control.
-
Page 4: Table Of Contents
Table of Contents Chapter 1 Introduction Package Contents ....................Chapter 2 Installation 2.1 Product Overview....................2.1.1 Front view of VB50HRTV ................2.1.2 Rear view of VB50HRTV ................System Installation .................... 2.2.1 Analog TV and A/V device connection............. 2.2.2 Connect to remote signal................ -
Page 5: Chapter 1 Introduction Package Contents
Chapter 1 Introduction Package Contents As you unpack the VB50HRTV , you will find the following items: If any items are missing, contact your reseller. VB50HRTV VGA cable Power supply 4. Audio cable A/V cable 6. AAA batteries 8. User manual 7. -
Page 6: Chapter 2 Installation

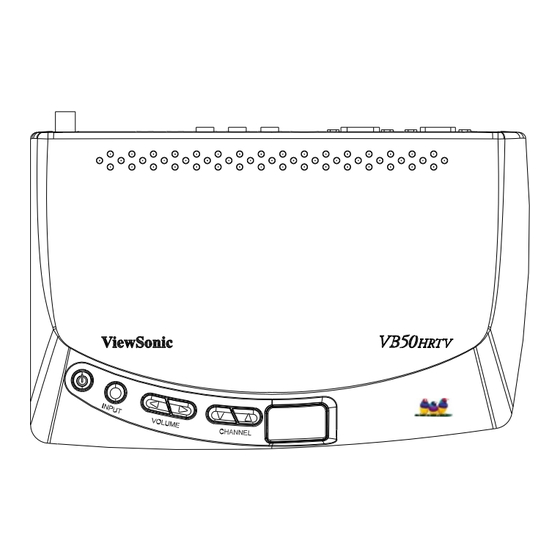

Chapter 2 Installation 2.1 Product Overview 2.1.1 Front view of VB50HRTV POWER : Use to turn unit on or off. The VB50HRTV is in standby mode when power is off. INPUT : Select -VIDEO, S-VIDEO, CABLE /TV,or PC. Press the "INPUT"... -
Page 7: Rear View Of Vb50Hrtv
RGB INPUT Using the 15-pin VGA cable provided, connect one side to the VGA output on your PC and the other side to the RGB INPUT of your VB50HRTV. RGB OUTPUT Connect your 15 pin monitor connector to the RGB output. -
Page 8: System Installation
For audio connection, use RCA audio(L+R) connectors. For video connection, use either RCA video connectors or S-Video connectors. Disregard PC connections if you are only connecting your VB50HRTV to a monitor. Note: Power indicator will flashing a short period when you plug the DC IN adapter. Press "Power"... -
Page 9: Connect To Remote Signal
WARNING: Turn off all devices before you begin. Audio/Video connection: For audio connection, use RCA audio(L+R) connector. For video connection, use an RCA video connector or as S-Video connector. Disregard PC connections if you are only connecting your VB50HRTV to a monitor. Installation... -
Page 10: Extend Wiring
2.2.3 Extended wiring If your setup is not close to the signal source, it is recommended to install a indoor video amplifier to improve the signal. Indoor video amplifiers are available at your local electronics store. Note: Omit the splitter connection in the following figure if there is no cable modem present in your setup. -
Page 11: Chapter 3 Operation Instruction
Chapter 3 Operation Instruction 3.1 Initial Settings All the function settings for the VB50HRTV unit are controlled by the remote control. Steps: 1. Install 2 AAA batteries into remote control. 2. Turn on unit. 3. Press the "INPUT" button to select signal source. -
Page 12: Advanced Setting
3.3 Advanced Settings 3.3.1 MAIN MENU The MAIN MENU displays when you press "Menu". Press the up/down arrows (" " or " " ) to highlight a menu option, then press "Select" to enter the Sub- Menu. MAIN MENU PICTURE SOUND PREFERENCE CHANNEL... -
Page 13: Sound Setting
3.3.3 SOUND settings SOUND Sub-Menu provides VOLUME, MTS, TREBLE, BASS adjustment modes and RESET. To select VOLUME, MTS, TREBLE or BASS, press " " or " " up / down arrows. To adjust selected item, press " " or " "... -
Page 14: Osd Setting
3.3.4 OSD (On Screen Display) settings OSD Sub-Menu provides OSD POSITION, LANGUAGE selected mode and RESET. To enter OSD POSITION, press "Select" from OSD. Using " ", " " up/down arrows or " ", " " left/right arrows to position the OSD menu on the screen. -
Page 15: Preference Setting
3.3.5 PREFERENCE settings PREFERENCE Sub-Menu provides MODE, RESOLUTION, INPUT SIGNAL, SLEEP and RESET select modes. To select MODE, RESOLUTION, INPUT SIGNAL or SLEEP press " " or " " up/down arrows. To enter "NORMAL" or "SPORT" mode, press "Select" from the MODE menu. - Page 16 To enter 60HZ or 75HZ of refresh rate, press "Select" on the REFRESH menu. Press " " or " " up/down arrows to highlight an item, then press "Select" to confirm and return to the Sub-Menu. PREFERENCE MODE MODE 60HZ RESOLUTION 75HZ REFRESH...
- Page 17 To select ANTENNA, CATV STD, CATV HRC, or CATV IRC , press "Select" from the TUNER INPUT menu, press " " or " " button to select an item. Press "Select" button to confirm and return to the Sub-Menu. PREFERENCE TUNER INPUT MODE ANTENNA...
-
Page 18: Channel Setting
3.3.6 CHANNEL settings CHANNEL provides AUTOSCAN, CH ADD/REMOVE and CHANNEL LABEL functionality. To select AUTOSCAN , CH ADD/REMOVE or CHANNEL LABEL, press " " or " " up/down arrows. To scan program channels automatically, press "Select" from the AUTOSCAN menu. Scanned programs will be saved. Press "Exit" to break off AUTOSCAN function and return to the previous channel picture. - Page 19 To select the CHANNEL LABEL, press " " or " " up/down arrows. Press " ", " " left/right arrows to highlight the selected column, then press " " and " " up/down arrows to pick a numeral or character. Repeat the same procedure to input channel number and channel label.
-
Page 20: Troubleshooting
LED is on. Make sure the monitor's power is on. Check the connection of your source signal. To reset the VB50HRTV, unplug the DC IN adapter from the unit and then plug it back in again. -
Page 21: Appendix A: Specifications
Appendix A Specifications POWER 12VDC 1.2A OUTPUT VIDEO INPUT Composite video RCA connector S-VIDEO INPUT S-Video 4-pin mini DIN AUDIO INPUT Stereo L+R RCA connectors Phone Jack 3.5 PHONE IN PHONE OUT Phone Jack 3.5 RF IN F-Female connector for NTSC VGA INPUT D-Sub 15 pin Male connector VGA OUTPUT... -
Page 22: Appendix B:limited Warranty
ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 23: Appendix C:fcc Information
Appendix C FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. - Page 27 VB50HRTV User Guide Guide de l'utilisateur Manual de instucciones...
- Page 30 Monitor...
- Page 31 Monitor Altavoz...
- Page 32 INPUT 12 ~16VDC 200mA 1GHz Drop Amplifier 5~40 54~1000MHz HDA-R4-2 TAIWAN OUT+7dB OUT+7dB...
- Page 35 TREBLE...
- Page 39 CATV IRC...
- Page 40 CONTINUA EN LA PÁGINA SIGUIENTE...
- Page 41 REMOVE --- ----- --- ----- --- ----- --- -----...
- Page 43 ¢ J ¢ ~ 45...
- Page 48 Corporation...
