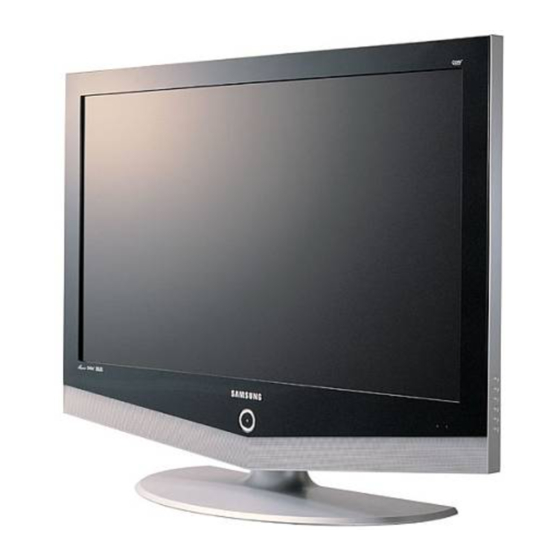

Samsung LN-R238W Quick Setup Manual
Samsung LN-R238W Quick Setup Manual

Samsung LN-R238W Quick Setup Manual

Lcd tv
Hide thumbs Also See for LN-R238W:

Advertisement

BN68-00515V-00.qxd
1/11/05 4:10 PM

List of Parts

Accessories
Remote Control
(BN59-00455A)
& Batteries (AAA x 2)
Owner's
Instructions
Page 1
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
RF Cable
Power Cord
(AA39-00039A)
(3903-000085)
Anynet AV
Cover-Bottom
Owner's
(BN68-01674A)
Instructions
Anynet Cable
Cleaning Cloth
(BN39-00518B)
M4 X L16
Stand
Stand Screw
(23", 26" BN96-01727A)
(6002-001294) x 4
(32" BN96-01733A)
BN68-00515V-00

Advertisement

Table of Contents
loading

Summary of Contents for Samsung LN-R238W

  • Page 1: List Of Parts

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 1 List of Parts Please make sure the following items are included with your LCD TV. Accessories If any items are missing, contact your dealer. Remote Control RF Cable Power Cord Anynet Cable Cleaning Cloth (BN59-00455A) (AA39-00039A) (3903-000085)
  • Page 2: Installing The Stand

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 2 Installing the stand Lower the TV set in the direction of the arrow and fix the stand. Use the four screws to tightly fix the stand. Connecting Antenna/Cable TV Plug the antenna/cable TV lead into the ANT IN terminal on the back of the TV. When connecting the RF cable to the antenna input terminal, keep the copper wire portion of the RF cable straight to avoid bending it.
  • Page 3: Connecting A Vcr

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 3 Connecting a VCR TV Rear Panel VCR Rear Panel Audio Cable (Option) Video Cable (Option) RF Cable Connect the cable TV or antenna to the ANT IN terminal on the back of the VCR. Connect an RF cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
  • Page 4: Connecting A Dvd Player

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 4 Connecting a DVD Player TV Rear Panel DVD Player Rear Panel Audio Cable (Option) Component Cable (Option) Connect a component cable between the COMPONENT IN 1 or COMPONENT IN 2 [P , Y] jacks on the TV and the COMPONENT [Y, P ] jacks on the DVD player.
  • Page 5: Connecting A Dvd / Set-Top Box Via Dvi

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 5 Connecting a DVD / Set-top box via DVI DVD Player Rear Panel TV Rear Panel Audio Cable (Option) DVI-to-HDMI Cable (Option) Connect a DVI-to-HDMI cable or DVI-HDMI Adapter between the HDMI/DVI connector on the TV and the DVI connector on the DVD player/Set-top box.
  • Page 6: Plug And Play

    BN68-00515V-00.qxd 1/11/05 4:10 PM Page 6 Plug & Play When the TV is initially powered on, several basic customer settings proceed automatically and subsequently. Press the POWER button Press the ENTER button on the remote control. to select “Start”. The message The TV will begin memorizing “Start Plug &...
  • Page 7 BN68-00515V-00.qxd 1/11/05 4:10 PM Page 7 Remote control Functions Chart POWER Turns the TV on and off. Picture-in-Picture ON/OFF. STILL SLEEP Press to stop the action during a Press to select a time for the TV to particular scene. Press again to turn off automatically.
  • Page 8 BN68-00515V-00.qxd 1/11/05 4:10 PM Page 8 Check the following items before calling a Samsung authorized service center. If a still image is displayed for an Remote control malfunctions extended period of time, residual images or blurring may appear. Replace the remote control batteries.
