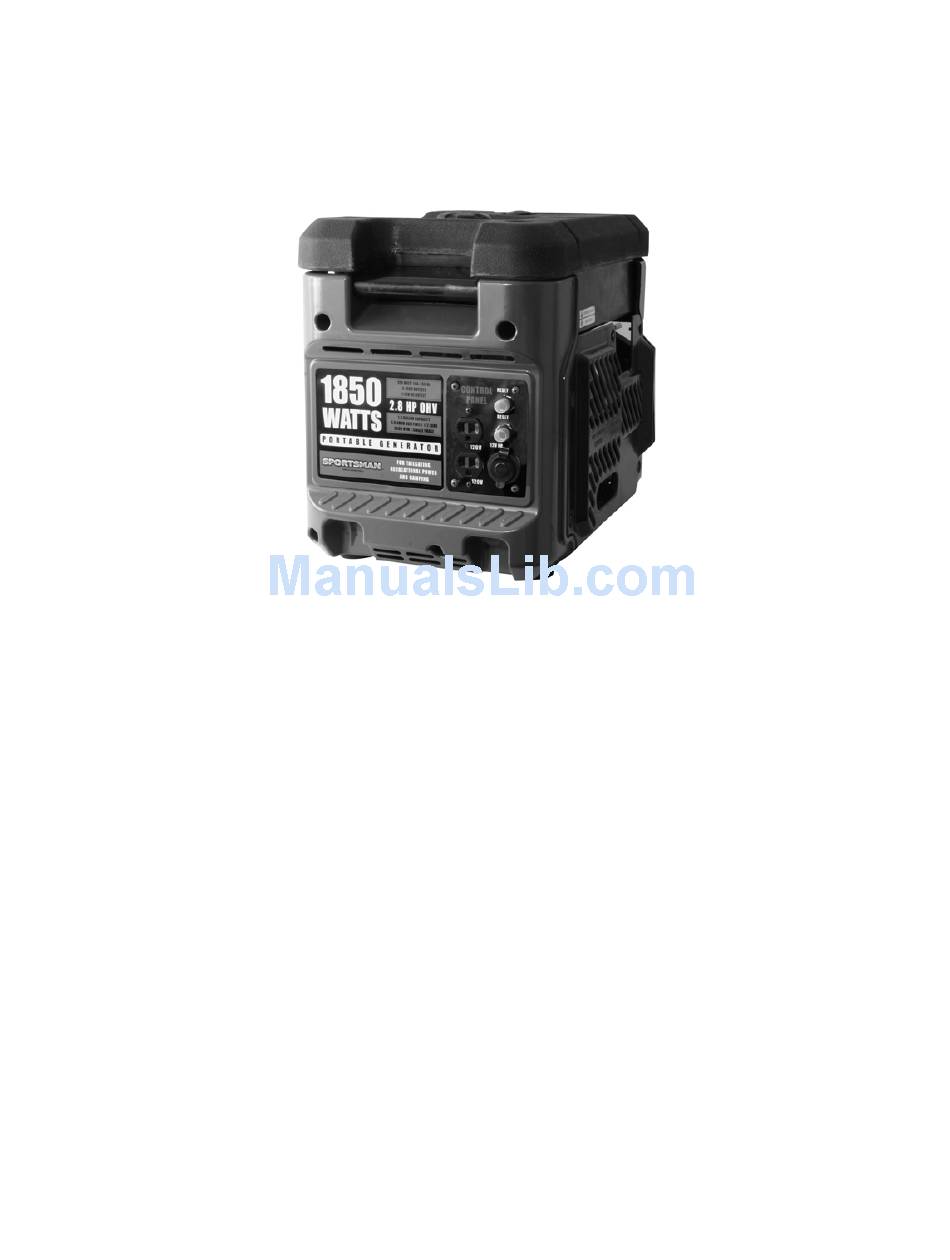

2011 01
GEN1850
1850 Surge Watts
PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-866-460-9436, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Visit www.buffalotools.com/generators for Frequently Asked Questions!
Advertisement
Table of Contents
Related Manuals for Buffalo GEN1850
Summary of Contents for Buffalo GEN1850
- Page 1 2011 01 GEN1850 1850 Surge Watts PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
-
Page 2: Table Of Contents
STOPPING THE GENERATOR ............................17 MAINTENANCE/CARE..............................17 Recommended Maintenance Schedule ........................17 Cleaning The Generator ............................17 Checking The Oil Level............................18 Changing/Adding Oil.............................18 Air Filter Maintenance............................19 Spark Plug Maintenance............................19 Emptying The Fuel Tank............................19 STORAGE/TRANSPORT PROCEDURES........................20 TROUBLESHOOTING..............................21 PARTS DIAGRAM ................................22 GEN1850 1850 Surge Watts Portable Generator... -
Page 3: Recognize Safety Symbols, Words And Labels
Parts replaced during warranty repairs will be considered as part of the original product and will have the same warranty period as the original product. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. GEN1850 1850 Surge Watts Portable Generator... -
Page 4: Important Safety Instructions
• Always check for spilled gasoline and immediately wipe it up before starting this generator. • Empty the fuel tank before storing or transporting this generator. • Always handle fuel outdoors. • Before transporting, turn the fuel valve to the “OFF” position and disconnect the spark plug. GEN1850 1850 Surge Watts Portable Generator... - Page 5 • Do not operate an excessive number of electrical devices in excess of the wattage capacity of this generator. • Do not turn on electrical devices until after they are connected to this generator. • Turn off all connected electrical devices before stopping this generator. GEN1850 1850 Surge Watts Portable Generator...
- Page 6 GEN1850 1850 Surge Watts Portable Generator...
- Page 7 In addition to the previously described safety information, familiarize yourself with all safety and hazard placards on this generator. GEN1850 1850 Surge Watts Portable Generator...
-
Page 8: Package Contents
PACKAGE CONTENTS The following items are supplied with this Model GEN1850 Portable Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER. -
Page 9: Components
1 - 12 Volt D/C Outlet • • 2.3 Gallon Fuel Tank 120 VOLT/ 15A / 60 Hz • • Engine Run Time: 11 Hours @ 50% Load • EPA Approved 3600 RPM / SINGLE PHASE • GEN1850 1850 Surge Watts Portable Generator... -
Page 10: Preparing The Generator For Use
The correct quantity of oil is equal to the oil capacity of the engine crankcase and is 13.5 fluid oz (0.40 L) for this Model GEN1850 Portable Generator. Add the correct quantity of oil before operating this generator for the first time. -
Page 11: Step 2 - Add Gasoline
The fuel tank capacity for this generator is 2.3 gallon (8.9 L). NOTE: Because gasoline can expand, do not fill the fuel tank to the very top. 4. Securely tighten the fuel tank cap and immediately wipe up any spilled gasoline with a dry cloth. Model GEN1850 Fuel Tank Capacity (gals /L) 2.3/8.9... -
Page 12: Subsequent Use Of This Generator
If necessary, add fresh unleaded gasoline with an octane rating of 87 or higher according to “Step 2 - Add Gasoline” of the “Using this Generator for the First Time” section of this manual. Model GEN1850 Fuel Tank Capacity (gals /L) 2.3/8.9... -
Page 13: Starting The Generator
30 seconds and then move the choke lever completely over to the “open” position. 9. Allow this generator to run for several minutes before connecting any electrical devices. Figure 4 The Recoil Start is located on the back side of the generator. GEN1850 1850 Surge Watts Portable Generator... -
Page 14: Using The Generator
Electrical devices running on AC current may be connected according to their wattage requirements. The rated (running) and surge wattage for this Model GEN1850 1850 Surge Watts / 1500 Running Watts Portable Generator is 1,500 and 1,850 respectively. Model GEN1850 Rated (Running) Wattage... - Page 15 Turn on the connected electrical devices beginning with the device with the highest rated wattage requirement and then each additional device with the next lower rated wattage requirement. Do not connect 50Hz or 3-phase loads to this generator. GEN1850 1850 Surge Watts Portable Generator...
-
Page 16: Dc Usage
The DC outlet is for using any 12 Volt DC device, up to 8.3 Amps. NEVER attempt to jumpstart a car with this generator. Do not secure the generator with a chain or rope, which would prevent it from being moved in an emergency. GEN1850 1850 Surge Watts Portable Generator... -
Page 17: Stopping The Generator
Never clean this generator with a bucket of water and/or a hose as water can get inside and cause a short circuit or corrosion. Never use gasoline to clean parts of this generator. GEN1850 1850 Surge Watts Portable Generator... -
Page 18: Checking The Oil Level
The oil level in this generator should be checked before each use. (See Figure 9.) When the oil level is low, add oil until the level is sufficient to operate this generator. The oil capacity for this GEN1850 Generator engine is 13.5 fluid oz. (0.40 L). To drain the oil from this generator: It is necessary to drain the oil from the crankcase only if it has become contaminated with water and/or dirt. -
Page 19: Air Filter Maintenance
5. Turn the fuel valve to the “on” position and allow all gasoline to drain. 6. Turn the fuel valve to the “off” position. 7. Replace the fuel filter cup. 8. Store the drained gasoline in a suitable place. Do not store gasoline for more than 3 months. GEN1850 1850 Surge Watts Portable Generator... -
Page 20: Storage/Transport Procedures
Remove the rubber gasket, then clean the orifice if it is dirty. Use carb cleaner. Do not spray carb cleaner on the float needle or any rubber. (See page 27) GEN1850 1850 Surge Watts Portable Generator... - Page 21 You may have to compensate for the increased idle from the governor screw with the idle screw. Visit www.buffalotools.com/generators for more Trouble Shooting Tips And Frequently Asked Questions! GEN1850 1850 Surge Watts Portable Generator...
-
Page 22: Parts Diagram
GEN1850 1850 SURGE WATTS / 1500 RUNNING WATTS PORTABLE GENERATOR PARTS DIAGRAM GEN1850 1850 Surge Watts Portable Generator... - Page 23 GEN1850 PORTABLE GENERATOR PARTS LIST GEN1850 2011 01 GEN1850 1850 Surge Watts Portable Generator...
