Zanussi ZWS 5108 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

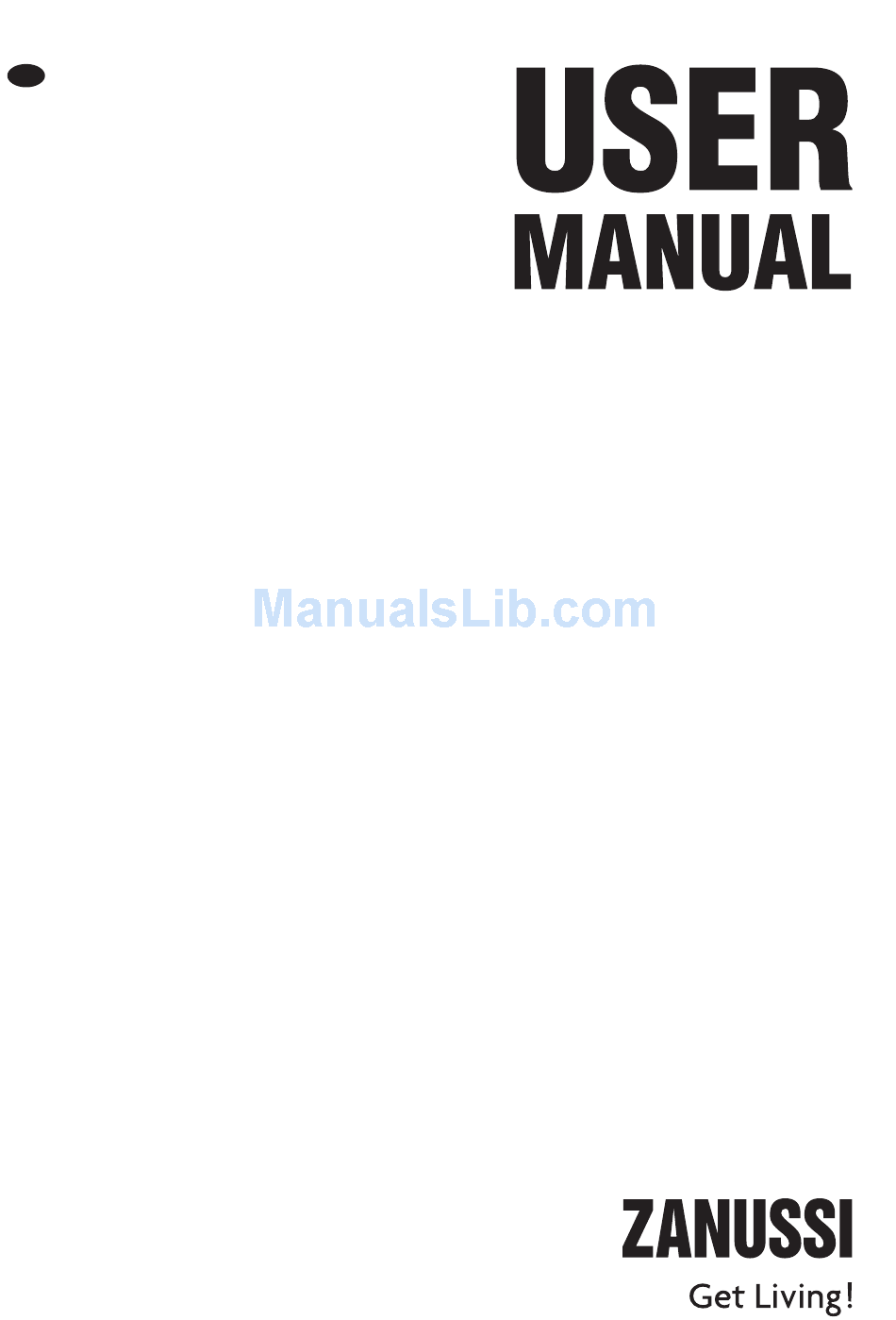

User manual
2
EN
Washing Machine
ZWS 5108

Advertisement

Table of Contents
loading

Related Manuals for Zanussi ZWS 5108

Summary of Contents for Zanussi ZWS 5108

  • Page 1 User manual Washing Machine ZWS 5108...

  • Page 2: Table Of Contents

    Contents Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 12 Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15 Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5...
  • Page 3 • Always be sure, that there is no water leakage from Child safety hoses and their connections after the installation. • This appliance is not intended for use by person (in- • If the appliance is installed in a location subject to frost, cluding children) with reduced physical sensory or please read the “dangers of freezing”...

  • Page 4: Product Description

    Product description Detergent dispenser drawer Control panel Door opening handle Rating plate Drain pump Adjustable feet D D etergent dispenser drawer Compartment for detergent used for prewash and soak phase or for stain remover used during the stain action phase (if available). The prewash and soak deter- gent is added at the beginning of the wash programme.

  • Page 5: Control Panel

    Control panel Below is a picture of the control panel. It shows the programme selector dial as well as the buttons, pilot lights and the display. These are presented by relevant numbers on the following pages. P P rogramme selector dial EXTRA RINSE button Temperature selector dial START/PAUSE button...

  • Page 6: First Use

    Super Quick Indicator pilot light (7) Short cycle for lightly soiled items or for laundry which The light 7 7 .1 illuminates needs only freshening up. We recommend you to reduce after pressing button 6 6 . the fabrics loading. The light 7 7 .2 is on when Extra Rinse the machine is rinsing or...
  • Page 7 Select the required programme by turning the If an incorrect option is selected, the r r ed pilot light of the button 6 6 blinks 3 times. programme selector dial (1) Altering an option or a running programme Turn the programme selector dial to the required pro- gramme.

  • Page 8: Helpful Hints And Tips

    3. Reduce the spin speed if needed, by pressing the Remove the laundry from the drum and carefully check relevant button. that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to 4.

  • Page 9: Washing Programmes

    Your appliance incorporates a recirculation system which • the laundry is lightly soiled allows an optimal use of the concentrated detergent. • large amounts of foam form during washing. Follow the product manufacturer’s recommendations on Degrees of water hardness quantities to use and do n n ot exceed the «MAX» mark in Water hardness is classified in so-called “degrees”...
  • Page 10 Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry COTTONS SPIN, RINSE HOLD, ECO + PREWASH EASY IRON , EXTRA 90°-40° RINSE Prewash - Main wash - Rinses Maximum spin speed 1000 rpm Max.

  • Page 11: Chine

    Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry WOOL SPIN, RINSE HOLD 40°-Cold Main wash - Rinses Maximum spin speed 1000 rpm Max. load 2 kg Washing programme for machine washable wool as well as for hand washable woollens and delicate fabrics.

  • Page 12: What To Do If

    Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry RINSES SPIN, RINSE HOLD, Rinses EASY IRON , EXTRA Maximum spin speed 1000 rpm RINSE Max. load 6 kg With this programme it is possible to rinse and spin cotton garments which have been washed by hand.
  • Page 13 Problem Possible cause/Solution The door has not been closed (the button 6 6 red light blinks). • Close the door firmly. The plug is not properly inserted in the power socket. • Insert the plug into the power socket. There is no power at the socket. •...
  • Page 14 Problem Possible cause/Solution Too much detergent or unsuitable detergent (creates too much foam) has been used. • Reduce the detergent quantity or use another one. Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose;...

  • Page 15: Technical Data

    Problem Possible cause/Solution The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin.

  • Page 16: Care And Cleaning

    Programme Energy consumption Water consumption (litres) Programme duration (Mi- (KWh) nutes) Synthetics 40° Delicates 40° 0.55 Wool/ Handwash 30° 1) «Cottons Eco» at 60°C with a load of 6 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards.
  • Page 17 Place a bowl with a small Replace the emergency edge close to the pump to emptying cap into the filter collect any spillage. cover and fix it firmly. Pull out the emergency Close the pump door. emptying cap from the fil- ter cover, using a pliers.

  • Page 18: Installation

    • Place the end of the inlet hose in a bowl placed on the floor, open the emergency emptying cap of the filter and let water drain out. • Refit the emergency emptying cap into the filter and screw the water inlet hose back. •...
  • Page 19 W W ater inlet Warning! T T his appliance must be connected to a cold water supply Caution! Before connecting up the appliance to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected Unscrew the three bolts.

  • Page 20: Electrical Connection

    H H ooked over the edge of a I I n a sink drain pipe branch . This branch must be above sink using the plastic hose the trap so that the bend is at least 60 cm above the guide supplied with the ground.
  • Page 21 This means that they can be recycled by disposing of them • The machine works more economically if it is fully properly in appropriate collection containers. loaded. • With adequate pre-treatment, stains and limited soiling Ecological hints can be removed; the laundry can then be washed at a To save water, energy and to help protect the environment, lower temperature.
  • Page 24 www.zanussi.com...
