Page 4: Table Of Contents
Contents About Your Speakers ............................5 Product Features ............................5 Package Contents ............................6 Identifying Parts and Controls ......................7 Setting Up Your Speaker ..........................8 Powering Your Speaker On/Off ......................8 Charging the Battery ..........................9 Connecting and Pairing Your Speaker ................... 10 Adjusting the volume .......................... -
Page 5: About Your Speakers

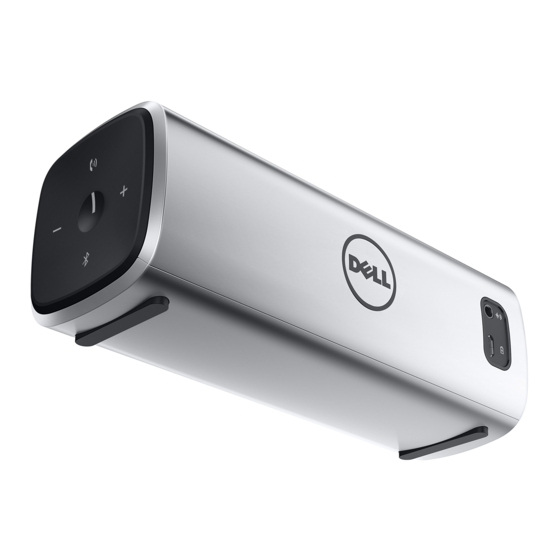

About Your Speakers Product Features The features of the Dell Bluetooth Portable Speaker include: Portability With an ultra lightweight design and built-in rechargeable battery, you can enjoy music on-the-go. Powerful Sound With dual-stereo speakers, you can expect powerful sound from your speaker. -
Page 6: Package Contents
Package Contents Your speaker ships with the components shown below. NOTE: The documents that shipped with the speaker may vary based on your region. Speaker Documentation Aux-in cable USB cable... -
Page 7: Identifying Parts And Controls
Identifying Parts and Controls Front View Back view NFC Connection Volume Down Microphone Bluetooth Button Talk / Mute Aux-in Jack Power Button USB Jack Volume Up... -
Page 8: Setting Up Your Speaker
Setting Up Your Speaker Powering Your Speaker On/Off To power on the speaker, press and release the power button. The LED on the power button will light up to indicate that the device is on. To power off the speaker, press and release the power button. The LED on the power button will fade out to indicate that the device is off. -
Page 9: Charging The Battery
Charging the Battery For best results, fully charge your speaker for 6 hours before use. To charge your speaker, connect the USB cable from your computer to the micro USB port on the back of your speaker. Alternatively, you could use the existing Micro USB cable from your smart phone or tablet. -
Page 10: Connecting And Pairing Your Speaker
Connecting and Pairing Your Speaker The Dell Bluetooth Portable Speaker supports both wired (3.5 mm) stereo input and wireless audio via Bluetooth. You can wirelessly stream audio from any Bluetooth device with optimal audio performance streaming within 33 ft (10 m). -
Page 11: Bluetooth Pairing
3 Press and hold the Bluetooth button on the speaker for two seconds to start the device search. 4 The Bluetooth devices detected will be displayed on your computer or Bluetooth device, select the Dell Portable speaker for pairing. The Bluetooth LED will blink white to indicate that the device is in pairing mode. - Page 12 5 Once the device is connected and paired, the Bluetooth LED will remain on. NOTE: The Dell Bluetooth Speaker is able to store 8 pairings and connects to the last paired device.
- Page 13 NFC (Near Field Communication) Pairing Your speaker supports NFC-enabled devices for quick and convenient tap to pair functionality. Make sure the device to be paired supports NFC. Power on your speaker. Place your NFC-enabled device on top of the NFC logo on the speaker to start pairing.
-
Page 14: Before You Begin
Adding the Speaker to Your Computer To add the speaker to your computer, follow the instructions below. Select the applicable steps based on the operating system installed on your computer. Before You Begin If using Aux-input: • Connect the aux-in cable on the back of the speaker. •... - Page 15 Windows 7 1 Click Start→ Control Panel→ Devices and Printers→ Add a device. 2 Follow the instructions on the screen to complete adding the device.
- Page 16 Windows 8 1 Right-click on the bottom lower corner of your screen. On the window that opens, click Control Panel→ Devices and Printers→ Add a device. Alternatively, move your mouse pointer to the upper right or lower right corner of the screen to open the Charms side bar, and then click Settings→ Control Panel→...
- Page 17 2 Follow the instructions on the screen to complete adding the device.
-
Page 18: Adjusting The Volume
Adjusting the volume During audio playback on your speaker, to adjust the volume, follow the instructions below. 1 Press the + button to adjust the volume up. 2 Press the - button to adjust the volume down. -
Page 19: Receiving Phone Calls Through Your Speakers
Receiving Phone Calls Through Your Speakers When your mobile device is connected through Bluetooth, your speaker can be used as a speakerphone. Calls will automatically be transferred to the speaker allowing you to answer a call. NOTE: If you receive a call while playing audio, playback will be paused. Answering a Call To answer an incoming call, press the Talk/Mute button. - Page 20 While on a call, the Talk/Mute LED is blinking white.
-
Page 21: Ending A Call
Muting a Call To mute the microphone during the call, press the Talk/Mute button. Press the Talk/Mute button again to resume speaker functionality. While on mute, the Talk/Mute LED is red. Ending a Call To end the call, long press the Talk/Mute button. -
Page 22: Placing Your Speakers
Placing Your Speakers The Dell Bluetooth Portable speaker was designed to support placement both vertically and horizontally. Vertical placement is ideal for smaller working spaces while horizontal placement supports a wider sound experience. Vertical Placement Horizontal Placement... -
Page 23: Troubleshooting
Troubleshooting Common Problems The following table contains general information about common Bluetooth speaker problems you might encounter and the possible solutions. Common What You Possible Solutions Symptoms Experience • Make sure the speaker Cannot connect wirelessly Cannot connect using and Bluetooth device to Bluetooth speaker Bluetooth are powered on. - Page 24 function is activated on the external device. • If the power-status LED Speaker is not Speaker power- is off, check if the functioning properly/no status LED is off battery is charged. sound from the speaker Connect the speaker to your computer using the USB cable.
- Page 25 Dell sound is coming out AD211. • Make Dell AD211 as the default device. • When connected to the The power LED is breathing No sound from...
- Page 26 • Check if the power LED is blinking amber. If LED is blinking amber, this indicates that battery status is low. Connect the USB charging cable and charge the battery. • Remove any Distorted sound in Bluetooth mode obstructions between the speaker and the user.
- Page 27 level on the Bluetooth device through its operating system/application program. • Test the speaker using another audio source, for example a portable music player. • Remove any Buzzing Noise Static noise from obstructions between the speaker the speaker. • Make sure that there are no loose objects hanging or touching the speaker.
-
Page 28: Specifications
Specifications General Model number AD211 Connection type Disconnected Supported operating systems Microsoft Windows 7, Windows 8, Windows 8.1 Electrical (Li-Ion battery) Operating voltage 3.7 V Operating current 2.5 A Output power 2.5 W x 2 continuous RMS power@ = 10% THD... - Page 29 Bluetooth 4.0 Radio transmission The baseband transmit data is GFSK Modulated in the 2.4 GHz ISM band Range Up to 10 m radio range. No performance degradation up to max radio range (10 m)
-
