36" QuietCool
Portable Evaporative Cooler
Owner's Manual
Optional Cover for storage protection.
See section 9.0 for details and a
convenient Fax Back Order form.
This Manual covers all of the following QuietCool Portable Evaporative Coolers.

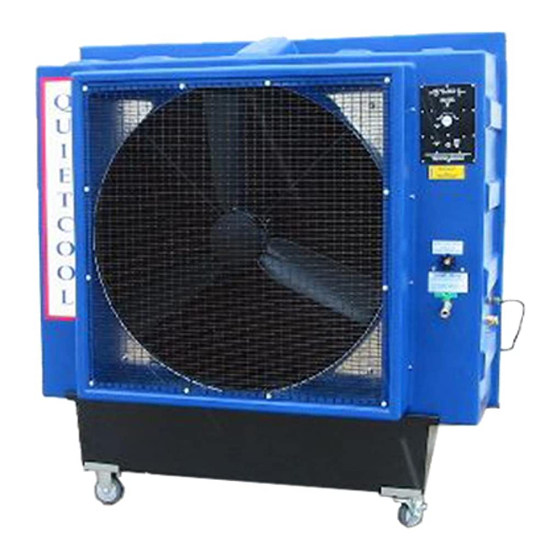

QC36D1 – QuietCool 36" Direct Drive 1 Speed
QC36DVS – QuietCool 36" Direct Drive Variable Speed (shown above)
QC36B1 – QuietCool 36" Belt Drive 1 Speed ½ HP
QC36B1X – QuietCool 36" Belt Drive 1 Speed ¾ HP
QC36B3 – QuietCool 36" Belt Drive 3 Speed
QC36B1XHL – QuietCool 36" Belt Drive 1 Speed ¾ HP – Explosion Proof
1
Advertisement
Table of Contents
Related Manuals for QuietCool QC36D1
Summary of Contents for QuietCool QC36D1
- Page 1 QC36B1 – QuietCool 36” Belt Drive 1 Speed ½ HP QC36B1X – QuietCool 36” Belt Drive 1 Speed ¾ HP QC36B3 – QuietCool 36” Belt Drive 3 Speed QC36B1XHL – QuietCool 36” Belt Drive 1 Speed ¾ HP – Explosion Proof...
- Page 2 WARNING Your QuietCool unit must be plugged into a fused or circuit breaker protected 20 Amp, 120 Volt, 60 Hz circuit – unless specifically manufactured for another voltage / frequency configuration. See manufacturer’s label on cooler. A ground fault circuit interrupter protected circuit is strongly recommended.
-
Page 3: Table Of Contents
Table of Contents Introduction 1.1 Quick Start 1.2 Operate unit for 2 weeks before adding Evap-O-Matic Tablets How Evaporative Cooling Works Unpacking your new QuietCool unit Set-up your QuietCool unit 4.1 Connecting the electrical supply 4.2 Connecting the water supply Operating procedures 5.1 Filling the units reservoir with water... -
Page 4: Introduction
Houston, Texas. Your QuietCool was tested 3 ways. Your unit was tested for 1. Maximum air flow at operating static pressure. Only QuietCool is tested in operating conditions with 2. Water and 3. Electricity before it is shipped. -
Page 5: Connecting The Electrical Supply
If you have purchased our optional QR60 gallon reservoir tank – simply attach the garden hose from the tank to the cooler. Note: Do not connect to water source exceeding 60 p.s.i. – this can cause damage to your QuietCool. -
Page 6: Adjust Water Flow
Once your units cooling pads are saturated – then, you are ready to turn on fan and begin to feel the cooling effect from your new QuietCool. Note: After your cooling pads are broken in (typically takes 1 -2 weeks in operation) it will take less time to saturate pads for start-up. -
Page 7: Daily Maintenance
If you begin to detect an algae smell coming from your unit – it’s time to flush your QuietCool reservoir with fresh water. Refer to and follow the steps above in 7.2 and you will only need to remove 1 or 2 of the cooling pads from the left side of the unit to gain access to your water reservoir. -
Page 8: Quietcool Trouble Shooting Guide
Reduce the water flow with the water control valve located on the front of the unit. Note: Close the valve all the way – then open 1 ¼ turns. (QuietCool units usually operate at peak performance at 1 ¼ turns). Damage to polyethylene housing. Note: Repair as necessary. -
Page 9: Storage
Remove pads as described above in 7.2 and rinse pads clean with fresh water. Dry cooling pads in sunlight. Drain water reservoir completely and wipe dry. Replace dry cooling pads. Replace top angle bar to hold pads in place. Store QuietCool in dry, clean area and cover (you can order a QCCover for your unit –... - Page 10 List $ 25.00 each. Evapo-O-Matic Tablets for all QuietCool Portable Evaporative Coolers. Evapo-O- Matic is the chemical water treatment tablets that stops scale and calcium deposits associated with hard water. Adds life to vital cooler equipment – increases cooling efficiency and ends swampy odors.
- Page 11 10.0 Replacement Parts All Accessories / Replacement Parts are obtainable through your local QuietCool distributor. Should a part be temporarily out of stock at your distributor he can special order it for you. You can contact the manufacturer, Quietaire Cooling Inc. directly at: Telephone: 713.228.9421 or Fax: 713.228.9425.
-
Page 12: Accessories
11.0 Order form Fax Back Order Form Accessories and Replacement Parts For all QC48” fan blade models. For all motors, pulleys, belts, switches and fan blades call Quietaire at 713.228.9421. Accessories Part Number Description Quantity Amount Price Intake Pre-Filter – protects cooling QC36PM List $ 25.00 each pads from air-borne particles. -
Page 13: Wiring Diagrams For All 36" Units
12.0 Wiring Diagrams for all 36” units... -
Page 16: Warranty
Any such recommendations, opinions or advice are given and shall be accepted at your own risk and shall not constitute any warranty or guarantee of such products or their performance. QUIETAIRE COOLING INC. 505 NORTH HUTCHESON STREET HOUSTON, TEXAS 77003 TELEPHONE: 713.228.9421 FAX: 713.228.9425 Visit us online at: www.Quietaire.com Click on QuietCool...
