Bafo BF-2010 User Manual

1394/usb combo hard disk enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User' s Manual
1394/USB Combo hard disk enclosure
BF-2010

Advertisement

Table of Contents
loading

Related Manuals for Bafo BF-2010

Summary of Contents for Bafo BF-2010

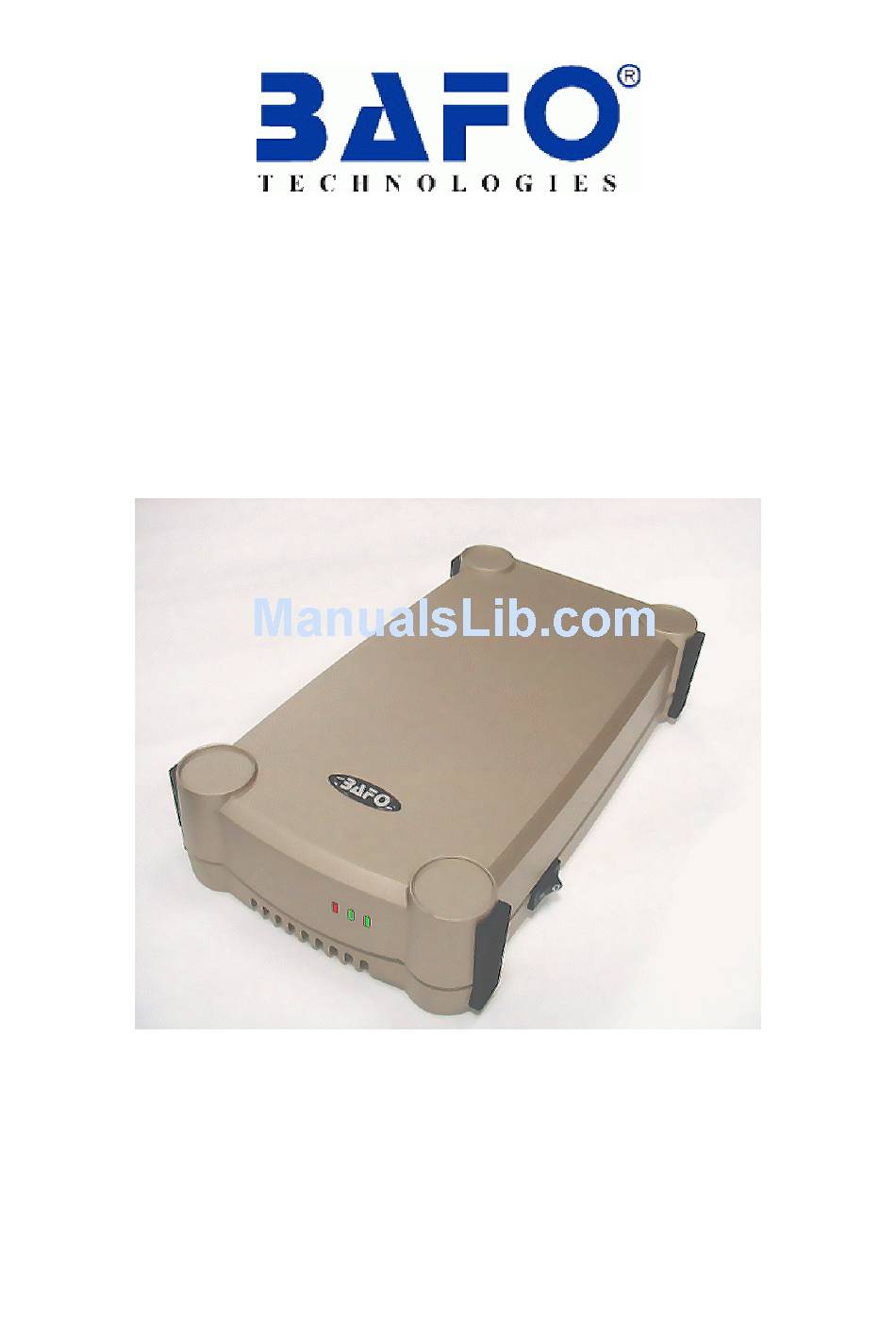

  • Page 1 User’ s Manual 1394/USB Combo hard disk enclosure BF-2010...

  • Page 2: Table Of Contents

    CONTENT 1. Introduction-----------------------------------------------------------------------------------2 2. Package Content---------------------------------------------------------------------------2 3. Product Features---------------------------------------------------------------------------2 4. System Requirements-------------------------------------------------------------------2 5. LED Function Description--------------------------------------------------------------3 6. Hard Disk Installation--------------------------------------------------------------------3 HDD installation (3.5”) ---------------------------------------------------4 HDD installation (2.5”) ---------------------------------------------------5 7. Driver Installation--------------------------------------------------------------------------7 ® Windows 98 Driver Installation---------------------------------------7 ® Windows 98 Driver Un-Installation--------------------------------12 Troubleshooting ---------------------------------------------------------13 ®...

  • Page 3: Introduction

    1. Introduction This 1394/USB Combo hard disk enclosure provides an easy to carry and flexible interface solution for people to add more storage space to PC. This device supports both USB 1.1 standard and IEEE1394a compliance interface, enables people to easily connect to Desktop PC or Notebook without opening cover. For more flexible, this enclosure can content both 3.5”...

  • Page 4: Led Function Description

    5. LED Function Description 1394/USB Enable Power Indicator Device Access 1394/USB Combo hard disk Enclosure User’s Manual 3...

  • Page 5: Hard Disk Installation

    6. Hard disk Installation 6.1 HDD installation (3.5” HD) 6.1.1 Follow the steps below to install 3.5” hard disk. 6.1.2 Open the USB Hard disk enclosure (Figure 1 ~ 2) Figure 1 Figure 2 6.1.3 Assemble the 3.5” hard disk. (Figure 3~ 4) Figure Figure 4 6.1.4 Screwing HD together with housing (Figure 5)

  • Page 6: Hdd Installation (2.5")

    Figure 6.2 HDD installation (2.5” HD) 6.2.1 Glue Mylar film to metal sheet (Figure 8) 6.2.2 Screwing 2.5” HDD at metal sheet, 44 pin connector close to screw hole which far away from long shape of ellipse (Figure 9) Figure 8 Figure 6.2.3 Connect 40-44 pin flat cable to 40pin connector of PCB (Figure 10) 6.2.4 Connect power connector of 40-44 pin flat cable to power connector of PCB...
  • Page 7 6.2.6 Combine metal sheet and enclosure with screws (Figure 13) Figure 12 Figure 6.2.7 Close hard disk enclosure (Figure 14 ~ 15) Figure 14 Figure 15 1394/USB Combo hard disk Enclosure User’s Manual 6...

  • Page 8: Driver Installation

    7.1.3 Choose “Search for the best driver for your device (Recommended)” then click “Next” 7.1.4 Select “Specify a location” and type D:\DRIVER\BF-2010\WINDOWS (D: represents CD-ROM) in the dialog box, then click “Next” (In this procedure, you have to put the driver CD into your CD-ROM)
  • Page 9 7.1.5 Windows will search the driver for this device. Please make sure the driver ® that Windows found is “D:\DRIVER\BF-2010\WINDOWS\BFUSBWDM.INF”, and then click “Next”. 7.1.6 Click “Finish” to complete the setup procedure to install the “BAFO USB-ATA/ATAPI Bridge Controller” driver. ®...
  • Page 10 Search for the best driver for your device (Recommended)” “ and click “Next” 7.1.9 Click on “Specify a location” and type “D:\DRIVER\BF-2010\WINDOWS” at dialog box, then click “Next” ® 7.1.10 Windows will search the driver for this device, please make sure the driver ®...
  • Page 11 7.1.11 Click “Finish” to finish the installation procedure. ® 7.1.12 After Windows installed all the driver, you have to check “My Computer”-“Control Panel”-“System”-”Device Manager” to make sure the driver has already installed. Then, in the “Disk Drives” it will show a “FUJITSU MHM2050AT”...
  • Page 12 7.1.13 Double click on “My Computer” icon on the desktop, if the driver has already installed and can work properly, you can see a new DISK icon and named “E:” appears on the desktop. 1394/USB Combo hard disk Enclosure User’s Manual 11...
  • Page 13 7.2 Windows 98 un-installation ® 7.2.1 Put the driver software CD into the CD-ROM and open it. Run the D:\DRIVER\BF-2 0\WINDOWS\ Uninst.EXE program to un-install the driver. 7.2.2 Click “Yes” to remove driver. 7.2.3 Remove the USB cable and click “OK”. 7.2.4 Click on “Yes”...
  • Page 14 7.3 Troubleshooting If the Hard Disk (brand new HD) didn't show in “My Computer” after the driver is being successfully installed, please go to “MS-DOS Prompt”, FDISK and FORMAT the new hard disk. (Please refer to MS-DOS instruction.) 1394/USB Combo hard disk Enclosure User’s Manual 13...

  • Page 15: Windows ® 98 Driver Installation

    ® that Windows found is “D:\DRIVER\BF-2010\WINDOWS\BFUSBMSD.INF”, then click “Next” ® 7.4.3 Windows will search the suitable driver for this device and installed it. 7.4.4 Click “Finish” to finish installing “BAFO USB-ATA/ATAPI Bridge Controller”...
  • Page 16 7.4.6 Choose “Automatic search for a better driver (Recommended)”, then click “NEXT”. ® 7.4.7 Windows will search the driver for this device, please make sure the driver ® that Windows found is “D:\DRIVER\BF-2010\WINDOWS\BFUSBMSD.INF” then click “Next” 1394/USB Combo hard disk Enclosure User’s Manual 15...
  • Page 17 7.4.8 Click “Finish” to finish this installation. ® 7.4.9 After Windows installed all the driver, you have to check “My Computer”-“Control Panel”-“System”-”Device Manager” to make sure the driver has already installed. Then, in the “Disk Drives” it will show a “FUJITSU MHM2050AT”...
  • Page 18 7.4.10 Double click on “My Computer” icon on the desktop, if the driver has already installed and can works properly, you can see a new disk icon and named “E:” appears on the desktop. 1394/USB Combo hard disk Enclosure User’s Manual 17...
  • Page 19 7.5 Windows ME un-installation ® 7.5.1 Put the driver software CD into the CD-ROM and open it. Run the D:\DRIVER\BF-2 0\WINDOWS\ Uninst.EXE program to un-install the driver. 7.5.2 Click “Yes” to remove driver. 7.5.3 Remove USB cable and click “OK”. 7.5.4 Click on “...

  • Page 20: Troubleshooting

    7.6 Troubleshooting After the driver be successfully installed, but the hard disk does not shown at “ My Computer”. If it is a brand new hard disk, please go to “MS-DOS Prompt” and FDISK, FORMAT new hard disk. (Please refer to MS-DOS instruction) 1394/USB Combo hard disk Enclosure User’s Manual 19...
  • Page 21 7.7 Windows 2000 installation ® 7.7.1 Connect USB port of 1394/USB Combo hard disk enclosure to USB port of PC with a USB cable. 7.7.2 The “Welcome to the Found New Hardware Wizard” will appears as below. Click “Next” to continue. 7.7.3 Choose “Search for a suitable driver for my device (recommended)”...
  • Page 22 7.7.5 Locate driver files and type “D:\DRIVER\BF-2010\WINDOWS” at dialog box. Click “OK” to continue. 7.7.6 The Wizard will start search driver for this device, please make sure the ® driver that Windows found is “D:\DRIVER\BF-2010\WINDOWS\BFUSBWDW.INF”, click “Next” to continue. Click “Finish” to finish this installation.
  • Page 23 7.7.9 Double click on “My Computer” icon on the desktop, if the driver has already installed and can work properly, you can see a new CD-ROM icon and named “E:” appears on the desktop. 1394/USB Combo hard disk Enclosure User’s Manual 22...
  • Page 24 7.8 Windows 2000 Un-installation ® 7.8.1 Put the driver software CD into the CD-ROM and open it. Run the D:\DRIVER\BF-2010\WINDOWS\ Uninst.EXE program to un-install the driver. 7.8.2 Click “Yes” to remove driver. 7.8.3 Remove the USB cable and click “OK”.

  • Page 25: Troubleshooting

    7.9 Troubleshooting After you have successfully installed the driver, but there is no new hard disk shown at “My Computer”. 7.1.1 If it is a brand new hard disk, please go to “Control Panel”-“Administrative Tools”-“Computer Management”-“Disk Management” and then choose the new HD.

  • Page 26: Mac Driver Installation

    7.10.2 Insert 1394/USB Combo hard disk enclosure driver CD into CD-ROM drive and copy the “MacUSB0803.sit” from “D:\DRIVER\BF-2010\MAC” to desktop, then run the “MacUSB0803.sit” to install driver. 7.10.3 After the driver is installed, it will create a new folder and named “MacUSB0803 Folder”...
  • Page 27 7.10.5 Copy these three files to the “Macintosh HD”-“System Folder” - “Extensions”. 7.10.6 Now you can connect the 1394/USB Combo hard disk enclosure to your Apple computer, before you start to use this device, please check the “Apple System Profiler”-“Devices and volumes” it will show a “1394/USB-ATA/ATAPI Bridge”...

  • Page 28: Faq

    7.11 MAC un-installation 7.11.1 Throw the “ BAFO USB-ATA/ATAPI Bus” “BAFO USB-ATA/ATAPI Shim” “BAFO USB-ATA/ATAPI USB” these three files to the trash can, and restart your computer again. 8 FAQ Q : The “Add New Hardware Wizard” or “Found New Hardware Wizard” dialog box does not show up.

  • Page 29: Disclaimer

    9 Disclaimer Information in this document is subject to change without notice. The m anufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
