BabySeat Suspension Child Carrier User Manual

Suspension child carrier

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

BabySeat

User's Guide

Suspension Child Carrier

It is recommended a professional bicycle shop assemble and

install the BabySeat to your bike.

It is imperative that you read this owner's manual

prior to installation.

TOOLS REQUIRED FOR ASSEMBLY:

5mm Allen Key, 8mm Box Wrench and Philips Screwdriver

Table of Contents

Summary of Contents for BabySeat Suspension Child Carrier

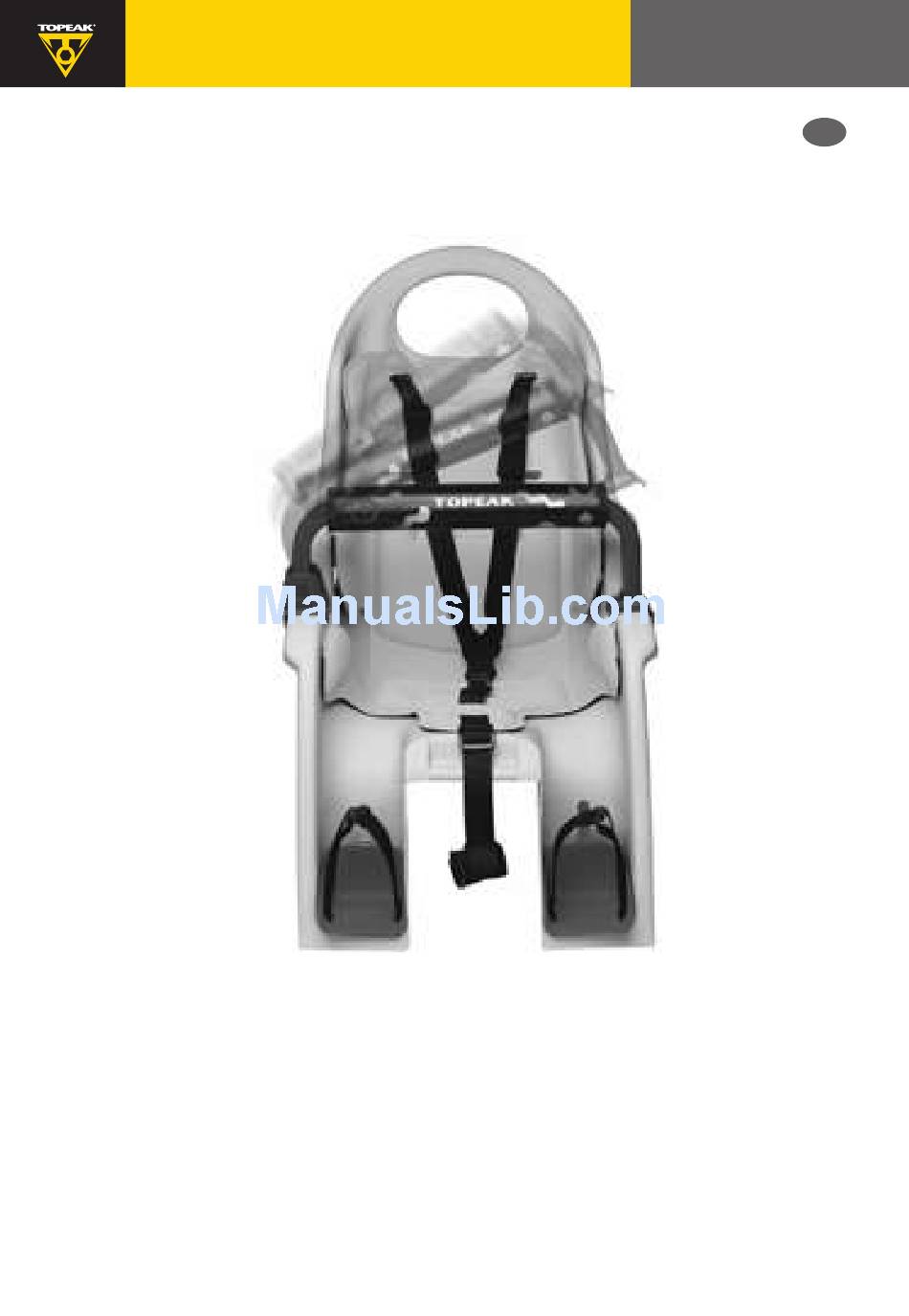

Page 1 BabySeat User's Guide Suspension Child Carrier It is recommended a professional bicycle shop assemble and install the BabySeat to your bike. It is imperative that you read this owner's manual prior to installation. TOOLS REQUIRED FOR ASSEMBLY: 5mm Allen Key, 8mm Box Wrench and Philips Screwdriver...
Page 2: Table Of Contents
Table of Contents Getting To Know Your Topeak BabySeat Mounting Rack To Bicycle Mounting BabySeat To Rack Surface Securing BabySeat To Seat Post Installing Grab Bar Adjusting Height Of Footrests Fitting Your Child In BabySeat Caution Notes...
Page 3 Mounts to Mounts to rack rack Mounts to bicycle Mounts to bicycle...
Page 4: Getting To Know Your Topeak Babyseat
16. SPRING ADJUSTING NUT (2) 23. "T" TYPE STRAP MAINTENANCE: Please use mild soap and water to clean BabySeat. Seat pad, safety harness and grab bar pad should be hand washed only. Occasionally lubricate rack and BabySeat hardware with Teflon based lubricant.
Page 6: Mounting Rack To Bicycle
Mounting Rack To Bicycle Follow these illustrations for mounting rack to bicycle. Make sure rack is level with ground before tightening hardware. Several adjustments are available to help level rack. Slide rack hardware forward or back to determine correct positions before tightening Philips screws on rack surface.
Page 7: Seatstay
CAUTION The Topeak BabySeat is designed to work on frames with seatstay rack mounts AND threaded dropout eyelets only. Do not use the Topeak BabySeat on frames without these fittings for safety reasons. 22-5 (M5 x 13mm/ M5 x 25mm)
Page 8: Lock
• If sliding lock fails to slide into rack or if red button does not protrude through the rack surface the installation is incorrect. • If your saddle has exposed springs, please cover springs adequately to prevent pinching child passenger. • Never modify BabySeat or rack from their original specifications.
Page 9: Securing Babyseat To Seat Post
"T" type loop and hook strap is a safety device designed to connect BabySeat and seat post. Please be sure to fasten it to seat post immediately after mounting BabySeat on rack. The "T" strap should only be disconnected from seat post if removing BabySeat from rack.
Page 10: Grab
Installing Grab Bar Twist pivoting end of grab Pivot grab bar down and bar into mounting bracket snap open end over edge as shown. of seat as shown.
Page 11: Adjusting Height Of Footrests
Have someone help support bicycle while placing child in BabySeat. Place child in comfortable position in BabySeat. Adjust and fasten safety harness over child. Note position of child's feet and legs. Remove child from BabySeat and adjust footrests as necessary.
Page 12: Fitting Your Child In Babyseat
Fitting Your Child In BabySeat Adjust shoulder harness properly to fit your child. Shoulder Straps Too High. Shoulder Straps Too Low.
Page 13 BabySeat shoulder buckle straps adjust in a high or low position. Make sure they are in the correct position for your child's size. Release the buckle strap from back side. Re-attach hook and loop fastener over upper position belt hole.
Page 14: Caution Notes
1. Carry only a child who is able to hold his/her head up while wearing a correctly sized bicycle helmet. The age and weight limits for the BabySeat rack are 1~4 years old , and 20lbs ~ 40lbs (9kgs ~ 18kgs) respectively. Never exceed these limits.
Page 15 All warranties will be void if the BabySeat is damaged due to user crash, abuse, system alteration, modification, or used in any way not intended as described in this operating manual.
Page 16 BabySeat Topeak products are available only from professional bicycle shops. Please contact your nearest Topeak authorized bicycle dealer for any questions. Website : www.topeak.com...
