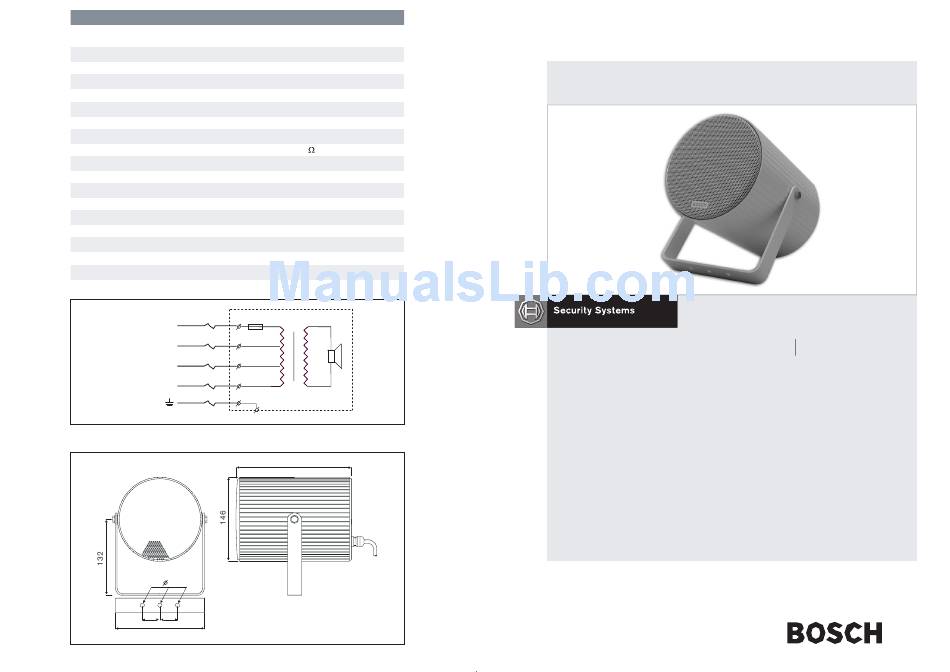

Bosch LBC 3432/01 Installation And User Instructions

Technical performance data acc. to IEC 268-5
Maximum power
Rated power
Sound pressure level at rated power/1W
(at 1kHz, 1 m)
Effective frequency range (-10 dB)
Opening angle (at 1kHz/4kHz, -6dB)
Rated input voltage
Rated impedance
Ambient temperature range
Water-and dust protected
Safety
Connection
Material
Colour
Weight
Dimension
Black
COMMON
0
PHASE
Brown
20W
Blue
10W
Grey
5W
Circuit diagram
7
30.5 30.5
154
Dimensions
LBC 3432/01
30 W
20 W (20-10-5 W)
92/105 dB (SPL)
150 Hz to 20 kHz
180˚ / 70˚
100 V
500
-25˚C to +55˚C
acc. to IEC 60529 IP 66
acc. to EN 60065
1 m fire-resistant cable
Aluminum
White RAL 9010
2.6 kg (5.73 lb)
146 mm (5.75 in) dia.
x 200 mm (7.87 in)
200
Unit: mm
Metal Sound Projector
Installation and User Instructions
EN
LBC 3432/01
