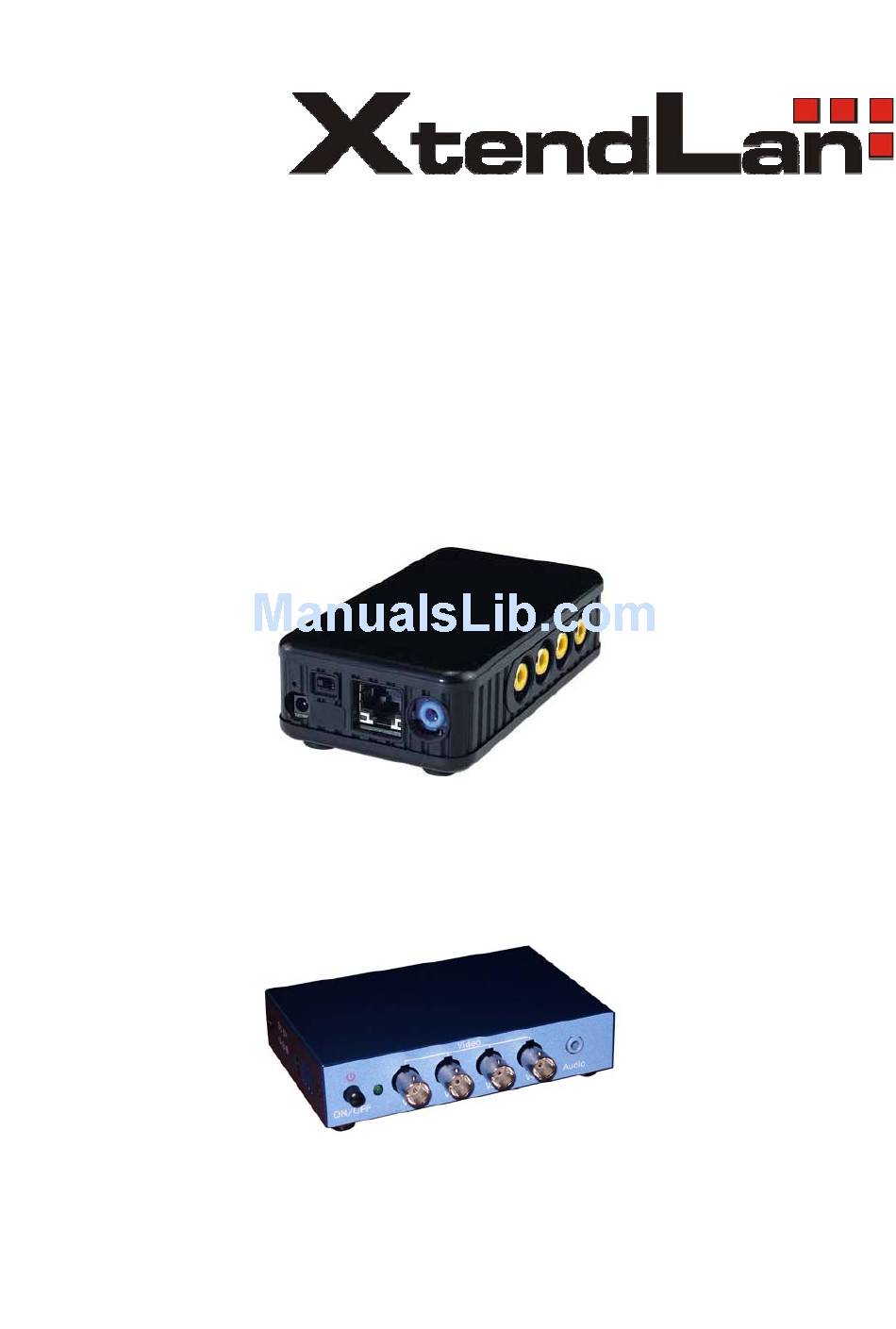

- Page 1 Video Server User’s Guide IVS400A IVS400B...
- Page 2 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com Caution: Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for FCC and CE. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment.
-
Page 3: Table Of Contents
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 1. PRODUCT OVERVIEW................................5 IVS400B ..........................5 IDEO ERVER FEATURES ..............................5 INIMUM REQUIREMENT IVS400A ............................6 ANEL DESCRIPTION IVS400B............................6 ANEL DESCRIPTION INSTALLATION..................................7 .............................. 7 ARDWARE INSTALLATION ............................... 8 OFTWARE INSTALLATION FUNCTIONS..................................10 ................................ - Page 4 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com - 4 -...
-
Page 5: Product Overview
1. Embedded Web Server 2. Support 1 audio in 3. With 4 video input for multi-video source from different area. IVS400A with RCA connectors. IVS400B with BNC connectors 4. Round Robin: display 4 video at same screen – update in turns and can record all four channel in different file 5. -
Page 6: Panel Description Ivs400A
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com VGA Card support Hi - Colors and above and Direct Draw LAN interface – RJ-45 (CAT 5) Hub/Router 1.3 Panel description IVS400A Back Panel: from left to right: 1. DC Power 2. 4x Video Input Reset 3. -
Page 7: Installation
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 2 Installation 2.1 Hardware installation 1. Plug in Video Server IVS400B Power 2. Plug in RJ-45 line to a HUB 3. Connect the HUB to Internet modem (ADSL/XDSL modem) 4. Connect Video source for IP Video box 5. -
Page 8: Software Installation
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 2.2 Software installation Please note default password: Default username: Administrator Default password: 1234 Setup initial IP address: After connecting the power and RJ 45 line, following the steps below to install the software which allow you to search for IVS400 in your network and allow you to give initial IP address into device. - Page 9 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com about 20 seconds, the new setting will work. Default username : Administrator Default password : 1234 * Only Administrator setup the setting in configuration. Step 5: Double click the picture in the window of KIPEdit or type the IP address in the IE browser, you can open the web page of IVS400.
-
Page 10: Functions
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3 Functions Please refer to all the function on the left side of Video Server IVS400B; most of its configuration can only be used by Administrator. 3.1 System setting 3.1.1 Camera name Enter user’s video server description. -
Page 11: Camera's Time
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.1.2 Camera’s time Allow change name of video server and setup time. Time could be automatically synchronized with NTP servers or setup manually. 3.1.3 Http Port setup For customer with IP Sharer device can setup the share port Please check the setup in the IP Share device and type the port number in this area. -
Page 12: User
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com User can update the firmware. First, click Firmware update and it will pop up Firmware Update window. Then, click Browser to select the new firmware. At last, click Upload to update the firmware. 3.2 User 3.2.1 User authorization required... -
Page 13: Motion Detection
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.3 Motion detection When motion detection is triggered, it will automatically send video or image to user E-mail or FTP site. 3.3.1 Motion detection setup Disable – no detection. Enable: choose Sensitivity – Low / Mid / High 3.3.2 Email setup... - Page 14 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com FTP server: FTP server. If not DNS setup, please fill IP address. Username: FTP account name Password: FTP password Account: used on some FTP implementations, leave blank if not needed Upload path: file name under which is video saved on FTP server...
-
Page 15: Network Setup
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.4 Network Setup In Network set up menu can user setup IP address of device. Note: To access to this you will be asked for administrator password. You have to choose method of IP address setting. IP address could be entered Manually or Automatically by DHCP. - Page 16 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com In case you do not understand previous explanation please enter as IP address 192.168.0.1 with mask 255.255.255.0 Default gateway is IP address of your nearest router. Default gateway IP address must be in same range as IP address of device.
-
Page 17: Audio
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.5 Audio Only Administrator can enable and disable the audio. If audio is on, both administrator and guest user can hear the audio, if the audio is off, both administrator and guest can not hear the audio. -
Page 18: Dynamic Dns
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.6 Dynamic DNS In many installation is IP address provided by ISP dynamic. It means changing during time. The user may have problem to find his video server because the IP address is changing often. -
Page 19: Video Window
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.7 Video Window When click on Video Window then camera window is open. 3.7.1 Quality Picture Quality - Low, High, Medium Clarity& Motion 3.7.2 Resolution 640*480,352*288,320*240,176*144 - 19 -... -
Page 20: Frequency
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.7.3 Frequency Indoor 50, Indoor 60 & Outdoor 3.7.4 Color adjust Color adjust pull down menu: STD = default colors 3.7.5 Split Split to 1, 4, 9, 16 continuous screens. Selections are 1x1, 2x2, 3x3, 4x4 3.7.6 Operation mode... -
Page 21: Mode And Source Select
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.7.8 Mode and source select Fixed: select 1~ 4 for changing every different channel. (Only one channel will display each time). Round Robin: Displays select channel by turns. If select 4 channel, in split 1 , the video show three video by turns. -
Page 22: Multiple Servers View
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.7.9 Multiple servers view IVS400 can view up to 9 different IVS400s at the same time. Adding IP Address Please add in a different IP in “Watching and press enter” Note1: please type in http:// before your IP. -
Page 23: Video Window
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 3.7.10 Video Window After click, the left screen will back to Monitor video 3.7.11 Right click menu When right click mouse in view, then other menu appears. It can be used for 1. View 2. - Page 24 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com Resolution Allow select resolution. Resolutions are 640*480, 352*288, 320*240, 176*144, 160*120 Image Recording Record image to JPEG and AVI file. Both format can be recorded in the same time. JPEG: saving sequence of screenshots. User can select how many pictures taken in each file and time frame.
-
Page 25: Work With Yahoo/Msn Messenger
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 4 Work with Yahoo/MSN Messenger Work with Yahoo /MSN Messenger: We use Yahoo for instance. Select the friend you would like to send your video. For instance, we pick up YahooHelper. Click Webcam. Then system will ask your Internet connecting speed. - Page 26 XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com You can type in appointed IP address (No matter Real IP or Dynamic IP) and confirm by click “Add” and choose if reverse the out streaming video. IVS400 support Normal, Flip Vertical, Flip Horizontal, Rotate 180. the video is upside down, you can choose Rotate 180 to get rotate video.
-
Page 27: Frequently Asked Questions
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 5 Frequently asked questions Q 1: I forgot the ID and password for the administrator account, so I cannot log into the Administration Page. A: Make sure IVS400 is powered on and press the “reset” button for at least 10 seconds to reset camera setting to factory setting. -
Page 28: Specification
XtendLan IVS400A, IVS400B User’s Guide http://www.xtendlan.com 6 Specification Embedded Video Web Server CPU 80MHz, RISC 32b, 2MB Flash, 8MB RAM LAN 10/100Base-TX, RJ-45 Video input: IVS400A 4 channels, RCA connectors IVS400B 4 channels, BNC connectors Audio in: mini jack, PCM or ADPCM...
