Summary of Contents for Cisco 7301

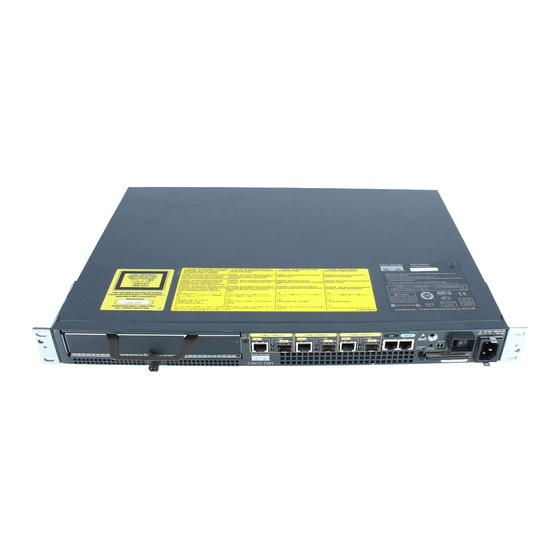

- Page 1 UICK TART UIDE Cisco 7301 Router Documentation and Resources Prepare for Installation Install External Options Rack-Mount the Router Connect the Router to the Network Start the System Configure the Router After Installation Obtaining Technical Assistance...
-
Page 2: Documentation Survey
Documentation for the Cisco 7301 router is online and orderable. For detailed hardware installation instructions, refer to the online Cisco 7301 Installation and Configuration Guide. Refer to the following online documents for titles and links to related documentation for installation and replacement of parts (including port adapters), regulatory compliance information, and troubleshooting information and tools. -
Page 3: Site Preparation And Unpacking
• Locate and have accessible the Site Log for recording information about this installation. Tools and Parts Use the following list of tools and parts as a checklist for preparing for installing the Cisco 7301 router: • ESD-preventative wrist strap •... -
Page 4: Prepare For Workbench Or Tabletop Installation
Install External Options This section provides installation instructions for the Gigabit Ethernet SFP Gigabit Interface Converter (GBIC) module. It does not ship installed. Figure 1 Cisco 7301 Front Panel 9 10 AT M GI GA BI T ET SL OT 1... -
Page 5: Install The Sfp Gigabit Interface Converter Module
Install the SFP Gigabit Interface Converter Module Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051 Warning Class 1 laser product. Statement 10008 Warning Class 1 LED product. -
Page 6: Attach The Rack-Mount Brackets-Chassis Front-Mounted
Figure 3 Inserting a SFP GBIC Module into a SFP GBIC Port G B IC ET HE RN ET 0/ 0 G IG AB IT ET LI NK HE RN ET 0/ RJ 45 EN G BI C G IG AB IT ET LI NK HE RN ET 0/ RJ 45 EN... -
Page 7: Attach The Rack-Mount Brackets-Chassis Rear-Mounted
To use the cable-management bracket with the Cisco 7301 router rear-mounted, you must purchase a second Note rack-mount kit, attach a rack-mount bracket to the left front of the chassis, and attach the cable-management bracket to it. -
Page 8: Attach The Cable-Management Bracket
Attaching the Cable-Management Bracket Cable-management bracket M4 x 20-mm screw Step 1 Align the cable-management bracket (1) to the rack-mount bracket on the left side of the Cisco 7301 router. Step 2 Using a Phillips screwdriver and the M4 x 20-mm screw (2), thread and tighten the screw to the cable-management bracket. -
Page 9: Two-Post Rack Installation
Step 6 For each bracket, insert and tighten two 12-24 x 0.5-inch screws (3) to the rack. Two-Post Rack Installation Figure 8 Installing the Cisco 7301 Router in a Two-Post Rack GIGAB IT ETHE SLOT 1 RNET 0/0 RJ45 EN... -
Page 10: Chassis Ground Connection Installation
Wire Note The grounding lug and Phillips screws are not available from Cisco Systems. Get the grounding lug from an electrical-connector vendor and the screws from a hardware vendor. See Page 4 for the parts needed. Use the wire stripper to strip one end of the 6-AWG wire approximately 0.75 inches (19.05 mm). -
Page 11: Console And Auxiliary Port Cable Connections
Gigabit Ethernet SFP GBIC and RJ-45 Connections The Cisco 7301 router has three native Gigabit Ethernet interfaces. Each interface consists of three RJ-45 media ports and three SFP GBIC optical fiber ports. The RJ-45 media ports provide 10/100/1000-Mbps connectivity while the SFP GBIC optical fiber ports provide 1000-Mbps connectivity. -
Page 12: Intra-Building Lightning Protection
LC-type duplex port that supports IEEE 802.3z interfaces compliant with the 1000BASEX standard. Gigabit Ethernet SFP GBIC models GLC-SX-MM, GLC-LH-SM, and GLC-ZX-SM are supported in the Cisco 7301 router, as are a variety of Coarse Wavelength-Division Multiplexing (CWDM) SFPs, and the Cisco 1000BASE-T (copper) SFP with an RJ-45 port. For cabling... - Page 13 • One cable that has both TX and RX connectors is required for duplex connectors. Use a Category 5 unshielded twisted pair cable with RJ-45 connector, if you are using a Cisco 1000BASE-T SFP. If you plan to use a GLC-LH-SM at distances greater than 984.25 feet (300 meters) over 50/125-micron or Caution 62.5/125-micron multimode fiber, to prevent data transmission problems you must use the mode-conditioning...
-
Page 14: Attach The Mode-Conditioning Patch Cord
Port Adapter Cable Connections The instructions for connecting the cables for each port adapter installed in the Cisco 7301 router are in the respective online notes for each port adapter. The documents are available on the Documentation CD-ROM and on Cisco.com at http://www.cisco.com/univercd/cc/td/doc/product/core/cis7300/ol3531.htm. -
Page 15: Alarm Port Connection
Alarm Port Connection Figure 14 Connecting the Alarm Port Cable C O N S O L E A L A R M C O M P A C T F L A S H S T A T U S Alarm port Connect the dry relay alarm port cable connector to the alarm port. -
Page 16: Start The System
120 VAC, 15A U.S. (240 VAC, 10A international) is used on the phase conductors (all current-carrying conductors.) Statement 13 The Cisco 7301 router comes with either an AC or DC power supply. Dual AC and dual DC power supply options are available. Connect AC-Input Power Check that the power switch is in the OFF (O) position. -
Page 17: Connect Dc-Input Power
Connect DC-Input Power The color coding of the DC-input power supply leads depends on the color coding of the DC power source at your site. Match the lead color coding for the DC-input power supply to the lead color coding used at the DC power source. Warning This product relies on the building’s installation for short-circuit (overcurrent) protection. -
Page 18: Observe The System Startup And Perform A Basic Configuration
Switch the circuit breaker to the ON position. Step 7 Press the power switch to turn on the router. Step 8 After powering off the router, wait a minimum of 30 seconds before powering it on again. Note Observe the System Startup and Perform a Basic Configuration Check conditions prior to system startup: Step 1 Check that all hardware parts and cables are securely attached to the chassis. -
Page 19: Configure The Router
Configure the Router Before configuring the router, determine whether or not you want to use a management tool such as Cisco Security Device Manager. Cisco Security Device Manager (SDM), version 1.1, is an optional Java-based device-management tool that allows you to configure LAN interfaces, routing, Network Address Translation (NAT), firewalls, Virtual Private Networks (VPNs), and other features without knowledge of the Cisco command-line interface (CLI). -
Page 20: Configure Global Parameters
Copyright (c) 1986-2003 by cisco Systems, Inc. Compiled Fri 03-Jan-03 16:03 by biff Image text-base:0x600088F4, data-base:0x617F6000 cisco 7301 (NPE-G1) processor (revision A) with 245760K/16384K bytes of memory. Processor board ID 0 SB-1 CPU at 650Mhz, Implementation 1, Rev 0.2, 512KB L2 Cache 1 slot midplane, Version 2.0... - Page 21 In the following example, the summary shows a Cisco 7301 router at first-time startup; that is, nothing is configured. Any interface listed with OK? value "NO" does not have a valid configuration Interface IP-Address Method Status Protocol ATM1/0 unassigned unset...
-
Page 22: Configure An Auxiliary Port To Receive Console Port Messages
Configure the Native Gigabit Ethernet Interfaces The Cisco 7301 reports both the RJ-45 and Gigabit Ethernet SFP GBIC interface ports as Gigabit Ethernet 0/0, Gigabit Ethernet 0/1, and Gigabit Ethernet 0/2. Before configuring any of the three interfaces, you must first use the media-type interface command to select the media type, either the SFP GBIC (gbic) or RJ-45 (rj45) port. -
Page 23: Change The Media Type Of The Native Gigabit Ethernet Sfp Gbic Or Rj-45 Ports
Change the Media Type of the Native Gigabit Ethernet SFP GBIC or RJ-45 Ports To be able to use a particular media port, use Cisco IOS to select the media type. This is done by using the media-type interface command:... - Page 24 Consult with your network administrator for this information. Only one port adapter can be installed in the Cisco 7301 at one time. Following are three examples of three different Note interfaces that might be used.
-
Page 25: Configure Fast Ethernet Interfaces
If you are using AppleTalk on the interface, enter yes. Enter yes to configure for extended AppleTalk networks, and Step 3 then enter the cable range number. Enter the zone name and any other additional zones that are associated with your local zone: Configure AppleTalk on this interface? [no]: yes Extended AppleTalk network? [no]: yes... -
Page 26: Configure Synchronous Serial Interfaces
Configure Synchronous Serial Interfaces Synchronous serial interfaces are configured to allow connection to WANs through a CSU/DSU. In the following example, a synchronous serial interface in slot 1 is configured for a WAN connection using IP. Follow these steps to configure synchronous serial interfaces: Using your own addresses and mask at the setup prompts, respond to the prompts as follows: Step 1... -
Page 27: Enabling The Second Processor
To perform more complex configurations, use the configure command. For information on additional interface configuration and specific system configurations, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware. -
Page 28: Perform Complex Configurations
Cisco hardware. Perform Complex Configurations After you have installed your Cisco 7301 router hardware and minimally configured the system, you might need to perform more complex configurations, which are beyond the scope of this publication. For specific information on system and interface configuration, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware. -
Page 29: After Installation
Step 2 Remove any cables from the Cisco 7301 router, including the power cables. For AC power supplies, unplug the AC power cord from the power outlet. For DC power supplies, to ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. -
Page 30: Replace The Port Adapter Or Service Adapter
• The larger the CompactFlash Disk size, the longer the system boot time. • The CompactFlash Disk supports online insertion and removal (OIR). • Use the CompactFlash Disk to store your configuration files and Cisco IOS software image. The Cisco 7301 router has no onboard Flash memory. -
Page 31: Replace The Sodimms
Power Off the Router and Remove the Cover Step 1 If you have not done so, see the “Power Off the Cisco 7301 Router” section on page 29 and follow the instructions to power off the router. Remove the cables from the front of the router, and then remove the grounding cable. -
Page 32: Remove And Install The Sodimms
Repeat Step 1 through Step 7 if you are also replacing the second SODIMM. Step 10 Go to the “Replace the Cover and Power On the Router” section on page 33. For memory specifications and configurations, see the online Cisco 7301 Installation and Configuration Guide. -
Page 33: Obtaining Technical Assistance
Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL: http://tools.cisco.com/RPF/register/register.do... -
