Side Panel Components

The system heat vents located on each side dissipate heat. Do not block these openings. Leave at least 6 inches of space
at the rear and sides of the Switch for proper ventilation. Be reminded that without proper heat dissipation and air
circulation, system components might overheat, which could lead to system failure or even severely damage components.

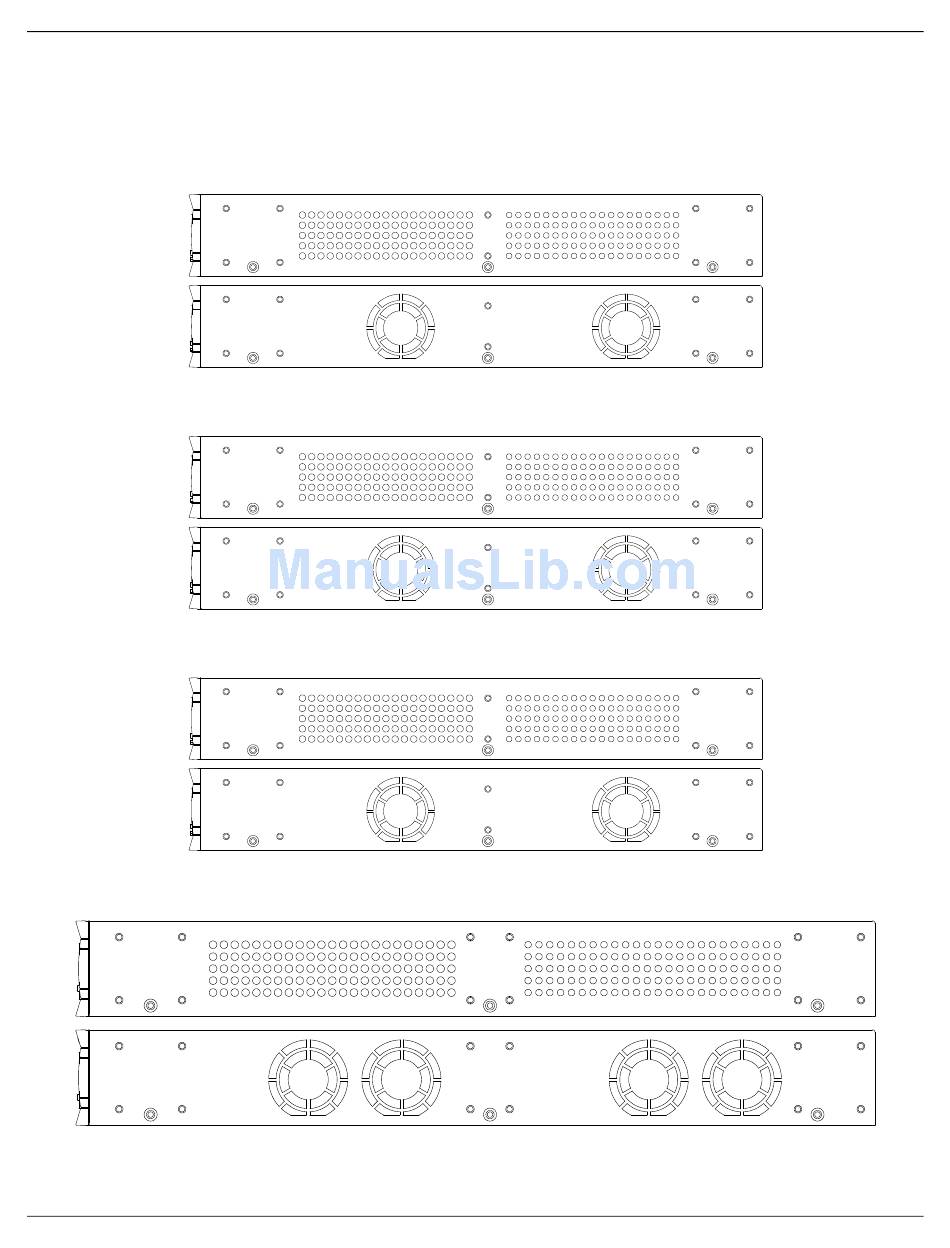

Figure 1- 19. Side panels of the DGS-3420-28SC Switch
Figure 1- 20. Side panels of the DGS-3420-28TC Switch
Figure 1- 21. Side panels of the DGS-3420-26SC Switch
Figure 1- 22. Side panels of the DGS-3420-28PC Switch
