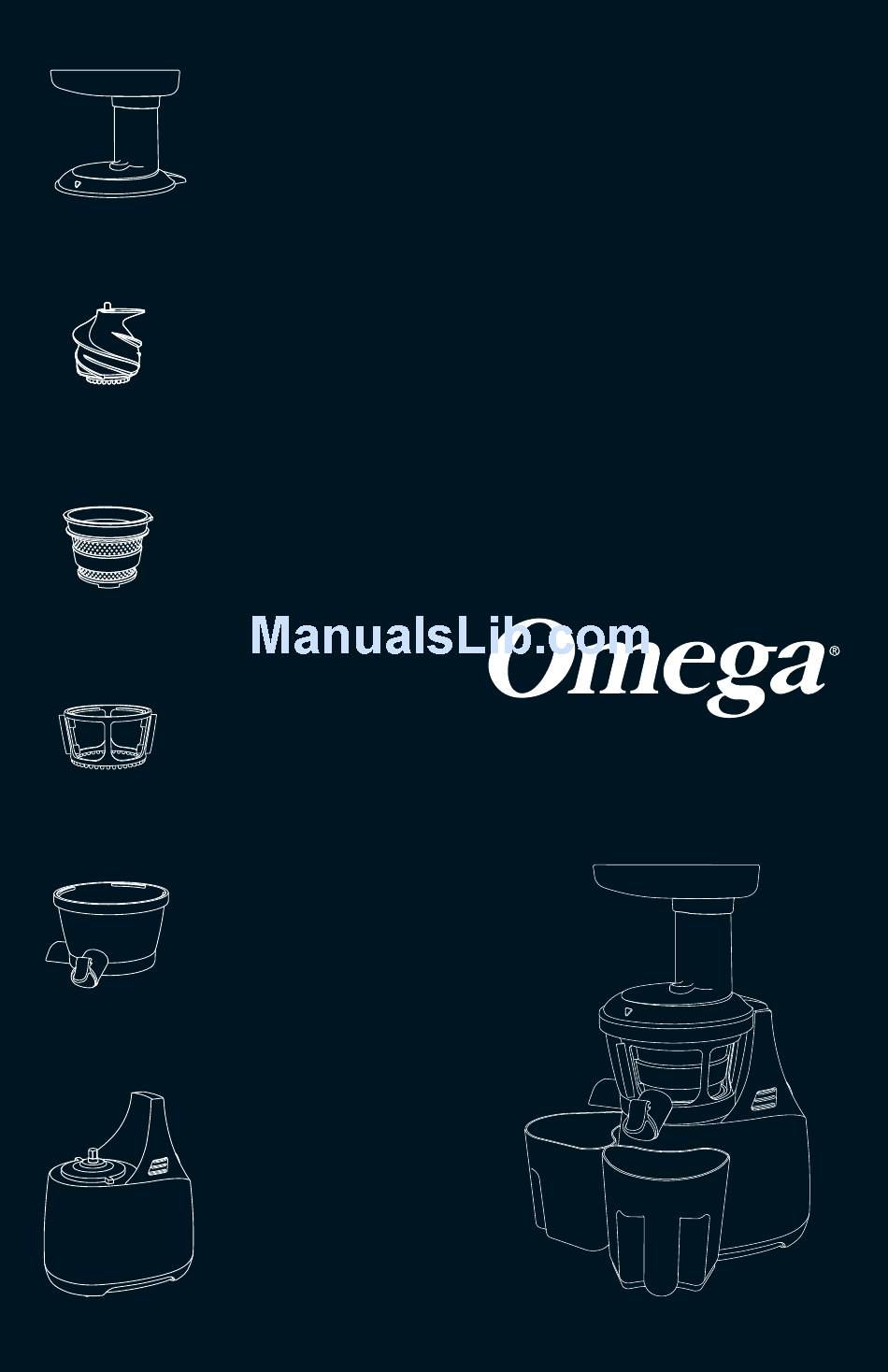

- Page 1 Product Contents VRT4 SERIES THE_OMEGA_VRT400_050313...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Please read carefully before using. Follow instructions to avoid injury. base, cord, or plug in water and keep them dry at all times. • Do not disassemble the base. All repairs should be made only by authorized personnel. •... - Page 3 IMPORTANT SAFEGUARDS Additional usage precautions: • Do not pre-operate before inputting food. Doing so may cause a normal squeaking noise. • Do not attempt to juice any hard materials, large seeds (seeds which can not be swallowed or chewed), pits, ice, or frozen foods. •...
-
Page 4: Table Of Contents
Omega Juicer Manual For Household Use (Warranty Included) 1 Read “Precauti o n s fo r safe use (Pag e 4)” careful ly an d use the ap p lian ce pro p erly. 2 Save t h ese in structio n s. -
Page 5: Dear Omega Customers
With the Omega Slo w Squeezing System and Juice C ap mixing feauture, avor and full of valuable nutrients. 1. More Nutrients and Taste: Your own personalized juice Mixed juice Enjoy single ingredient juice or mixed juice. Add various ingredients to your taste and health Altern ative Meal Make juice as an alternative meal, rich in taste and balanced nutrients. -
Page 6: General Description And Parts Names
GENERAL DESCRIPTION AND PARTS NAMES HOPPER PULP CONTAINER SQUEEZING SCREW JUICE CONTAINER COARSE STRAINER (Optional) FINE STRAINER CLEANING BRUSH SPINNING BRUSH SMALL CLEANING BRUSH BOWL BASE PUSHER... -
Page 7: Rms For Parts
SPECIFIC TERMS FOR PARTS <FRONT> <BACK> 4. Hopper 1. Hopper front rear part triangle 2. Bo wl triangle 5. Operating switch 6. Juice outlet 3. Pulp outlet 7. Juice c ap 8. Po wer cord 9. Grip STRAINER COARSE STRAINER (Optional) The bigger holes in the strainer produce thicker juice when tender and soft fruits are extracted such as strawberries, kiwis and tomatoes. -
Page 8: Precautions For Safe Use
PRECAUTIONS FOR SAFE USE All users of this appliance must read and understand this safety precaution before operating. Hazards or unsafe practices which could result in serious personal injury or death. Hazards or unsafe practices which could result in minor personal injury or appliance damage. This sign indicates contents of regulating or directing actions. -
Page 9: Warnings And Cautions
WARNINGS AND CAUTIONS WARNING Hazards or unsafe practices which could result in serious personal inju ry or death. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an inju ry. DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock , rmal perfo rmanc e. - Page 10 WARNINGS AND CAUTIONS NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an inju ry, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
- Page 11 WARNINGS AND CAUTIONS WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure.
-
Page 12: Slow Juicer Assembly
SLOW JUICER ASSEMBLY STEP clockwise until it clicks so th at the hopper triangle [ ] aligned with b o wl triangle [Close STEP Make sure to press the screw d o wn into the strainer as in STEP 2 . The hopper does not close properly STEP Assemble the parts as foll o wing order : Bo wl>Spinning Brush>... -
Page 13: Slow Juicer Assembly In Detail
SLO W JUICER ASSEMBLY IN DETAIL Align the hopper rear part with base completely as in below. The hopper will not close properly when the parts are not assembled correctly. Hopper rear part Assemble the parts in the order of bowl> spinning brush> strainer> squeezing screw> hopper (or assemble the spinning brush BO TTO M Strainer bump OF TH E... -
Page 14: How To Use The Appliance
HO W TO USE THE APPLIANCE BACK VIEW Wash the fruits and/or vege tabl es and cut them in to pieces that t in to the feeding tube . Place th e suitable pieces into feeding tube slowl y and p ress with a pu sher. U se fresh fruits an d veg et ab les fo r juici n g as they con tain m o re jui ce. -
Page 15: Juice Cap And Extraction Packing
JUICE CAP AND EXTRACTION PACKING JUICE CAP This is the cap of juice outlet in the bowl. s. You can easily make mixed juices. Juice cap Close juice cap and press [ON] button to start. owl , you can mix Open banana , nuts , boiled sweet potato etc. -
Page 16: When The Screw Is Stopped During Operation (How To Use [Reverse/Rev] Button)
WHEN THE SCREW IS STOPPED DURING OPER ATION (REVERSE/REV BUTTON) Cli ck [Reverse/REV] button and stop the appliance. Stop Press [Reverse/REV] button in ope rating swit ches for 3~5 seconds and release it. Repeat this process 2~3 times. Reverse is the button pushing ingredients upward. Reverse only works while the button is pressed and held . -
Page 17: Important Safeguards In Use
IMPORTANT SAFEGUARDS IN USE · Fruits w ith pits, hard seeds such as nectarines, peaches, m angos, apricots, plum s and cherries m ust be pitted be fore jui cing. · Cu brous ingredients (w ater parsleys etc.) in sm all size like 3~4cm (1.5 inch) and place to the feeding t ·... -
Page 18: Disassembly, Cleaning And Care
DISASSEMBLY, CLEANING AND CARE FIGURE IN ORDER Juice outlet... - Page 19 DISASSEMBLY, CLEANING AND CARE 1. Ensure the motor stops completely and unplug the po wer cord. When unplugging the power cord , hold the head part of the power cord and unplug it . Do not touch the power cord with wet hand s. 2.
-
Page 20: Bowl Disassembly And Wash
BO WL DISASSEMBLY AND WASH juice cap packing bowl packing Rem ove Juice Cap packing and bowl pa cking. . Hold the bowl and juice cap with one hand and remove juice cap packing with the other hand. When removing it , be careful not to drop the juice cap and bowl. It may cause damage to the juice ca p. -
Page 21: Sterilization And Easy Cleaning System
STERILIZATION AND EASY CLEANING SYSTEM STERILIZATION For sterilization , use baking soda or natural wash-up liquids only. You can thoroughly wash parts by immersing in water diluted with one or two drops of baking soda or natural wash-up liquids for about 30 minute s. EASY CLEANING SYSTEM Open A fter clo sing the juic e cap, pour the water... -
Page 22: Spinning Brush Disassembly And Wash
SPINNING BRUSH DISASSEMB LY AND WASH Rem ove the spinning brush from straine r. Deta ch the silicone brush from spin - ning brush. Spinning brush Silicone brush As shown to the left , hold the outer part of silicone brush with your fingers an pull it out to the arrow direction . -
Page 23: Spinning Brush Assembly
SPINNING BRUSH ASSEMB LY Che ck the gro ove of the spinning brus h SPINNING BRUSH SILICONE BRUSH and the di rection of silicone brush. Inner wing There are grooves to insert silicone brush in the (longer part) spinning brush . Silicone brush has inner wing and outer wing. -
Page 24: Bowl Packing Assembly
BO WL PACKING ASSEMBLY Hold the b owl packing like pinchin g. As shown to the left in a dotted circle, let the protru- sion part on the bowl packing face upward and hold it like pinching with your thumb and index finger. Bowl packing Insert the bowl packing into the bowl hole. -
Page 25: Juice Cap Packing Assembly
JUICE CAP PACKING ASSEMBLY Hold juice cap pa cking as sh own to the left. As shown to the left in a dotted circle, the hole must be visible when you hold . Juice cap packing Open the juice cap and insert the juice cap pa cking in. -
Page 26: Troubleshooting
TROUBLESHOOTING Check the details below before contacting Technical Support for repair or service. If you need information or if you have a problem, please contact the local Customer Care Center. When applying for after sales servic e, check the manufacturer’s serial number or bar code. THE APPLIANCE DOES NOT WORK. -
Page 27: Appliance Stan Dards
APPLIANCE SPECIFIC ATIONS APPLIANCE STAN DARDS PRODUCT NAME Omega Slow Squeeze Juicer MODEL NAME VRT400 Series RATED VO LTAGE 120 V RATED FREQUENCY 60 Hz RATED POWER 150 W CONSUMPTION RPM (REVOLUTIONS 80 RPM PER MINUTE) CORD LENGTH 1.4 m... - Page 28 V.01 Copyright© All Rights Rese rved...
