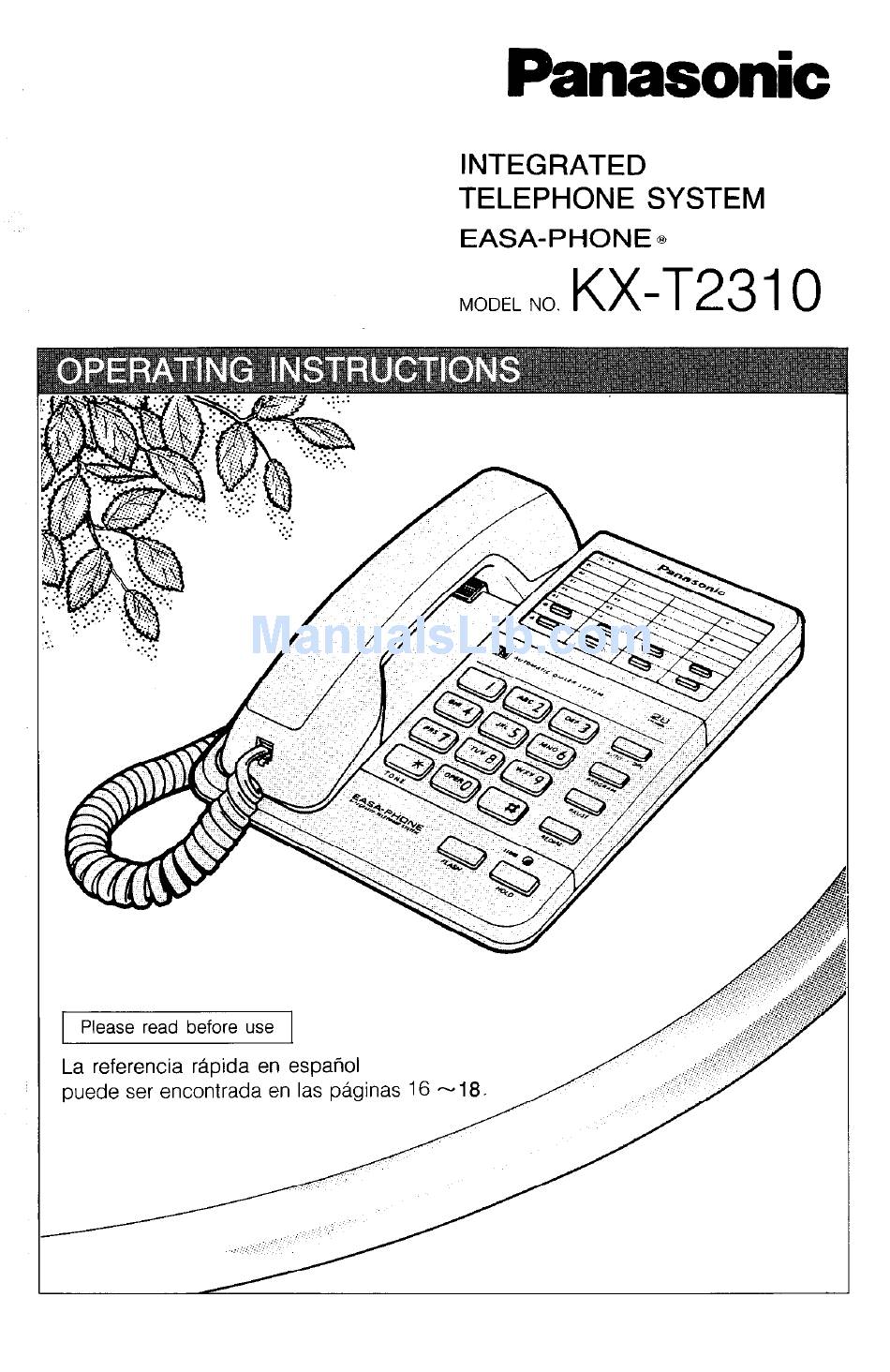

- Page 1 Panasonic INTEGRATED TELEPHONE SYSTEM EASA-PHONEm KX-T23 1 0 MODEL NO. Please read before use La referencia rApida en espafiol puede ser encontrada en las paginas 16 - 18.
- Page 2 Features Thank you for purchasing the Panasonic Telephone. The KX-T2310 features include: n Local Mode The unit can be set to prohibit the user from making long-distance overseas calls. W One-Touch/Speed Dialing for up to 20 16-digit telephone numbers plus 8 one-touch automatic dialing buttons.
- Page 3 W One-Touch Tone Switching lets you temporarily switch to tone from pulse mode by pressing a button. W Electronic Hold to hold your calling party --- can be released just by lifting the handset of the unit or any extension. W Timed Flash (700 ms) Memory for automatic dialing and special telephone company services, such as call waiting.
-
Page 4: Precautions
If there is any trouble, disconnect unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your Panasonic phone repaired by one of the specified Panasonic Factory Service Centers. If the known working telephone does not operate properly, consult with your telephone company. -
Page 5: Important Information
Important Information This telephone provides magnetic In the event terminal equipment causes harm to the telephone network, coupling to hearing aids. the telephone company should notify the customer, if possible, that service “This equipment has been tested and found may be stopped. However, where prior to comply with the limits for a Class B notice is impractical, the company... -
Page 6: Operation
Contents Preparation Operation General... -
Page 7: Table Of Contents
Features ................ Precautions ......Important Information ........Contents Location of controls and jack ..... Connection ........Initial settings ..........Making Calls (Manual Operation) ........Receiving Automatic Dialing ............Other Operations ....Special Phone Company Services ......Combination Dialing ...... -
Page 8: Location Of Controls And Jack
Location of controls and jack... - Page 9 @Direct Call Button : They are used to store telephone number and to make call by one-touch dialing. @Memory Card : The instructions for storing telephone numbers into memory and dialing are printed on this Card. You may also use the reverse for writing telephone numbers. @Auto/Store Button : It is used to store and dial telephone number for speed dialing.
-
Page 10: Connection
W This unit may not be connected to a coin operated line. If you are on a party line, check with your local telephone company. n Do not use any handset other than Panasonic handset made for the model KX-T231 O/KX-T2315. -
Page 11: Initial Settings
Initial Settings (found on the bottom Only Switch Normal dialing can be operated. The manual or automatic dialing operation of a number with more than 7 digits is not possible. Ringer Volume Selector Set to “HIGH”. LOW: The ringing sound will be low. OFF: The telephone will not ring. -
Page 12: Making Calls (Manual Operation)
Making Calls (Manual Operation) Lift the handset. Dial the telephone number. Speak to the other party. Hang up when you are finished. Receiving Lift the handset. Speak to the other party. Hang up when you are finished. -
Page 13: Automatic Dialing
Automatic Dialing n There are 20 memory stations, each station is capable of storing 16 digits. W There are 8 Direct Call buttons, each capable of storing 16 digits. Each Dialing button serves as a memory station. Lift the handset. Press PROGRAM button. - Page 14 Automatic Dialing (cont.) Press Station No. ( 101 111 - 121 101 ) Press Line access number Press PAUSE button. Press the telephone number. Press AUTO/STORE button. You may use the Direct Call button instead of pressing the station number. After storing all the numbers, Press PROGRAM.
- Page 15 Press PROGRAM if you notice an error. Repeat all the steps of “Storing Phone Numbers”. Example: To erase the number in memory station m Lift the handset. Press PROGRAM button. The Store Indicator flashes. Press Station No. Or the direct call button where the telephone number that you want to erase is stored.
-
Page 16: Other Operations
Other Operations Press REDIAL button when the line is busy. Pressing the REDIAL button enables you to redial once. The PAUSE button function is needed behind the PBX for outside line access or a computer accessed dial tone. When you press the PAUSE button, you can dial the phone number without waiting for the line access. - Page 17 Other Operation (cont.) 7-o Place a Call on Hold while having a conversation, Press HOLD button. The HOLD Indicator blinks slowly. You may hang up the handset. The caller will not be disconnected. To Release Hold n When the handset is being lifted Press HOLD button again.
-
Page 18: Special Phone Company Services
Special Phone Company Services The Flash button can be used for CALL WAITING. For more details about obtaining “CALL WAITING” service, contact your telephone company. CALL WAITING While having a conversation, another party calls and a tone is heard. e-&g@“r Press FLASH button lightly. -
Page 19: Combination Dialing
Combination Dialing A combination of dialing methods can be accomplished. E Automatic and Manual Dialing H Pulse and Tone Dialing W Plural Memory Stations Troubleshooting Guide Cause & Remedy Ringer Volume Selector is set to “OFF”. Set to “HIGH” or “LOW”. Look at the Store/Hold Indicator. -
Page 20: Wall Mounting
Wall Mounting This unit can be mounted on a wall phone plate. If you do not have a modular wall plate installed, we recommend that you consult your telephone company or an installer to have one installed Mount the unit on the wall Turn around the handset hook. -
Page 21: Referencia Rapida
W Esta unidad no puede conectarse a una linea operada con monedas. Si Vd. esta en una linea de usuario, compruebe con su compariia telefonica local. No utilice ningun microtelefono diferente del microtelefono Panasonic hecho para el modelo KX-T231 OiKX-T2315. - Page 22 Referencia rapida (cont.) Puestas lniciales Selector de modo de discado Fijar a “Tone”. Si no se puede discar, ponga en “PULSE” PULSE TONE Selector de volumen de timbre Poner en “HIGH”. LOW: El sonido de repique serA bajo. OFF: El telbfono no repicark Interruptor de ~610 llamada local CA CALL ONLY OFF: Puede efectuarse discado normal.
- Page 23 Discado Automatic0 (cont.) Para almacenar un numero telefonico. Presione el ntimero de estacibn. Los ntimeros telefhicos se pueden almacenar en estaciones de memoria a m m siguiendo el procedimiento de arriba. Marque el numero telefonico. Presione el baton AUTO/STORE (auto/almacenamiento). Los nlimeros telefhicos se pueden almacenar en estaciones de...
- Page 24 Panasonic Company Division of Matsushita Electric Corporation of America One Panasonic Way, Secaucus, New Jersey 07094 Panasonic Sales Company (“PSC”), Division of Matsushita Electric of Puerto Rico, inc. San Gabriel Industrial Park, 65th Infantry Avenue, KM 9.5, Carolina, P.R. 00630...
