Getting Started

Making Connections

There are several different connection options available with the RP350. Before connecting the
RP350, make sure that the power to your amplifier and the RP350 is turned off. There is no
power switch on the RP350. To turn the RP350 on or off, connect or disconnect the included
PS093B power supply from the Power Input jack.

Mono Operation - Amplifier

Connect your guitar to the Input of the RP350. Connect a single mono instrument cable from
the Left (Mono) output of the RP350 to the instrument input or effect return on your ampli-
fier. Set the ¼˝ Amp/Mixer switch to Amp.

Stereo Operation

For stereo operation connect the guitar to the Input of the RP350. Connect one cable to
the RP350's Left (Mono) output, and another cable to the RP350's Right output. Connect
one cable to the input of one amplifier, channel of a mixer, or power amp. Connect the second
cable to a second amplifier, second channel of a mixer, or power amp. If connecting to a mixing
console, set the pan controls of the mixer channels hard left and right in order to retain stereo
separation. If connecting to a mixer, set the ¼˝ Amp/Mixer switch to Mixer. If connecting to
two amplifiers, set the ¼˝ Amp/Mixer switch to Amp.

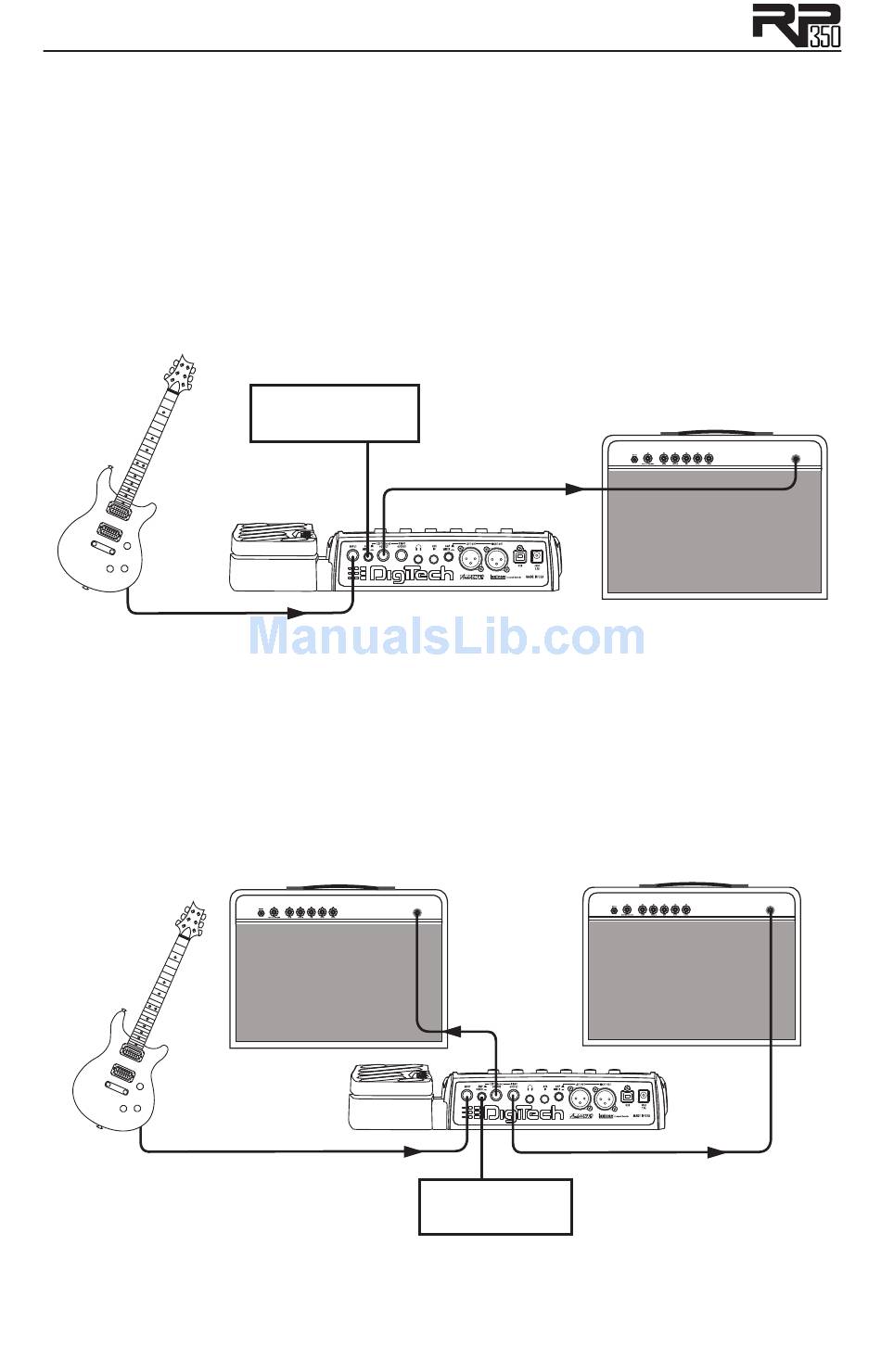

Stereo Amp Setup
8
¼" Amp/Mixer
switch set to "Amp"
¼" Left (Mono) Output
Input
Input
switch set to "Amp"
¼" Left (Mono)
Output
¼" Right Output
¼" Amp/Mixer
