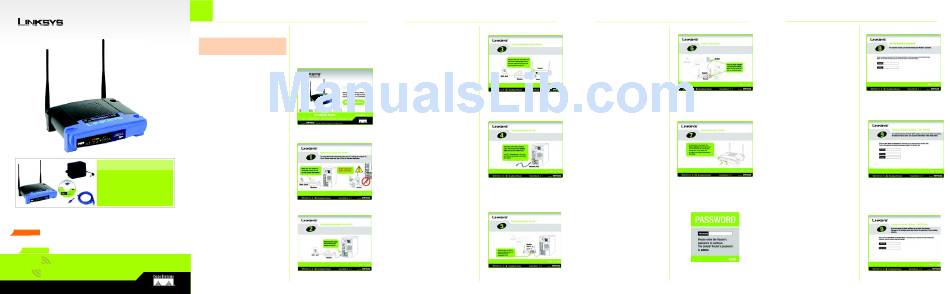

Linksys WRT55AG Quick Installation

®
A Division of Cisco Systems, Inc.
Package Contents
• Dual-Band Wireless A+G Broadband Router
• Setup CD-ROM with Symantec Internet Security
• User Guide on CD-ROM
• Power Adapter
• Ethernet Network Cable
• Quick Install Guide
• Registration Card
Dual-Band
5 +
GHz
802.11a
Dual-Band
2.4 GHz Wireless A+G
802.11g
Broadband Router
Quick Installation
Wireless
Model No.
WRT55AG
Model No.
1
Router Installation using the Setup
Wizard
NOTE: Do not connect the Router until
instructed to do so.
A
Locate your PC's CD-ROM
drive and insert the Setup CD-
ROM. The Setup Wizard should
run automatically and the Wel-
come screen should appear. If
it does not, click the Start but-
ton and select Run. In the field
that appears, enter
D:\setup.exe (if "D" is the letter
of your CD-ROM drive).
B
B
When the Welcome screen
appears, click the Click Here
to Start button in the middle of
the screen.
C
The first screen reminds you
that you need a modem con-
nected to your PC and an
Internet connection before
C
you start.
D
Screen 2 asks you to discon-
nect the cable that connects
the modem to the PC's net-
work port.
D
E
Then the next screen asks you
to reconnect the modem's
cable to the Internet port on
the back of the Router.
E
F
Screen 4 asks you to locate
the supplied network cable
and the PC's network port from
where you disconnected the
modem. Connect one end of
the network cable to the net-
work port.
F
G
Connect the other end of the
network cable to one of the
numbered ports on the back
of the Router.
G
3
H
Screen 6 asks you to locate
the supplied power adapter.
Connect one end to the power
port on the back of the Router,
and the other to an electrical
outlet.
H
I
Screen 7 asks you to look for
the LEDs on the front of the
Router. Make sure that the LEDs
are lit for Power, Internet, and
one of the numbered network
connections.
If an LED isn't lit, check your
connections again.
If a Static IP Internet connec-
tion is detected, the Setup Wiz-
I
ard will help you configure the
network settings.
J
If your Router is connected
correctly, a Password screen
will appear. Enter the default
admin in the field. Then, click
Enter.
J
K
Screen 8 asks you to change
the password to make your
Router more secure. Enter a
new password, which can be
between 1 and 32 characters,
in the Password field, then
repeat it in the Confirm field.
K
L
The Screen 9 you see will
depend on the Internet con-
nection that is detected by the
Setup Wizard.
If you have a DSL Internet con-
nection (L1) and your Internet
Service Provider (ISP) requires
you to log in to the Internet,
enter your Internet User Name
and Password in the fields, and
L1
click Next.
If you have a cable Internet
connection (L2), your Host
Name and Domain Name will
appear in the fields. Click Next.
L2
