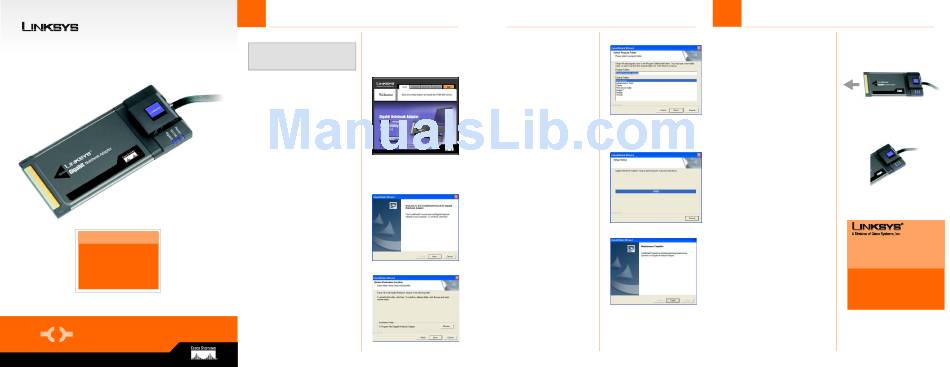

Cisco Linksys PCM1000 Quick Installation

®
A Division of Cisco Systems, Inc.
Package Contents
• One PCM1000 Gigabit Notebook
Adapter
• Setup Wizard CD-ROM with User Guide
in PDF format
• One Quick Installation Guide
• Network Cable
Quick Installation
Gigabit Notebook Adapter
Quick Installation
WIRED
Model No. PCM1000 (EU/LA/UK)
Model No.
1
Install the Driver
IMPORTANT: Make sure to run the Setup
Utility before installing the Adapter or
else the setup will not work.
A
Insert the Setup Utility CD into
your PC's CD-ROM drive.
B
The Setup Utility's Welcome
screen should appear on your
monitor. If it does not, this
means the Setup Utility is not
automatically running as it
should. Start the Setup Utility
manually by clicking the Start
B
button, selecting Run, and
typing d:\setup.exe (where "D"
is your PC's CD-ROM drive).
Click the Install button.
C
The Welcome screen will
appear. Click Next.
C
D
The Choose Destination
Location folder will appear
next. To install the driver in the
default folder location, click
Next.
D
1
To install the driver in a different
folder, click Browse and select
a folder location. Then, click
Next.
D
2
E
The driver files will be copied
onto your PC.
E
F
This screen will appear when
the installation is complete.
Click Finish.
G
Click the Exit tab to exit the
Utility.
F
Continue to Step 2 to install the
Adapter.
2
Install the Hardware
A
Make sure that your notebook
PC is turned off.
B
Locate your PC's PCMCIA slot
(usually located on the side).
Insert the pin end of the
Gigabit Notebook Adapter into
the slot with the LEDs facing up. B
Make sure that the Adapter
seats firmly in place.
C
Connect an Ethernet cable to
the Ethernet port on the
Adapter, then connect the
other end to the Ethernet port
on the switch or other
networking device.
C
The setup and hardware
installation are complete.
For additional information or troubleshooting
help, refer to the User Guide on the Setup
CD-ROM. You can also e-mail for further
support.
Website
http://www.linksys.com/international
Registration
http://www.linksys.com/registration
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2005
Cisco Systems, Inc. All rights reserved.
PCM1000-EU-LA-UK-QI-50502B JL
