Tripp Lite B118-304-R Specifications

HDMI Splitter, 4-Port
MODEL NUMBER: B118-304-R
Description
Tripp Lite's HDMI Splitter allows the digital signal from a Blu-Ray player or other HDMI device, to be displayed on
multiple HDMI or DVI-D Single Link monitors. Supports computer video resolutions up to 1920 x 1200, and HD
resolutions up to 1080p. Up to 64 displays can be connected by cascading up to three levels of additional
splitters. Locate a monitor up to 41 ft. (12.5 m.) from a HDMI source; up to 16 ft. (5 m.) between the source and
the splitter; up to 25 ft. (7.62 m.) between the splitter and a monitor. Splitters can be located up to 100 ft. away
from the source using a combination of Tripp Lite long length HDMI cables ( P568-050,
HDMI Signal Booster (B122-000-60
for GSA Schedule purchases.
Features
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
HDCP compliant
Supports 3D, Lip-Sync Pass Through, and CEC Pass Through
Connects to both HDMI and DVI-D Single-Link displays
Cascade up to three levels of splitters to support up to 64 displays
Locate a monitor up to 41 ft. (12.5 m.) from a HDMI source; up to 16 ft. (5 m.) between the source and the
switch; up to 25 ft. (7.62 m.) between the switch and a monitor
ATC certified
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

OVERVIEW
Display Style
Model Type
or B123-001-60). Compliant with the Federal Trade Agreements Act (TAA)
Splitter
HDMI Splitters
P568-100-HD ) and a
1 / 2
Highlights
Supports computer video
resolutions up to 1920 x 1200,
and HD resolutions up to 1080p.
HDCP compliant
Connects to both HDMI and
DVI-D Single-Link displays
ATC certified
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Applications
Retail, Classroom, Movie
Theaters...anywhere a HD signal
needs to be broadcast to multiple
digital dispays
System Requirements
TV's with an available HDMI port
and a HDMI peripheral device
(e.g. Blu-Ray player, DVR, etc.)
The cable connecting the HDMI
source to the splitter must be no
longer than 16 ft. (5 m.), unless
using a signal booster
( B122-000-60 or B123-001-60)
The cable connecting the splitter
to a HDMI monitor must be no
longer than 25 ft. (7.62 m.)
Package Includes

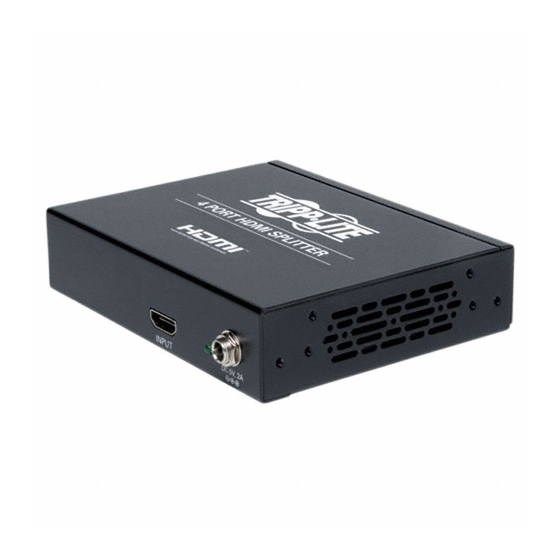

B118-304-R 4-Port HDMI Splitter
External Power Supply (Input:
100-240V, 50/60Hz, 0.5A Output:
5V, 2A)
Mounting Hardware
Owner's Manual
