Jensen VM9215BT Installation Manual

Car audio

Hide thumbs Also See for VM9215BT:

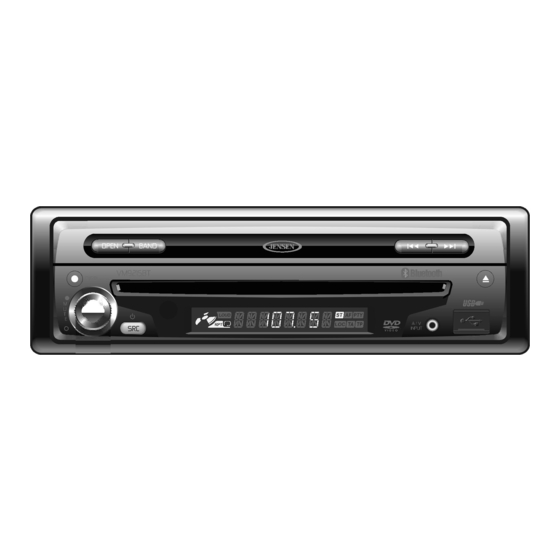

VM9215BT Head Unit

Single DIN Sleeve

Wiring Harness

Parking Brake Sensor Extension Wire

You will need these tools and supplies to install your VM9215BT:

• Torx type, fl at-head and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16 – 18 gauge speaker wire

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

VM9215BT

What's in the Box

Tools and Supplies

Installation Guide

Mounting Hardware

Cosmetic Trim Ring

Owner's Manual

Installation Guide

Table of Contents

Page 1 Parking Brake Sensor Extension Wire Installation Guide Tools and Supplies You will need these tools and supplies to install your VM9215BT: • Torx type, fl at-head and Philips screwdrivers • Wire cutters and strippers • Tools to remove existing radio (screwdriver, socket wrench set or other tools) •...
Page 2: Disconnecting The Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation. NOTE: If the VM9215BT is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable.
Page 3: Final Installation
If there is no ACC available, connect the ACC lead to the power supply with a switch. NOTE: When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VM9215BT uses one 15 amp fuse, located in the black fi lter box in-line with the main wire harness.
Page 4: Wiring Diagram
For occasional iPod® use, keep an iPod® cable in your glove box and use it to connect the iPod® to the front USB connector. Need Help? CAMERA Rear View YELLOW Video Camera For technical assistance, call the Jensen YELLOW customer support line at 1-800-323-4815. Rear Video VIDEO OUT REAR R REAR L...
