Set Up the Switch

Set Up the Switch

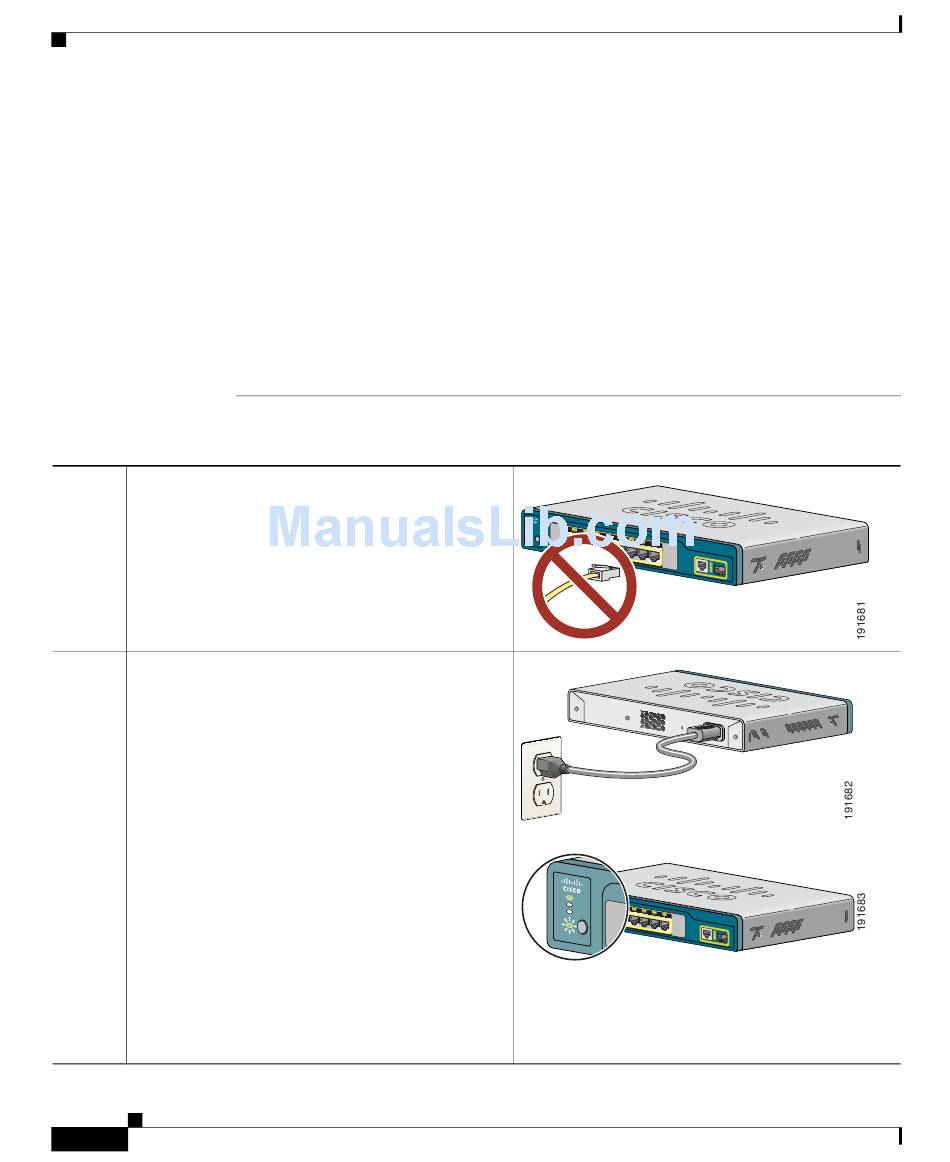

Step 1
Make sure that nothing is connected to the
switch.
Step 2 Use the supplied switch power cable to
connect the switch to an AC power source.
Before proceeding to the next step, wait until
the SYSTEM LED stops blinking green and
becomes solid green. A solid green SYSTEM
LED means that the switch is operating
properly.
The ADMIN LED should be blinking green.
A blinking green ADMIN LED means that the
switch does not have an IP address yet.
Troubleshooting:
If the SYSTEM LED does not blink green, does
not turn solid green, or turns amber, contact
your Cisco representative or reseller. The switch
failed the power-on self-test (POST).
Getting Started Guide for the Catalyst Express 520 Switches
4
Prerequisites
You need the hardware and software described in the "Hardware
•
Requirements" section and the "Software Requirements" section in Chapter 1
of the switch user guide.
You need the Category 5 Ethernet cable that is shipped with the switch.
•
You should disable any pop-up blockers or proxy settings in your browser
•
software and any wireless clients running on your PC or laptop.
Follow these steps:
SYST
ALRT
1
PoE 2
3
4
5
6
ADM IN
7
8
Ca ta lys
t Ex pr es
POW ER
OVER ETH ERN
ET
SY ST
SYST
ALRT
1
AL RT
PoE 2
3
4
5
Po E
6
ADMI N
7
8
Ca tal ys
t Ex pr es
POW ER
OVER
ETH ERN
ET
AD MI N
s 52 0
Se rie s
1
s 52 0
Se ries
1
78-18063-02
