A38384, SMEF R-290H(S)

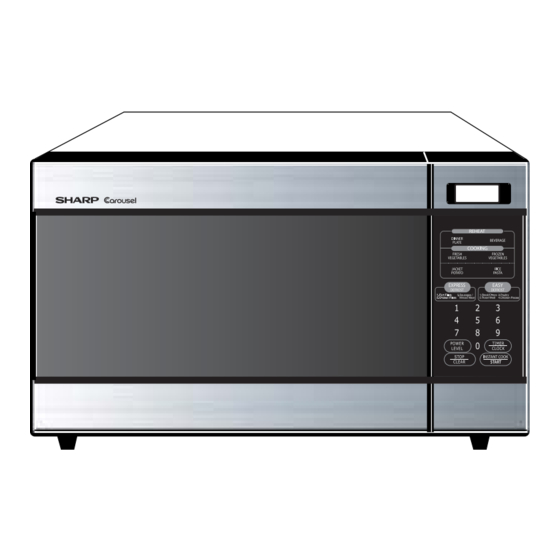

MICROWAVE OVEN

L
maAî§aãovae v a åovana
R-290H(S)
OPERATION MANUAL
åA´ p are z ana maq N yau å L‹
SHARP CORPORATION
A38384, SMEF R-290H(S)
1
1/6/03, 4:59 PM

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-290H

Summary of Contents for Sharp R-290H

  • Page 1: Microwave Oven

    A38384, SMEF R-290H(S) MICROWAVE OVEN maAî§aãovae v a åovana R-290H(S) OPERATION MANUAL åA´ p are z ana maq N yau å L‹ SHARP CORPORATION A38384, SMEF R-290H(S) 1/6/03, 4:59 PM...

  • Page 2: Table Of Contents

    A38384, SMEF R-290H(S) CONTENTS Pages Warning ..........E-1 Hi-1 Special Notes ........E-2 Hi-2 Installation Instructions ...... E-3 Hi-3 Oven Diagram ........E-4 Hi-4 Operation of Touch Control Panel ..E-5 Hi-5 Control Panel Display ..... E-5 Hi-5 Touch Control Panel Layout ... E-5 Hi-5 Microwave Cooking Techniques ..

  • Page 3: Warning

    5. Do not try to adjust or repair the oven yourself. It is hazardous for anyone other than a qualified service technician trained by SHARP to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

  • Page 4: Special Notes

    A38518, SMEF R-290H(S), O/M, EN SPECIAL NOTES DON’T Eggs, fruits, * Puncture egg yolks and whites and * Cook eggs in shells. This prevents nuts, seeds oysters before cooking to prevent “explosion”, which may damage the vegetables, “explosion”. oven or injure yourself.

  • Page 5: Installation Instructions

    If there is any damage, please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY SHARP and repaired, if necessary. 2. Accessories provided...

  • Page 6: Oven Diagram

    A38518, SMEF R-290H(S), O/M, EN OVEN DIAGRAM 8. Control panel (See page E-5) 1. Door open button 9. Liquid crystal display 2. Oven lamp 10. Waveguide cover 3. Door hinges 11. Power supply cord 4. Door safety latches 12. Ventilation openings 5.

  • Page 7: Operation Of Touch Control Panel

    A38518, SMEF R-290H(S), O/M, EN OPERATION OF CONTROL PANEL The operation of the oven is controlled by pressing the appropriate pads arranged on the surface of the control panel. An entry signal tone should be heard each time you press the control panel to make a correct entry.

  • Page 8: Microwave Cooking Techniques

    A38518, SMEF R-290H(S), O/M, EN MICROWAVE COOKING TECHNIQUES Arrange food carefully Place thickest areas toward outside of dish. Cook for the shortest amount of time indicated and add more time Watch cooking time as needed. Food severely over-cooked can smoke or ignite.

  • Page 9: Before Operating

    A38518, SMEF R-290H(S), O/M, EN BEFORE OPERATING Getting Started Step Procedure Pad Order Display Ensure the oven door is closed. Plug the oven into a power point. Flashing eights Press the STOP/CLEAR pad so that the STOP oven beeps. CLEAR Only the dots will remain.

  • Page 10: Manual Operations

    A38518, SMEF R-290H(S), O/M, EN MANUAL OPERATIONS Microwave Time Cooking This is a manual cooking feature, first enter the cooking time then the power level. There are five different power levels. – – – – – – – – – –...

  • Page 11: Sequence Cooking

    Instant Cook™ For your convenience Sharp’s Instant Cook allows you to easily cook for one minute on 100% power. Step Procedure Pad Order Display Press the INSTANT COOK/START pad.

  • Page 12: Increasing Time During A Cooking Programme

    A38518, SMEF R-290H(S), O/M, EN Increasing Time During a Cooking Programme Microwave time can be added during a cooking programme using the INSTANT COOK/START pad. * Suppose you want to increase the cooking time by 2 minutes during 5 minutes on 50% power cooking.

  • Page 13: Automatic Operations

    A38518, SMEF R-290H(S), O/M, EN AUTOMATIC OPERATIONS Notes for Automatic Operations 1. When using the automatic features, carefully follow the details provided in each MENU GUIDE to achieve the best result. If the details are not followed carefully, the food may be overcooked or undercooked or may be displayed.

  • Page 14: Instant Action Menu Guide

    A38518, SMEF R-290H(S), O/M, EN Instant Action Menu Guide Quantity Initial Standing (Unit per pressing Menu Temperature Procedure Time each INSTANT (minutes) (approx.) ACTION pad) + 3°C • Cover with plastic wrap. Dinner Plate 1 serve Refrigerated • After cooking, stand (approx.

  • Page 15: Express Defrost

    A38518, SMEF R-290H(S), O/M, EN Express Defrost EXPRESS DEFROST rapidly defrosts 0.5 kg specific 1.Fish Fillets foods. 2.Chicken Fillets Follow the details provided in EXPRESS DEFROST 3.Sausages / MENU GUIDE on page E-14. Minced Meat * Suppose you want to defrost 0.5 kg of Chicken Fillets.

  • Page 16: Express Defrost Menu Guide

    A38518, SMEF R-290H(S), O/M, EN Express Defrost Menu Guide Standing Quantity Procedure Time Menu (kg’s) (minutes) Fish Fillets • Place fish fillets on the defrost rack. • The oven will "beep" and stop, CHECK will flash on and off. Turn over and separate into pieces.

  • Page 17: Easy Defrost

    A38518, SMEF R-290H(S), O/M, EN Easy Defrost EASY DEFROST will automatically compute the 1.Steak / Chops microwave power and defrosting time. 2.Roast Meat Follow the details provided in EASY DEFROST MENU 3.Poultry GUIDE on page E-16. 4.Chicken Pieces * Suppose you want to defrost 1.0 kg of Chicken Pieces.

  • Page 18: Easy Defrost Menu Guide

    A38518, SMEF R-290H(S), O/M, EN Easy Defrost Menu Guide Standing Quantity Time min-max Menu Procedure (kg's) (minutes) • Shield thin end of chops or steaks with foil. 0.1-1.5 Steak • Position the food with thinner parts in the Chops centre in a single layer on the defrost rack.

  • Page 19: Other Convenient Features

    A38518, SMEF R-290H(S), O/M, EN OTHER CONVENIENT FEATURES Less/More Setting The cooking times programmed into the automatic menus are tailored to the most popular tastes. To adjust the cooking time to your individual preference use the "more" or "less" feature to either add (more) or reduce (less) cooking time.

  • Page 20: Timer

    A38518, SMEF R-290H(S), O/M, EN Timer Use this feature as a general purpose timer. Example include: timing boiled eggs cooked on the stove top. timing the recommended standing time of food. You can enter any time up to 99 minutes, 99 seconds. If you want to cancel the timer during the count down phase simply press STOP/CLEAR and the display will return to showing time of day.

  • Page 21: Care And Cleaning

    A38518, SMEF R-290H(S), O/M, EN CARE AND CLEANING Disconnect the power supply cord before cleaning or leave the door open to inactivate the oven during cleaning. CLEAN THE OVEN AT REGULAR INTERVALS - Keep the oven clean, or it could lead to deterioration of the surface.
  • Page 22 A38518, SMEF R-290H(S), O/M, EN ø à ÊflŸË SHARP SHARP SHARP SHARP SHARP Hi-1 1-4-Hin.PM6 12/18/02, 1:54 PM...
  • Page 23 A38518, SMEF R-290H(S), O/M, EN Áfl‡Ê · Á≈U å ¬ÁáÊÿÊ¢ ∑§⁄ ¥ U Ÿ ∑§⁄ ¥ U Hi-1 Hi-2 1-4-Hin.PM6 12/18/02, 1:54 PM...
  • Page 24 A38518, SMEF R-290H(S), O/M, EN ߢ S ≈U Ê Ú ‹  ‡ ÊŸ ‚ê’¢ œ Ë ÁŸŒ ¸ ‡ Ê Hi-4 SHARP Hi-4 A.C. ø à ÊflŸË - •ÙflŸ ∑§Ù •Õ¸ ∑§⁄U Ÿ Ê  ÊM§⁄U Ë „Ò U –...
  • Page 25 A38518, SMEF R-290H(S), O/M, EN •ÙflŸ ∑§Ê ⁄ U π ÊÁøòÊ Hi-5 Hi-4 1-4-Hin.PM6 12/18/02, 1:55 PM...
  • Page 26 A38518, SMEF R-290H(S), O/M, EN COOK CHECK ∑È § ∑§ «U Ë .߸ . ∞»§. Á∑§.ª˝ Ê . ◊ÊòÊÊU øÒ ∑ § INSTANT ACTION POWER LEVEL INSTANT COOK/START EXPRESS DEFROST TIMER/CLOCK EASY DEFROST STOP/CLEAR Hi-5 5-11-Hin.PM6 12/18/02, 4:26 PM...
  • Page 27 A38518, SMEF R-290H(S), O/M, EN Hi-6 5-11-Hin.PM6 12/18/02, 4:26 PM...
  • Page 28 A38518, SMEF R-290H(S), O/M, EN STOP/CLEAR STOP CLEAR TIMER/CLOCK TIMER CLOCK TIMER/CLOCK TIMER CLOCK STOP/CLEAR TIMER/CLOCK TIMER/CLOCK STOP/CLEAR STOP/CLEAR STOP/CLEAR Hi-7 5-11-Hin.PM6 12/18/02, 4:27 PM...
  • Page 29 A38518, SMEF R-290H(S), O/M, EN – – – – – – – – – – – – 100% – – – – – – – – – – – – – – – – – – – – – –...
  • Page 30 A38518, SMEF R-290H(S), O/M, EN POWER LEVEL ( POWER LEVEL INSTANT COOK/START INSTANT COOK START COOK COOK Instant Cook INSTANT COOK/START INSTANT COOK START COOK INSTANT COOK/START Hi-9 5-11-Hin.PM6 12/18/02, 4:27 PM...
  • Page 31 A38518, SMEF R-290H(S), O/M, EN INSTANT COOK/START POWER LEVEL ( POWER LEVEL INSTANT COOK/START INSTANT COOK START COOK COOK INSTANT INSTANT COOK START COOK/START COOK Hi-10 5-11-Hin.PM6 12/18/02, 4:27 PM...
  • Page 32 A38518, SMEF R-290H(S), O/M, EN POWER LEVEL Hi-17 INSTANT ACTION EASY DEFROST INSTANT COOK/ START STOP/CLEAR Hi-12 JACKET POTATO JACKET POTATO COOK COOK CHECK CHECK CHECK INSTANT COOK/START INSTANT COOK START COOK Hi-11 5-11-Hin.PM6 12/18/02, 4:28 PM...
  • Page 33 A38518, SMEF R-290H(S), O/M, EN + 3°C • • 175-180 + 20°C • • • + 3°C • 0.1-0.6 • 1 - 5 • • • – 18°C 0.1-0.6 • 1 - 5 • • + 20°C • • •...
  • Page 34 A38518, SMEF R-290H(S), O/M, EN Hi-14 EXPRESS DEFROST EXPRESS DEFROST INSTANT COOK INSTANT COOK/START START COOK COOK CHECK CHECK CHECK INSTANT COOK/START INSTANT COOK START COOK Hi-13 12-19-Hin.PM6 12/18/02, 4:12 PM...
  • Page 35 A38518, SMEF R-290H(S), O/M, EN • • CHECK • START • • • CHECK • START • • • CHECK • START • Hi-14 12-19-Hin.PM6 12/18/02, 4:12 PM...
  • Page 36 A38518, SMEF R-290H(S), O/M, EN Hi-16 EASY DEFROST EASY DEFROST INSTANT COOK/START INSTANT COOK START COOK COOK CHECK CHECK CHECK INSTANT COOK/START INSTANT COOK START COOK Hi-15 12-19-Hin.PM6 12/18/02, 4:12 PM...
  • Page 37 A38518, SMEF R-290H(S), O/M, EN 0.1-1.5 • • • CHECK 5 - 20 • START • • 0.1-1.5 • CHECK 5 - 20 • START • • 0.5-1.5 • • CHECK 5 - 30 • START • • 1.0-1.5 •...
  • Page 38 A38518, SMEF R-290H(S), O/M, EN INSTANT ACTION EXPRESS DEFROST EASY DEFROST (1) INSTANT ACTION BEVERAGE BEVERAGE POWER LEVEL POWER LEVEL (2) EXPRESS DEFROST EASY DEFROST EASY DEFROST EASY DEFROST POWER LEVEL POWER LEVEL INSTANT COOK/START INSTANT COOK START COOK EASY DEFROST...
  • Page 39 A38518, SMEF R-290H(S), O/M, EN STOP/CLEAR TIMER/CLOCK TIMER CLOCK TIMER/CLOCK INSTANT COOK/ START SAFE TIMER/CLOCK STOP/CLEAR TIMER/CLOCK INSTANT COOK/START INSTANT COOK/START TIMER/CLOCK STOP/CLEAR Hi-18 12-19-Hin.PM6 12/18/02, 4:13 PM...
  • Page 40 ∑§Ÿ‡ÊŸ •ÊÒ ⁄ U çÿÍ   Ê ‚„U Ë „U Ò Ò U ÃÊ ¥ U – SHARP ŸÊ≈U — v. Á«U S å‹ ¬⁄U „U Ê Ÿ flÊ‹Ë ‚◊ÿ ∑§Ë ©U À ≈U Ë ÁªŸÃË •ª⁄U Ã¡Ë ‚ „U Ê , ÃÊ «U ◊ ÊÚ ã S≈˛ U ‡ ÊŸ ◊Ê«U ø∑§ ∑§⁄¥ U – (¡ÊŸ∑§Ê⁄U Ë ∑§ Á‹ÿ ¬¡...
