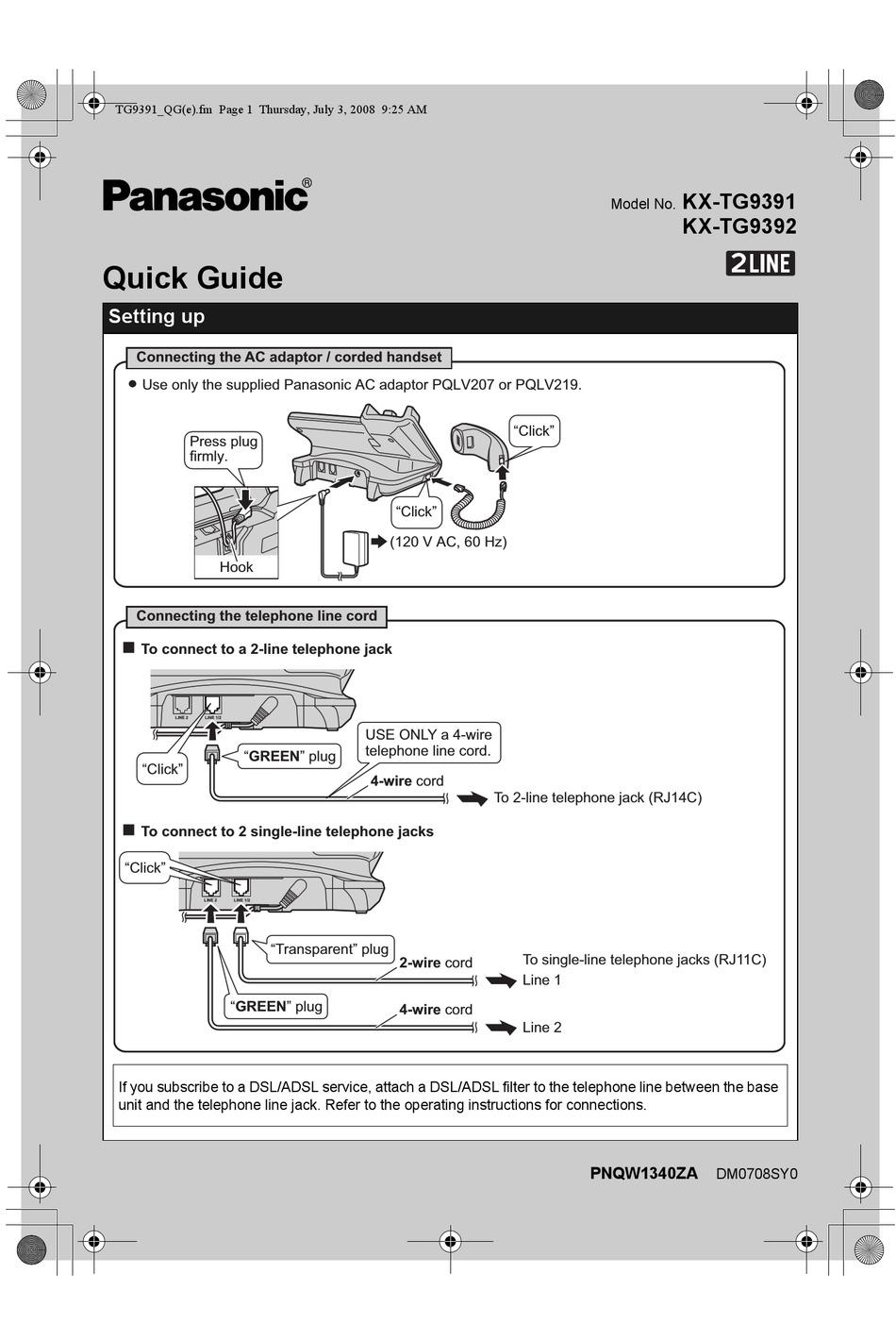

TG9391_QG(e).fm Page 1 Thursday, July 3, 2008 9:25 AM
Quick Guide
Setting up
Connecting the AC adaptor / corded handset
L Use only the supplied Panasonic AC adaptor PQLV207 or PQLV219.
Press plug
firmly.
Hook
Connecting the telephone line cord
N
To connect to a 2-line telephone jack
"GREEN" plug
"Click"
N
To connect to 2 single-line telephone jacks
"Click"
"Transparent" plug
"GREEN" plug
If you subscribe to a DSL/ADSL service, attach a DSL/ADSL filter to the telephone line between the base
unit and the telephone line jack. Refer to the operating instructions for connections.
"Click"
"Click"
(120 V AC, 60 Hz)
USE ONLY a 4-wire
telephone line cord.
4-wire cord
To 2-line telephone jack (RJ14C)
To single-line telephone jacks (RJ11C)
2-wire cord
Line 1
4-wire cord
Line 2
KX-TG9391
Model No.
KX-TG9392
PNQW1340ZA
DM0708SY0
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TG9391
Summary of Contents for Panasonic KX-TG9391
-
Page 1: Quick Guide
TG9391_QG(e).fm Page 1 Thursday, July 3, 2008 9:25 AM KX-TG9391 Model No. KX-TG9392 Quick Guide Setting up Connecting the AC adaptor / corded handset L Use only the supplied Panasonic AC adaptor PQLV207 or PQLV219. “Click” Press plug firmly. “Click” (120 V AC, 60 Hz) Hook... -
Page 2: Operating Tips
“Charging” is Rechargeable Ni-MH ONLY displayed. (120 V AC, 60 Hz) L Use only the supplied Panasonic AC adaptor PQLV209 or PQLV219. Operating tips Using the navigator keys The navigator keys can be used to navigate through menus and to... -
Page 3: Basic Operations
TG9391_QG(e).fm Page 3 Thursday, July 3, 2008 9:25 AM Date and time (Base unit/Handset) Program this setting using either the base unit or one of the handsets. {MENU} i {#}{1}{0}{1} Enter the current month, date, and year. Enter the current hour and minute (12-hour clock format). Press {*} to select “AM”... -
Page 4: Frequently Asked Questions
L Yes, you can add up to 6 handsets (including the handset(s) sold to my base unit? with your own base unit) to a single base unit. L To purchase accessory handset (KX-TGA939), please visit http://www.panasonic.com or call 1-800-332-5368. TTY users (hearing or speech impaired users) can call 1-866-605-1277. – 4 –... -
Page 5: Quick Troubleshooting
How can I answer a call waiting call L Press {CALL WAIT} when you hear the call waiting tone. (2nd call)? For further information, visit http://www.panasonic.com/help or refer to operating instructions. Quick troubleshooting 1 Cordless handset shows: “No link to base. Reconnect AC adaptor.”... - Page 6 Try to connect your Your telephone may need telephone into a on previous page. service when only back different line. speaker provides a dial tone. Still displayed Your telephone may need service. Please visit http://www.panasonic.com/help for further troubleshooting. – 6 –...
-
Page 7: Registering A Handset To The Base Unit
L The next step should be completed within 90 seconds. {LOCATOR} Handset Press LOCATOR Press {OK}, then wait until a long beep sounds. on base for 5sec Then press OK BACK {OK} For further registration information, visit http://www.panasonic.com/RegisterYourHandset – 7 –... - Page 8 L FAQs and troubleshooting hints are available. 3 Contact us via the web at: http://www.panasonic.com/contactinfo 4 Call us at: 1-800-211-PANA (1-800-211-7262) L Monday - Friday 9:00am - 9:00pm (EST), Saturday/Sunday 10:00am - 7:00pm (EST) To order a replacement battery, please call: 1-800-332-5368 Or visit: http://www.panasonic.com/batterystore...
