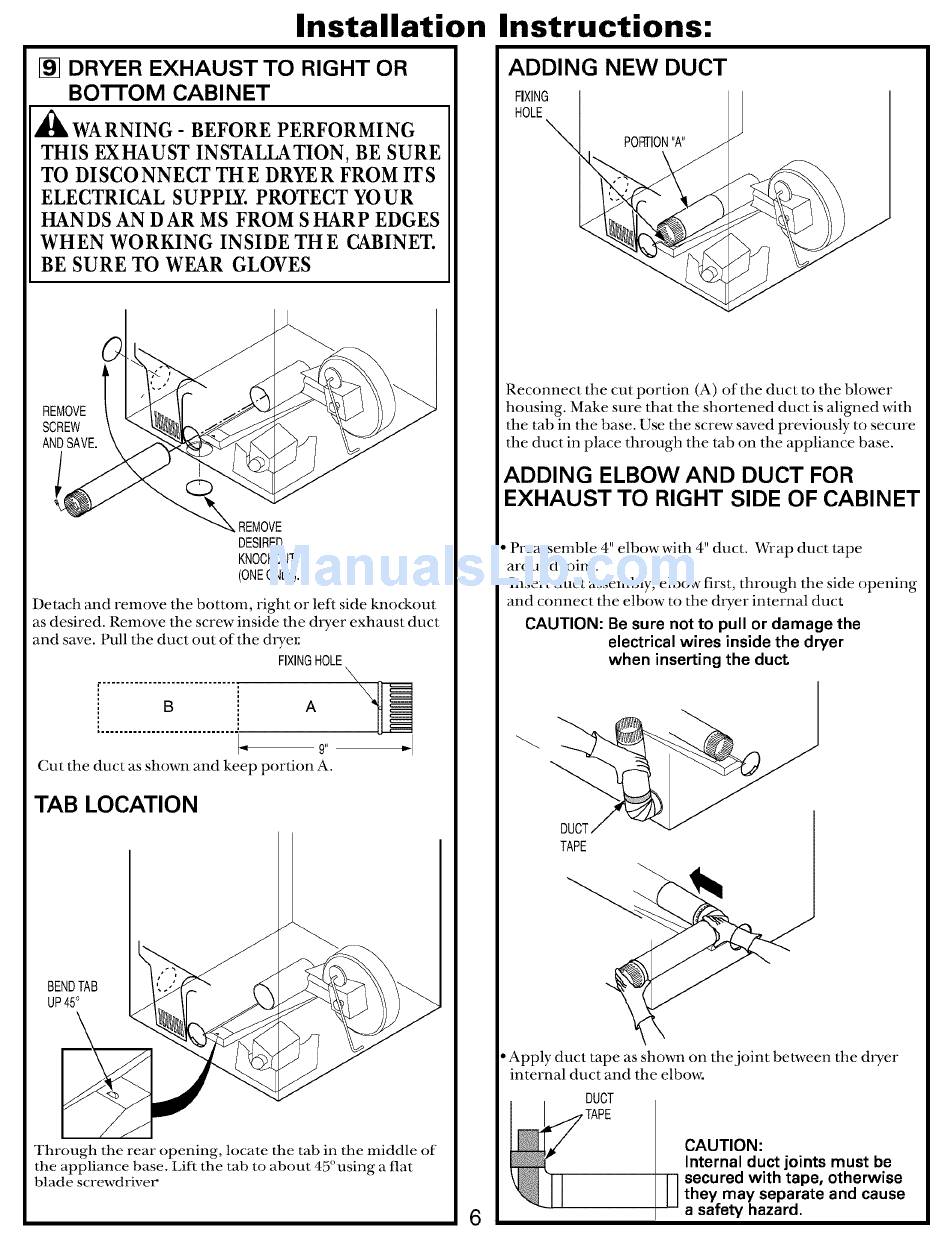

Installation
[] DRYER EXHAUST
TO RIGHT OR
BOTFOM
CABINET
,_
WARNING - BEFORE
PERFORMING
THIS EXHAUST
INSTALLATION,
BE SURE
TO DISCONNECT
THE DRYER FROM ITS
ELECTRICAL
SUPPLY. PROTECT
YOUR
HANDS AN DAR MS FROM S HARP EDGES
WHEN
WORKING
INSIDE
TH E CABINET.
BE SURE TO WEAR GLOVES
REMOVE
SCREW
ANDSAVE.
REMOVE
DESIRED
KNOCKOUT
(ONEONLY).
Detach
and remove
the bottom,
right or left side knockout
as desired.
Remove
the screw inside
the dryer exhaust
duct
and save. Pull the duct out of the dryer.
FIXING HOLE
B
A
14
9"
Cut the duct as shown and keep portion A.
TAB LOCATION
BEND TAB
UP45 o
Through
the rear opening,
locate
the tab in the middle
of
the appliance
base. till
the tab to about
45°using
a fiat
blade
screwdriver"
nstructions:
ADDING NEW DUCT
FIXING
HOLE
_\
PORTION
"A"
Reconnect
the cut portion
(A) of the duct to the blower
housing. Make sure that the shortened
duct is aligned with
the tab in the base. Use the screw saved previously
to secure
the duct in place through
the tab on the appliance
base.
ADDING
ELBOW AND DUCT FOR
EXHAUST
TO RIGHT SIDE OF CABINET
• Preassemble
4" elbowwith
4" duct. Wrap duct tape
around joint.
• Insert duct assembly, elbow first, through
the side opening
and connect
the elbow to the dryer internal duct
CAUTION: Be sure not to pull or damage the
electrical wires inside the dryer
when inserting the duct,
TAPE
• Apply duct tape as shown
on the joint
between
the dryer
internal
duct and the elbow.
DUCT
CAUTION:
Internal duct joints must be
_[_ secured with tape, otherwise
they may separate and cause
a safety hazard.
