GE PDW8100 Series Installation Instructions Manual
Built-in dishwasher
Hide thumbs
Also See for PDW8100 Series:
- Owner's manual (41 pages) ,
- Installation instructions manual (16 pages) ,
- Owner's manual (48 pages)
Table of Contents
Advertisement
Quick Links
installation
instructions
uilt-
is was
er

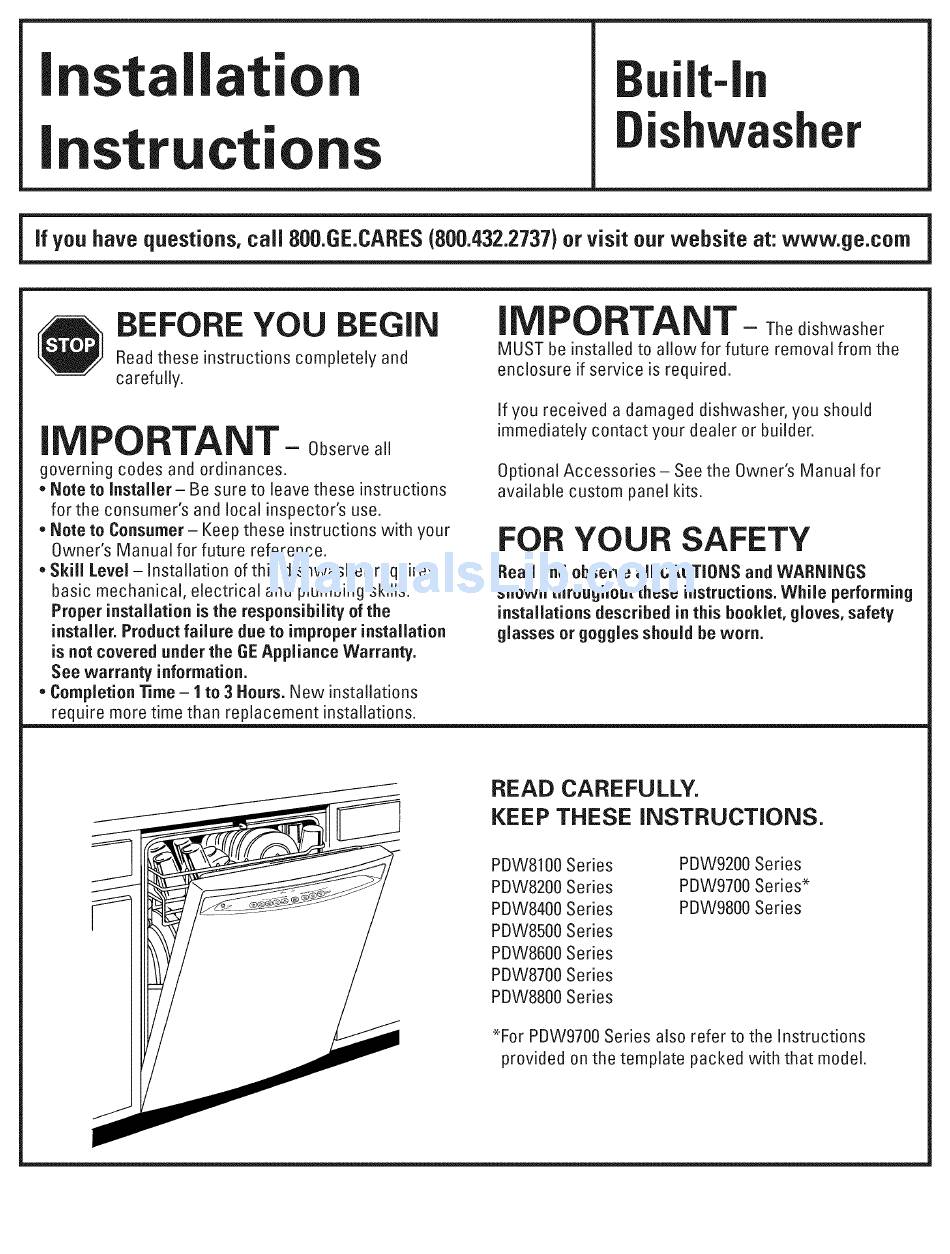

BEFORE YOU BEGIN
Read these instructions completely and
carefully.
I
PORTANT
- The d ishwasher
MUST be installed to allow for future removal from the
enclosure if service is required.
I
RTANT
= Observe a,,
governing codes and ordinances.
, Note to Installer-
Be sure to leave these instructions
for the consumer's and local inspector's use.
, Note to Consumer-
Keep these instructions with your
Owner's Manual for future reference.
, Skill Level - installation of this dishwasher requires
basic mechanical, electrical and plumbing skills.
Proper installation is the responsibility
of the
installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty.
See warranty
information.
, Completion Time - 1 to 3 Hours. New installations
require more time than replacement installations.
If you received a damaged dishwasher, you should
immediately contact your dealer or builder.
Optional Accessories - See the Owner's Manual for
available custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions. While performing
installations described in this booklet, gloves, safety
glasses or goggles should be worn.
READ CAREFULLY.
KEEP THESE iNSTRUCTiONS.
PDW8100 Series
PDW8200 Series
PDW8400 Series
PDW8500 Series
PDW8600 Series
PDW8700 Series
PDW8800 Series
PDW9200 Series
PDW9700 Series*
PDW9800 Series
*For PDW9700 Series also refer to the Instructions
provided on the template packed with that model.
