Cadero CB6-SBG001-A User Manual

Gas barbecue grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

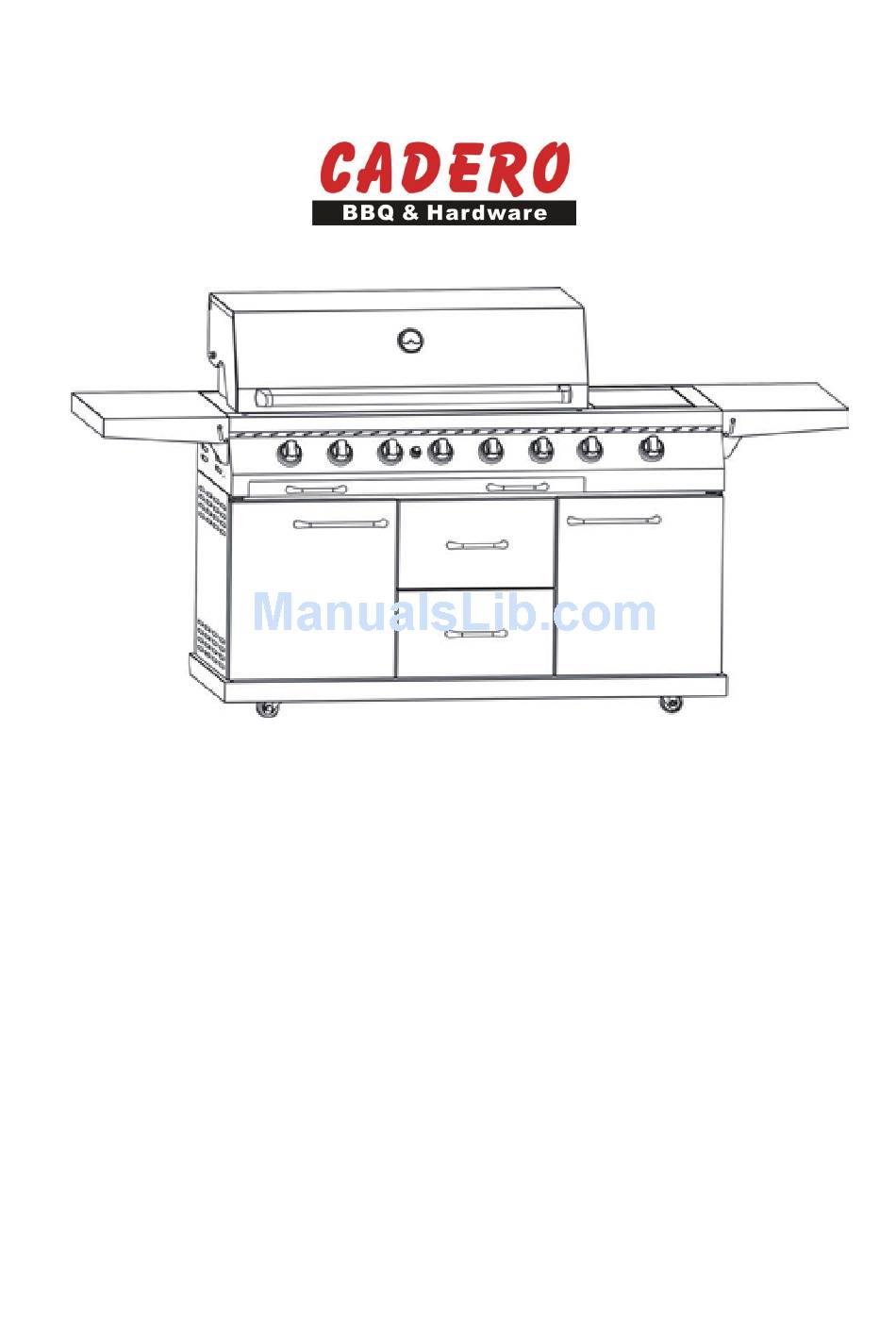

USER MANUAL FOR GAS BARBECUE GRILL
• FOR PROPANE ONLY.
• IF A REPLACEMENT IS NECESSARY, PLEASE CONTACT EITHER OUR CUSTOMER SERVICE
DEPARTMENT OR YOUR LOCAL DEALER.
• THE USE OF UNAUTHORISED PARTS CAN CREATE UNSAFE CONDITIONS AND
ENVIRONMENT.
• FOR OUTDOOR USE ONLY.
• READ THE MANUAL CAREFULLY BEFORE ASSEMBLY AND USE.
• ACCESSIBLE PARTS MAY BE VERY HOT. PLEASE KEEP YOUNG CHILDREN AND PETS AWAY.
• PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• PLEASE REMOVE ANY PACKAGING BEFORE ASSEMBLY AND USE.
• PLEASE READ THE CARE AND WARRANTY INSTRUCTIONS CAREFULLY BEFORE USE.
CB6-SBG001-A

Advertisement

Table of Contents
loading

Related Manuals for Cadero CB6-SBG001-A

Summary of Contents for Cadero CB6-SBG001-A

  • Page 1 USER MANUAL FOR GAS BARBECUE GRILL CB6-SBG001-A • FOR PROPANE ONLY. • IF A REPLACEMENT IS NECESSARY, PLEASE CONTACT EITHER OUR CUSTOMER SERVICE DEPARTMENT OR YOUR LOCAL DEALER. • THE USE OF UNAUTHORISED PARTS CAN CREATE UNSAFE CONDITIONS AND ENVIRONMENT.

  • Page 2: Safety Symbols

    Safety Symbols The symbols and boxes shown below explain what each heading means. Read and follow all of the WARNING messages found throughout the manual. WARNING CAUTION DANGER Indicates an imminently hazardous situation which, CAUTION if not avoided, will result in death or serious injury. DANGER WARNING Be alert to the possibility of serious bodily injury if...
  • Page 3 EIGHT BURNERS GAS BARBECUE GRILL PARTS LIST Cooking Grate ............Flame Tamer .

  • Page 4: Assembly Steps

    ASSEMBLY STEPS CAUTION Sharp edges! Wear gloves if necessary Tighten the screws M6X15 4PCS...
  • Page 5 Flame Tamer Instruction for replacing burners (if burners need to be replaced)
  • Page 6 Place cooking grates (No. 2) into main body. Grate wires running front to back should be toward the top side of square tubes at each end. No. 2...
  • Page 7 AA Battery (Battery is not provided)

  • Page 8: General Installation

    CAUTION GENERAL INSTALLATION DANGER LP Tank Removal, Transport and Storage 1. Never fill the cylinder beyond 80% TURN OFF all control knobs and LP tank valve. Turn coupling full. An overfilled cylinder (liquid nut counter-clockwise by hand only. DO NOT use tools to dis- propane LP) tank is hazardous connect.

  • Page 9: Lp Tank Leak Test

    The LP tank must be provided with a listed overfilling prevention device. LP tank must be arranged with vapor withdrawal and include a collar to protect LP tank valve. (Liquified Petroleum Gas) LP gas is odorless and colorless when produced. For your safety, LP gas has been given an odor so that it can be smelled.
  • Page 10 The grill must be tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances. During leak test, keep grill away from open flames or sparks. Use a clean paintbrush and a 50/50 mild soap and water solution. Brush soapy solution onto areas indicated by arrows in figure below.
  • Page 11 5. Hold regulator and insert nipple into LP tank valve. Hand-tighten the coupling nut, holding regulator in a straight line wtih the LP tank valve so as not to cross-thread the connection. Nipple has to be centered in the LP tank valve. Hold coupling nut and regulator as shown for proper connection to LP tank valve.
  • Page 12 LEAK TESTING VALUES, HOSE AND REGULATOR 1. Turn all grill control knobs to OFF 2. Be sure regulator is tightly connected to LP tank. 3. Completely open LP tank valve by turning hand wheel counter-clockwise. If you hear a sound, turn gas off immediately.

  • Page 13: Safety Tips

    Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc. APARTMENT DWELLERS: Check with management to learn the requirements and fire codes for using an LP gas grill in your apartment complex.

  • Page 14: Igniter Lighting

    WARNING CAUTION Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons. DANGER DO NOT use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP tank off.

  • Page 15: Lighting The Rotisserie Burner

    LIGHTING THE ROTISSERIE BURNER 1. Read and follow all of the warnings and instructions in Owner’s Manual before lighting. 2. Open grill hood before lighting rotisserie burner 3. Make sure control knob is in the “OFF” position 4. Push and turn the control knob to the high position. Continue to push in control knob while press- ing electronic igniter for no less than 5 seconds.

  • Page 16: Igniter Check

    IGNITER CHECK Turn gas off at LP tank. Press and hold electronic igniter button. A click should be heard and a spark seen each time between burner and electrodes. See Troubleshooting section if there is no click or spark. VALVE CHECK Important: Make sure gas is off at LP tank before checking valves, and knobs are in Off position.

  • Page 17: Natural Hazard Spiders

    NATURAL HAZARD SPIDERS FACT: Sometimes spiders and other insects climb into the grill tubes attached to the burners. The spiders spin webs, build nests and lay eggs. The webs or nests can be very small, but they are very strong and can block the flow of gas.

  • Page 18: Indirect Cooking

    CLEANING THE BURNER ASSEMBLY (continued) 5. Brush entire outer surface of burner with a wire brush to remove food residue and dirt. 6. Clean any blocked ports with a stiff wire such as an open paper clip. 7. Check burner for damage. Due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

  • Page 19: Food Safety

    FOOD SAFETY Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these steps: • Clean: Wash hands, utensils and surfaces with hot soapy water before and after handling raw meat and poultry.

  • Page 20: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE PREVENTION/SOLUTION Burner(s) will not Wire and/or electrode covered with Clean wire and/or electrode with light using ignitor. cooking residue. rubbing alcohol and clean swab. Electrode cracked or broken “sparks Replace electrode(s). at crack”. Reconnect wires or replace elec- Electrode tip not in proper position.
  • Page 21 TROUBLESHOOTING (continued) PROBLEM POSSIBLE CAUSE PREVENTION/SOLUTION Flames blow out. High or gusting winds. Turn front of grill to face wind or increase flame height. Low on LP gas. Refill LP tank. Excess flow valve tripped. Refer to “Sudden Drop in Gas Flow” on previous page.

  • Page 22: Electronic Ignition

    TROUBLESHOOTING - ELECTRONIC IGNITION PROBLEM POSSIBLE CAUSE CHECK PROCEDURE PREVENTION/SOLUTION No sparks Output lead connec- Are output connections Remove and reconnect all appear at any tions not completed. on and tight? output connections at module electrodes when and electrodes. ignition switch is pushed;...
  • Page 23 7. Cadero BBQ & Hardware and its par ties neither assumes or authorizes any third party to assume, on its behalf, any other liabilities with respect to the sales of this product.
