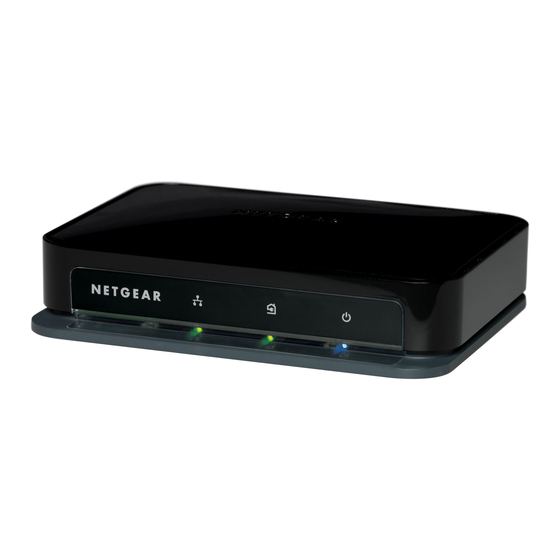

- Page 1 XAV1004 Powerline AV Ethernet Adapter User Guide NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134 USA 202-10470-01 v1.1 September 2009...
-
Page 2: Technical Support
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. -
Page 3: Safety And Regulatory Notices
Safety and Regulatory Notices FCC Statement The XAV1004 has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 4 For EU Declaration of Conformity, please visit: http://kb.netgear.com/app/answers/detail/a_id/11621/sno/0 Product and Publication Details Model Number: XAV1004 Publication Date: September 2009 Product Family: Powerline AV Ethernet Adapter Product Name: XAV1004 Powerline AV Ethernet Adapter Home or Business Product: Home Language: English Publication Part Number: 202-10470-01 v1.1, September 2009...
-
Page 5: Table Of Contents
Contents XAV1004 Powerline AV Ethernet Adapter User Guide About This Manual Conventions, Formats, and Scope ..................i How to Print This Manual ....................ii Revision History ......................... ii Chapter 1 Installation and Basic Configuration Package Contents ......................1-1 How the Powerline AV Ethernet Adapter Fits in Your Network ........1-2 XAV1004 Front View ......................1-3... - Page 6 Chapter 3 Troubleshooting Product Registration, Support, and Documentation ............3-1 Basic Functioning ......................3-1 Troubleshooting Tips ......................3-2 Problems After Changing Network Encryption Key ............3-2 Changing the Network Encryption Key, One Unit at a Time ........3-3 Appendix A Technical Specifications v1.1, September 2009...
-
Page 7: About This Manual
About This Manual The NETGEAR ® XAV1004 Powerline AV Ethernet Adapter User Guide describes how to install, configure and troubleshoot the XAV1004 Powerline AV Ethernet Adapter. The information in this manual is intended for readers with intermediate computer and Internet skills. -
Page 8: How To Print This Manual
XAV1004 Powerline AV Ethernet Adapter Manual Publication Date September 2009 Note: Product updates are available on the NETGEAR, Inc. website at http://www.netgear.com/support. How to Print This Manual To print this manual, your computer must have the free Adobe Acrobat reader installed in order to view and print PDF files. -
Page 9: Installation And Basic Configuration
Chapter 1 Installation and Basic Configuration This chapter describes the XAV1004 Powerline AV Ethernet Adapter and explains how to install it and use the Security button to customize the encryption. For information about using the XAV1004 configuration utility to configure Powerline security or to prioritize Powerline network traffic with Quality of Service (QoS) features, see Chapter 2, “Securing and Configuring Your... -
Page 10: How The Powerline Av Ethernet Adapter Fits In Your Network
You can use Powerline AV Ethernet Adapters to extend your Ethernet network anywhere in your house using your existing electrical power line. The following figure shows an example of a Powerline network that uses both an XAV101 and an XAV1004 Powerline device. The Powerline network connects to an Ethernet network:... -
Page 11: Xav1004 Front View
Powerline Power Ethernet (“Pick A Plug”) Figure 1-2 The following table describes the status lights (LEDs) on the front of the XAV1004. Table 1-1. XAV1004 LEDs Item Description Ethernet LED • Solid green. The Ethernet port is linked, but there is no activity. -
Page 12: Xav1004 Rear View
Description (continued) Ethernet ports Use these four ports to connect to connect the XAV1004 to peripheral devices, such as gaming consoles, DVD players, internet phones, or storage devices. The ports use a QoS priority algorithm to determine levels of service. For more information about connecting devices to these ports, see “Connecting Devices to the XAV1004”... - Page 13 Description Ethernet ports Use these four ports to connect to connect the XAV1004 to peripheral devices, such as gaming consoles, DVD players, internet phones, or storage devices. The ports use a QoS priority algorithm to determine levels of service. For more information about connecting devices to these ports, see “Connecting Devices to the XAV1004”...
-
Page 14: Installing Your Powerline Av Ethernet Adapter
Quality of Service (QoS) The XAV1004 supports both Powerline network-based and port-based Quality of Service (QoS). Powerline network-based QoS configures the priority of forwarded packets in the network. For more information about this type of QoS, see “Prioritizing Traffic on the Powerline Network... -
Page 15: Connecting Devices To The Xav1004
Service (QoS)” on page 1-6). To connect devices to your XAV1004, follow these steps: 1. Use an Ethernet cable to connect each peripheral device to an Ethernet port on the XAV1004. One Ethernet cable is provided with your XAV1004. Figure 1-6 Installation and Basic Configuration v1.1, September 2009... - Page 16 XAV1004 Powerline AV Ethernet Adapter User Guide 2. When all peripheral devices are connected, connect the XAV1004 power cord into the unit and into a power outlet. 3. Wait up to 80 seconds for the XAV1004 to be recognized by the Powerline network.
-
Page 17: Securing And Configuring Your Powerline Network
Chapter 2 Securing and Configuring Your Powerline Network This chapter describes Powerline network security, and describes how to use the XAV1004 Powerline Utility. You can use the Powerline Utility to configure encryption for your Powerline network and to check the link rate of traffic passing through the Powerline network. -
Page 18: Changing The Default Encryption Key Using Push 'N' Secure
3. To use a private encryption key instead of the default key, follow these steps: a. Press the Security button on the back of the XAV1004 for no more than two seconds. The Power LED will start blinking after you release the button. The adapter will produce a new, randomly generated network encryption key that each Powerline adapter will use. - Page 19 XAV1004 Powerline AV Ethernet Adapter User Guide You should install this utility if you want to do any of the following: • Set your own unique Powerline network encryption key • Check the link rate of traffic passing through the Powerline network.
-
Page 20: Using The Firmware Upgrade Tool
Ethernet cable before you run the Upgrade Tool. 1. Go to the XAV1004 program group and select the Upgrade Tool. 2. Click Next to proceed.The Upgrade Tool finds the adapter. - Page 21 XAV1004 Powerline AV Ethernet Adapter User Guide 1. On the Main tab, click the device name for a remote Powerline device to highlight it. Figure 2-2 2. Click Factory Reset, and a confirmation message displays. 3. Click OK to reset the device. A message indicates whether or not the operation succeeded.
-
Page 22: Running The Powerline Utility
XAV1004 Powerline AV Ethernet Adapter User Guide Running the Powerline Utility You can start the Powerline Utility by clicking the NETGEAR Powerline Utility icon on your desktop, or from the Windows Program menu. The Powerline Utility displays its Main tab: Figure 2-3 Note the message at the bottom of the screen regarding the power saving feature. -
Page 23: Powerline Security Tab
XAV1004 Powerline AV Ethernet Adapter User Guide Table 2-1. Configuration Utility Main Tab (continued) Field or Button Description Location This column shows whether the device is local or remote. The local device is the one connected with an Ethernet cable to the computer that you are using to run this utility. - Page 24 XAV1004 Powerline AV Ethernet Adapter User Guide Changing the Network Encryption Key You can change the network encryption key from the Security tab: Figure 2-4 1. To change the encryption key for a remote device, you must enter the password for the device.
- Page 25 XAV1004 Powerline AV Ethernet Adapter User Guide Note: Be sure to change the password of remote devices before changing it on the local device so that you can maintain connectivity throughout this process. 3. Enter the device password in the Set Device Password window: Figure 2-6 The device password is on the product label.
- Page 26 XAV1004 Powerline AV Ethernet Adapter User Guide Adding a Device from a Locally Connected Computer Follow these steps: 1. Plug the new Powerline AV Ethernet Adapter into an available AC power outlet. Connect the Ethernet cable that came with the adapter to the adapter’s Ethernet port and an Ethernet port on the computer.
- Page 27 1. Plug the new device into an AC power outlet. 2. Start the XAV1004 Configuration Utility and wait for the utility to detect the devices in your Powerline network. Check that all the devices in the established network are displayed on the Main tab.
-
Page 28: Prioritizing Traffic On The Powerline Network (Qos)
XAV1004 Powerline AV Ethernet Adapter User Guide 5. Select the Main tab, and then click Scan. Check that all devices are detected with your network encryption key. Prioritizing Traffic on the Powerline Network (QoS) You can prioritize data traffic on your Powerline network by setting the Quality of Service (QoS) for each Powerline device in your network. -
Page 29: Powerline Utility Logs
XAV1004 Powerline AV Ethernet Adapter User Guide 5. (Optional) Select TOS Bits, and select the priorities for each TOS bit from the drop down lists. Note: If both VLAN Tags and TOS Bits are enabled and a frame contains both, the VLAN values will override the TOS values. -
Page 30: Troubleshooting
Powerline AV Ethernet Adapter. Basic Functioning After you turn on power to the XAV1004 device, the following sequence of events should occur: 1. When power is first applied, verify that the Power LED is on. 2. After approximately 10 seconds, verify that: a. -
Page 31: Troubleshooting Tips
• If the problem occurred after you changed the network encryption key using the XAV1004 Configuration Utility on the CD, press the Reset button to return the Powerline AV Ethernet Adapters to their default settings. If this fixes the problem, see the User Manual for instructions about setting the network encryption key. -
Page 32: Changing The Network Encryption Key, One Unit At A Time
XAV1004 Powerline AV Ethernet Adapter User Guide 1. Open the XAV1004 Powerline Utility and select the Security tab. Figure 3-1 2. Select the local device. 3. For each remote device, enter its password (printed on the product label), and then select it. -
Page 33: Technical Specifications
Appendix A Technical Specifications This appendix provides technical specifications for the XAV1004 Powerline AV Ethernet Adapter. Network Protocol and Standards Compatibility Data and Routing Protocols: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx) Power Power Consumption: 110VAC/60Hz, 5W Max. 220VAC/50Hz, 6W Max. - Page 34 XAV1004 Powerline AV Ethernet Adapter User Guide Modulation type: OFDM symbol modulation Electromagnetic Emissions Meets requirements of: FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate Safety Agency Approvals Meets requirements of: UL 60950 /cUL IEC60950; CE LVD; TUV CB Technical Specifications v1.1, September 2009...
