- Page 1 66301K-mn Ceramic glass hob Table de cuisson vetrocéramique Glaskeramische kookplaat Installation and Operating Instructions Instructions de montage et mode d’emploi Montage- en gebruikshandleiding...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety information” on the first few pages. Please retain these operating instructions for later refer- ence. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions Warning: Information concerning your personal safety. -
Page 3: Table Of Contents
Contents Operating Instructions ........Safety . - Page 4 Installation Instructions ........32 Technical Data ..........32 Regulations, Standards, Directives .
-
Page 5: Operating Instructions
Operating Instructions 1 Safety The safety aspects of this appliance comply with accepted technical standards and the German Appliance Safety Law. However, as manufac- turers we also believe it is our responsibility to familiarise you with the following safety instructions. Electrical Safety •... -
Page 6: Safety When Cleaning
• Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil (e.g. chips). • Switch off the cooking zones after use. Safety When Cleaning • For safety reasons do not clean the appliance with a steam jet or high pressure cleaner. -
Page 7: Disposal
2 Disposal Disposing of the packaging material All materials used can be fully recycled. Plastics are marked as follows: • >PE< for polyethylene, as used for the outer wrapping and the bags inside. • >PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs. -
Page 8: The Key Features Of Your Appliance
The Key Features of Your Appliance • Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and 4 rapid response cooking zones. The particularly powerful radiant heater elements significantly shorten the amount of time taken for the zones to heat up. •... -

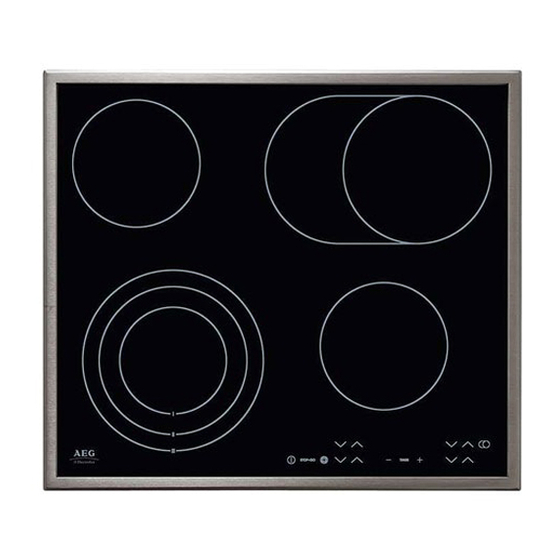

Page 9: Description Of The Appliance
Description of the Appliance Cooking zones and control panel Single ring cooking zone Casserole zone 1200W 2400W Triple ring cooking zone Control panel Single ring cooking zone 2300W 1200W Three-ring sensor panel Browning zone sensor panel Sensor panel Three-ring control lamps Browning zone control lamp ”Stop+Go”... -
Page 10: Digital Displays
Digital displays The four display panels that belong to the four cooking zones indicate: – ¾ after having been switched on, – u when a keep warm setting has been selected, – ¿ to Ç, depending on the cooking setting selected, –... -
Page 11: Before Using For The First Time
Before Using for the First Time Initial Cleaning Wipe the ceramic glass surface with a damp cloth. Important: Do not use any caustic, abrasive cleaners! The surface could be damaged. Operating the Hob Touch control sensor panels To operate the touch control sensor panels, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is carried out. -
Page 12: Switching Off The Appliance
Switching off the appliance To completely switch off the appliance, actuate the “On/Off” sensor panel I. Touch the “On/Off” sensor panel for approx. one second. After switching off a single cooking zone or the entire cooking surface, the existing residual warmth will be displayed in the digital displays of the corresponding cooking zones in the form of h (for “hot”). -
Page 13: Keep Warm Setting
Keep warm setting Each of the 4 cooking zones has a keep warm setting u. Use the cooking setting selector sensor panel to set the keep warm setting u. Switching the browning zone on and off 1. Set the desired cooking setting. 2. -
Page 14: Switching The Triple Ring Zone On And Off
Switching the triple ring zone on and off According to the size of the saucepan or frying pan, when using the tri- ple ring cooking zone you can switch from a smaller cooking zone to a larger cooking zone using the “triple ring zone” sensor panel. You can only switch to the next size if a cooking setting has already been set for the smaller heating ring. -
Page 15: Stop+Go Function
3. Touch the “triple ring” sensor panel to activate the outer heating ring. The upper control lamp will illuminate. 4. To switch off the outer heating ring, touch the “triple ring” sensor pan- el, and the heating ring that is outermost at the time will switch off. STOP+GO function When the “Stop+Go”... -
Page 16: Switching Off A Cooking Zone
Switching off a cooking zone 1. To switch off a cooking zone touch the cooking setting selector sensor panel simultaneously, or return the setting to zero using the cooking setting selector sensor panel Residual Heat Indicator When an individual cooking zone or the entire hob is switched off, any residual heat is shown with an h (for “Hot”) in the digital display for the appropriate cooking zones. -
Page 17: Cooking Using The Automatic Warm Up Function
Cooking using the automatic warm up function All of the cooking surface’s four cooking zones can be adjusted to any of nine settings, and are equipped with an automatic warm up func- tion: – ¿, lowest cooking setting – Ç, highest cooking setting –... -
Page 18: Cooking Without The Automatic Warm Up Function
Cooking without the automatic warm up function If you wish to use the cooking zones without the automatic warm up function, select the desired cooking setting using the cooking setting selector sensor panel 1. Touch the cooking setting selector sensor panel in order to set the desired cooking setting from Ç... -
Page 19: Child Safety Lock
Child safety lock You can use the child safety lock to safeguard against unwanted use of the cooking surface. Switching on the child safety lock To be able to switch on the child safety lock the appliance must be switched on, but all the cooking zones must be switched off. 1. - Page 20 Overriding the child safety lock The child safety lock can be overridden in order to use the appliance (until the appliance is switched off again). When the appliance is switched on again the child safety device is activated once again. 1.
- Page 21 Switching off the child safety lock 1. Switch on the appliance. When the child safety device has been activated, l will be displayed. 2. Touch the sensor field for approx. three seconds. An acoustic signal will sound as confirmation. 3. Touch any heat setting sensor field The displays will become dark, and the child safety device is switched off.
-
Page 22: Timer
Timer There are two ways to use the timer: – as a safety cut-out function. Set a cooking period for a cooking zone, and after this time has elapsed the cooking zone will automati- cally switch itself off. This function can be used for more than one cooking zone simultaneously. - Page 23 2. While the control lamp is flashing rapidly, use the timersetting sensor panels to set the desired period of time for this cooking zone up until the point where it automatically switches itself off (e.g. 15 minutes). The safety cut-out function will be activated after several minutes The control lamp will now flash more slowly and the remaining cooking time will be shown in the display as it elapses.
-
Page 24: Countdown Timer
Switching off the safety cut-out function before it has come to an end There are two ways to switch off the safety cut-out function before it has come to an end. Switch off the cooking zone and timer simultaneously 1. Using the cooking setting selector sensor panel, reset the desired cooking zone to zero: the cooking zone and timer will switch them- selves off. -
Page 25: Uses, Tables And Tips
Uses, Tables and Tips Pans The better the pan, the better the results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base. -
Page 26: Advice On Cooking With And Without Automatic Warm Up
• The base of the pan should be the same size as the cooking zone. • Using a pressure cooker reduces cooking times by up to 50%. Advice on Cooking with and without Automatic Warm up The automatic warm up function is suitable for: •... -
Page 27: Reference Values For Your Cooking
Reference values for your cooking The figures in the following table are benchmark figures. The switch setting required for a certain cooking method depends on the quality of the pans and the type and amount of food. Automatic Switch warm up func- Cooking Examples for use setting... -
Page 28: Cleaning And Care
Cleaning and Care Important: Cleaning agents must not come into contact with the hot ceramic glass surface! All cleaning agents must be removed with plenty of clean water after cleaning because they can have a caustic effect when the rings are next heated! Do not use any aggressive cleaners such as grill or oven sprays, coarse scourers or abrasive pan cleaners. -
Page 29: Hob Frame
Problem Dirt 1. Remove burnt-on sugar, melted plas- tic, aluminium foil or other meltable materials with a glass scraper imme- diately and while still hot. Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone! 2. -
Page 30: What To Do If
What to do if … Rectifying faults It is possible that faults have been caused by a minor error, which you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. - Page 31 … after having switched off the cooking zones, no h for residual warmth is indicated in the display. Check whether – the cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call customer service. …...
-
Page 32: Installation Instructions
Installation Instructions Important! The new appliance may only be installed and connected by qualified personnel. Please observe this instruction, otherwise the warranty will not cover any damage that may occur. Technical Data Appliance dimensions Width 572 mm Depth 502 mm Height 47 mm Worktop cut-out dimensions... -
Page 33: Regulations, Standards, Directives
Regulations, Standards, Directives This appliance meets the following standards: • EN 60 335-1 and EN 60 335-2-6 relating to the safety of electrical appliances for household use and similar purposes and • EN 60350, or DIN 44546 / 44547 / 44548 relating to the operating features of electric cookers, hobs, ovens, and grills for household use. -
Page 34: Safety Instructions For The Installer
Safety Instructions for the Installer • A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors. -
Page 35: Electrical Connection
Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the avail- able supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. -
Page 37: Service
Service In the “What to do if …” section a number of malfunctions are listed that you can rectify yourself Look there first if a fault occurs. Is it a technical fault? If so, please contact your customer service centre. (You will find ad- dresses and telephone numbers in the section “Customer Service Cen- tres”.) Always prepare in advance for the discussion. - Page 38 Assembly / / Montage...
