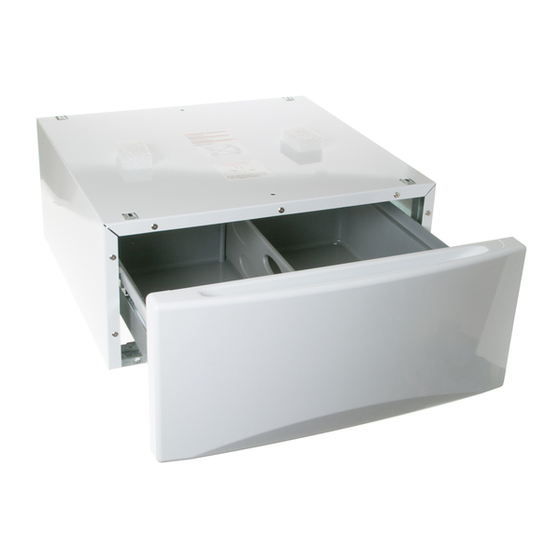

GE SBSD137 Installation Instructions Manual

Installation
Instructions
Instructions en français : . . . . . . . . . . . .4
Instrucciones en español: . . . . . . . . . . .8

BEFORE YOU BEGIN

Read these instructions completely
and carefully.
IMPORTANT
•
instructions for local inspector's use.
IMPORTANT
•
governing codes and ordinances.
• Note to Consumer – Keep these
instructions with your Owner's Manual
for future reference.
• Completion time – 1 to 2 hours
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.
CAUTION
weight of these products, and to reduce the
risk of personal injury or damage to the
product, TWO PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
• See washer and dryer installation
instructions for additional installation
requirements and guidelines.
KIT CONTENTS
4 Support Pads
4 Mounting Screws
Drawer Divider
— Save these
— Observe all
— Due to the size and
SBSD137, SBSD227
For Washer Models: GBVH5140, GBVH6260, GCVH6260, GCVH6600, GHDVH626,
GHDVH670, WBVH5100, WBVH6240, WCVH6260, WCVH6600, WHDVH626
and WHDVH660
For Dryer Models: DBVH510, DBVH512, DCVH515, DCVH660, DHDVH52,
DHDVH66, PBVH415, PCVH565, PDVH515, PHDVH52 and PHDVH57
TOOLS YOU WILL NEED
Phillips Head
Screwdriver
9/16" Open End Wrench
or Adjustable Wrench
8 mm Socket Wrench
INSTALLATION PREPARATION
Remove the packaging.
The Drawer divider is taped at the top of the
shipping carton. Remove the divider and set
aside for final installation.
Flatten the product carton to use as a pad
to lay the washer or dryer down on its side.
Continue using the carton to protect the finished
floor in front of the installation location.
1 REMOVE THE LEVELING LEGS
Carefully lay the washer or dryer on its
A
side to access the leveling legs on the
bottom of the appliance.
IMPORTANT: Do not lay the washer or dryer
on its back! Do not remove the shipping
bolts on the back side of the washer. The
bolts must remain in place until the washer
is returned to an upright position.
B Use an open-end wrench to remove the
washer or dryer leveling legs.
1
Back out and remove
all 4 leveling legs
